Linea Professional

J O N I X c u b e

USE AND MAINTENANCE MANUAL

JONIX

CONTROLLER

pure living

AIR PURIFICATION DEVICE

WITH ADVANCED COLD PLASMA TECHNOLOGY

FOR PROFESSIONAL ENVIRONMENTS

Need help?

Do you have a question about the Professional cube and is the answer not in the manual?

Questions and answers

Summary of Contents for Jonix Professional cube

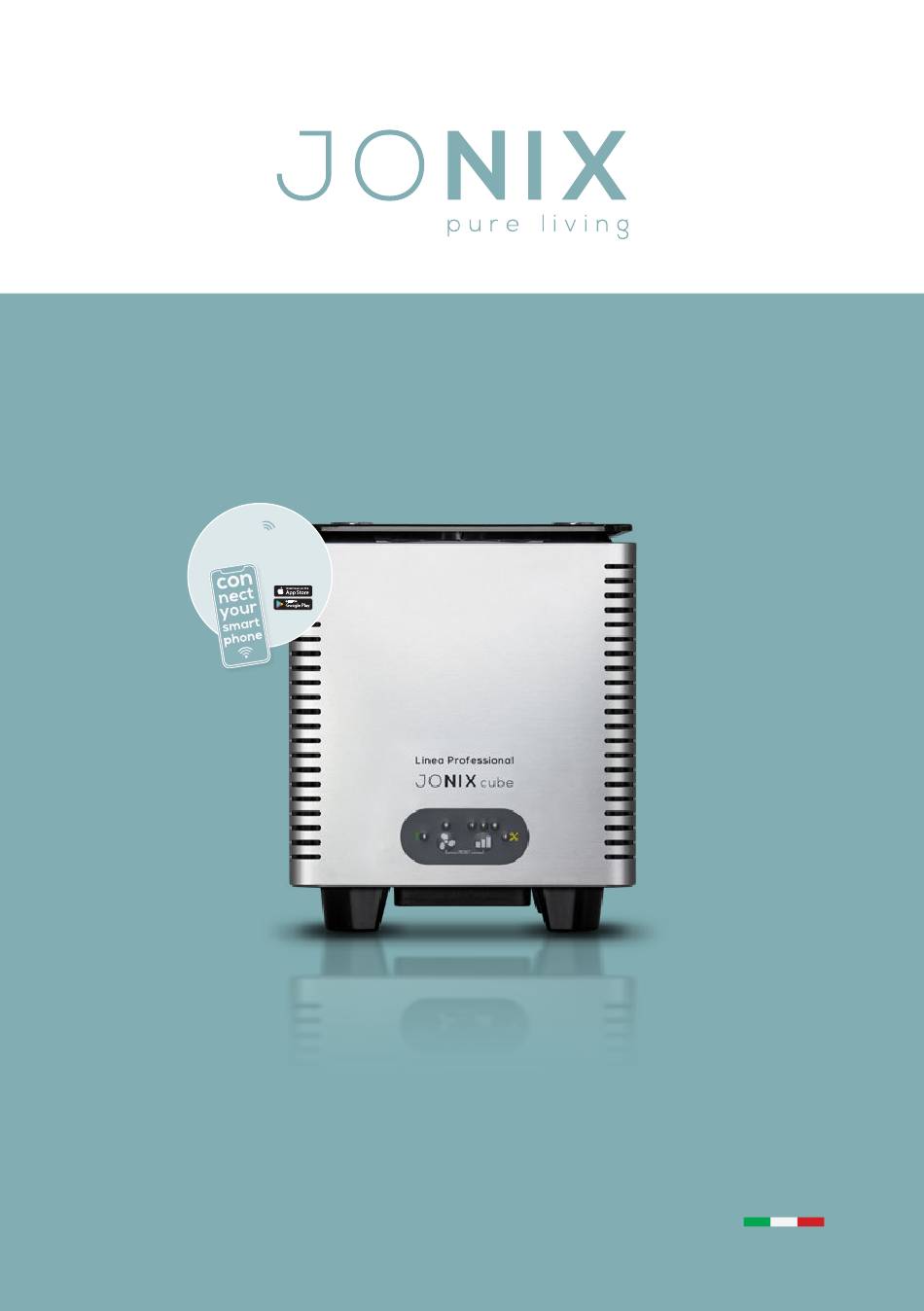

Page 1 Linea Professional J O N I X c u b e USE AND MAINTENANCE MANUAL JONIX CONTROLLER pure living AIR PURIFICATION DEVICE WITH ADVANCED COLD PLASMA TECHNOLOGY FOR PROFESSIONAL ENVIRONMENTS...
Page 2 JONIX S.p.A. make any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual without S.p.A.’s consent.
Page 3 1.3.2 - Symbols 1.3.3 - Definitions 2 - WARNINGS AND GENERAL PROHIBITIONS 3 - THE OPERATING SYSTEM 4 - TECHNICAL DATA JONIX cube 4.1 - COMPONENTS DESCRIPTION JONIX cube 4.1.1 - Technical characteristics JONIX cube 4.1.2 - Spare parts available on order 5 - RECEPTION, TRANSPORT AND STORAGE 5.1 - PACKAGING...
Page 4 This manual contains the information and anything deemed necessary for the transport, installation, use and maintenance of the active sanitizing and air purification device JONIX cube Improper installation of the device and/or failure to comply with the instructions in this manual, may void the warranty that the Manufacturer issues for its products.
Page 5 Failure to comply with the instructions contained in this Use and Maintenance Manual releases JONIX S.p.A. from any liability. For any data not understood or not deductible from the pages to follow, it is recommended to contact the manufacturer at the operational headquarters...
Page 6 Linea Professional J O N I X c u b e 1.3 GENERAL SAFETY INSTRUCTIONS, SYMBOLS AND DEFINITIONS 1.3.1 General safety instructions Any intervention, of whatever nature, on the device must be carried out by prior and careful reading of this manual in all its parts, with particular reference to SAFETY. It is essential, therefore, that the device is used in accordance with its intended use and with this manual.
Page 7 USER/OPERATOR Individual who has been authorised by the user to operate the device. QUALIFIED STAFF AUTHORIZED BY JONIX S.p.A. Individuals who, on the basis of their professional training, experience, knowledge of relevant regulations and accident prevention regulations, are able to assess the work entrusted to them and recognize and avoid any hazards.
Page 8 JONIX or download the S.p.A. document from www.jonixair.com. It is the user's responsibility to ensure that, if this document is modified by JONIX , only the updated versions of the Manual are actually present at the points S.p.A. of use.
Page 9 Linea Professional J O N I X c u b e Do not touch the device if you are barefoot and with parts of the body that are wet or damp. Any maintenance or cleaning operation before disconnecting the device from the power supply is prohibited.
Page 10 • If a malfunction not indicated in this manual occurs, disconnect the power supply to the device and consult your dealer and/or JONIX S.p.A. • Only specialised personnel authorized by JONIX , can perform maintenance operations S.p.A. other than those specified in this manual.
Page 11 J O N I X c u b e 3 - THE OPERATING SYSTEM Among the wide range of air ionisers available on the market, the JONIX cube ioniser is a top of the range device that combines high performance and a modern and attractive design.
Page 12 Linea Professional J O N I X c u b e 4 - TECHNICAL DATA 4.1 COMPONENT DESCRIPTION Fig. 1 Protection lid Ionizing generator Earthing spring Top cover opening safety switch Guides for correct positioning of the ionizing tube Power cable socket Main switch Control Panel Filter cover...
Page 13 Linea Professional J O N I X c u b e 4.1.1 Technical features MODEL Code 70BLACKCUBEPRO Plasma generators 2 x 175 mm type Generators replacement every 8740 of actual operation of generators Generators maintenance every 840 of actual operation of generators Dimensions 215 (L) x 215 (P) x 260 (H) mm Weight...
Page 14 5 - RECEPTION, TRANSPORT AND STORAGE 5.1 PACKAGING The JONIX cube device is shipped in special protective packaging that must be kept intact until installation. The materials that were not installed for technical requirements are supplied with suitable enclosure secured to the inside or outside of the device itself.
Page 15 JONIX S.p.A. declines all liability for damage due to poor handling, transportation and storage. 5.5 HANDLING DEVICE IN OPERATING CONDITIONS JONIX cube device is easy movable in various environments, because it is provided with reduced dimensions (see Chapter 4 "Technical Data"). 15 - 52...
Page 16 J O N I X c u b e 6 - INSTALLATION AND COMMISSIONING JONIX S.p.A. disclaims any liability for failure to comply with the safety and prevention standards as described below. The Manufacturer also disclaims any liability for damage caused by improper use of devices and/or alterations carried out without prior authorisation.
Page 17 Opening or removing the outer casing may expose you to dangerous live parts or may involve other risks. All maintenance work must be carried out by specialized personnel authorized by JONIX S.p.A., except where specified in this manual. • Do not tamper with or modify the device.
Page 18 • Do not use the device near air fresheners, essential oils, chemical additives and similar products. • Disconnect the device from the power supply and contact JONIX S.p.A. or a dealer for service when any of the following cases occur: - the internal parts of the device have come into contact with water or other liquids of any kind;...
Page 19 Linea Professional J O N I X c u b e 6.2 GETTING STARTED • Check that the various components of the device are fully intact. • Check that the documentation and all components for installation are contained in the package. •...
Page 20 It is recommended to check that the energy delivered is stable. Otherwise a voltage stabilizer must be installed upstream. 6.6 USING THE DEVICE The JONIX cube device has been designed to work in a user-friendly and immediate way, simply by connecting it to the power supply line with the cable provided. Fig. 5: Remove the device from the packaging.
Page 21 Linea Professional J O N I X c u b e Fig. 6: Connect the device to the mains using the power cable provided. Fig. 7: The ON/OFF switch is located at the bottom of the device (see chapter 4). To switch the device on press the 0/I button, switching it to I: you will hear a slight hissing sound coming from inside the device and the LED on the control...
Page 22 Linea Professional J O N I X c u b e 6.7 CONTROL PANEL The device control panel consists of: • 2 control keys. • 6 status indication LEDs. The integrated control electronics allows operating the device at 3 different timing levels. Device On 01 Power indicator LED Device Off...
Page 23 Linea Professional J O N I X c u b e 6.7.1 Operating levels The operating level can be selected to meet the following requirements: • the quantity of pollutants or odours present or produced in the room; • if there is a need to carry out an intense sanitization activity (decontamination); •...
Page 24 Bluetooth: Bluetooth BLE. I WiFi: WiFi 2.4 GHz. To install Jonix Cube IoT devices in a network with a certain degree of protection (for example, with firewalls), it is necessary to enable the ICMP protocol towards the outside and the opening (always towards the outside) of the TCP and UDP ports: - For the TCP protocol: 443 (FOTA) and 80 (HTTP).
Page 25 Linea Professional J O N I X c u b e 7.2 CONTROL PANEL JONIX cube The device control panel consists of: • 2 control keys. • 6 status indication LEDs. Fixed green LED: Wi-Fi is connected. Flashing light: the device is connecting with Wi-Fi.
Page 26 - Level I -> until 20 m - Level II -> 21 ÷ 50 m - Level III -> 51 ÷ 85 m The JONIX cube IOT device allows you to manage timing levels from the App Controller (see the chapter "REMOTE MANAGEMENT WITH IOT SYSTEM").
Page 27 Linea Professional J O N I X c u b e 7.3 REGISTRATION AND LOGIN anna.rossi@gmail.com anna.rossi@gmail.com Launch the Jonix Controller App. Once the fields have been filled Access by "Login" Press "Register". Fill in the fields in, press "Continue". Check using the Mail and with the required information.
Page 28 40 m2 be pre-filled. Once the fields have been filled By pressing the “Register now” button, the user can subscribe to in, press "Continue". Jonix Maps, the Jonix App that geolocates commercial activities. 28 - 52...
Page 29 Linea Professional J O N I X c u b e 7.4.1 Main screen (with associated device) Name associated with the device. Key to access device information. to select the device timing level. to access the specific programming of the device. to access the device maintenance.
Page 30 Linea Professional J O N I X c u b e 7.4.2.2 Maintenance Status Counter showing the hours remaining until the device must be cleaned. Counter showing the hours remaining until the ionisers must be replaced. Pressing it is possible at any time to view the hours remaining until scheduled maintenance (cleaning and replacement).
Page 31 Linea Professional J O N I X c u b e to access the screen with the details of the program associated with the device. to delete the to remove the selected program. previously selected program. to copy the to change the choice selected program.
Page 32 Access to the Jonix support form. Access to the "Privacy Policy" screen. Access to the "Terms and Conditions" screen. Access to the up-to-date information with the Jonix Blog. App version. Access to the "Jonix Shop". screen. User log off key.
Page 33 Counter showing the hours remaining until the ionisers must be replaced. By pressing the “Info” key, the user can view a popover with useful tips to perform the reset by pressing the keys on the keypad of the Jonix cube IoT device. 33 - 52...
Page 34 Linea Professional J O N I X c u b e 7.6.3 Program Screen to change the choice of programming. to remove the previously selected program. to access the screen with the details of the program associated with the device. 7.6.4 Advanced Screen Press to unpair the device and to restore the factory settings.
Page 35 2) Check that the WI-FI changed. 3) Reconfigure WI-FI. router is turned on and 2) Turn the Jonix device off 4) Turn the Jonix device off and that its settings have not and on again. on again. changed. Oops! An error has occurred.
Page 36 The frequency of the operations to be performed to ensure proper maintenance of the device JONIX cube depends mainly on the quality of the treated air. Air can be especially harmful for device when it contains polluting or aggressive substances such as:...
Page 37 8.2.1 Cleaning ionizing tubes The JONIX cube signals the need for cleaning of the ionising tubes, through the indicator light shown on the display (orange led), every 840 hours of operation. However, when operating in highly contaminated environments, the electronics of the device could intervene even if this time has not yet elapsed.
Page 38 Linea Professional J O N I X c u b e Fig. 12: Gently unscrew the ionising tubes by acting on the safety cup that can be reached by hand through the special slots. Fig. 13: Clean the tube with a slightly damp cloth (that does not shed fibres), slightly rotating the metal mesh around the glass.
Page 39 Linea Professional J O N I X c u b e Fig. 15: Put the lid back on the device CLICK! CLICK! by pushing it until the parts are locked in CLICK! place. CLICK! Fig. 16: Reconnect the plug. Switch the ionising device on by switching the On/Off button to I.
Page 40 Linea Professional J O N I X c u b e 8.2.2 Cleaning the filter Clean the filter at the bottom of the device during every ionizing tube maintenance operation. In the case of rooms with high quantities of dust, it is advisable to reduce the time required to maintain the device in operation and remove traces of dust and residues that obstruct the air flow.
Page 41 Linea Professional J O N I X c u b e Fig. 21: Use a damp microfibre cloth to wipe the plastic filter cover and the grid incorporated in the closing plate. Fig. 22: Put the mesh filter back into the filter cover.
Page 42 The JONIX cube signals the need for replacement of the ionising tubes, through the indicator light shown on the display (orange led), every 8740 hours of operation.
Page 43 Linea Professional J O N I X c u b e Fig. 25: Switch the ioniser off by switching the On/Off button to O. Put the device on a flat surface. Remove the plug connected to the mains. Fig. 26: Remove the lid by pulling it upwards.
Page 44 Linea Professional J O N I X c u b e Fig. 29: Screw the new ionizing tubes back into place by acting again on the safety cup. ATTENTION: do not overtighten the screw after reaching its end stop. Once the ionising tubes have been screwed back into place, the earthing spring is in contact with the outer mesh.
Page 45 8.3 SPECIAL MAINTENANCE Any maintenance that does not fall within the operations described as routine maintenance must only be carried out by specialist personnel authorised by JONIX S.p.A.. Contact distributor, dealer or JONIX S.p.A.. 45 - 52...
Page 46 Linea Professional J O N I X c u b e - CHECKING OPERATION AND POSSIBLE FAULTS (DIAGNOSTICS) This section summarises the most common problems that may arise when using the unit. Before contacting customer service, make the checks described in the paragraph on diagnostics and check that the "maintenance led"...
Page 47 9.3 GENERAL DIAGNOSTIC PROVISIONS If a malfunction other than that described above occurs, contact a Dealer, a Distributor or JONIX S.p.A. and always quote the part number and serial number on the plate of the device. Fig. 34: Disconnect the power supply to the device and contact JONIX S.p.A.
Page 48 J O N I X c u b e 10 - DISPOSAL When the JONIX devices are no longer used they must be disposed of in compliance with the regulations in force in the country of installation. The devices consists of the following materials: •...
Page 49 Linea Professional J O N I X c u b e NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................49 - 52...
Page 50 Linea Professional J O N I X c u b e NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................50 - 52...
Page 51 Linea Professional J O N I X c u b e 51 - 52...
Page 52 JONIX Benefit Corporation Registered Office Operational Headquarters Research and Deve- info@jonixair.com Viale Spagna 31/33 Via dell’Artigianato, 1 lopment Headquarters jonixsrl@legalmail.it 35020 Tribano (PD) - Italy 35020 San Pietro Viminario Via Tegulaia 10/b Ph. +39 049 9588511 (PD) – Italy...
