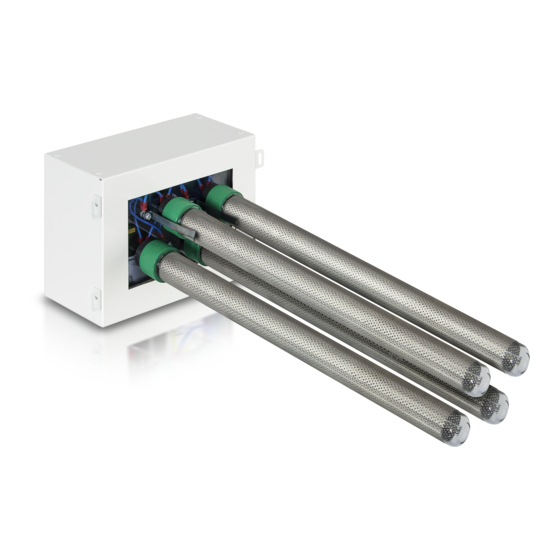

- Page 1 JONIX duct USE AND MAINTENANCE MANUAL JONIX duct 70MIC2F JONIX duct 70MIC2C JONIX duct 70MIC4F JONIX duct 70MIC4C DUCTABLE IONISING MODULE MADE IN ITALY...
- Page 2 These instructions are translated from Italian (the original language). JONIX S.p.A. reserves every right concerning this manual, including the right to make any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part...
-
Page 3: Table Of Contents
4.1 - COMPONENT DESCRIPTION JONIX duct 4.1.1 - Technical features JONIX duct 4.2 - SPARE PARTS AVAILABLE ON ORDER JONIX duct 5 - RECEPTION, TRANSPORT AND STORAGE 5.1 - PACKAGING 5.2 - HANDLING AND TRANSPORT 5.3 - INSPECTION UPON RECEPTION 5.4 - STORAGE... - Page 4 This manual contains the information and all that is required for the transportation, installation, use and maintenance of the Ductable Ionising Module JONIX duct Improper installation of the device and/or failure to comply with the instructions in this manual, may invalidate the warranty that the Manufacturer issues for its products.
-
Page 5: General Information
In particular, if equipment maintenance is carried out in a way that is not in compliance with the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX S.p.A. relieved from any liability inherent to safety of persons and faulty operation of the equipments. -
Page 6: Symbols
JONIX for another copy or download the document S.p.A. from www.jonixair.com. Repairs and maintenance work must be carried out by JONIX authorised S.p.A. staff or by qualified staff according to the provisions set out by this manual. Do not alter or tamper with the device as it can lead to hazards and the manufacturer of the device shall not be liable for any damage caused. - Page 7 When installing, commissioning and operating this product, it is mandatory to observe the requirements and instructions specified in this manual. disclaims any liability for damage caused to people, animals or JONIX S.p.A. property due to installation, adjustment and maintenance errors or by improper use.
-
Page 8: The Operating System
• Low power consumption: from 20 to 40 VA; • Strong deodorizing action: it eliminates odours from the air flowing through; • Natural process: it does not use nor produces residual chemical substances. New generation ionising units are used in the JONIX module, characterised by high duct efficiency and selectivity, which do not produce any significant increases in undesirable by- products such as ozone or nitrous compounds, in irritating or even toxic amounts. -
Page 9: Technical Data Jonix
As a result, it is easy to implement a software interface capable of displaying messages requesting maintenance when this signal is received. The the JONIX duct modules can therefore be perfectly integrated in aeration systems commanded by a central control unit. -
Page 10: Reception, Transport And Storage
The materials that were not installed for technical requirements are supplied with suitable enclosure secured to the inside or outside of the device itself. The package includes: - N° 1 JONIX Ductable Ionising Module. duct - N°... -
Page 11: Installation And Commissioning
J O N I X d u c t 6 - INSTALLATION AND COMMISSIONING ATTENTION! Before carrying out any operation on the devices read ALL the instructions in this manual carefully. Definitions: USER: USER/OPERATOR: QUALIFIED STAFF: Person, organisation or Individual been Individuals who have completed a company who or which... -
Page 12: Getting Started
• Always connect the generator activation contact. This contact must be normally closed in case of active ionization, and normally open in case of deactivated ionization. IMPORTANT The installer and the user, when using the JONIX device, must duct take into account and solve all the other types of risk associated with the system. -
Page 13: Installing The Device
Easy to install in any ductwork and with any material. JONIX duct devices – thanks to their adaptability and to their space-saving designs - can be easily fixed on either side of the duct. All you need is an opening on a wall (in horizontal or vertical position): the device can be fastened using the eyelets supplied as standard. -
Page 14: Electrical Connections
Using power supply that does not meet the requirements requested by the device could resolve in damaging the device or part of it. • The electrical mains of the JONIX device must be used for the device only, there must duct be no other devices powered by the same power line. -
Page 15: Using The Device
We recommend you to link the contact of input signal and serial interface RS485. Fig. 02: Once connected to the mains supply, the JONIX module is ready duct to work. - Page 16 J O N I X d u c t The alarms are split up into type and marked through 2 clean contact usually opened: 1. RL1 Maintenance alarm periodic/replacement. It is enabled after 7000 hours of functioning to indicate the necessity of a periodic cleaning of plasma generators (flashing way 5 sec on, 2 sec off) or after 14000 hours to ask the sostitution of generators themselves (fixed way)..Once done the requested operations the relay can be reset through command on serial line or through IN1 entrance.
- Page 17 J O N I X d u c t N° VARIABLE DEFINITION UNITY NOTES TYPE Threshold MIN voltage Lecture 0: not active Lecture / Alarm MIN voltage generators 1: active (type 0 to reset) Scripture Threshold MAX voltage generators Lecture 0: not active Lecture / Alarm MAX voltage generators...
-
Page 18: Maintenance
7.2 ROUTINE MAINTENANCE The JONIX device requires a small amount of maintenance consisting in regularly cleaning duct the glass and outside mesh of the condenser. -
Page 19: Cleaning The Ionising Tubes
On/ JONIX duct Off switch to O. Remove the plug connected to the mains and other plugs from the JONIX duct module. Fig. 04: Unscrew the four screws which, by means of the brackets, secure the module to the wall and pull it out by the handle. - Page 20 J O N I X d u c t Fig. 07: Wash the mesh under running hot water and dry it thoroughly with a cloth. Do not put back the mesh on the ionising tube if it is even partially wet. Fig.
-
Page 21: External Cleaning Of The Equipment
J O N I X d u c t Fig. 10: Reposition the device JONIX duct by inserting the ionising tubes horizontally into the specific hole using the handle and screw in the 4 screws which secure the brackets to the wall. -
Page 22: Special Maintenance
On/ JONIX duct Off switch to O. Remove the plug connected to the mains and other plugs from JONIX module. duct Fig. 13: Unscrew the four screws which, by means of the brackets, secure the module to the wall and pull it out by the handle. - Page 23 Otherwise contact the manufacturer. Fig. 16: Reposition the device JONIX duct by inserting the ionising tubes horizontally into the specific hole using the handle and screw in the 4 screws which secure the brackets to the wall.
-
Page 24: Operational Check And Troubleshooting
J O N I X d u c t 8 - OPERATIONAL CHECK AND TROUBLESHOOTING This section summarises the most common problems that may arise when using the unit. Before contacting customer services, carry out the checks listed below. POSSIBLE PROBLEM SOLUTION CAUSE... -
Page 25: Disposal
J O N I X d u c t 9 - DISPOSAL When JONIX devices are no longer used they must be disposed of in compliance with duct the regulations in force in the country of installation. The unit consists of the following materials: •... -
Page 26: Attachments
J O N I X d u c t ATTACHMENTS OVERALL DIMENSIONS JONIX duct 70MIC2C... - Page 27 OVERALL DIMENSIONS JONIX duct 70MIC4C 74.5 74.5...
- Page 28 J O N I X d u c t OVERALL DIMENSIONS JONIX duct 70MIC2F...
- Page 29 J O N I X d u c t OVERALL DIMENSIONS JONIX duct 70MIC4F 74.5 74.5...
- Page 30 J O N I X d u c t NOTES ............................................................................................................................................................................................................................................................................................................................................................................................
- Page 32 JONIX S.p.A. Società Benefit Operational Headquarters: Registered Office: Research and Development info@jonixair.com Headquarters: Viale Spagna 31/33 Via dell’Artigianato, 1 Certified mail: jonixsrl@legalmail.it 35020 Tribano (PD) - Italy 35020 San Pietro Viminario Via Tegulaia 10/b web: www.jonixair.com tel +39 049 9588511 (PD) –...
