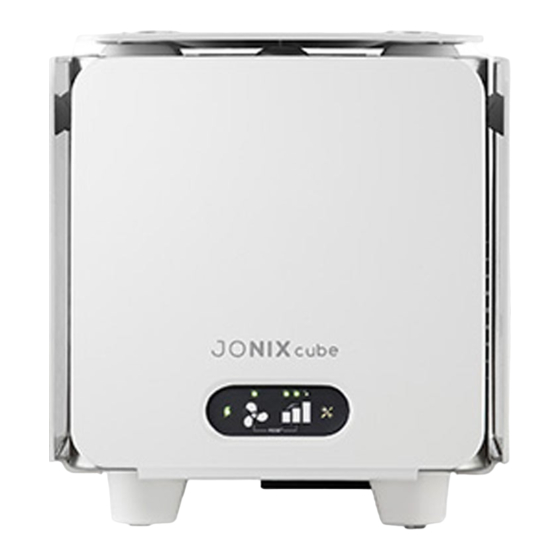

Jonix cube Use And Maintenance Manual

Air purification device with advanced cold plasma technology
Hide thumbs Also See for cube:
Table of Contents

Advertisement

Quick Links

USE AND MAINTENANCE MANUAL
AIR PURIFICATION DEVICE
WITH ADVANCED COLD PLASMA TECHNOLOGY
MADE IN ITALY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cube and is the answer not in the manual?

Questions and answers

Related Manuals for Jonix cube

Summary of Contents for Jonix cube

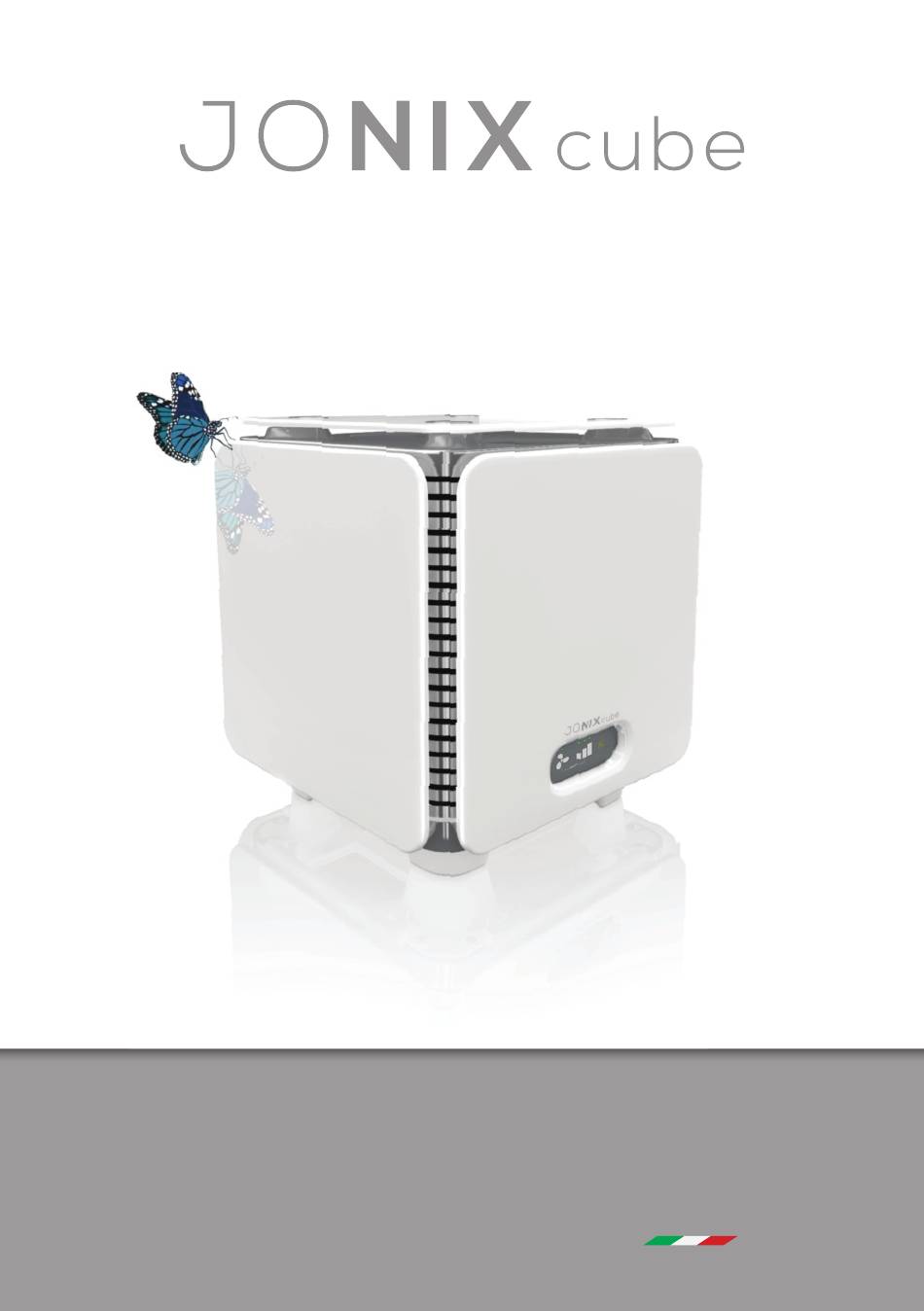

  • Page 1 USE AND MAINTENANCE MANUAL AIR PURIFICATION DEVICE WITH ADVANCED COLD PLASMA TECHNOLOGY MADE IN ITALY...
  • Page 2 These instructions are translated from Italian (the original language). JONIX srl reserves every right concerning this manual, including the right to make any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual...

  • Page 3: Table Of Contents

    Table of conTenTs 1 - GeneRal InfoRMaTIon 1.1 - SERIAL NUMBER PLATE 1.2 - LIABILITY 1.3 - SYMBOLS 2 - WaRnInGs anD GeneRal PRoHIbITIons 3 - THe oPeRaTInG sYsTeM 4 - TecHnIcal DaTa 4.1 - COMPONENT DESCRIPTION 4.2 - TECHNICAL FEATURES 4.3 - SPARE PARTS AVAILABLE ON ORDER 5 - RecePTIon, TRansPoRT anD sToRaGe 5.1 - PACKAGING...
  • Page 4 Thank you for choosing JONIX cube This manual contains information and what is deemed necessary for transporting, installing, using and maintaining the JONIX cube Improper installation of the device and/or failure to comply with the instructions in this manual, may invalidate the warranty that the Manufacturer issues for its products.

  • Page 5: General Information

    In particular, if equipment maintenance is carried out in a way that is not in compliance with the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX srl is relieved from any liability inherent to safety of persons and faulty operation of the equipments.

  • Page 6: Symbols

    In the event that it is damaged or lost contact JONIX srl for another copy or download the document from www.jonixair.com.
  • Page 7 When installing and operating this product, it is mandatory to observe the requirements and instructions specified in this manual. JONIX srl disclaims any liability for damage caused to people, animals or property due to installation, adjustment and maintenance errors or by improper use.

  • Page 8: The Operating System

    3 - THE OPERATING SYSTEM Among the wide range of air ionisers available on the market, the JONIX ioniser is a cube top of the range device that combines high performance and a modern and attractive design. This air ioniser promotes the controlled formation of particular ionic species (electrically charged species) in the air, through an electrostatic field that simulates the natural process that normally occurs through solar radiation, mechanically or by means of other physical phenomena.

  • Page 9: Technical Data

    230 V / ~1 / 50Hz cube 4.3 sPaRe PaRTs aVaIlable on oRDeR Code Description Notes 71KT000001 CUBE GENERATORS SPARE PART KIT 2 Ionising generators JX40000001 CUBE POWER CABLE 3x0.75 cable, SP8848 schuko plug and 90° IEC60320 C13 connector JX40000002 PROTECTION FUSE...

  • Page 10: Reception, Transport And Storage

    5 - RecePTIon, TRansPoRT anD sToRaGe 5.1 PacKaGInG The JONIX device, together with the accessories, is shipped in special protective cube packaging. The materials that were not installed for technical requirements are supplied packed with suitable packaging secured to the inside or outside of the device itself.

  • Page 11: Installation And Commissioning

    6 - InsTallaTIon anD coMMIssIonInG aTTenTIon! before carrying out any operation on the devices read all the instructions in this manual carefully. Definitions: UseR: UseR/oPeRaToR: QUalIfIeD sTaff: Person, organisation or Individual been Individuals who have completed a company who or which authorised by the user to specific course and are therefore purchased...

  • Page 12: Getting Started

    • The device comes with slots and openings for ventilation; do not block or cover these slots. • Make sure that you always leave enough space for adequate ventilation at the bottom and around the side slots of the device. • Place the device on a stable surface (avoid beds, sofas, blankets, carpets and so on). IMPoRTanT The installer and the user, when using the JONIX device, must cube take into account and solve all the other types of risk associated with the system.

  • Page 13: Electrical Connections

    PoWeR sUPPlY Is DIsconnecTeD! • Make sure that the voltage and frequency shown on the plate match those of the electrical mains to which the device is connected. • The electrical mains of the JONIX device must be used for the device only, there must cube be no other devices connected to the same power line.

  • Page 14: Control Panel

    6.7 conTRol Panel The device control panel consists of: • 2 control keys. • 6 status indication LEDs. The integrated control electronics allows operating the device at 3 different timing levels. Device On 01 Power indicator leD Device Off Fan on 02 enable / disable the fan Fan off Enabling level 1 (minimum): 2’...
  • Page 15 The operating level can be selected to meet the following requirements: • The quantity of pollutants or odours present or produced in the room; • If cooking is in progress; • If someone is smoking; • In case of odours; • If there are more people than usual; • To quickly dispel any unpleasant smell; • Depending on the size of the room: the table here below shows the recommended operating levels: floor area (m Temporary settings to quickly dispel odours and level for rooms up to 2.7 m high pollutants >...

  • Page 16: Maintenance

    7.2 RoUTIne MaInTenance The JONIX device requires little maintenance, consisting in periodically and regularly cube cleaning the ionising generators and mesh filter to protect the fan.
  • Page 17 Fig. 04: Put the device on a flat surface. Remove the plug connected to the mains. Fig. 05: Remove the lid by pulling it upwards. Fig. 06: Gently unscrew ionising generators by acting on the glass surface that can be reached by hand through the special slots.
  • Page 18 Fig. 08: Wash the mesh under running hot water and dry it thoroughly with a cloth. attention: ensure that the mesh is perfectly dry before putting it back! The manufacturer is not liable for any damage to the device caused by the presence of hu- midity or water on the outer mesh.
  • Page 19 Fig. 11: Put the lid back on the device by clIcK! pushing it until the parts are locked in place. clIcK! clIcK! clIcK! Fig. 12: Reconnect the plug. Switch the ionising device on by switching the On/Off button to I. Device LED on Fig.

  • Page 20: Cleaning The Filter

    Fig. 15: Wash the mesh filter under running water and dry it with a cloth. Fig. 16: Using a damp cloth, wipe the plastic filter cover and the finger guard grille fitted at the bottom of the device. Fig. 17: Put the filter back into the filter cover.

  • Page 21: Special Maintenance

    Components must be replaced when signs of wear appear, indicated by oxide on the internal mesh of the ionising generator, which will make it turn white, and by the glass looking dull. The JONIX device is designed to indicate, through a special LED, the need to replace the cube ionising tubes approximately every 9000 hours of operation.
  • Page 22 Fig. 20: Remove the lid by pulling it upwards. Fig. 21: Gently unscrew ionising generators by acting on the glass surface that can be reached by hand through the special slots. Fig. 22: Screw the new ionizing generators into place by acting again on the glass surface that can be reached by hand through the special slots.
  • Page 23 Fig. 23: Put the lid back on the device by clIcK! pushing it until the parts are connected to clIcK! clIcK! each other. clIcK! Fig. 24: Clean the outside of the device with a damp cloth. Do not use liquid cleaners or sprays, soap or the like.

  • Page 24: Operational Check And Troubleshooting

    8 - oPeRaTIonal cHecK anD TRoUblesHooTInG This section summarises the most common problems that may arise when using the unit. Before contacting customer services, carry out the checks listed below. PossIble PRobleM solUTIon caUse Check that the switch is in position “I”. Check that the plug is connected to the mains power socket.

  • Page 25: Disposal

    9 - DIsPosal When JONIX devices are no longer used they must be disposed of in compliance with cube the regulations in force in the country of installation. The unit consists of the following materials: • Stainless steel. • Aluminium. • Glass.

  • Page 26: Warranty Conditions

    Incorrect mains connection (incorrect power supply nominal voltage) or suitable protection devices have not been installed. d. The serial number has been removed, cancelled or altered. JONIX 7. The components to be replaced under warranty, must be returned to which will then send the appropriate spare parts.

  • Page 27: Ec Declaration Of Conformity

    EU DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY JONIX S.R.L. LEGAL SITE Viale Spagna, 31/33 – 35020 Tribano (PD) SCIENTIFIC SITE Via Tegulaia 10/b - 56121 Pisa OPERATIVE SITE Via Romagnoli, 12/A - 40010 Bentivoglio (BO) declares that the following products...
  • Page 28 JONIX srl Registered office Scientific headquarters Operational headquarters viale Spagna 31/33 via Tegulaia 10/b via Romagnoli 12/a support@jonixair.it 35020 Tribano (PD) - Italy 56121 Pisa - Italy 40010 Bentivoglio (BO) - Italy www.jonixair.it tel +39 049 9588511 tel +39 050 985165...
