Overview
Perform the following sequence in order when setting up
the table:
-
Uncrating
-
Leveling the Base
-
Installing the Foot Control
-
Installing the Upholstery
Uncrating
NOTE: Inspect all boxes and contents for damage. Re-
port any damage to the carrier immediately.
CAUTION
To avoid damaging the table's upholstery or paint-
ed surfaces, DO NOT use a knife or other sharp
object to open the packaging. Also, to avoid dam-
aging the table lift only at points indicated in Figure
3. Do not lift at other points as indicated in Figures
3 and 4.
1. Using a 1/2" open-end wrench, or socket, unbolt the
table from the wooden shipping skid by removing the
four bolts located underneath the table's base; two on
each side.
2. Remove the table from the shipping skid by sliding it
off the front of the skid. Be sure to lift at the correct
points as indicated in Figure 3. Position the table in
the desired room location.
WARNING
The table weighs approximately 550 lbs. Two or
more people should assist in removing the table
from the shipping skid. Also, use proper lifting
techniques when lifting. Failure to do so could
result in serious injury.
3. Remove packing tape from stirrups (Figure 4). Pull
out treatment pan slide and remove packing tape
from the treatment pan assembly components. Re-
turn treatment pan slide to its stowed position.
4. The electrical rating for this unit is 115 VAC, 60 Hz,
5.8 amps. The three-pronged grounding plug on the
table power cord must be plugged into a matching
three-pronged, grounded, non-isolated, correctly
polarized 115 VAC receptacle.
Document # 99490 RevB
INSTALLATION

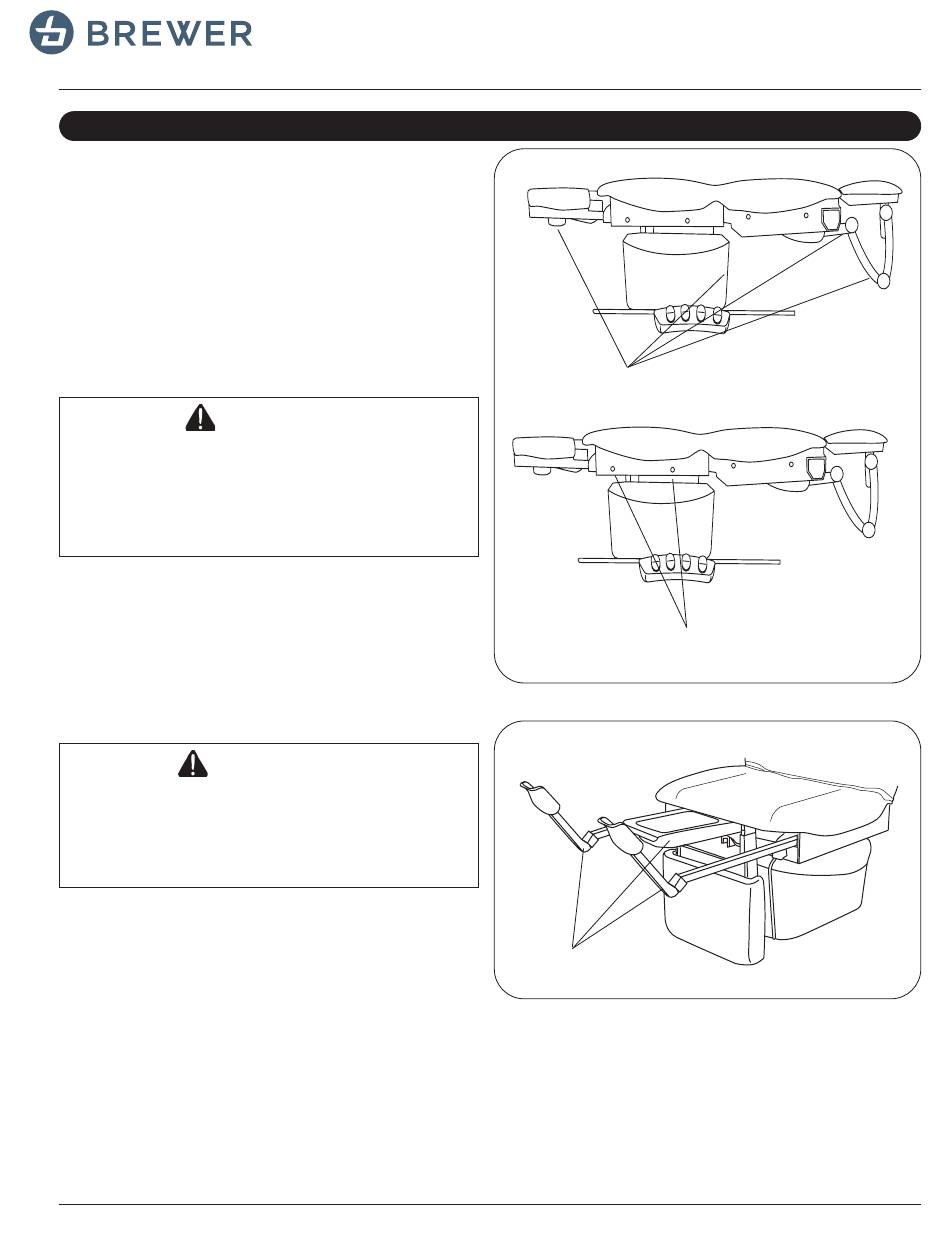

DO NOT lift at these points!
Do Not Lift
Figure 4. Stirrups and Treatment Pan
1
Lift table at these points
Figure 3. Table Lift Points
