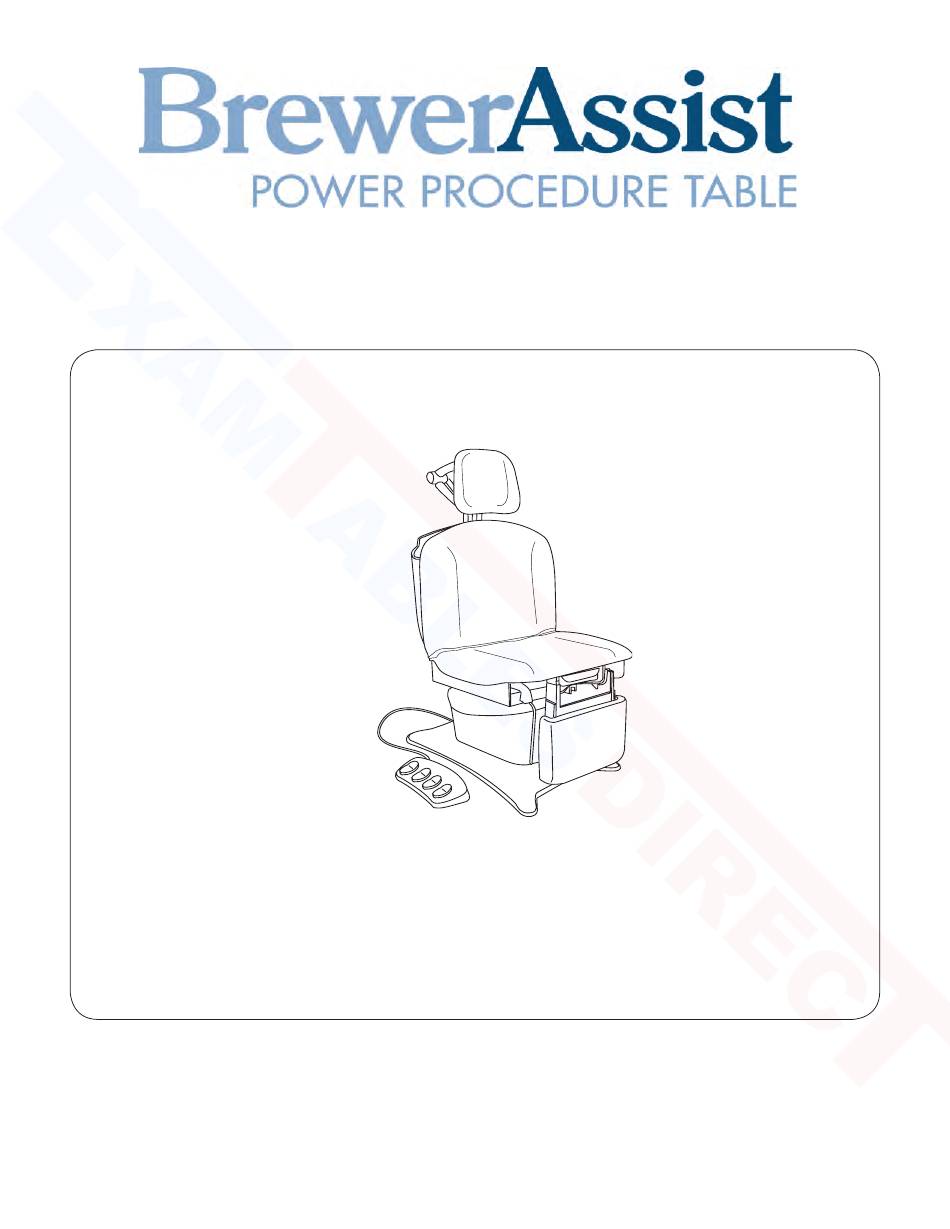

Installation & Operation Manual
Important Information ............................................2
Safety Information .................................................3
Component Identification ......................................3
Specifications ........................................................4
Installation .............................................................5
Document # 99300 RevB
Shop tables & accessories at
ExamTablesDirect.com

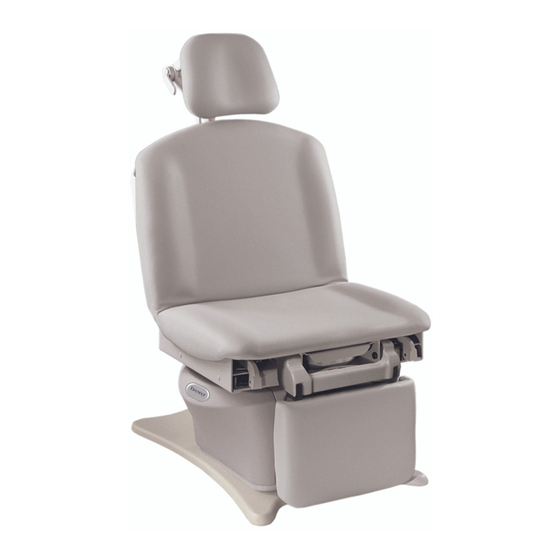

Model 7000
Operation ..............................................................8
Table Adjustments ...............................................12
Maintenance ........................................................15
Warranty ..............................................................15
Accessories..........................................................16
The Brewer Company, LLC
N88 W13901 Main Street, Suite 100
Menomonee Falls, WI 53051
P 1.888.Brewer.1
F 262.251.2332
www.brewercompany.com
Printed in USA © 2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for brewer 7000
Summary of Contents for brewer 7000
-
Page 1: Table Of Contents
Safety Information ..........3 Component Identification ........3 Maintenance ............15 Specifications ............4 Warranty ..............15 Installation .............5 Accessories............16 The Brewer Company, LLC N88 W13901 Main Street, Suite 100 Menomonee Falls, WI 53051 P 1.888.Brewer.1 F 262.251.2332 www.brewercompany.com Document # 99300 RevB Printed in USA © 2017 Shop tables &... -
Page 2: Important Information
Read and understand all operating instructions, safety If you require assistance with the installation or operation information, and maintenance requirements contained of your Brewer Model 7000 table, call the Brewer in this manual prior to operating the table. Become Customer Service Department at (1-888-Brewer1). Our... -
Page 3: Safety Information
SAFETY INFORMATION Safety Information This is the safety alert symbol. It is used to The primary concern of The Brewer Company is that alert you to potential physical injury hazards. the equipment is operated and maintained with the Obey all safety messages that follow this safety of the patient and healthcare staff in mind. -
Page 4: Specifications
Type of protection against electrical shock Back Section Range .....0° (horizontal) to +85° ± 5° • Model 7000 ......Class 2 Double Insulated Table Top Height Range ..19 ± 0.5 in. to 40 ± 1.0 in. • Patient applied parts ..........Type B Leg Section Range ..0°... -
Page 5: Installation
INSTALLATION NOTICE NOTICE Inspect Carton and Contents No Sharp Tools Inspect all boxes and contents for To avoid damaging the table’s upholstery damage. Report any damage to the carrier or painted surfaces, DO NOT use a knife or immediately. other sharp object to open the packaging. Overview Perform the following sequence in order when setting up the table:... - Page 6 INSTALLATION (CONTINUED) Leveling the Table A leveling screw pad (Figure 5) is located in four places under the table’s base. Adjust the six leveling pads to achieve a solid, level installation. NOTICE Prevent Leveler Damage Levelers must remain in the table and be fully engaged a minimum of (3) turns.
- Page 7 INSTALLATION (CONTINUED) Foot Control Plug Installing the Foot Control Even with or Above 1. Remove the foot control from the shipping box. Receptacle Rim 2. Insert the end of the foot control cord into the foot control receptacle on the table (Figure 6). Make sure the tab on the plug is aligned with the slot in the receptacle.
-
Page 8: Operation
LEGREST DOWN Figure 8. Foot Control Foot Control NOTICE The model 7000 ASSIST Powered Procedure Table Unintended Operation comes standard with a four pedal foot control (Figure 8). The table adjustments include height, seat tilt, backrest To avoid accidental operation, keep foreign objects away from controls. - Page 9 OPERATION (CONTINUED) Treatment Pan 1. To expose the treatment pan for use, grasp the tray handle and pull until tray is fully extended (Figure 9). 2. The pan can be easily removed for cleaning with the tray fully extended. Fully seat pan into tray when clean. 3.
- Page 10 OPERATION (CONTINUED) Legrest Extension NOTICE In the horizontal position, the legrest can be extended 5” to increase the overall length of the table (Figure 11). To prevent damage to the unit, the legrest must be returned to the shortest position prior to lowering the legrest to the Lift up on the legrest and pull outward to extend the vertical position.
- Page 11 OPERATION (CONTINUED) Adjustable Stirrups perating the tirrupS 1. To operate the stirrups, grasp end of stirrup and pull straight out of the table. Lift up slightly while sliding the stirrup out (Figure 13). NOTE: Applying downward pressure when pulling stirrup from table may make it difficult to move.
- Page 12 OPERATION (CONTINUED) Paper Roll To change a paper roll, insert the paper through the slot in the backrest shrouding and set the paper roll in the holder (Figure 17). Slot Figure 17. Paper Roll TABLE ADJUSTMENTS NOTICE WARNING Avoid Continuous Operation Area Not Clear Hazard If the table is operated continuously causing the control Before initiating movement keep personnel and equipment...
- Page 13 TABLE ADJUSTMENTS (CONTINUED) Back Positions The back can be adjusted to any angle between horizontal and 85° (Figure 19). 1. To adjust the back from a chair (upright) position to a horizontal position, depress and hold the Back Down pedal (Figure 8) until the desired angle is achieved, then release the pedal.
- Page 14 TABLE ADJUSTMENTS (CONTINUED) Legrest Positions NOTICE The legrest can be adjusted from a horizontal position to a vertical position (Figure 22). Treatment Pan Tray Must be Stowed The legrest will not rise if the treatment pan tray is extended. If the legrest is inoperable, check to ensure 1.
-
Page 15: Maintenance
Disconnect power by removing plug from wall receptacle before servicing table. WARRANTY For Brewer Warranty Information: Visit www.brewercompany.com or contact the Brewer Customer Service Department at (1-888-Brewer1). Document # 99300 RevB Printed in USA © 2017 Shop tables & accessories at... -
Page 16: Accessories
ACCESSORIES Listed below are the accessories which are authorized for use with this table. Description Order No. Use/Restrictions Conveniently and safely captures fluids during urology Urology Tray w/Hose & Bucket 100253 procedures. Used to attach accessories. Can be mounted to seat or 99501 Side Rails (qty 2) back.
