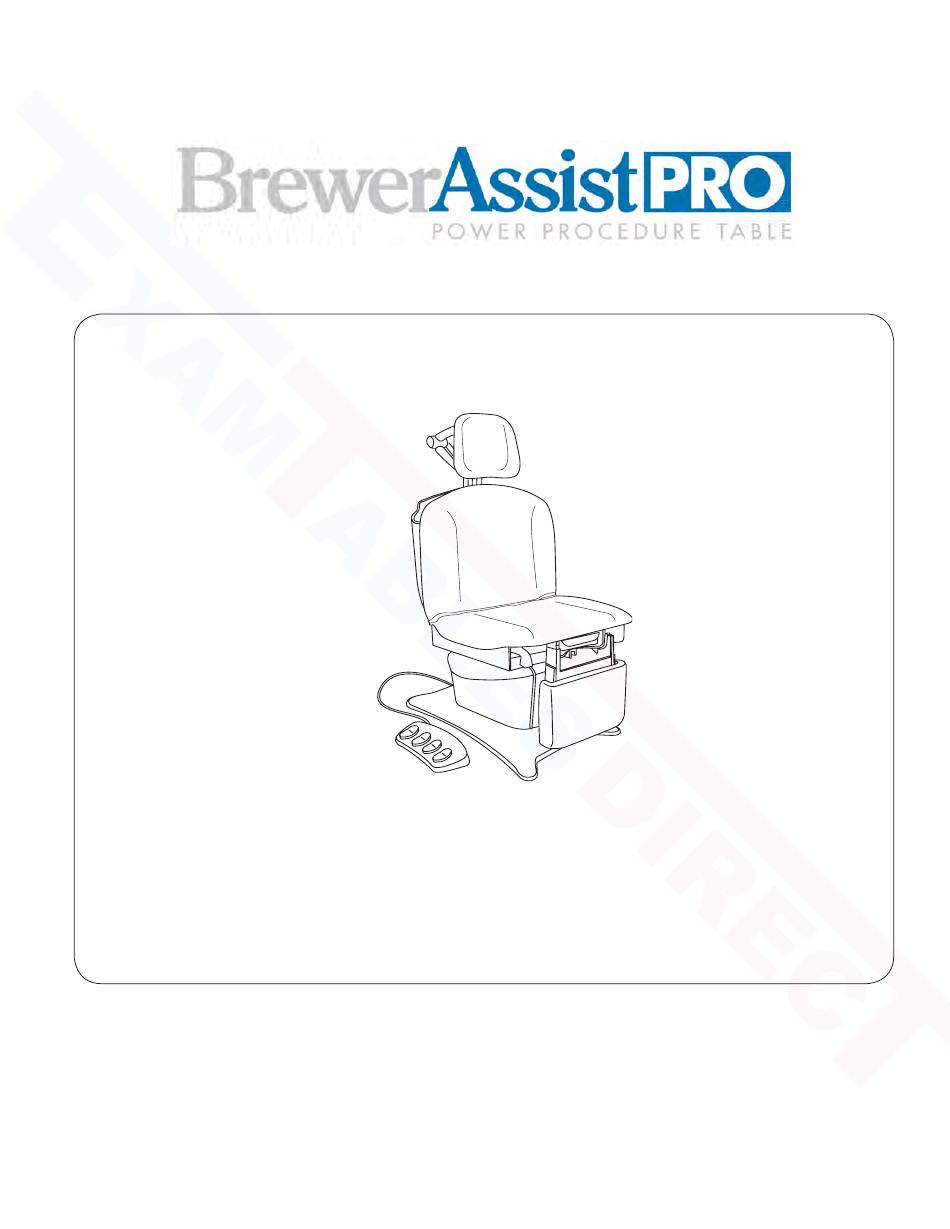

Installation & Operation Manual
Important Information ............................................2
Safety Information .................................................3
Component Identification ......................................3
Specifications ........................................................4
Installation .............................................................5
Printed in USA © 2017
Shop tables & accessories at
ExamTablesDirect.com

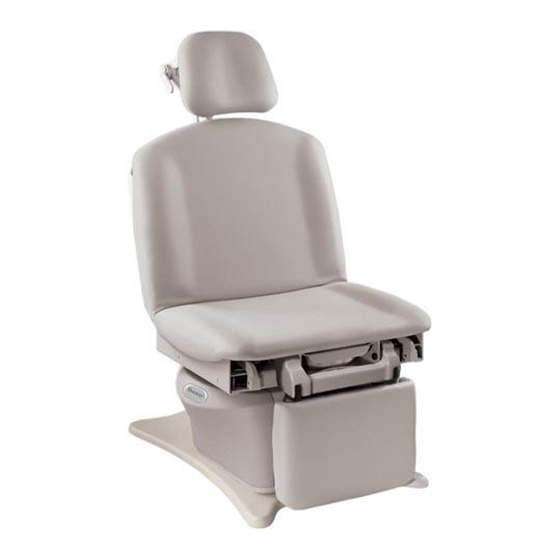

Model 7500
Operation ..............................................................8
Table Adjustments ...............................................14
Maintenance ........................................................19
Warranty ..............................................................20
Accessories .........................................................20
The Brewer Company, LLC
N88 W13901 Main Street, Suite 100
Menomonee Falls, WI 53051
P 1.888.Brewer.1
F 262.251.2332
www.brewercompany.com
Document #101522 RevB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for brewer Assist PRO 7500
Summary of Contents for brewer Assist PRO 7500
-
Page 1: Table Of Contents
Safety Information ..........3 Component Identification ........3 Maintenance ............19 Specifications ............4 Warranty ..............20 Installation .............5 Accessories ............20 The Brewer Company, LLC N88 W13901 Main Street, Suite 100 Menomonee Falls, WI 53051 P 1.888.Brewer.1 F 262.251.2332 www.brewercompany.com Printed in USA © 2017 Document #101522 RevB Shop tables &... -
Page 2: Important Information
Please fill in the following information for use when calling the medical professionals. Brewer Company or your distributor with questions regarding your unit. See Figure 1 for model and serial number location. The AssistPRO is primarily used in examination rooms for general examinations and minor procedures. -
Page 3: Safety Information
SAFETY INFORMATION Safety Information This is the safety alert symbol. It is used to The primary concern of The Brewer Company is alert you to potential physical injury hazards. that the equipment is operated and maintained Obey all safety messages that follow this with the safety of the patient and healthcare staff in symbol to avoid possible injury or death. -
Page 4: Specifications
SPECIFICATIONS Power Cord Weight of Table ...........550 lbs. • Length....Extends 70in. (Minimum) from table. Load Rating (maximum) • Type..............Detachable • Seat/Back ............450 lbs. • Conductors........18 AWG / 3 conductor • Legrest (Flat & Kneeling) ........450 lbs. • Grade..........Hospital Grade Plug •... -
Page 5: Installation
INSTALLATION NOTICE NOTICE Inspect Carton and Contents No Sharp Tools Inspect all boxes and contents for To avoid damaging the table’s damage. Report any damage to the upholstery or painted surfaces, DO carrier immediately. NOT use a knife or other sharp object to open the packaging. - Page 6 INSTALLATION (CONTINUED) Leveling the Table A leveling screw pad (Figure 5) is located in four places under the table’s base. Adjust the leveling pads to achieve a solid, level installation. NOTICE Prevent Leveler Damage Levelers must remain in the table and be fully engaged a minimum of (3) turns.
- Page 7 INSTALLATION (CONTINUED) Installing the Hand Pendant 1. Remove the hand pendant from the shipping bag. Receptacle 2. Insert the cord into the hand pendant receptacle on the backrest shroud. (Figure 8). Make sure the tab on the plug is aligned with the groove in the receptacle, and plug is fully seated.
-
Page 8: Operation
OPERATION Program Stop Program Recall Mode Program #1 Program #3 Tilt Back Table Tilt Back Table Down Program #2 Down Program #4 Down Down Figure 10 Controls 1. See Figure 10 for the pedal and button identifica- NOTICE tions on the foot control Unintended Operation 2. - Page 9 OPERATION (CONTINUED) Back Up Leg Up Back Down Leg Down Tilt Up Table Up Table Down Tilt Down Program Recall #1 Program Recall #2 Program Recall #3 Program Recall #4 Figure 11 Printed in USA © 2017 Document #101522 RevB Shop tables &...
- Page 10 OPERATION (CONTINUED) Treatment Pan 1. To expose the treatment pan for use, grasp the tray handle and pull until tray is fully extended (Figure 11). 2. The pan can be easily removed for cleaning with the tray fully extended. Fully seat pan into tray when clean.
- Page 11 OPERATION (CONTINUED) Legrest Extension NOTICE In the horizontal position, the legrest can be extended 5” To prevent damage to the unit, the legrest must be returned to increase the overall length of the table (Figure 13). to the shortest position prior to lowering the legrest to the vertical position.
- Page 12 OPERATION (CONTINUED) Adjustable Stirrups perating the tirrupS 1. To operate the stirrups, grasp end of stirrup and pull straight out of the table. Lift up slightly while sliding the stirrup out (Figure 15). NOTE: Applying any downward pressure when pulling stirrup from table may make it difficult to move.
- Page 13 OPERATION (CONTINUED) Paper Roll To change a paper roll, insert the paper through the slot in the backrest shrouding and set the paper roll in the holder (Figure 19). Paper Slot Figure 19. Paper Roll Printed in USA © 2017 Document #101522 RevB Shop tables &...
- Page 14 TABLE ADJUSTMENTS NOTICE WARNING Avoid Continuous Operation Area Not Clear Hazard If the table is operated continuously causing the control Before initiating movement keep personnel and equipment to exceed its allowable operating temperature, the control clear of table to avoid personal injury or damage to the equip- will shut off.
- Page 15 TABLE ADJUSTMENTS (CONTINUED) Back Positions The back can be adjusted to any angle between horizontal and 85°. (Figure 21) 1. To adjust the back from a chair (upright) position to a horizontal position, depress and hold the Back/Down function until the desired angle is achieved. 2.
- Page 16 TABLE ADJUSTMENTS (CONTINUED) Legrest Positions NOTICE The legrest can be adjusted from a horizontal position to a Treatment Pan Tray Must be Stowed vertical position. Figure 24. The legrest will not rise if the treatment pan tray is extended. A light on the foot control labeled “Pan Out” is 1.
- Page 17 TABLE ADJUSTMENTS (CONTINUED) Using the Program Feature 1. The table can be programmed using the hand pendant or the foot control. Up to four different positions can be programmed. 2. The table is already programmed from the factory with four preset positions. See Figure 25. Position 1 Position 2 Position 3...
- Page 18 TABLE ADJUSTMENTS (CONTINUED) Programming the Table with the Foot Control 1. Move the table to the desired position using the pedals on the foot control. Tap the black “Program” button. The four blue buttons will light for three seconds. Tap one of the blue buttons (1 thru 4). The blue light for that button will stay lit and two beeps will sound to indicate the position has been stored for that button.
-
Page 19: Maintenance
TABLE ADJUSTMENTS (CONTINUED) Safety The table has a built in safety feature which helps avoid injury to the patient or physician when recalling a programmed position in the Auto-Run “ON” mode: 1. The table will stop moving downward once the legrest (in the stowed position) reaches a height of four inches off the ground. -
Page 20: Warranty
WARRANTY For Brewer Warranty Information: Visit www.brewercompany.com or contact the Brewer Customer Service Department at (1-888-Brewer1). ACCESSORIES Listed below are the accessories which are authorized for use with this table. Description Order No. Use/Restrictions Conveniently and safely captures fluids during urology Urology Tray w/Hose &...
