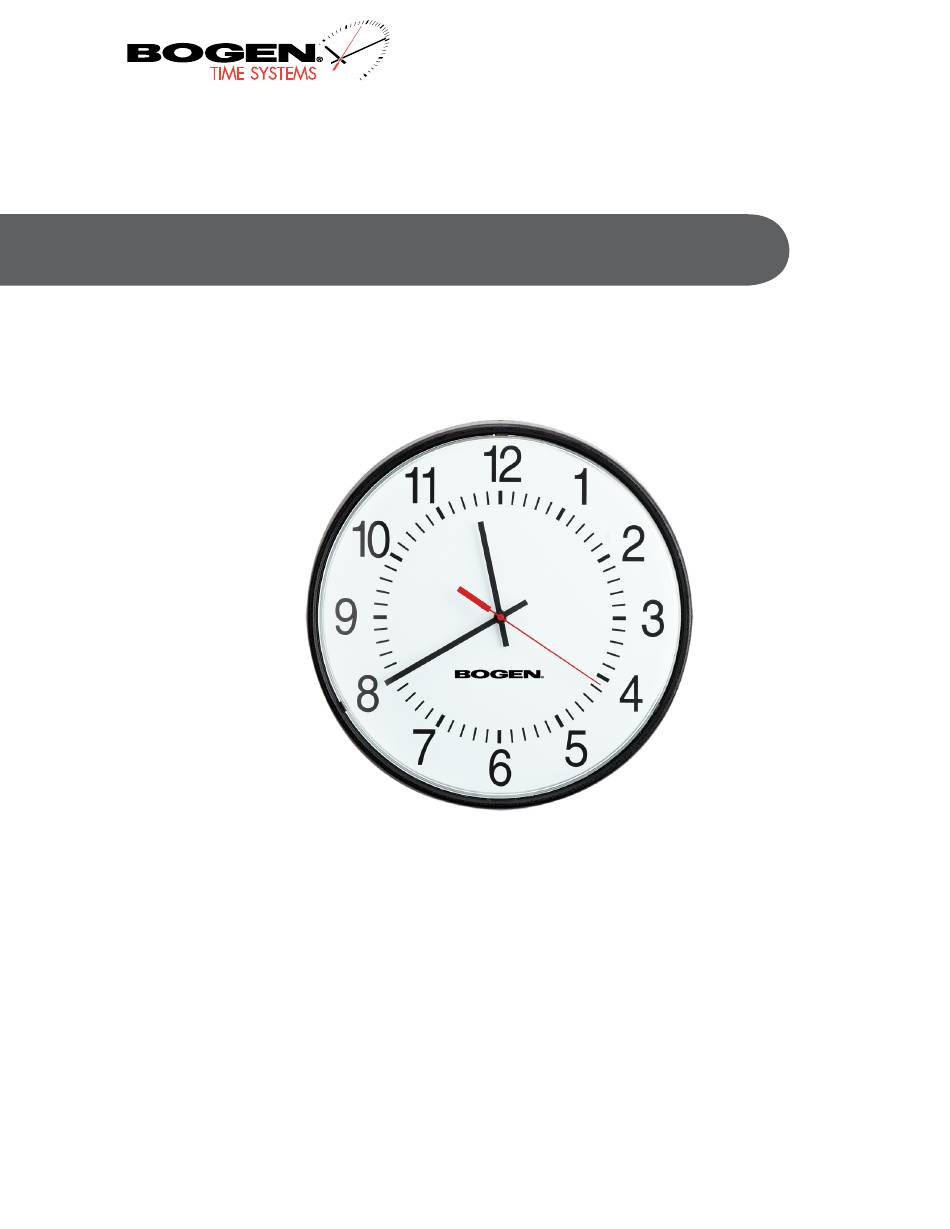

- Page 1 Installation Manual V4 BCRM Series RS485 Wired Clock 201.934.8500 P. 201.934.9832 F. www.bogen.com...
-
Page 2: Table Of Contents
201.934.8500 P. 201.934.9832 F. www.bogen.com BCRM Series RS485 Wired Clock Table of Contents Table of Contents—2 Wall Mount Installation —3 Wall Mount Installation - Square Clock (wired applications)—4 Wall Mount Installation - Square Clock (wired applications)—5 Wall Mount Installation Square Clock (wireless, battery operated applications)—6 Wall Mount Installation Square Clock (wireless, battery operated applications)—7... -
Page 3: Wall Mount Installation -3
201.934.8500 P. 201.934.9832 F. www.bogen.com Wall Mount Installation 12” Clock 16” Clock 1. IMPORTANT: If using a low voltage system (24 volt) make sure that the transformer is an isolated transformer. 2. Connect the wiring as shown on the wiring diagram. -
Page 4: Wall Mount Installation - Square Clock (Wired Applications)-4
201.934.8500 P. 201.934.9832 F. www.bogen.com Wall Mount Installation - Square Clock (wired applications) -
Page 5: Wall Mount Installation - Square Clock (Wired Applications)-5
201.934.8500 P. 201.934.9832 F. www.bogen.com Wall Mount Installation - Square Clock (wired applications) Separate the front of the clock from the back case - Locate the four (4) tabs (two (2) on the left side and two (2) on the right side of the clock) and disengage those tabs by pressing down on them with a flathead screw driver no further than 1/4 inch. -
Page 6: Wall Mount Installation Square Clock (Wireless, Battery Operated Applications)-6
201.934.8500 P. 201.934.9832 F. www.bogen.com Wall Mount Installation Square Clock (wireless, battery operated applications) -
Page 7: Wall Mount Installation Square Clock (Wireless, Battery Operated Applications)-7
Insert batteries - Take the front of the clock and locate the battery pack attached to the movement. Pop off the cover and insert two (2) D-cell batteries (Bogen recommends the use of Duracell Procell). After the batteries are secured, the clock should begin to find the correct time. -
Page 8: Metal Double Mount Installation -8
201.934.8500 P. 201.934.9832 F. www.bogen.com Metal Double Mount Installation 1. Screw the mounting bracket to the double gang box using four (4) inner holes on the mounting bracket, or mount the mounting bracket directly to the wall or ceiling using the four (4) outer holes. (As shown in above drawing) 2. -
Page 9: Plastic Double Mount Installation -9
201.934.8500 P. 201.934.9832 F. www.bogen.com Plastic Double Mount Installation... -
Page 10: Plastic Double Mount Installation-10
201.934.8500 P. 201.934.9832 F. www.bogen.com Plastic Double Mount Installation *For metal mounting bracket: Use anchor that can support 50 lbs with a maximum screw size of 10/1.5” Install metal mounting bracket - First, remove the metal mounting bracket from the inside of the double mount base by unscrewing the two (2) 6-32 x 1/2”... -
Page 11: Plastic Double Mount Installation-11
201.934.8500 P. 201.934.9832 F. www.bogen.com Plastic Double Mount Installation Plug and secure wiring to clock - Loosen and slip excess wiring through provided wire clamp (comes attached to each clock adaptor) and tighten the clamp. After securing excess wiring, plug the jack at the end of the wiring into the appropriate jack on the back of the clock. If using IP clocks, wiring will not be supplied with the clocks - the installer will be responsible for supplying all Ethernet wiring. -
Page 12: Square Double Mount Installation -12
201.934.8500 P. 201.934.9832 F. www.bogen.com Square Double Mount Installation... -
Page 13: Square Double Mount Installation -13
201.934.8500 P. 201.934.9832 F. www.bogen.com Square Double Mount Installation... -
Page 14: Square Double Mount Installation -14
201.934.8500 P. 201.934.9832 F. www.bogen.com Square Double Mount Installation Snap and screw base to metal mounting bracket - Snap the base to the metal mounting bracket by first making contact with the lip in the upper side of the base and the metal mounting bracket. When the base has been snapped onto the bracket, take the two (2) 6-32 x 1/2”... -
Page 15: Rs485 Communication Wiring Information-15
201.934.8500 P. 201.934.9832 F. www.bogen.com Wiring Information RS485 Communication Wiring Information Black White (EU 240/24VAC) 110V/24V BCRM Series Analog Clock (EU 240/24V) Black/Yellow White/Orange 110V/24V BCBD 1000 Series Digital Clock BCBD 2000 Series Digital Clock (EU 240/24V) Black White 110V/24V BCRM Series Analog Clock... -
Page 16: Frequently Asked Questions-16
Are the BCRM Series analog clocks easily interchangeable with the BCAR Series analog clocks? Yes, the 2 series are completely compatible. The BCRM Series analog clock will work with the BCAR wiring scheme. How do I know if the clock is receiving communication? There are 2 LEDs on the side of the movement that indicate if the clock is receiving data. -
Page 17: Troubleshooting
201.934.8500 P. 201.934.9832 F. www.bogen.com Support Troubleshooting The clock is not running. What do I do? a) Make sure the pin is removed. b) Measure the voltage between the power (black) wire and the neutral (white) wire. The voltage should measure 85-135 volts AC in the 110 volt model or 7-28 volts AC in the 24 volt model. -
Page 18: Diagnostic Testing
Overview To enter the diagnostic testing, press the diagnostic switch located on the right hand side of the movement, or use a Bogen master clock to send the diagnostic tests to the BCRM clocks. (Please refer to your specific master clock’s installation manual for complete details and instructions.) Diagnostic #1 - Protocol Verification Purpose: To display the type of protocol the master clock is sending. -
Page 19: Diagnostic #2 - Comprehensive Test-19
201.934.8500 P. 201.934.9832 F. www.bogen.com Diagnostic Testing Diagnostic #2 - Comprehensive Test Purpose: To test the gearbox and electrical components. The second hand will display the protocol that was detected, the minute hand will display the software version number, and the hour hand will display how much time has passed since the clock last received communication signal. -
Page 20: Diagnostic #3 - Manufacturing Default-20
201.934.8500 P. 201.934.9832 F. www.bogen.com Diagnostic Testing Diagnostic #3 - Manufacturing Default Purpose: To bring the clock to 12:00:00 and reset to manufacturer’s default. Holding the switch for 5 seconds will enable you to enter into Diagnostic #3. This can be verified by the green diagnostic LED flashing 3 times with a five (5) second break between flashes.
