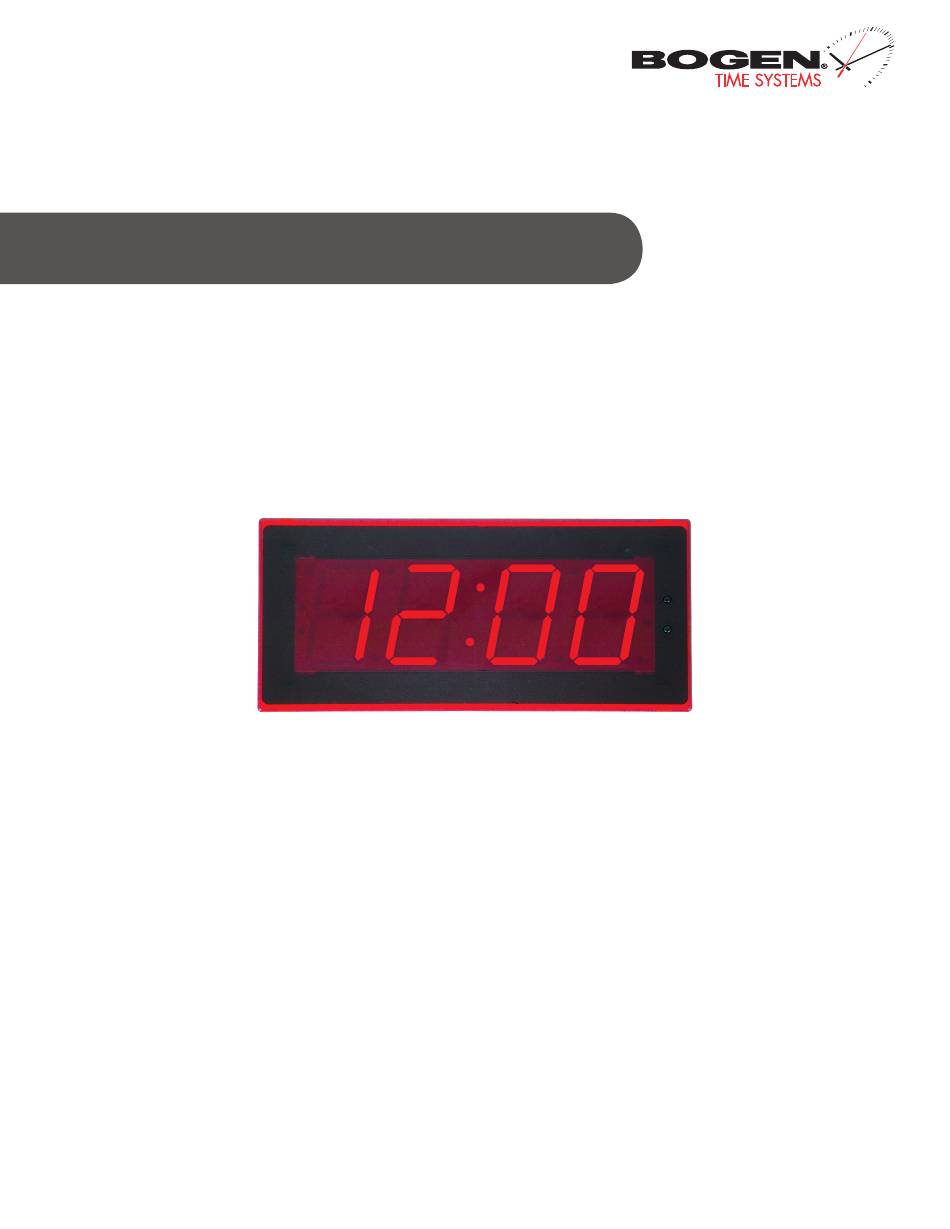

- Page 1 Installation and Programming Manual V3 BCBP Series IP Clock 201.934.8500 P. 201.934.9832 F. www.bogen.com...
-
Page 2: Table Of Contents
201.934.8500 P. 201.934.9832 F. www.bogen.com BCBP Series IP Clock Table of Contents Installation Instructions Flush Mount 3 Wall Mount 4 Double Mount 5 Wiring Information PoE Wiring 6 Voltage Wiring 7 Monitor Sapling Clock Monitor 8 Web Interface Programming 9... -
Page 3: Installation Instructions
201.934.8500 P. 201.934.9832 F. www.bogen.com Installation Instructions Flush Mount Installation Dimensions 2.5” x 4 digit: 9.65”[ 245.1mm] L x 3.80”[ 96.5mm] W x 3.00”[ 76.2mm] H 2.5” x 6 digit: 12.90”[ 327.7mm] L x 3.80”[ 96.5mm] W x 3.00”[ 76.2mm] H 4.0”... -
Page 4: Surface (Wall) Mount Installation
201.934.8500 P. 201.934.9832 F. www.bogen.com Installation Instructions Surface (Wall) Mount Installation Dimensions 2.5” x 4 digit: 10.20”[ 259.1mm] L x 4.50”[ 114.3mm] W x 2.50”[ 63.5mm] H 2.5” x 6 digit: 13.648”[ 346.7mm] L x 4.590”[ 116.6mm] W x 2.50”[ 63.5mm] H 4.0”... -
Page 5: Double Mount
201.934.8500 P. 201.934.9832 F. www.bogen.com Installation Instructions Double Mount Installation 1. Screw hanger/mounting rod (included in the kit) into the crossbar (also included in the kit). 2. Insert wires through hanger/mounting rod. 3. Install crossbar using two (2) #6-32 screws into double gang box. -
Page 6: Wiring Information
201.934.8500 P. 201.934.9832 F. www.bogen.com Wiring Information Power over Ethernet Connecting when using a PoE Injector 1. Plug in the power injector to a power outlet. 2. Using a CAT5 or CAT6 patch cable, connect one end to the switch/router connected to the network, and the other end into the IN on the power injector. -
Page 7: Voltage Wiring
201.934.8500 P. 201.934.9832 F. www.bogen.com Wiring Information 24V/110V/220V Wiring 1. Connect one end of the CAT5 or CAT6 patch cable to the IP board and the other to a router/ switch. 24V Power 110V/220V* Power 2. Connect the power to the 5 pin Molex... -
Page 8: Sapling Clock Monitor
Monitoring Bogen Clock Monitor Before starting, start Monitor.exe from the CD provided on a computer that is connected to the same network as the IP clocks. Quick Access Menu - To access this menu, click the right mouse button on the selected clock. A list of options are shown. For explanation of these options, please see numbers 2-9 below. -
Page 9: Web Interface Programming
IP address in the web browser. DHCP - If DHCP is being utilized, load the Bogen Monitor software on a PC that is connected to the network. Launch the Monitor.exe file and follow step 4. -
Page 10: Log In
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Log In Screen Password -This field is where the user enters their password. The default password is 6063. This password can always be used, even if the password is changed from within the settings. -
Page 11: Display Settings
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Display Settings Display Format - This setting sets the clock’s time display in either 12 hour mode or 24 hour mode. Date Format - This setting sets the clock’s display format in either MM:DD:YY mode or DD:MM:YY mode. -
Page 12: Clock Settings
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Clock Settings User Password - This field allows for the password for entering the web interface to be changed, however, 6063 will always be a master password. This password cannot exceed 16 characters. -
Page 13: Network Settings
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Network Settings Gateway IP Address - This field allows for the gateway IP address to be set. Subnet Mask - This field allows for the subnet mask to be set. DNS Router - This field allows for the DNS router address to be set. -
Page 14: Network Servers
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Network Servers Retry Failed Server After - This field will allow the user to set how often it attempts to connect to a server that has not communicated with the clock. Server Addresses - These fields allow for the (S)NTP servers to be set. -
Page 15: Clock Status
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Clock Status NTP Details - This button, when clicked, provides additional details about the NTP synchronization. Resync NTP Now - This button, when clicked, forces a synchronization with the NTP server. Reset NTP History - This button, when clicked, resets all the data in the NTP Details window. -
Page 16: Daylight Saving Time
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface DST - Daylight Saving Time Day of Week in Month DST Option - This Daylight Saving Time setting is used when the clock is to change time on the specific day, month and time. This method is typically used in some international countries. Once the option is selected, click Submit to confirm. -
Page 17: Email Alerts
201.934.8500 P. 201.934.9832 F. www.bogen.com Web Interface Email Alerts Email Recipient - This field is where the user name of the email recipient will be inserted. Do not enter the domain and suffix. (correct: johnsmith) (incorrect: johnsmith@domain.com) Email Domain - This field is where the user will enter the domain name of the email server. (i.e. domain.com) Email Server - This field is where the email server address will be placed. -
Page 18: Support
201.934.8500 P. 201.934.9832 F. www.bogen.com Support Frequently Asked Questions How are IP clocks controlled? IP clocks are independent and receive their time from a NTP/SNTP server. If a setting is adjusted using the Monitor program, does it effect only the selected clock or the entire system? The IP clock series has the capabilities to allow the user to adjust the settings to an individual clock or apply those settings to the entire system. -
Page 19: Troubleshooting
201.934.8500 P. 201.934.9832 F. www.bogen.com Support Troubleshooting What do I do if I cannot connect to the web interface? Verify that the IP address your attempting to access is correct. If the IP address is correct, verify that there aren’t any provisions in the firewall preventing you from accessing it.
