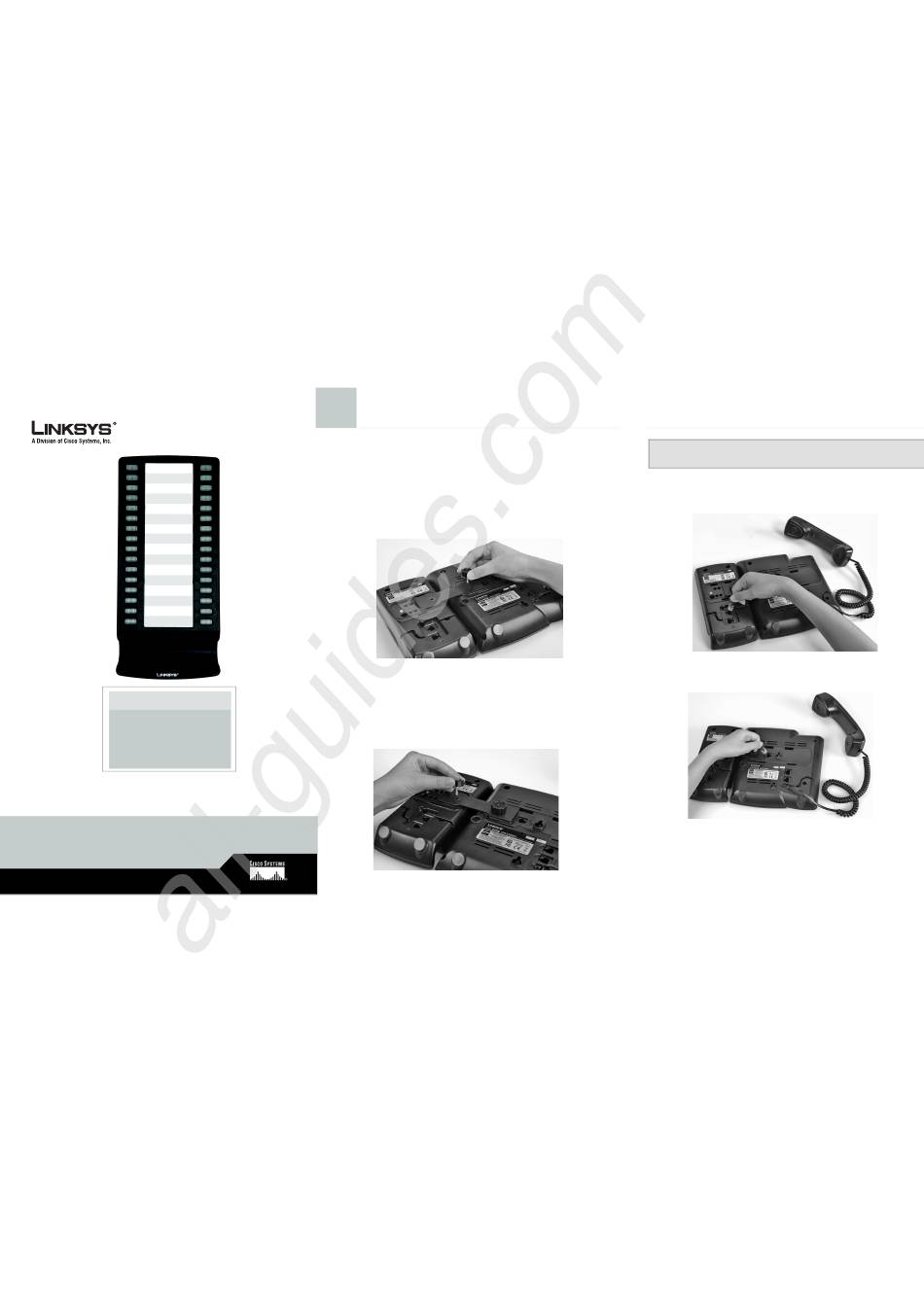

Cisco LINKSYS SPA932 Quick Installation

Package Contents
• SPA932 Attendant Console
• Attachment Arm
• Two (2) Attachment Arm Screws
• Auxiliary Cable
• Desktop Stand
• Quick Installation
32 Button Attendant Console
for the SPA962 IP Phone
Model No.
Model No. SPA932
All manuals and user guides at all-guides.com
1
Connecting to the SPA962
A
Turn both the SPA962 and SPA932 face down.
B
Align the hole in the SPA962 alignment recess with the hole on
the attachment arm.
C
Using the attachment arm screw, secure the attachment arm
to the SPA962.
C
D
Align the hole in the SPA932 alignment recess with the hole on
the attachment arm.
E
Using the attachment arm screw, secure the attachment arm
to the SPA932.
Quick Installation
E
IMPORTANT: Do not plug a telephone line cord into an AUX port. Use only t
auxiliary cable provided with the SPA932.
F
Locate the AUX IN port on the back of the SPA932. Connect
one end of the auxiliary cable to this port.
F
G
Locate the AUX port on the back of the SPA962. Connect the
other end of the auxiliary cable to this port.
G
H
Route the auxiliary cable inside the cable relief channel.
I
Attach the appropriate desktop stand to each unit. The SPA93
is powered via the auxiliary cable with the SPA962. No addi-
tional power source is required.
