visionLINE Emberglow COVE Owner's Manual

Suspended lcd electric fireplace
Hide thumbs

Advertisement

Table of Contents

SUSPENDED LCD ELECTRIC FIREPLACE
Read and understand this entire owner's manual, including all safety
WARNING
information, before plugging in or using this product. Failure to do so could
!
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
!
product away, make sure this manual accompanies this product.
Model#: Emberglow COVE
OWNER'S MANUAL
Suspended LCD Electric Fireplace
AC 220-240V 50Hz 1400-1600W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Emberglow COVE and is the answer not in the manual?

Questions and answers

Related Manuals for visionLINE Emberglow COVE

Summary of Contents for visionLINE Emberglow COVE

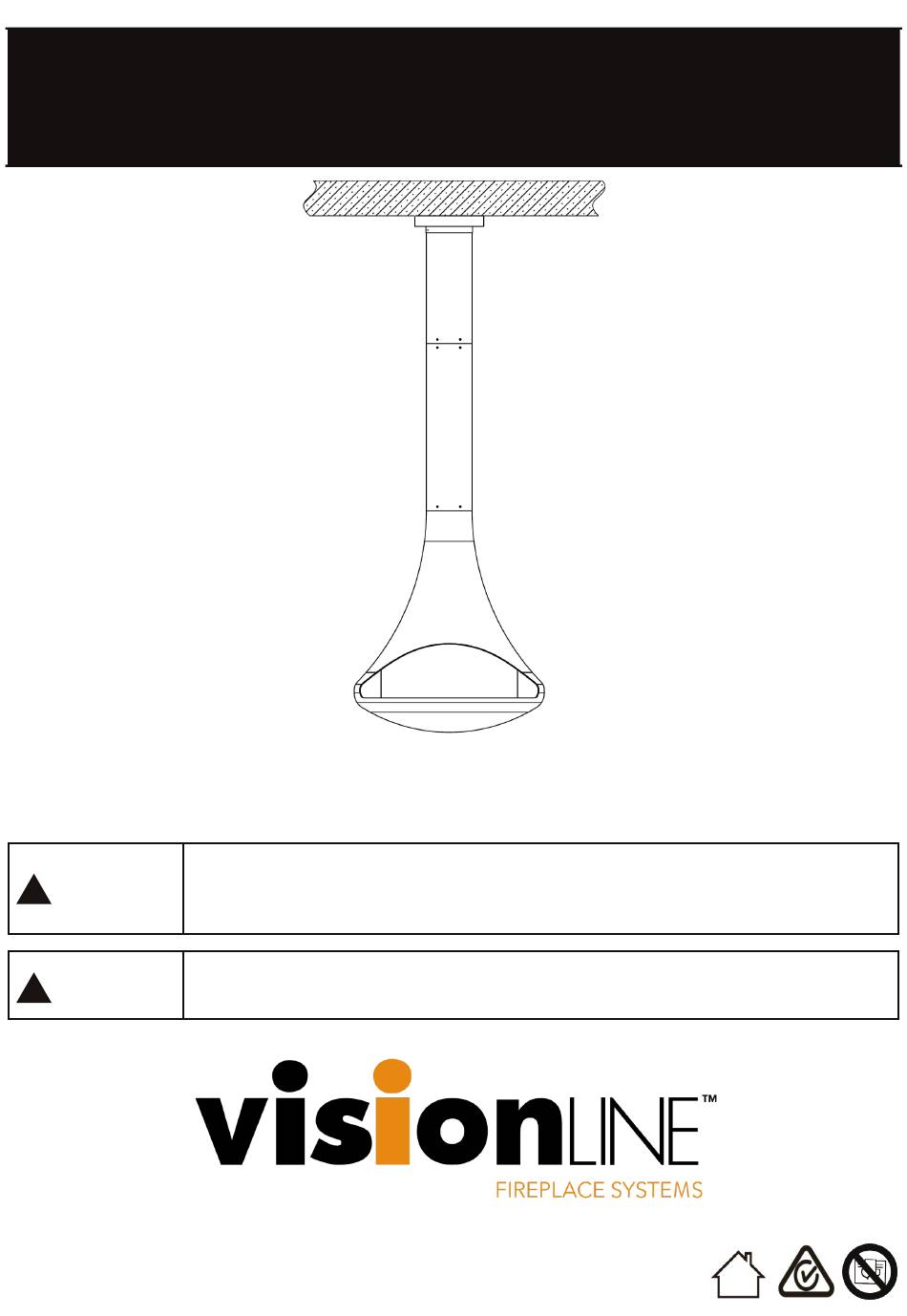

  • Page 1 SUSPENDED LCD ELECTRIC FIREPLACE Model#: Emberglow COVE OWNER’S MANUAL Suspended LCD Electric Fireplace AC 220-240V 50Hz 1400-1600W Read and understand this entire owner’s manual, including all safety WARNING information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
  • Page 2 IMPORTANT SAFETY INFORMATION! WARNING Read all instructions before using this fireplace! ⚫ DO NOT operate any fireplace with a damaged cord or plug, after the fireplace malfunctions, or ⚫ after the fireplace has been dropped or damaged in any manner. Discard the fireplace or return to an authorized service facility for examination and/or repair.
  • Page 3 ALWAYS check your appliance lead and plug connections with each use: ⚫ i) MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or loose plugs can cause the outlet to overheat. ii) Fireplaces draw more current than small appliances. Overheating may occur even if it has not occurred with the use of other appliances.
  • Page 4 Parts and Hardware Parts and Hardware A-Fireplace Fixed Flange Short Short Chimney 2 Connectors Cover Long Long Chimney 1 Furnace Body...

  • Page 6: Installation And Assembly

    Installation and Assembly Front View of Fireplace 1. Find a safe location. 2. Choose a location near an outlet so an extension cord is not used. Appliance must be connected to an isolated plug base. 3. See Safety Information on pages 2 and 3 for warnings about safe placement, safe installation,and proper use of...
  • Page 7 Step 1: Identify appropriate location for fixing to ceiling joist. Mark out centre for a 330 mm plaster cut out. Fix flange on 5mm angle (or equivalent) and secure to the ceiling joist with M8 bolts, washers and nuts. Notice: Holes in 5mm angle to be drilled out by installer for flange and fixing to joist Step 2: Connecting furnace body with long chimney 1 with M6*10 hex flat head screws(C) by hex key(E).
  • Page 8 Step 3: Fix tube connector with long chimney with hex flat head screws(C) by hex key(E). Step 4: Connect short chimney with long chimney by connector with hex flat head screws(C) and hex key(E).
  • Page 9 Step 5: Put cover on chimney. Step 6: Hanging fireplace on the celling with flange by hex screws(C) and hex key(E). Notice: You may lift fireplace steadily with a hydraulic lifter.
  • Page 10 Step 7: Fix the cover with M4*8 philips tapping screws(D). Step 8: Fireplace is installed like below.
  • Page 11 Step 9: Connect glowing loose logs (with LED) with connectors like below and place them on ember bed in the position you prefer. Step 10: Put on the rest of the loose logs and other media as you like to have your own designed ember bed.

  • Page 12: Methods Of Operation

    Operation Read and understand this entire owner’s manual, including all safety information before plugging in or using this product. Failure to do so could result in electric shock fire, serious injury, or death. Power Plug the appliance lead into an outlet or hard wire the appliance. If you choose to hard wire the appliance, it MUST have a dedicated isolation switch accessible after installation.
  • Page 13 Touch Panel & Remote Control Operation BUTTON FUNCTION ACTION & INDICATION Power Turns the fireplace on/off. Switch Adjusts the flame volume to 6 levels- Volume 0%-20%-40%-60%-80%-100% Turns heater on or off (NOTE:To prevent overheating,the heater fan will blow out cool air for 10 seconds after the heater turn off).
  • Page 14 TOP light color, Orange, Red, Yellow, Blue, Green, Violet, Pink (7 colours), 8th gear flash, 9th gear gradient, 10th Top Light gear OFF, 11th gear red breath light, 12th gear green breath light, 13th gear blue breath light. Ember bed light color, Orange, Red, Yellow, Blue,Green Ember Bed Violet, Pink (7 colours), 8th gear flash, 9th gear gradient, 10th gear OFF, 11th gear red breath light, 12th gear green...

  • Page 16: Maintenance

    Maintenance Risk of electric shock! DO NOT OPEN any panels! No user-serviceable parts inside! ALWAYS turn the fireplace OFF and isolate the appliance from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury.

  • Page 17: Troubleshooting

    Troubleshooting WARNING DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated and 1. Reset switch by turning main power and will not turn on.
  • Page 18 7. Heater does not 1. Turn unit off and unplug unit for 10 1. Thermal switch has been minutes. Plug back in and turn unit provide heat when tripped. turned on. on. If plug cannot be reached, follow directions for tripped circuit breaker. 2.
