Summary of Contents for CoolGear USBG-232MM-C

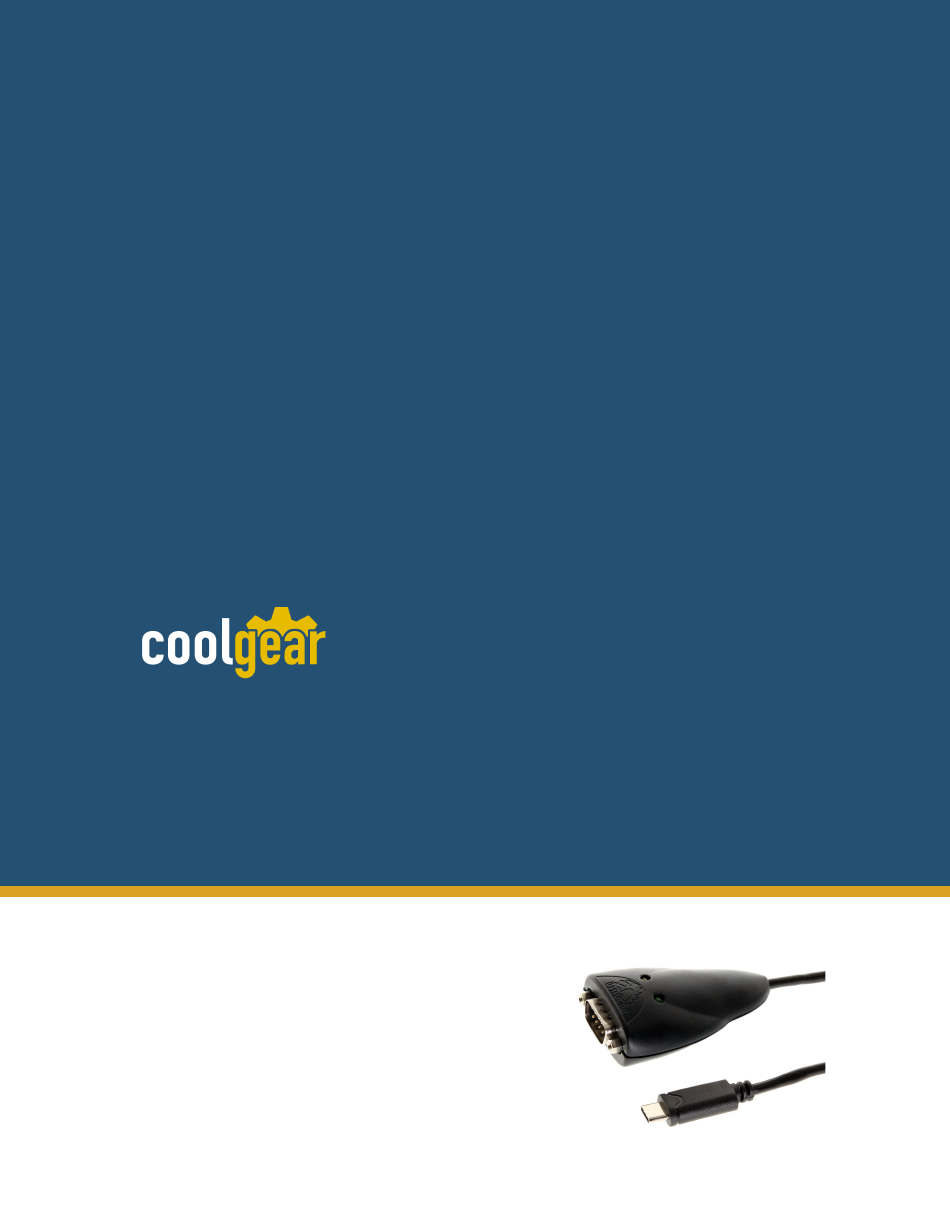

- Page 1 USB C to RS-232 6FT Serial Adapter Black w/FTDI Chipset DB9 male Model Number: USBG-232MM-C Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/22/2024...
-
Page 2: Table Of Contents
First Release 1. Introduction Thank you for purchasing Coolgear’s USB C to RS-232 6FT Serial Adapter Black. The USB Serial Adapter is designed to make serial port expansion quick and simple.Connecting to a USB port on your computer or USB hub, the USB Serial Adapter instantly adds a serial communication port to your system. -
Page 3: Windows 11/10/8/8.1/7/Vista/2003/Xp/2000 Driver Installation
4. The USB COM install program will auto-detect the OS type and install the driver automatically. (Note: in Windows 7 or Vista OS you will find another dialog box, please click on “OK” to confirm the drivers install program). Need help? Visit: coolgear.com/support... -
Page 4: Mac Os Driver Installation
finish installing the driver files. If your product did not come with an installation CD, download the drivers for the product available at: https://www.coolgear.com/files/FTDI-Latest.zip 1. Download and extract the FTDI-Latest folder to your desktop or another appropriate location 2. Navigate to the appropriate folder corresponding to your OS 3. - Page 5 5. You will need to unlock the settings to make changes, and then click on “Allow” to allow the program to install the necessary system extension. Once completed, you should see the installer report a “Succeeded” message. Restart your computer, and the drivers are now installed and you may use your adapter. Need help? Visit: coolgear.com/support...
-
Page 6: Check Installation
6. Change COM Port Properties & COM Port Number This feature is particularly useful for programs, such as HyperTerminal, which only work with COM1 through COM4. Please ensure that you do not change the COM Port Number already in use. Need help? Visit: coolgear.com/support... -
Page 7: Uninstalling Windows 7/8/10/11 Drivers
3. Click on “Device Manager” in the menu 4. **Alternative method – Search “Device Manager” in the start menu / search bar and open Device Manager 5. Locate your device under the “Ports (COM & LTP)” section of device manager. Need help? Visit: coolgear.com/support... - Page 8 Note : If you have more than one USB Serial Port installed in your PC, you need to repeat steps 5-7 to delete the driver software for each port. 8. Locate your device under the “Universal Serial Bus Controllers” section of device manager 9. Right click on the device, and select “Uninstall Device” Need help? Visit: coolgear.com/support...
-
Page 9: Rs-232 Signal Pin-Outs Of Db-9 Male
8 - 10 to delete the driver software for each converter. 8. RS-232 Signal Pin-outs of DB-9 Male Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Need help? Visit: coolgear.com/support... -
Page 10: Specifications
DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, Protection 15kV ESD protection for all signals Serial Communication Parameters Data Bits 7, 8 Parity None, Even, Odd, Mark, Space Stop Bit 1, 2 Flow Control Hardware (RTS, CTS), XON/XOFF Need help? Visit: coolgear.com/support... - Page 11 Do not disassemble the product. Handling the product’s ● internal components can expose it to ESD (Electro-Static Discharge) hazards that can affect the function of the device. If this product is not functioning properly, email our support ● team at support@coolgear.com. Need help? Visit: coolgear.com/support...
- Page 12 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
