- Page 1 Mini USB to Terminal RS422 RS485 FTDI Plug-in Adapter Product Manual Coolgear, Inc. Version 1.1 April 2018 Model Number: USBG-422MiNi www.coolgear.com...
- Page 2 Coolgear New Manual About this document This product manual outlines installation and features of the USBG-422MiNi Mini USB to Terminal RS422 RS485 FTDI Plug-in Adapter. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
-
Page 3: Table Of Contents
USBG-422MiNi – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 2. Driver Installation ....................5 Install in Windows 8, 7, Server 2012, 2008 Rs ............5 Install in Windows XP, Vista, Server 2003 and 2008 ..........5 Pin-outs of the Terminal Block Connector .............. -
Page 4: Introduction

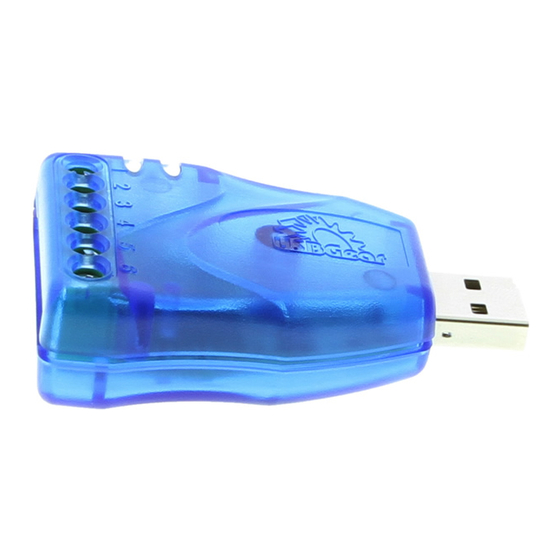

USBG-422MiNi – Product Manual 1. Introduction This mini is a surge and static protected USB to RS-422/485 Plug-in Adapter. The USBG- 422MiNi USB-to-Industrial Single RS-422/485 Plug-in Adapter is designed to provides instant connectivity to RS-422/485 communication device for factory automation... -
Page 5: Driver Installation
USBG-422MiNi – Product Manual 2. Driver Installation In most cases, the driver of USB-COMi-PL will be installed automatically. 2.1 Install in Windows 8, 7, Server 2012, 2008 Rs Connect your computer to the Internet and plug the USB-COMi-PL to the USB port. The driver will be installed automatically via the Internet. -
Page 6: Rs422 / Rs485 Pin-Outs
USBG-422MiNi – Product Manual 3. RS422 / RS485 Pin-outs RS-422/485 Full Duplex Mode Pin-out The table below shows the RS-422 / 485 full duplex mode pin-out of the terminal block connector. Pin Number Pin Type Description Output TxD- Transmit Data, negative polarity... -
Page 7: Signal Wiring
10 receivers, as stated in the specifications of RS-422. Since the USBG-422MiNi uses RS-485 line driver technology, up to 32 receivers are possible. The following diagram shows RS-422 and RS-485 4-wire... - Page 8 USBG-422MiNi – Product Manual The RS-485 operation of USBG-422MiNi allows for 2-wire cabling. Several RS-485 2-wire devices are connected in parallel to the wires, which is call bus topology. Each device can either send or receive data at a given time, so it is operating in half-duplex mode.
-
Page 9: Notes, Tips, And Warnings
USBG-422MiNi – Product Manual 5. Notes, Tips, and Warnings Note Warning • Read the entire Product Manual before implementing this product for your application. This manual contains important information about electrical connections that must be followed for safe and proper operation. -
Page 10: Supporting References
© 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
