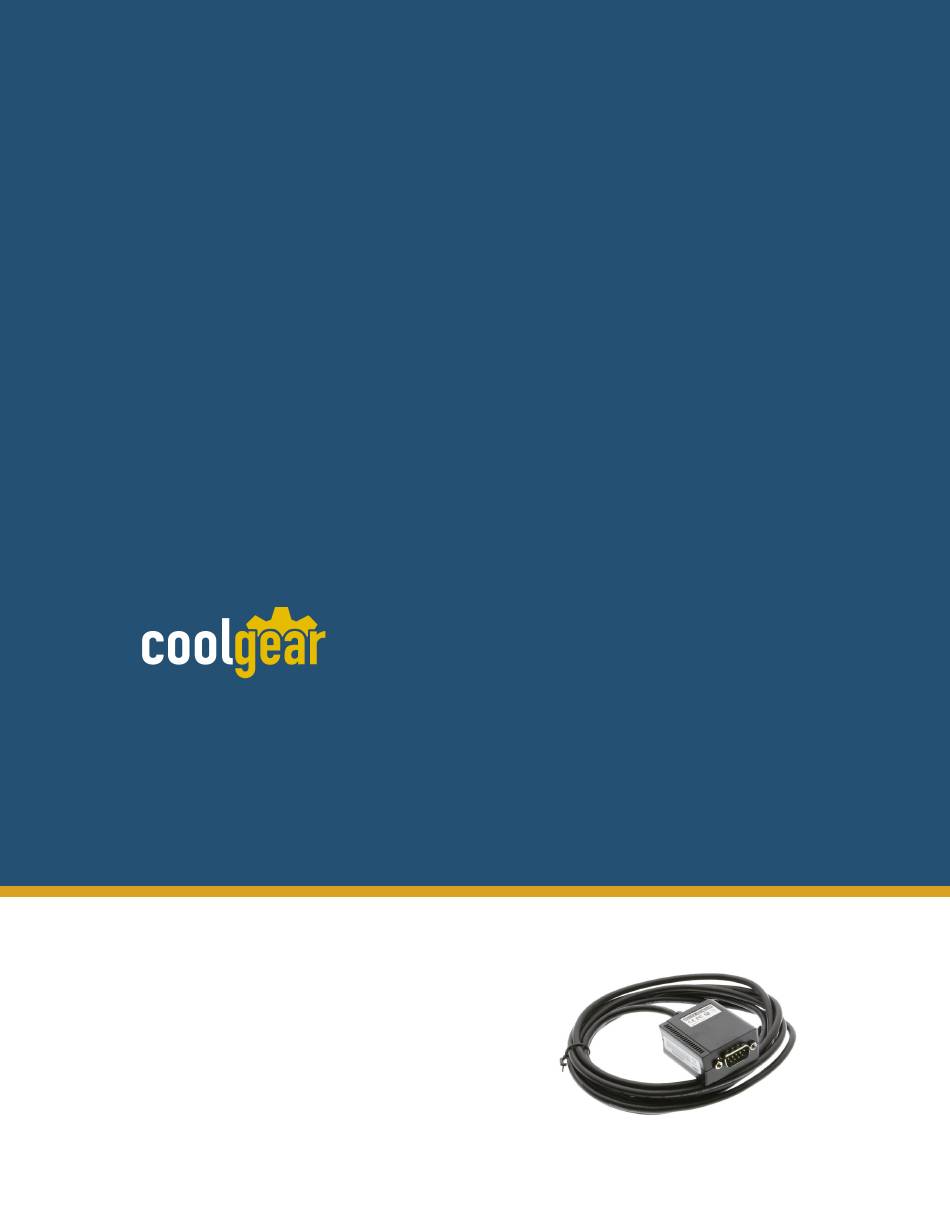

- Page 1 USB RS-232 Industrial Adapter Isolated and Surge Protected FTDI Chip Model Number: USBG-SSRS1 Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/17/2024...
-
Page 2: Table Of Contents
First Release 1. Introduction Thank you for purchasing Coolgear’s USB RS-232 Industrial Adapter Isolated and Surge Protected FTDI Chip. Thank you for purchasing this RS232 to USB Serial Adapter Cable. It is an intelligent expansion module that connects to a PC or server via the Universal Serial Bus (USB), providing high-speed serial connectivity. -
Page 3: Plugging The Adapter Cable
OS on the driver CD Follows the instructions of the installer program to complete the setup ■ procedures. Plugging the Adapter Cable will hook the drivers into the Windows kernel ■ automatically. Need help? Visit: coolgear.com/support... -
Page 4: Male Db9 Pin Assignments And Cable Wiring
– Installation Guide USB RS-232 Industrial Adapter Isolated and Surge Protected FTDI Chip 4. Male DB9 Pin Assignments and Cable Wiring DB9-Male Pin Assignment: DB9-Male to DB9-Male Cable Wiring: Need help? Visit: coolgear.com/support... -
Page 5: Specifications
None, Even, Odd, Mark, Space Isolation 2,500Vrms Optical Isolation Surge Protection 500 W Power Requirement 5V/110mA (USB Bus Powered) Operating Temperature 0 to 55°C(32 to 132°F) Operating Humidity 5 to 95% RH Storage Temperature -20 to 85°C (-4 to 185°F) Need help? Visit: coolgear.com/support... - Page 6 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 7 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
