- Page 1 Industrial 8-Port DB-9 RS232 to USB Adapter High-Speed FTDI Chip Product Manual Coolgear, Inc. Version 1.1 March 2018 Model Number: USBG-8COM-M www.coolgear.com...
- Page 2 USBG-8COM-M – Product Manual Revision History Revision Date Author Comments 03/08/2018 Coolgear New Manual About this document This product manual outlines installation and features of the USBG-8COM-MIndustrial 8- Port DB-9 RS232 to USB Adapter High-Speed FTDI Chip. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
-
Page 3: Table Of Contents
USBG-8COM-M – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 Adapter Diagram ..................... 5 Plugging in the Adapter ..................5 2. Installing Drivers ....................6 3. DB9 Pin Assignments and Cable Wiring ..............7 4. Notes, Tips, and Warnings ..................8 5. -
Page 4: Introduction

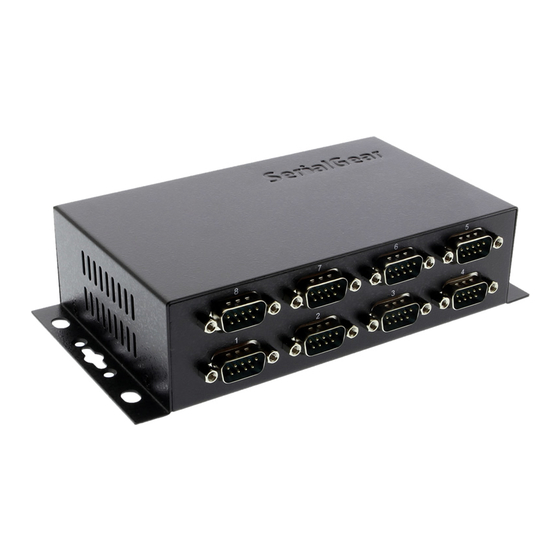

USBG-8COM-M – Product Manual 1. Introduction This USBG-8COM-M RS232 to USB Multi Serial Port Adapter is an intelligent module that connects to a PC or server via the Universal Serial Bus (USB), providing high-speed serial connectivity. The serial ports are fully optically isolated and surge protected. With its rigid metal case, it is an ideal solution for most critical applications. -
Page 5: Adapter Diagram
USBG-8COM-M – Product Manual 1.2 Adapter Diagram Figure 1 1.3 Plugging in the Adapter 1) Connect the AC/DC Adapter if your USB bus power is not enough to drive the whole unit. 2) Plug the Type-A end of the USB cable into the USB Host Port of your PC or into an available USB port on a USB Hub. -
Page 6: Installing Drivers
USBG-8COM-M – Product Manual 2. Installing Drivers The RS-232 Multi-Port serial adapter can be hot-plugged to the USB port of your computer due to the specifications of USB. It supports the following operating systems. The drivers are shipped in the following folder on the supplied driver CD. -
Page 7: Db9 Pin Assignments And Cable Wiring
USBG-8COM-M – Product Manual 3. DB9 Pin Assignments and Cable Wiring DB9-Male Pin Assignment Figure 3 DB9-Male to DB9 Male Cable Wiring Figure 4 www.coolgear.com... -
Page 8: Notes, Tips, And Warnings
USBG-8COM-M – Product Manual 4. Notes, Tips, and Warnings Note Warning • Read the entire Product Manual before implementing this product for your application. This manual contains important information about electrical connections that must be followed for safe and proper operation. -
Page 9: Supporting References
© 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
