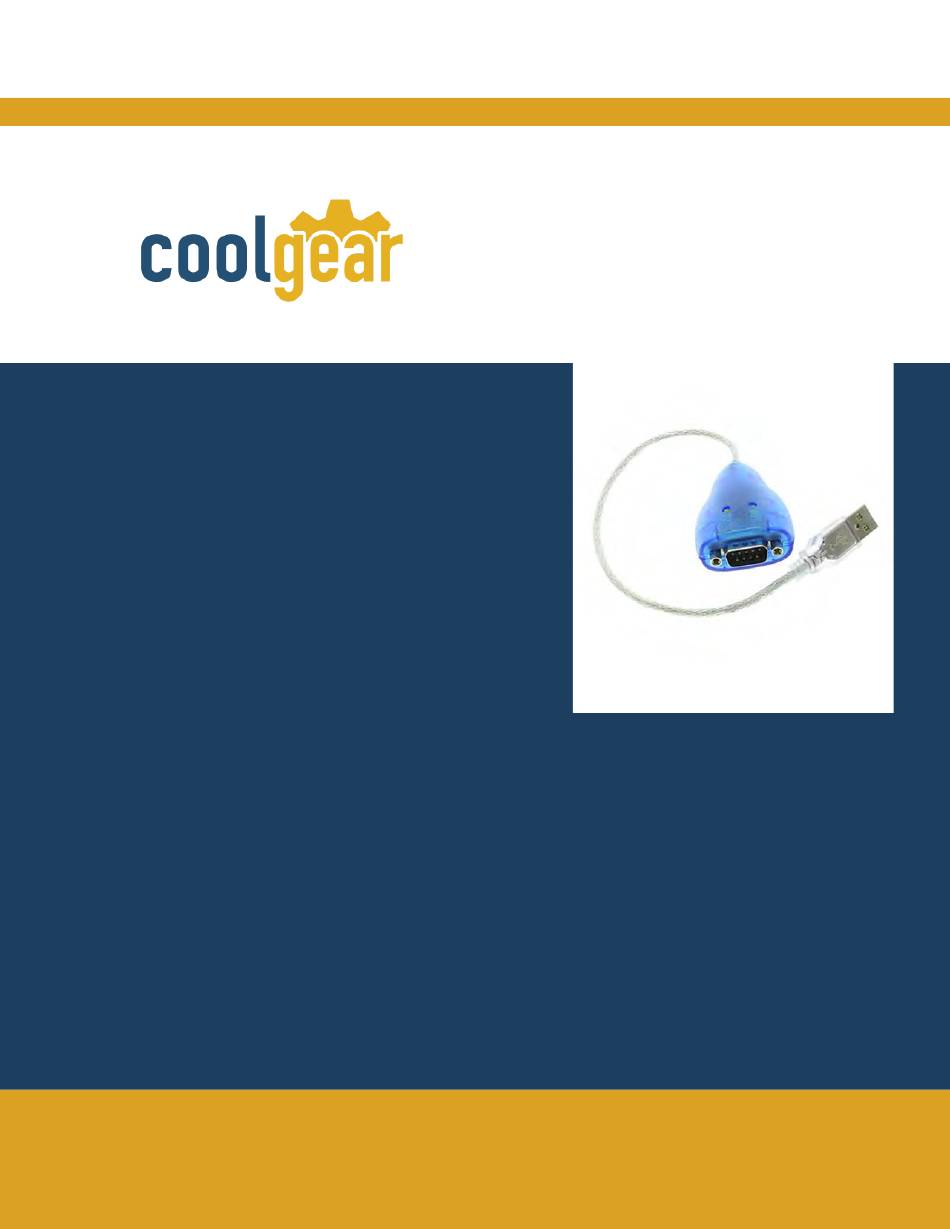

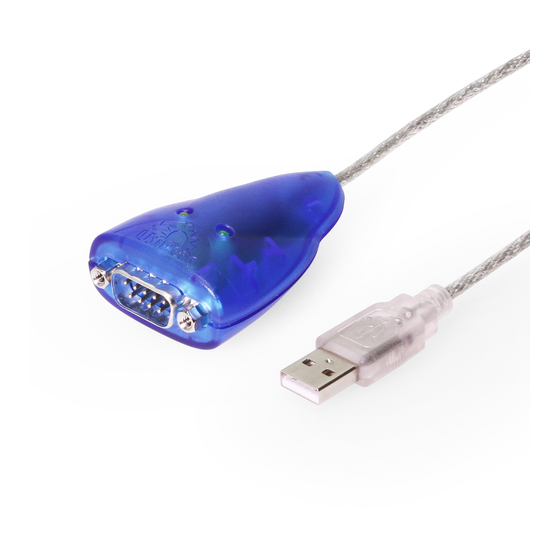

- Page 1 USB RS-232 Single Port Serial Adapter works with Windows 10 Product Manual Coolgear Version 1.0 January 2018 Model Number: USBG-232 www.coolgear.com...
- Page 2 Coolgear New manual format About this document This product manual outlines installation and features of the USBG-232 USB RS-232 Single Port Serial Adapter works with Windows 10. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
-
Page 3: Table Of Contents
Windows 7/ Vista / 2003 / XP / 2000 Driver Installation........6 Check Installation ....................7 2. Uninstalling Windows 7 or Vista Drivers ............. 10 3. RS-232 Signal Pin-outs of DB-9 Male ..............13 4. Notes, Tips, Warnings, and Safety ............... 14 5. Product URL ....................... 15 www.coolgear.com... - Page 4 Figure 9 COM Ports Dialog Box ..................10 Figure 10 Confirm Device Uninstall Dialog Box 1 ............. 11 Figure 11 Locate Device Dialog Box .................. 11 Figure 12 Confirm Device Uninstall Dialog Box 2 ............. 12 Figure 13 DB-9 Pin Connector Pin Out Diagram ............... 13 www.coolgear.com...
-
Page 5: Introduction
• High speed serial port with the baud rate up to 921.6K bps • Non-standard baud rates supported • LED status indicators for TxD and RxD for easy port monitoring and diagnostic • Serial port protected with surge protection of 10KV www.coolgear.com... -
Page 6: Windows 7/ Vista / 2003 / Xp / 2000 Driver Installation
(Note: in Windows 7 or Vista OS you will find another dialog box, please click on “OK” to confirm the drivers install program). Figure 1 5. After the message “FTDI CDM Driver installation process completed” appears, press “Enter” to complete the driver installation. www.coolgear.com... -
Page 7: Check Installation
2. The “USB COM Series Driver and Utility CD” dialog box appears. Figure 2 3. Under “Driver uninstalling”, double click “Windows 2003, XP, 2000 driver uninstall” to uninstall the device driver. 4. When following dialog box appears, double click “Clean System” to uninstall the 2003/XP/2000 drivers. www.coolgear.com... - Page 8 2003/XP/2000 USB to Serial drivers. Figure 3 6. Double click “Yes” to confirm it. Figure 4 7. Click “No” to proceed. Figure 5 8. When the message “Status: System clean completed” appears, double click “Exit” to complete the USB to serial drivers uninstall. www.coolgear.com...
- Page 9 12. Click “Chang/Remove” and “Yes” to remove the first Windows Driver Package. 13. Remove the second “Windows Driver Package – FTDI CDM Driver Package (…)”. 14. Click “Change/Remove” and “Yes” to remove the second Windows Driver Package. 15. Reboot the computer to complete the driver uninstall. www.coolgear.com...
-
Page 10: Uninstalling Windows 7 Or Vista Drivers
3. Select “Classic View” from the top left hand corner and then “System” from the list. 4. Select “Device Manager” from the top left hand corner. Figure 8 5. Locate your Device under the Ports (COM & LTP) section and right click on it to bring up the menu shown. Figure 9 www.coolgear.com... - Page 11 7. Locate your Device under the Universal Serial Bus Controllers section, and right click on it to bring up the menu shown. Figure 11 8. Select uninstall and be sure to click the box for “Delete the driver software for this device” in the next window and press “OK”. www.coolgear.com...
- Page 12 USBG-232 – PRODUCT MANUAL Figure 12 Note: if you have more than one USB Serial Converter installed in your PC, you need to repeat step 7 and step 8 to delete the driver software for all devices. www.coolgear.com...
-
Page 13: Rs-232 Signal Pin-Outs Of Db-9 Male
USBG-232 – PRODUCT MANUAL 3. RS-232 Signal Pin-outs of DB-9 Male Figure 13 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 www.coolgear.com... -
Page 14: Notes, Tips, Warnings, And Safety
Reference section 1.3 Note If you have more than one USB Serial Converter installed in your PC, you need to repeat step 7 and step 8 to delete the driver software for all devices. Reference section Warning Safety www.coolgear.com... -
Page 15: Product Url
USBG-232 – PRODUCT MANUAL 5. Product URL https://www.coolgear.com/product/usb-rs-232-single-port-serial-adapter-works-with- all-windows-and-mac www.coolgear.com...
