- Page 1 JETFLO Instruction manual YD-25JFL Ver. 20230425...
-
Page 2: Table Of Contents
Thank you very much for purchasing our product, JETFLO (YD-25JFL). This is a product which delivers floating scum to the collecting system efficiently. Each part’s function and the handling procedure are explained in this manual. Please use the product with fully understanding of them. Table of contents Table of contents ····································································································2 Safety precaution ·······················································································2... - Page 3 Preparation and cautions for operation Do not obstruct ventilation around the motor. It may Do not use the product where flammable gas cause the fire or failure for overheat. flows, because there is the possibility of the fire or explosion. If the motor gets overheated, it may cause the fire.
-
Page 4: Part's Name

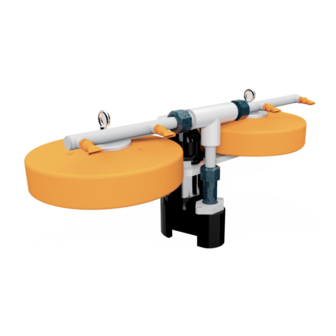

2. Part’s name YD-25JFL Eye nut Nozzle (4 pcs at the front) Main float Submersible pump 3. Performance Liquid to be used Waste water, Liquid containing floating objects Standard performance: 2 m-180 L/min Standard power: Three phase, 200V 50/60Hz Submersible Dry underwater cage induction motor, 2 pole, 400W, Insulation E pump (with a thermal protector) -
Page 5: Before Use
4. Before use Open the packing and check as below. Check the product Check that there is no damage of parts or loosened bolts/nuts during transportation. Do not use the product with any performance other than the prescribed. It may cause the product failure, electric leakage or electric shock. 5. -
Page 6: Maintenance
7. Maintenance In spite of the system running, If injection failure or lack of the injection quantity happens, the foreign objects may go inside the pump. In this case, disassemble the product and remove objects. The period of oil change for the submersible pump is 4,000 hours. When change, contact us. 8. -
Page 7: Warranty / Repair
9. Warranty / Repair period and coverage (1) The warranty period is 12 months from dispatched from our factory. (2) During warranty period, if the pump breaks down or is damaged at the use under the condition instructed in this manual due to manufacturing defect(s), the failure parts are repaired free of charge. (3) Even if the failure occurs within the warranty period, the followings are repaired or replaced for compensation in principle. - Page 8 WORCHEMI TAIWAN CO., LTD. / Taichung, Taiwan No.915, Zhongshan Rd., Shengang Dist., Taichung City 42955, TAIWAN TEL 886-4-2562-8358 FAX 886-4-2562-8351 WORLD CHEMICAL USA, INC. / California, U.S.A. 25691 Atlantic Ocean Dr.Unit B-15 Lake Forest, CA 92630, U.S.A. TEL 1-949-462-0900 FAX 1-888-860-3364 SUZHOU WORLD TECHNOLOGY CO., LTD.
