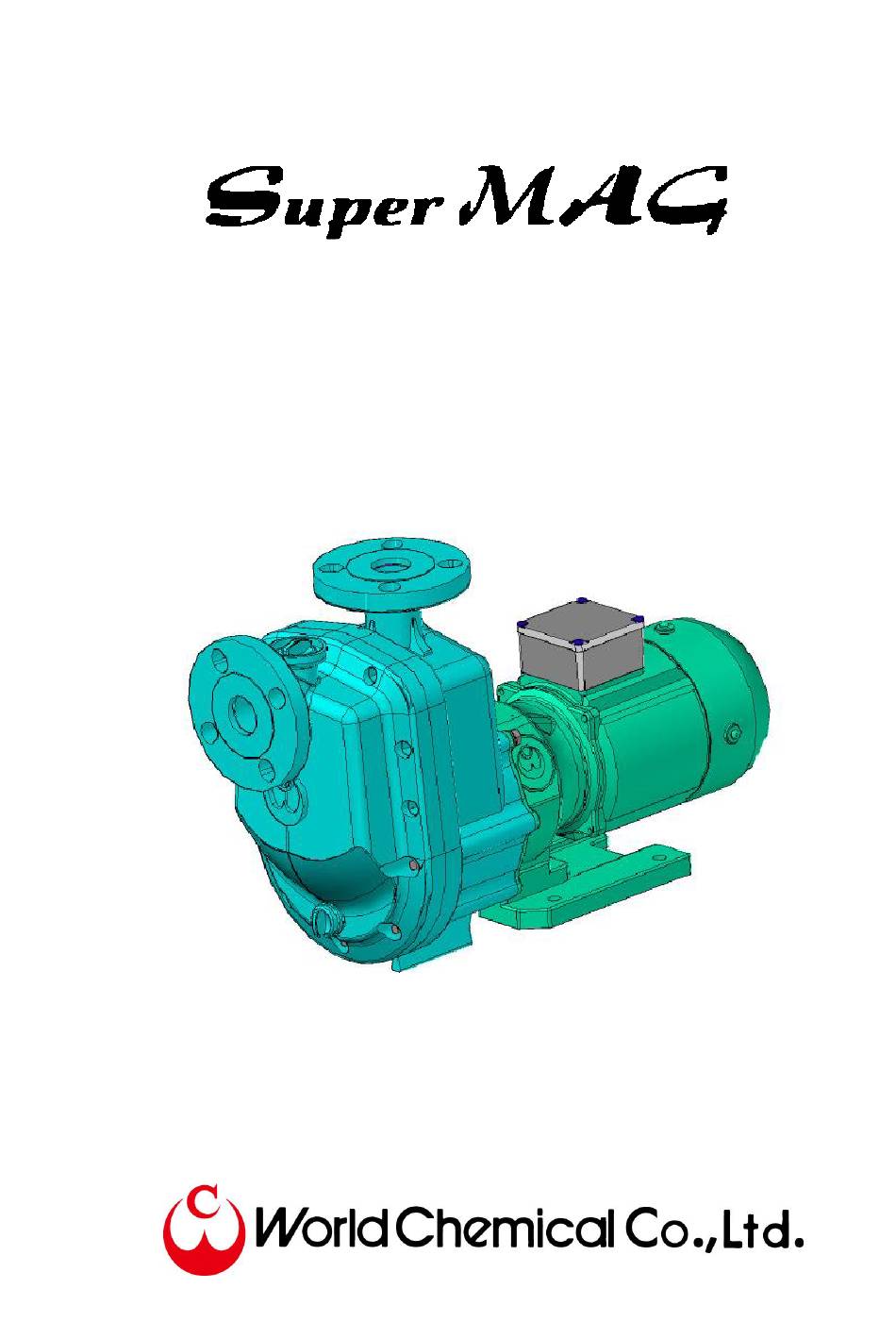

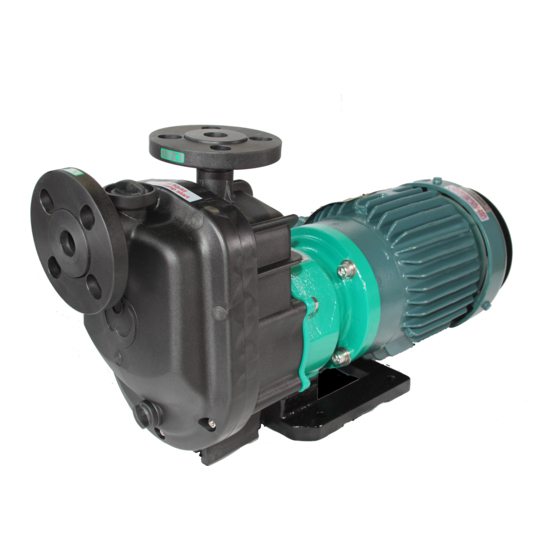

- Page 1 Corrosion Resistance Magnet Drive Pump YD-GV(F) INSTRUCTION MANUAL Version: 151119...
-
Page 2: Table Of Contents
Preface Thank you very much for purchasing World Chemical’s magnet pump “Super Mag”. Please read this manual thoroughly. An adequate understanding of this manual is required to maximize the pump’s performance and to assure safety and long-term efficiency. Store this manual where it can be easily accessed. - Page 3 WARNING (1) Dangerous liquids and surroundings. When using the pump for dangerous liquids or in surroundings (only explosion prevention specifications), adhere to facility standards determined by law and conduct daily check to prevent leakage. If operate the pump under abnormal conditions, such as liquid leakage, it may cause serious accidents such as explosion or fire and personal injury.
- Page 4 CAUTION (1) Unspecified use. Do not use pumps for purposes other than specification in the spec sheet or the nameplate. Especially, check the motor specification (phase, voltage and frequency). Unspecified use may cause personal injuries, the pump or peripheral equipment damage. (2) Restrictions of operator.
-
Page 5: Unpacking Check / Model Description
Unpacking check / Model description Check as follows and contact your supplier when you have any questions. 1. The indication in the nameplate (model, total head, capacity, motor specification, voltage and motor specification) is the same as your order. 2. Accessary is stocked with. 3. - Page 6 (5) Bearing / O-ring material (250*/400*/500*GV(F) *series) Model YD-****GV(F)*-△△ Material code Bearing Carbon Carbon Almina ceramic Almina ceramic Special*1 O-ring FPM (Dai-el) EPDM FPM (Dai-el) EPDM Special*1 *1) Special material: The material other than the standard material is used by consultation with the customer. (6) Frequency 5: 50Hz 6: 60Hz...
-
Page 7: Specification / Outline Dimension
Specification / Outline dimension ◼ 20**GV1 series Model 20Y6GV1 20A6GV1 20A (0.8”) x 20A (0.8”) Bore (Suc. x Dis.) (Union connection) Motor output 0.26Kw (1/3HP) (Indoor motor) 6 – 30 Standard spec. 50Hz 7 – 30, 22ft-7.9gpm (m_L/min) 60Hz Weight: kg, lbs. 10.0 / 22 Limit of self-priming height (Normal temperature) 2.5 m/ 8.2ft... - Page 8 ◼ 250*GV(F)* series 2500 2501 2502 Model GVF3 GVF3 Bore (Suc. x Dis.) 25A (1”) x 25A (1”) 0.4kW Motor output 0.75kW (1HP) 1.5kW (2HP) (1/2HP) No ind. 8 - 80 50Hz (-F) Standard 8 - 80 8 - 80 spec.
- Page 9 ◼ 400*GV(F)3 series 4002 4003 4001 Model GVF3 GVF3 GVF3 Bore (Suc. x Dis.) 40A (1.5”) x 40A (1.5”) Motor output 1.5kW (2HP) 2.2kW (3HP) 0.75kW (1HP) 10 – 110 ind. 11 - 160 50Hz (-F) Standard 11 - 160 11 - 160 spec.
- Page 10 ◼ 500*GV(F)3 series 5002 5003 5005 Model GVF3 GVF3 GVF3 Bore (Suc. x Dis.) 50A (2”) x 50A (2”) Motor output 1.5kW (2HP) 2.2kW (3HP) 3.7kW (5HP) 15 – 200 17 – 250 No ind. (-F) 17 - 200 18 - 250 50Hz 17 - 200 18 - 250...
-
Page 11: Parts Name / Material / Structure
Parts name / Material / Structure Parts name / Material / Structure YD-20Y6GV1 / 20A6GV1 Parts name Material Set condition Impeller PP + Magnet Bearing CFR PTFE Impeller set Mouth ring CFR PTFE Rear casing CFR PP Shaft Alumina ceramic Rear casing set Rear thrust ring Alumina ceramic... - Page 12 Parts name / Material / Structure YD-250* / 400* / 500*GVF(F)* Material Parts name Set condition YD-GV* YD-GVF* Suction casing GFR PP CFR ETFE Discharge casing GFR PP CFR ETFE Separate board GFR PP CFR ETFE Grating board GFR PP CFR ETFE Priming water plug GFR PP...
-
Page 13: Handling Instructions
Handling instructions Because of the powerful magnetic force of this pump, extra precaution is necessary in addition to the normal one such as dry running or reverse rotation operation. People with pacemakers and other electronic devices for maintaining bodily functions do not use this magnet pump. -
Page 14: Installing / Piping Precaution
Installing / piping precaution Installing precaution (1) If a large amount of air enters in pumps, it does not pump properly and causes a breakdown. ⚫ The suction pipe is the state of the negative pressure. If air enters for the connection installing failure, liquid is not pumped, and the temperature of priming liquid is raised. -
Page 15: Operating Precaution
Operating precaution Before starting operation. (1) Clean pipes and tanks. If foreign objects enter the pump, not only the performance decrease, but also cause a breakdown. (2) Pour priming water from the priming water plug on the top of the suction casing and release air. From next time, it is not necessary to do it for the self-priming structure. -
Page 16: Maintenance / Consumable Parts Yd-20Y6Gv1 / 20A6Gv1
Limit of the pump pressure resistance Avoid going over the discharge pressure of the pump as the following the limit. (at 25 degrees) Model 20**GV1 250*GV* 400*GV3 500*GV3 250*GVF* 400*GVF3 500*GVF3 Limit (MPa) 0.25 0.32 0.41 0.53 0.32 0.41 0.45 Easy foamy liquid Easy foamy liquid by stirring for surfactant reduces self-priming ability dramatically. -
Page 17: Disassembly / Assembly Yd-20Y6Gv1 / 20A6Gv1
(6) Front casing (No.3-1) If there is abrasion or corrosion inside, replace it. (7) O-ring (No.2-4, 3-3, 3-5, 4-4, 6-3) If there is harden, less elastic or crack, replace it. Consumable parts change (1) Front casing set (2) Rear casing set (including O-ring) (3) Impeller set Disassembly / Assembly YD-20Y6GV1 / 20A6GV1 The magnet force which is used in a pump is powerful, be careful of it during disassembly or... -
Page 18: Maintenance / Consumable Parts Yd-250* / 400* / 500*Gv(F)* Series
Maintenance / Consumable parts YD-250* / 400* / 500*GV(F)* series Daily check (1) Check that there are no vibrations, or any abnormal noises and it works smoothly. (2) Compare the current value during operation with the rated current value and check that the operating load is normal. -
Page 19: Disassembly / Assembly Yd-250* / 400* / 500*Gv(F)* Series
Consumable parts change: Please replace the following parts as set. (1) Front casing set Front casing + Liner ring + Separating board + Grating board + Lap joint + Flange + Priming water plug + Drain plug + O-ring + Packing (2) Rear casing set Rear casing + Rear thrust ring + Shaft (3) Impeller set... - Page 20 Assembling the pump with standard off-the-shelf motor (1) Put standard off-the-shelf motor workbench with the motor shaft-side up. The opposite side of terminal box should be located right in front of you. (1)’ Only for 5HP Insert and tighten the screws to secure the bracket firmly to the motor mounting plate.
- Page 21 (4) Insert the motor shaft into the hole of the outer magnet until the upper face of the outer magnet has located at 13mm (0.05 inches) above the upper surface of bracket. Insert two screws into the fixing holes of outer magnet with hex wrench from the hole (see arrow) of the bracket.
- Page 22 (8) Insert the front casing along the stud bolts. Tighten the bolts to secure the casing to the rear casing support. Bolts: For rear casing support (Common use) Hex. Bolts M8x25 (W/SW) 3sets For front casing 250-252GV(F) --- Hex. Nuts M6 (W/SW) 5sets 401-505GV(F) --- Hex.
-
Page 23: Exploded View 250* / 400* / 500*Gv(F) Series
Exploded view 250* / 400* / 500*GV(F) series... -
Page 24: Troubleshooting
Troubleshooting Pump up failure and insufficient pumping. Unable to pump or insufficient pumping. Unable to pump even after opening Unable to pump even after adding Insufficient discharge volume. the discharge valve. piming liquid. Resistance in Air enters from Lack of priming Foreign objects Motor rotates Air in the suction... -
Page 25: Warranty / Repair
Limited Warranty / Repair Warranty period and coverage (1) The warranty period is a year from delivered out of our factory. (2) During warranty period, if the pump breaks down or damages in normal operating condition due to manufacturing defect(s), the failure parts are repaired free of charge. (3) We provide no warranty support if the defect or damage is caused by any of the following: •... - Page 26 GOOD PROTECTION: No dealer, agent or employee is authorized to make any modification, extension, change or amendment to this warranty. Repair Notice: For repair, consult the supplier. When returning a pump, thoroughly clean and pack the wet parts kit. If irregularities are detected during operation, stop the operation immediately for check. (Refer to the section on “troubleshooting”).
- Page 27 Worchemi Taiwan Co., Ltd. / Taichung, Taiwan No.915, Zhongshan Rd., Shengang Dist., Taichung City 42955, TAIWAN TEL 886-4-2562-8358 FAX 886-4-2562-8351 World Chemical USA, Inc. / California, U.S.A. 30 Hughes, Suite 203, Irvine, CA 92618 U.S.A. TEL 1-949-462-0900 FAX 1-949-462-0999 Suzhou World Technology Co., Ltd. / Suzhou, China...
