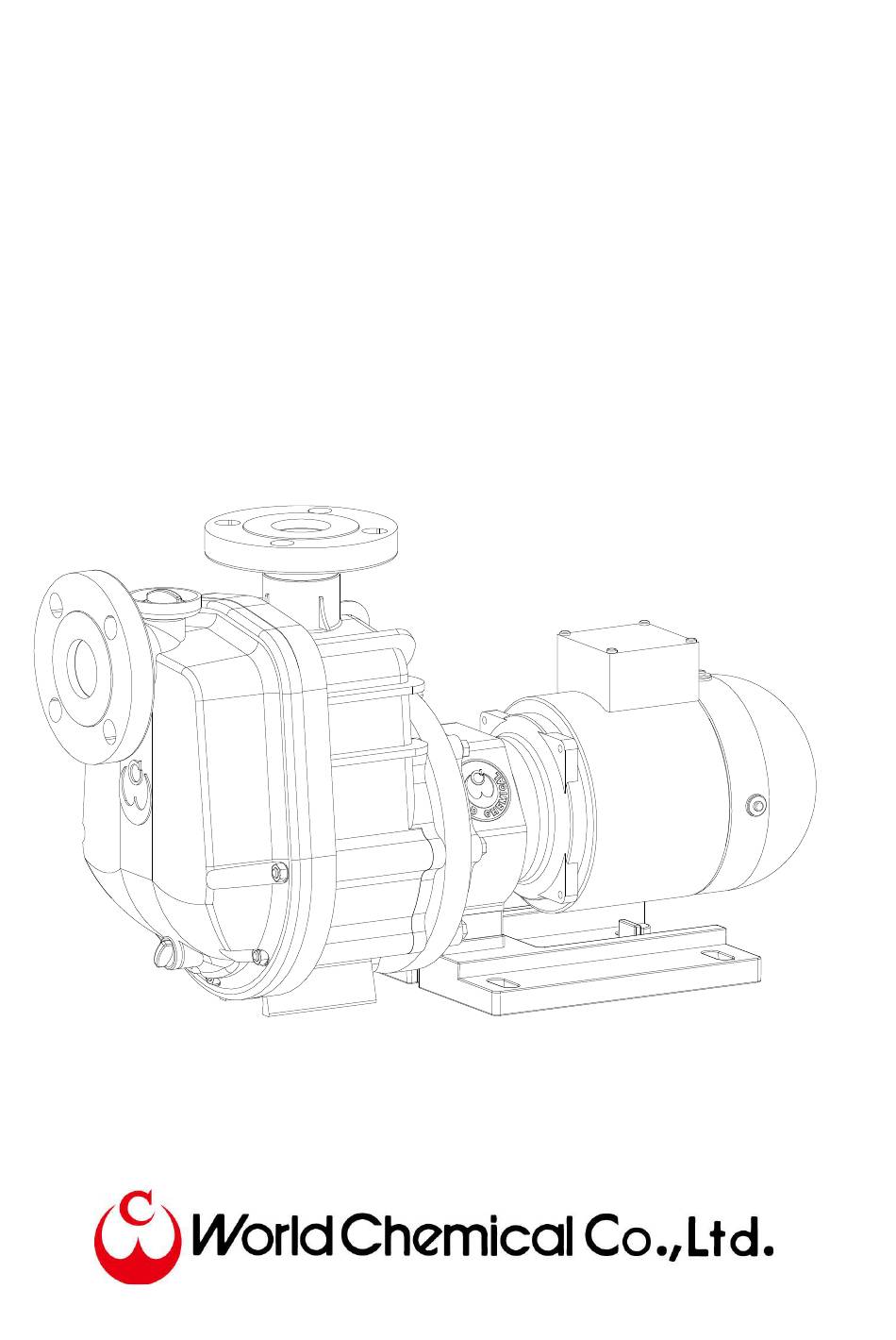

- Page 1 Corrosion Resistant Horizontal Self-Priming Pump [Mechanical seal type] YD-GVM1/GVM3 Series INSTRUCTION MANUAL Version: 20230704...
-
Page 2: Table Of Contents
Preface Thank you very much for purchasing World Chemical’s centrifugal pump “YD-GVM1/GVM3”. When handling the pump, make sure to read this manual to the end and use the pump safety and long-term efficiency. After reading, store this manual for ready reference as necessary. - Page 3 Warning (1) Dangerous liquid and surrounding When using pumps which transfer dangerous liquid or in potentially explosive atmospheres (only explosion proof type), make sure to perform the daily inspection not to leak liquid while observing the facility standards set forth by law. The pump operation under an abnormal condition like liquid leakage causes a tragedy like person injury, explosion or fire.
- Page 4 Caution (1) Prohibited on the unauthorized use Do not use pumps with a specification except for the indication on the nameplate. Install pumps after checking especially the motor specification (phase, voltage and frequency). Wrong use may cause personal injury or the pump and peripheral equipment damaged. (2) Restrictions on handler Carry, install, wire, operate and maintain pumps by experts who have full knowledge of pumps.
-
Page 5: Unpacking Check / Model Description / Specification
Unpacking check / Model description / Specification Check the followings and contact your supplier if there is any unclear. 1. The model, total head, capacity, motor specification and voltage on the motor nameplate comply with the ordered specifications. 2. All accessories are included. 3. -
Page 6: Outline Dimension / Structure
Outline dimension / Structure GVM(F) Outline dimension φ12 2500GVM(F)1 301.5 559.5 φ12 4001GVM(F)3 5002GVM(F)3 36-14 Parts description / Material Material Parts name Remarks YD-GVM YD-GVMF FC200+Aluminium frame motor 1 Motor with bracket FPM 2500GVM(F):AS568-015 etc.：AS568-017 6 Oring for Shaft sleeve 8 Back cover 9 Oring for Backcover FPM: Dai-el FPM 2500GVM(F)：P140 4001GVM(F)：160G 5002GVM(F)：G180... -
Page 7: Installing And Operating Precautions
22 Oring for Impeller nut FPM 2500GVM(F)：P22 etc.：P26 FPM: Dai-el 23 Casing set GFR PP CFR ETFE 26 Gascket 28 Lap joint GFR PP CFR ETFE 29 Loose flange GFR PP GFR PP (Black) JIS10K FPM 2500GVM(F)：AS568-120 Oring for Lapjoint FPM: Dai-el 4001GVM：AS568-129 5002GVM：AS568-136 31 Priming plug GFR PP... - Page 8 2. Piping load (1) Be subjected to a piping load by a pipe support. If it is possible for the piping to be expanded by high temperature liquid, the pump may be damaged by expansion. Therefore, install the extendable or flexible joint to prevent the load to the pump at the expansion.
- Page 9 (5) Check the rotating direction of the motor. If it is the three-phase power supply and the inverse rotation. Switch two wires of three wires. The direction is clockwise as viewed from the motor fan. Do not run dry. As the mechanical seal is cooled by pumped liquid through self-priming circulation, the operation with no liquid inside may cause the pump damage for heat.
-
Page 10: Maintenance / Check
Maintenance / Check Daily check (1) Check that there are no vibrations or any abnormal noises from the pump and the pump works smoothly. (2) Compare the current value during operation with the rated current value and check that the operating load of the motor is normal. - Page 11 Assembly Assembly is the inverse of the disassembly. Clean the sliding parts and O-ring thoroughly not to adhere dirty or damage. Insert the mechanical seal during fitting the salient of the seal case with the ditch of the rotating ring, turn the phragm up and fit into the mechanical seal in the outside ditch of the seal case.
-
Page 12: Exploded View
Exploded view... -
Page 13: Troubleshooting
Troubleshooting Unable to pump or insufficient pumping Unable to pump or Insufficient pumping Insufficient discharge volume Unable to pump even after opening Unable to pump even after pouring and pressure Discharge valve priming liquid into the pump Pump rotates Lack of pump Resistance in Air enters from Lack of... -
Page 14: Warranty / Repair
Warranty / Repair Warranty period and coverage (1) The warranty period is 12 months from dispatched from our factory. (2) During warranty period, if the pump breaks down or is damaged at the use under the condition instructed in this manual due to manufacturing defect(s), the failure parts are repaired free of charge. - Page 15 WORCHEMI TAIWAN CO., LTD. / Taichung, Taiwan No.915, Zhongshan Rd., Shengang Dist., Taichung City 42955, TAIWAN TEL 886-4-2562-8358 FAX 886-4-2562-8351 WORLD CHEMICAL USA, INC. / California, U.S.A. 25691 Atlantic Ocean Dr.Unit B-15 Lake Forest, CA 92630, U.S.A. TEL 1-949-462-0900 FAX 1-888-860-3364 SUZHOU WORLD TECHNOLOGY CO., LTD.
- Page 16 Corrosion Resistant Horizontal Self-Priming Pump [Mechanical seal type] YD-GVM1/GVM3 Series INSTRUCTION MANUAL Version: 20230704...
