Summary of Contents for Rohnson EcoFlow R-8110

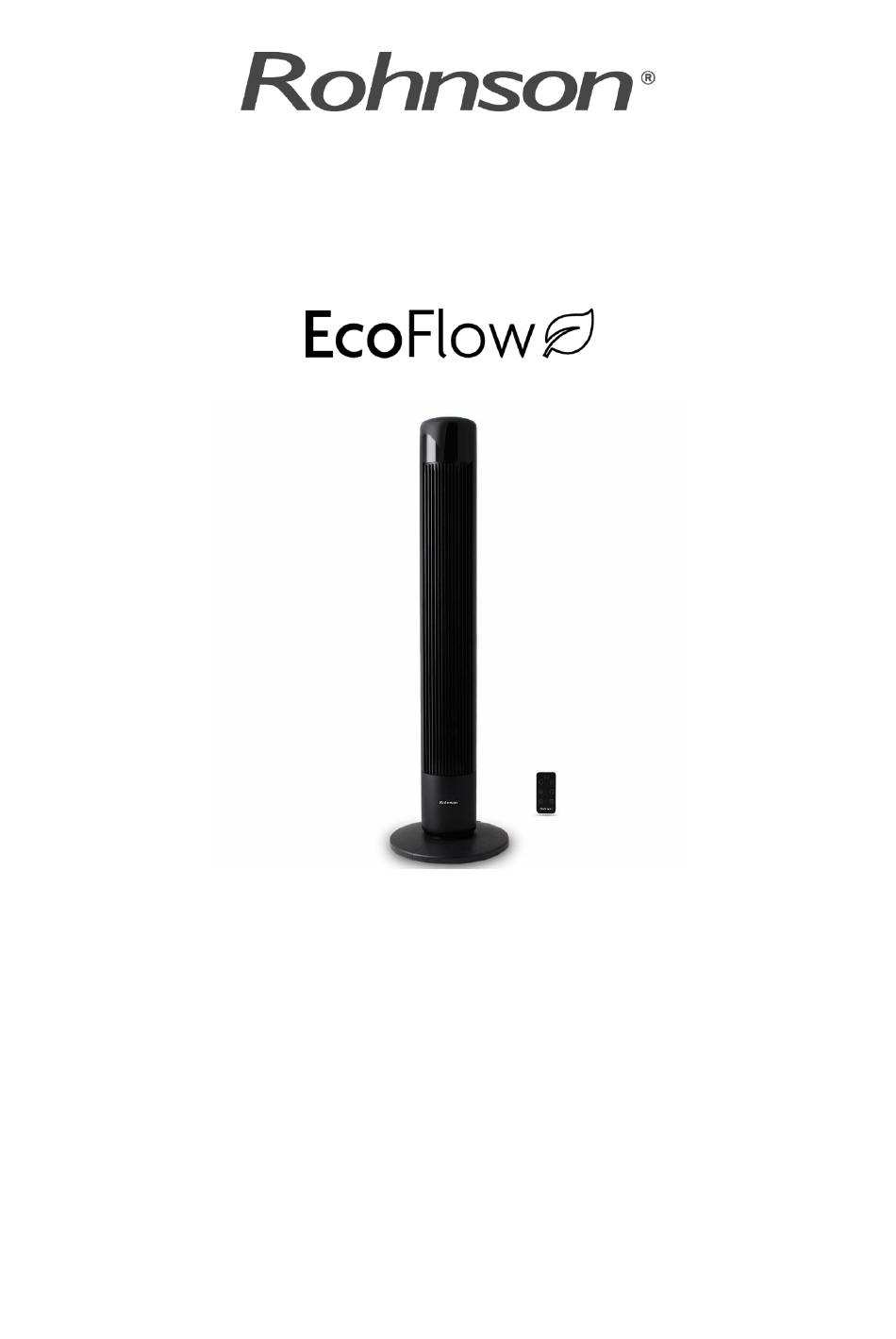

- Page 1 TOWER FAN WITH IONIZER & REMOTE CONTROL Model No. R-8110 Instruction Manual PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE...
-
Page 2: Safety Instruction
Please read all the instructions before attempting to operate this product and save these instructions manual for future reference. SAFETY INSTRUCTION: READ ALL INSTRUCTIONS BEFORE USING THE FAN. 1. Check the voltage indicated on the rating plate. This fan is designed for (220-240V~ 50-60Hz) electric supply. -
Page 3: Parts Name
PARTS NAME: Touch sense control panel LED display Air outlet Base Recess handle & Remote storage Screw of rear cover Rear cover/ Air inlet Remote control 8. Remote control Powered by 1pc. CR2025 battery All the functions performed with the Remote Control work identically to the Control panel... - Page 4 OPERATION INSTRUCTIONS: Assembly Instructions: 1. Install the two parts of the base together (please place the power cord below two parts of base first) (Fig. 1). 2. Place the main unit vertically to the base (Fig. 2). 3. Lock the base and the unit with the big screw (Fig. 3). Then, screw the small screws to the point 1-4 to make the base firmly (Fig.
- Page 5 Fig. 3 Fig. 4 Fig. 5 Caution: Fan must be assembled with the base before use! HOW TO USE: 1. Connect the plug to the suitable power supply. There will be a “ bi” sound. The unit is in standby mode. 2.
- Page 6 4. Press the OSC button to turn on the oscillation function. The default angle of oscillation is 80° . Press the OSC button again to change to 120° . Then, press again to turn off the oscillation function. 5. Press TIMER button to set up timer function. Then, press the INCREASE/DECREASE buttons to select the preset time from 1 hour to 24 hours.
- Page 7 C. Sleep wind mode: The LED display will be turned off after 5 seconds when sleep wing mode is selected. The fan runs at a speed with lower noise to circulate the air. Sleep wind mode: 8 speed sleep wind 8 speed natural wind 7speed natural wind...
- Page 8 5 speed sleep wind 8 speed natural wind 7 speed natural wind 6 speed natural wind 5 speed natural wind 4 speed natural wind 3 speed natural wind 3 gear Running time 30 minutes work continuously or turn off on time minutes minutes 4 speed sleep wind...
- Page 9 3 speed sleep wind 8 speed natural wind 7 speed natural wind 6 speed natural wind 5 speed natural wind 4 speed natural wind 3 speed natural wind 2 speed natural wind 1 speed natural wind 1 gear Running time 30 minutes work continuously or turn off on time minutes...
- Page 10 1 speed sleep wind 8 speed natural wind 7 speed natural wind 6 speed natural wind 5 speed natural wind 4 speed natural wind 3 speed natural wind 2 speed natural wind 1 speed natural wind 1 gear Running time work continuously or turn off on time minutes D.
-
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE: WARNING: ALWAYS UNPLUG THE UNIT BEFORE MOVING OR SERVICING. DO NOT IMMERSE THE POWER CORD, PLUG AND THE WHOLE UNIT INTO WATER OR RINSE UNDER THE TAP! Caution: Do not use detergent, gasoline, benzene, thinner, or other solvents to clean the unit to avoid damage of the appliance. - Page 12 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health, deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
