Summary of Contents for MIMAKI CJV200-165

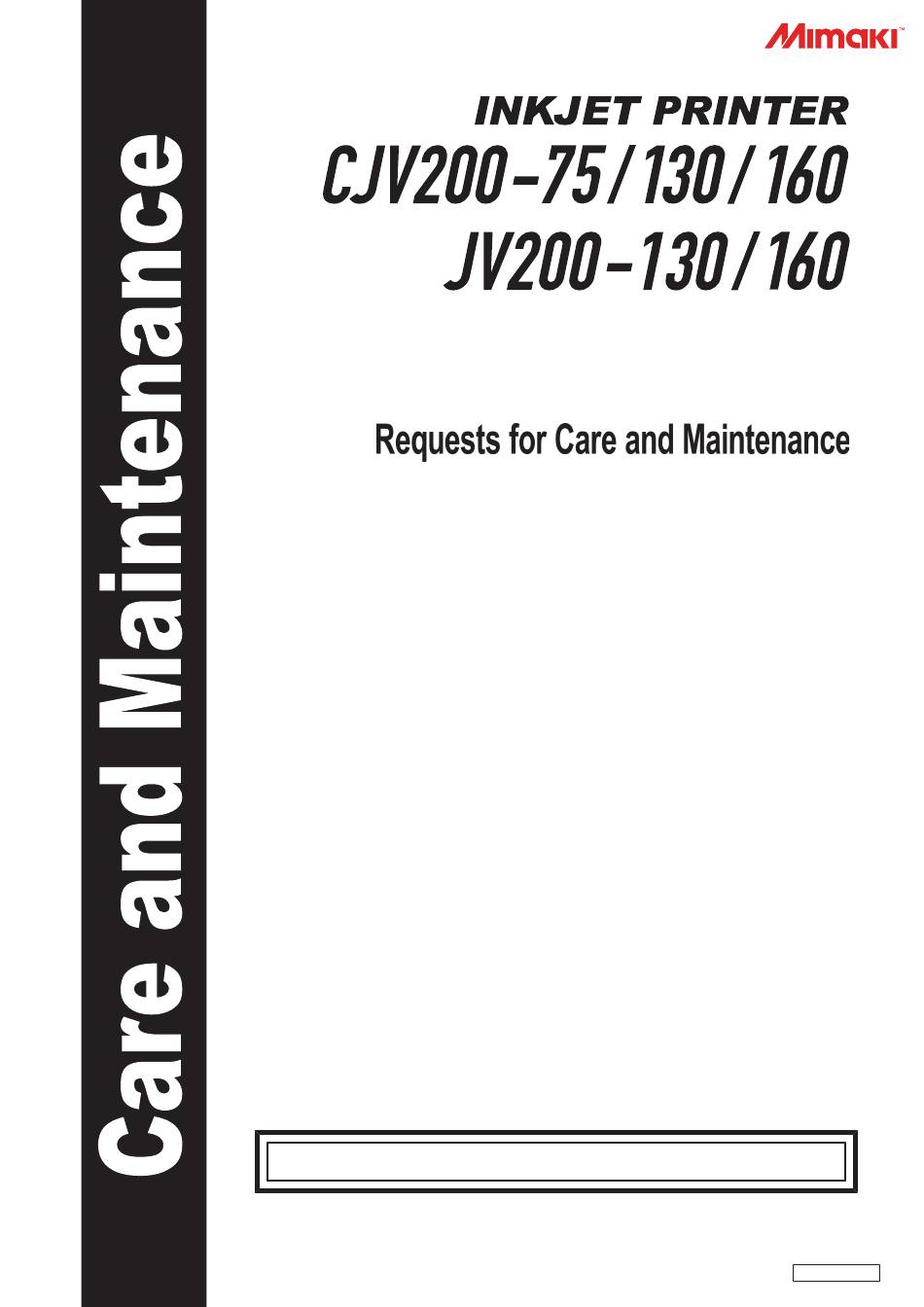

- Page 1 Cartridge-ink model You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203838-20 Original instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction .................. 3 To Ensure Safe Use ............... 4 Symbol Marks .................. 4 Maintenance 1. Maintenance Precautions ............ 6 2. Maintenance Methods .............. 7 Maintenance Items and Timing............. 7 Ink Maintenance ................... 8 Cap Rubber Cleaning ................ 8 Carriage Underside Cleaning ............... -
Page 3: Introduction
MATERIALS CREATED WHILE USING THIS MACHINE. • USING THIS MACHINE IN CONJUNCTION WITH DEVICES OTHER THAN THOSE RECOMMENDED BY MIMAKI ENGINEERING MAY RESULT IN FIRE OR ACCIDENTS. SUCH INCIDENTS ARE NOT COVERED BY THE PRODUCT WARRANTY. MIMAKI ENGINEERING REJECTS ALL LIABILITY FOR DAMAGE, DIRECT OR INDIRECT, ARISING FROM SUCH INCIDENTS. -
Page 4: To Ensure Safe Use
To Ensure Safe Use Symbol Marks This document uses symbol marks to explain precautions when operating the machine. Make sure you fully understand the meaning of each mark to ensure safe and correct use of the machine. Explanation Warning Indicates a potential hazard that may result in death or serious injury if handled improperly or if instructions are disregarded. -
Page 5: Maintenance
To Ensure Safe Use Maintenance To ensure years of precise performance, maintain the machine periodically based on frequency of use. Read the maintenance precautions thoroughly before maintaining this product. -
Page 6: Maintenance Precautions
1. Maintenance Precautions 1. Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. Carry out maintenance periodically and replace consumable items to prevent quality defects and accidents. • Clean periodically. Debris and dust will accumulate on electrical components when the machine is used for extended periods. -
Page 7: Maintenance Methods
Items Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website (https://mimaki.com/supply/inkjet.html). • Do not store consumable items in locations where children may enter. -
Page 8: Ink Maintenance
2. Maintenance Methods Ink Maintenance If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the Ink pack periodically to keep printing consistent. Solvent ink: once every month l Shake the Ink pack Shake the Ink pack to the left and right slowly at least 20 times. •... -
Page 9: Carriage Underside Cleaning
2. Maintenance Methods Clean the cap rubber. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. • Clean the areas indicated in red (the entire interior and exterior of the cap rubber and the tabs) in the diagram. -
Page 10: Wiper Cleaning
2. Maintenance Methods Open the maintenance cover (left side). Clean around the print head. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Clean the print head sides using a cleaning stick. Never touch the nozzle surface! Clean using a cleaning stick or soft cloth. - Page 11 2. Maintenance Methods Open the maintenance cover (right side). Remove the wiper. • Hold the lugs on both sides of the wiper bracket, then pull out the wiper. Clean the wiper and bracket. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.
-
Page 12: Cleaning The Ncu (Option)
2. Maintenance Methods Reattach the wiper at the original position. • Do not remove the absorber pad in the pad case. Doing so may result in leaking ink. Once cleaning is complete, close the cover, then press the [ENTER] key. Cleaning the NCU (Option) The NCU uses a sensor to monitor the ink droplets ejected from the print head nozzles. -
Page 13: Das (Automatic Correction Function) / Sheet Width Sensor Cleaning
2. Maintenance Methods • Insert the cleaning stick as far as the line shown in the illustration. Once cleaning is complete, close the cover, then press the [ENTER] key. DAS (automatic correction function) / Sheet width sensor cleaning The DAS sensor is located on the carriage underside. If dust or debris accumulates on the sensor, DAS (Media Setting Menu) may not function. -
Page 14: Ink Discharge Channel Cleaning
2. Maintenance Methods Clean the DAS sensor. • Wipe clean using cotton swabs or a soft cloth. • For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly wrung out. Once cleaning is complete, press the [ENTER] key. Close the maintenance cover (left side), then attach the maintenance cover (upper left side). -
Page 15: Media Sensor Cleaning
2. Maintenance Methods Media Sensor Cleaning There is a media sensor located on the rear cover. The media cannot be detected correctly if dust or debris accumulates on the sensors. Remove any debris using cotton swabs or a soft cloth. Rear of product Media Cutter Cleaning Continuing to use a dirty media cutter may cause dust to collect on the head nozzle surface or the cutter... -
Page 16: Media Holder Cleaning
2. Maintenance Methods Clean both sides of the media cutter. • Wipe off any adhesive paste, ink and dust adhering using a cleaning stick moistened with industrial alcohol. Wipe off any industrial alcohol so that none remains. Return the media cutter to its original position. •... -
Page 17: Jam Sensor Detecting Plate Cleaning
2. Maintenance Methods • Be careful to prevent liquids from getting inside the machine. Otherwise there is a risk of failure, electric shock, or fire. • For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly wrung out. -
Page 18: Cover (Exterior) Cleaning
2. Maintenance Methods Cover (Exterior) Cleaning • Be careful to prevent liquids from getting inside the machine. Otherwise there is a risk of failure, electric shock, or fire. • For heavy soiling, wipe using a soft cloth soaked in diluted neutral detergent and thoroughly wrung out. - Page 19 2. Maintenance Methods On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key. • The Maintenance menu is displayed. Select [Station Maint.] > [Custody Wash], then press the [ENTER] key. • The carriage moves over the platen. Open the maintenance cover (right side).
-
Page 20: Replacement Of Consumable Item
3. Replacement of Consumable Item To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website (https://mimaki.com/supply/inkjet.html). • Do not store consumable items in locations where children may enter. -
Page 21: Wiper Replacement
3. Replacement of Consumable Item Wiper Replacement The machine maintains a count of the number of wiping cycles. The "Replace Wiper" message appears when a preset count is reached. Replace dirty or warped wipers with new ones. "Replace Wiper" appears on the display. On the LOCAL mode screen, select [MENU] >... -
Page 22: Cap Replacement
3. Replacement of Consumable Item Mount a new wiper. Once replacement is complete, close the cover, then press the [ENTER] key. • The wiper usage count is reset. Once replacement is complete, close the cover, then press the [ENTER] key. Cap Replacement If ejection failures (e.g., nozzle clogging or deflection) remain unresolved even after cleaning, replace with a new cap. -
Page 23: Replacing The Absorber Around The Station
3. Replacement of Consumable Item Remove the cap. • Squeeze the lugs on either side of the cap and pull off. Apply maintenance liquid. • Use a syringe to apply two or three drops of maintenance liquid to the hole at the front. Mount a new cap. - Page 24 3. Replacement of Consumable Item Select [Station Maint.] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key. • The carriage moves over the platen. Open the maintenance cover (right side). Remove the cap absorber. Cap absorber •...
-
Page 25: Pinch Roller Replacement
3. Replacement of Consumable Item Pinch Roller Replacement Replace worn or dirty pinch rollers with new ones. • Turn off the main power and unplug the power cable before replacement. Raise the clamp lever. Remove the O-ring retaining the pinch rollers. [JV] [CJV] O-ring... - Page 26 3. Replacement of Consumable Item Remove the maintenance cover (upper left side). Maintenance cover (upper left side) Remove the side screw, and detach the media holder stopper. Remove the media holder. Mount the new media holder on to the platen.
-
Page 27: Media Cutter Replacement
3. Replacement of Consumable Item Secure the media holder stopper with the screw. Attach the maintenance cover (upper left side). Media Cutter Replacement Replace cutters when blades are chipped or blunt. • Avoid touching the cutter blade. Failure to do so may result in injury. On the LOCAL mode screen, select [MENU] >... -
Page 28: Waste Ink Tank Replacement
3. Replacement of Consumable Item Replace the media cutter. (1) Unscrew the cutter screw. Screw (2) Remove the cutter. (3) Mount a new cutter. (4) Tighten the screw to clamp the cutter. Check the position of the media cutter. • Lift up the media cutter by hand if it has dropped down. Good example Bad example Once replacement is complete, press the [ENTER] key. - Page 29 3. Replacement of Consumable Item • For a 2-liter tank, the preset level is 80 % (1.6 L). • Continuing to use the product without disposing of the waste ink may result in waste ink overflowing from the waste ink tank. Visually check ink levels in the waste ink tank about once a week.
- Page 30 3. Replacement of Consumable Item Pull the waste ink tank stopper forward. Hold the handle on the waste ink tank and slide out. Attach the cap to the removed waste ink tank, and use tape to prevent leakage of waste ink. •...
-
Page 31: Cutter For Cutting Machine (Cjv200 Only)
3. Replacement of Consumable Item Close the waste ink tank stopper. Press the [ENTER] key. • The waste ink level will be reset. Cutter for Cutting Machine (CJV200 Only) Replace cutters when blades are chipped or blunt. • Avoid touching the cutter blade. Failure to do so may result in injury. •... - Page 32 3. Replacement of Consumable Item Attach double-sided tape in the platen slot. • Peel off the base paper from the double-sided tape. Attach the pen line on the double-sided tape. • Make sure the pen line lies flat.
-
Page 35: Care And Maintenance
Care and maintenance April, 2025 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203838-20-22042025... - Page 36 © MIMAKI ENGINEERING CO., LTD.2024 FW : 2.0...
