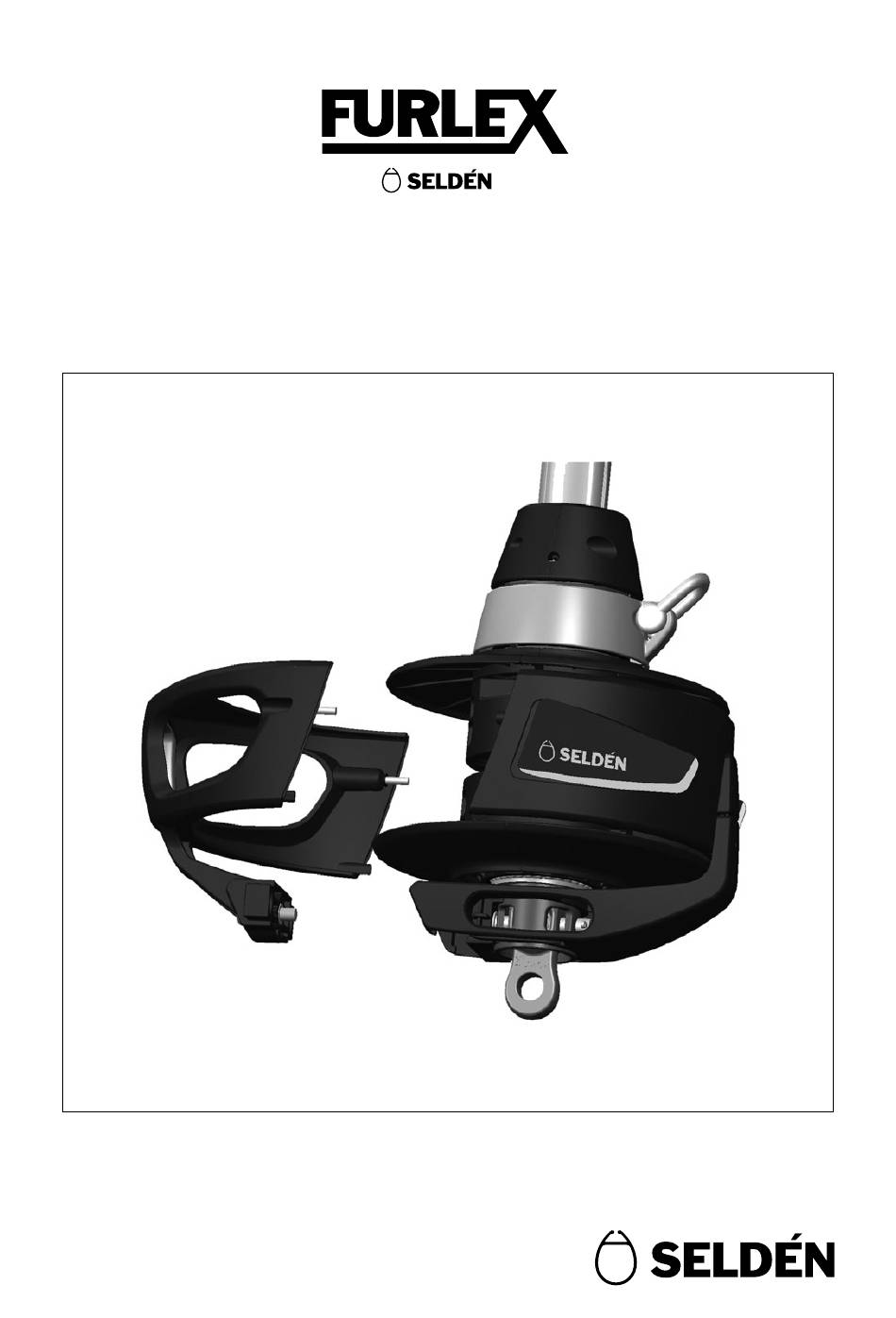

- Page 1 597-626-E 2025-04-29 304S ø12 Manual Furlex 304S Note! THIS MANUAL REPL ACES PAGES 4, 8, 9 AND 10 IN Forestay Ø12 only MANUAL 597-132...
-
Page 3: What's Included
1.2 What’s included? Basic pack / Extended pack The Furlex system consists of a basic pack with drum unit, halyard swivel, sail feeder, bearing halves, top guard and furling rope. The Extended pack also includes halyard leads, stanchion blocks and pre-feeder pack - accessories that will make your system work even better on your boat. - Page 4 2.3 Wire length calculation Furlex is supplied with a fixed-length forestay, with a swaged eye on one end and a swaged stud in the other end. If a stud-terminated stay is to be manufactured by a local rigger it is important to note that WL in this case equals the length of the finished stay, from eye to end of stud, as shown in fig.
- Page 5 2.4 Top extrusions - length calculation The Furlex luff extrusion consists of a number of shorter pieces. Starting from the bottom there is a 1000 mm (39 3/8”) luff extrusion connected to the drum unit and extending up to the sail feeder. Then, from the sail feeder and up there are a number of full length luff extrusions (L=2400 mm) and finally there is a 2000 mm top extrusion that has to be cut to length to suite the actual forestay length.
- Page 6 To find out the cutting length of the top extrusion (D) and the length of the top distance tube (E), start with the length of the forestay wire (WL) that was calculated in table 1. Then follow the steps in table 2 below. On fixed length forestays (incl. rod stays), verify WL by measuring the stay length from centre of eye to end of stud (wire) or end of rod head.
-
Page 7: Warranty
7 Warranty Seldén Mast AB guarantees the Furlex-system for 2 years. The guarantee covers faults arising from defective design, materials or workmanship. The guarantee is only valid if the Furlex-system is assembled, operated and maintained in accordance with this manual and is not subjected to loads in excess of those indicated in the brochure and instructions. Complete shipment and warranty conditions are to be found on Seldéns website www.seldenmast.com. - Page 8 DINGHIESKEELBOATSYACHTS Seldén Mast AB, Sweden The Seldén Group is the world’s leading manufacturer of Tel +46 (0)31 69 69 00 mast and rigging systems in carbon and aluminium for Fax +46 (0)31 29 71 37 e-mail info@seldenmast.com dinghies, keelboats and yachts. Seldén Mast Limited, UK Tel +44 (0) 1329 504000 Our well known brands are Seldén and Furlex.
