Summary of Contents for Selden 22

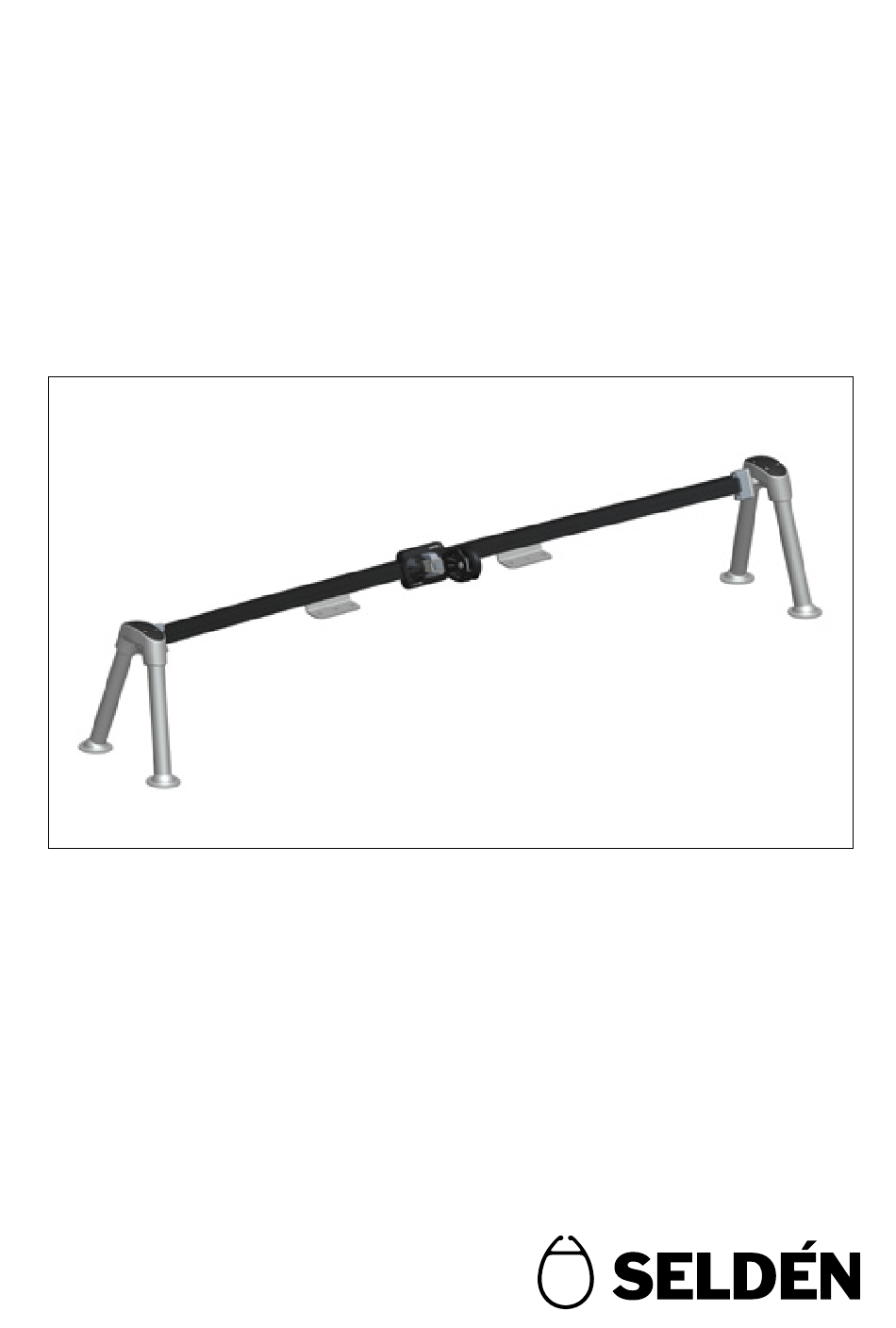

- Page 1 597-278-E 2018-02-20 Manual Self-tacking system 22 For sailboats ranging from 25 to 35 feet...
-
Page 2: Introduction
If there are any questions about selecting the right product, please consult an authorized Seldén dealer. All dealers are listed at www.seldenmast.com and divided in categories describing their competence. For Self-tacking jib system 22 we recommend dealers in the category “Advanced Technical Installations”. -
Page 3: Table Of Contents
Contents page Introduction Product information self-tacking system 22 2.1 Parts included 2.2 Foot options 2.3 Track options 2.4 Car options 2.5 Block options Assembly preparations 3.1 Required tools 3.2 Required fasteners 3.3 Sheet arrangement 3.4 Placement of centre console 3.5 Track length 3.6 Placement of side consoles... - Page 4 System 22 is designed as a universal retro-fit self-tacking system for sail boats ranging from approximately 25 to 35 feet. The length of the legs can be cut to the correct length and the angle of the track and deck fittings are adjustable.
- Page 5 The illustrations below show the two most common ways to install a self-tacking system. Coach roof mounting Side deck mounting...
-
Page 6: Parts Included
153-178 SCREW MLC6S M4x8 Joint bracket 442-201 JOINT BRACKET 79.5x60x40 442-205 END STOP 42.5x20x17 153-178 SCREW MLC6S M4x8 442-210 WASHER PLATE ST-22 153-001 SCREW MC6S 6x20 312-305 LOCKING ADHESIVE 1ML 442-204 LEG Ø25x500 151-120 THREAD BAR M8x500 164-401 WASHER Ø16/8-1.5 (M8) -
Page 7: Foot Options
2.2 Foot options (2 alternatives) Not included in kit 442-200-10, to be ordered separately. Deck fitting kit, 442-206-10 Enables quick removal of the system when preparing for racing. Item Art. No. Quantity Description (mm) 443-206 DECK FITTING Ø59x27.5 442-207 END FITTING LEG Ø26x33 165-203 CLEVIS PIN Ø10x28 301-049... -
Page 8: Block Options
2.5 Block options Not included in kit 442-200-10, to be ordered separately. Blocks for 442-148-01, single car Description Art No. Sheet arrangement Safe Working Load (kg) PBB50 Single 405-001-01 Over the foredeck PBB50 Single becket 405-001-02 Up the mast BBB60 Single HD* 406-601-51 Over the foredeck BBB60 Single becket HD*... -
Page 9: Assembly Preparations
3. Assembly preparations 3.1 Required tools Ensure you have the following tools before starting the assembly: • Hacksaw • File • Allen keys 2.5mm, 5mm and 6mm • Socket wrench with 13mm socket • Spanner 10mm • Measuring tape or ruler •... -
Page 10: Sheet Arrangement
3.3 Sheet arrangement There are two common ways to set up a sheet arrangement for a self-tacking system. The sheet can be led over the fore deck or up the mast. The routing of the sheets affects: • The angle of the track •... -
Page 11: Placement Of Centre Console
3.4 Placement of centre console Fit the centre consoles on the track temporary. Use the M6 bolts, nuts, washers and nut holder included in the kit. Fit the nuts in the nut holder and slide in to the track as per illustration. Nut sides need to be “parallel”... -
Page 12: Track Length
3.5 Track leng th The sheeting angle and Jt-measurement will give the length of the track. Normally an angle of 8-10° works well (an angle under 7° is not recommended). Consult your sail maker for the recommended sheeting angle for your sail and boat. •... -
Page 13: Assembly
4. Assembly Before permanently installing the track on deck, we recommend that you do a temporary assembly to make sure that the deck mounts, track and car do not interfere with any other deck fittings or structures above or below deck. Parts of the assembly need to occur whilst on the deck of the boat. For actions such as sawing or grinding, it is recommended this is done away from the boat in a suitable work space. - Page 14 Install joint bracket 442-201 to both sides of the track with the screws, washers and rubber end stop. Use locking adhesive on the screws. It is important that both washers are used in the assembly, one on the outside and one on the inside of the profile as shown.
- Page 15 Deck fitting Deck fitting 442-206-10 Screw the end fitting 442-207 onto the ends of all four treaded bars. Assemble the complete deck fitting kit as shown. Place the system on deck with the deck fittings attached and adjust the threaded bars to Foot kit correct length.
-
Page 16: Installation
5. Installation To simplify the final installation, disassemble the centre console and side bracket from the track. Leave both joint brackets (442-201) assembled on the track. 5.1 Step by step installation instructions Install the centre bracket to the deck at the marked position. - Page 17 Deck fitting Deck fitting 443-206-10 Install the deck fittings at the marked positions on Foot kit deck. Make sure the deck fitting 443-206 is at the correct angle to fit the side console when assembled to the track. Use 4xM6 countersunk screws for each fitting.
-
Page 18: Service And Maintenance
6. Service and maintenance 6.1 Frequent maintenance Cleaning Rinse the self-tacking system with fresh water regularly to get rid of salt and dirt. A mild detergent can be used to help get dirt off. Pay extra attention to the ball bearings inside the car. Rinse the car thoroughly with fresh water while moving it back and forth on the track. -
Page 19: Options
7. Options 7.1 Sheet crane and exit box For boats fitted with vertical pole storage (VPS) and for boats where a “up the mast” routing of the sheet would need a relocation of the deck and steaming light. The sheet crane creates the separation you need between the mast and sheet to facilitate VPS, navigation and deck lights. -
Page 20: Warranty Conditions
8. Warranty Seldén Mast AB guarantees Self-tacking jib system 22 for 2 years. The guarantee covers faults arising from defective design, materials or workmanship. The guarantee is only valid if the product is assembled, operated and maintained in accordance with this manual and is not subjected to loads in excess of those indicated in the brochure and on the Seldén website. - Page 21 Notes...
-
Page 22: Product Information Self-Tacking System
DINGHIESKEELBOATSYACHTS The Seldén Group is the world’s leading manufacturer Seldén Mast AB, Sweden Tel +46 (0)31 69 69 00 e-mail info@seldenmast.com of mast and rigging systems in carbon and aluminium Seldén Mast Limited, UK for dinghies, keelboats and yachts. Tel +44 (0)1329 50 40 00 e-mail info@seldenmast.co.uk Our well known brands are Seldén and Furlex.
