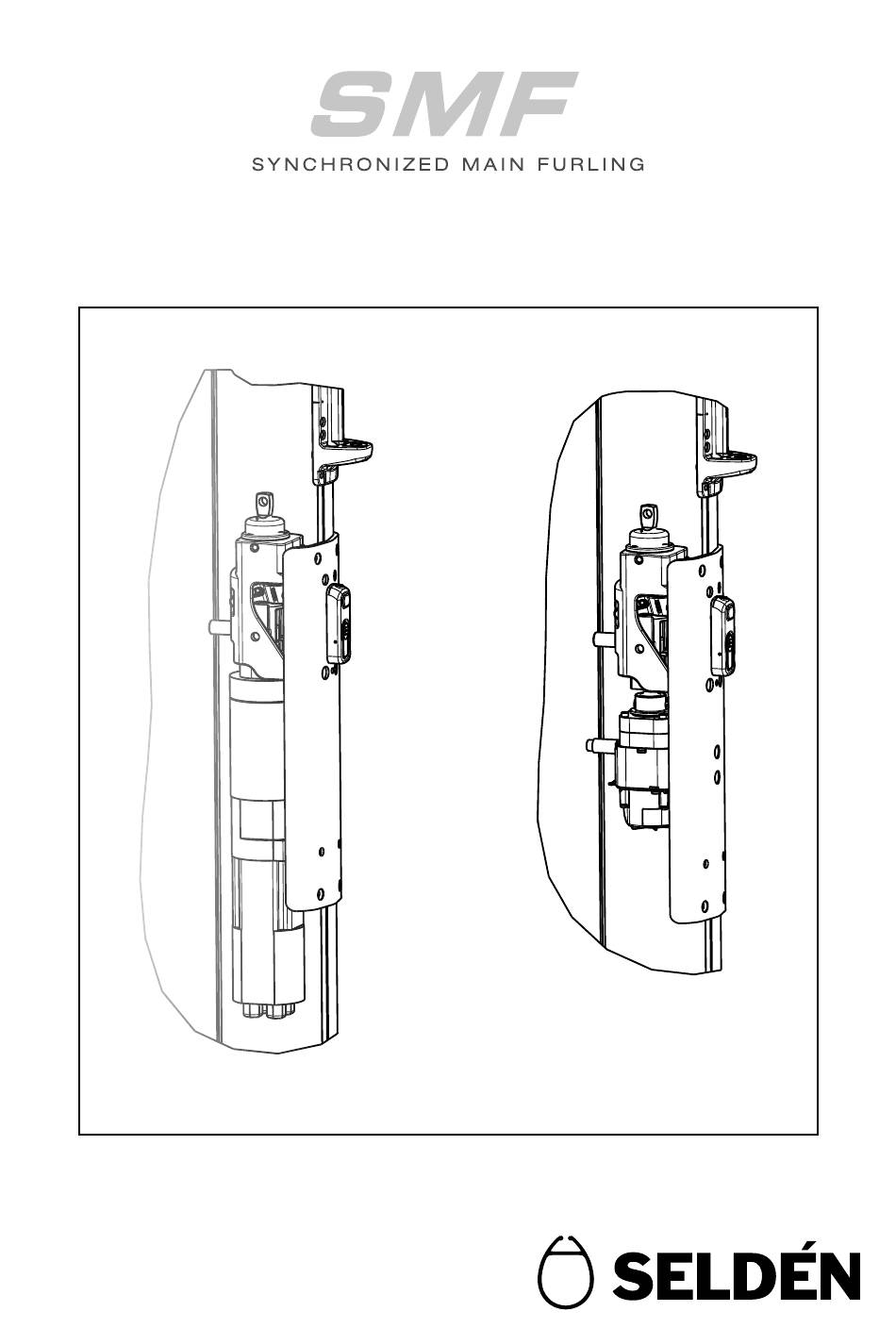

- Page 1 597-519-E 2024-05-06 User guide and installation manual for SMF retrofit on 12/24 V electric system, RB & RC...
-
Page 2: Table Of Contents
Contents 1 Introduction ......................... 3 2 Synchronized Main Furling....................5 2.1 SMF Retrofit kit – mast motor and clutch .............. 5 2.2 Power supply and SEL-Bus system ................6 2.3 Technical specification ....................7 3 Retrofit installation ......................8 3.1 Replacing gear motor ....................8 3.2 Connection to Seldén Power Supply and SEL-Bus system ........ 13 3.3 Configuration of control buttons for Synchronized Main Furling ...... 13 4 Preparations before sailing ....................15 4.1 Tensioning the luff extrusion ..................15 4.2 Rig tuning ........................15 4.3 Outhaul car stop ....................... 16 4.4 Outhaul routing ...................... 16 5 Sailing with Synchronized Main Furling ................. -
Page 3: Introduction
1. Introduction Congratulations on the purchase of your new SMF retrofit kit. This manual covers operating guidelines for the system and installation instructions for the electric retrofit kit on mast sections R232, R260, R290, F228, F246, F265, F286, F305, F324. The mast section is identified by the mast ID, engraved on port side at the bottom of the mast extrusion. The part number and serial number of the mast motor is found on the aft side of the mast motor facing the sail groove. Always use the mast ID and part and serial number of mast motor as reference in any support case. Part No Serial No Mast ID Please read the entire manual before installation and use of the product and keep it available for future reference. The latest version is available at www.seldenmast.com. Related installation manuals and user guides: 597-275-E Installation of Seldén Power Supply and SEL-Bus system 597-283-E Seldén Power Supply and SEL-Bus system order guide 595-540-E Hints and Advise Installation of SMF retrofit kit All Seldén dealers are listed at www.seldenmast.com and divided in categories describing their competence. For SMF retrofit installation we recommend dealers in the category “Advanced technical installations”. - Page 4 Safety notes Carefully pay attention to, and follow the instructions with the following symbols: ATTENTION This symbol indicates a critical moment in the assembly or technical advice. WARNING This symbol indicates a potentially hazardous situation. If not avoided, this could result in serious personal injury or damage to property. Turn off the electric power during installation of the electrical equipment. Turn off the electric power when the system is not in use to prevent unintentional activation. Always monitor the entire furling process! Stop immediately in case of malfunction. Keep body parts away from the sail groove, winches and any other moving parts during operation.
-
Page 5: Synchronized Main Furling
2 Synchronized Main Furling 2.1 SMF Retrofit kit – mast motor and clutch The SMF retrofit kit contains the electric mast motor and shaft assembly required to upgrade your existing electric drive unit. The mast motor is installed inside the existing cover and controlled by connection cables linked to the Seldén Power Supply and SEL-Bus system. Shaft assembly Mast motor... -
Page 6: Power Supply And Sel-Bus System
2.2 Power supply and SEL-Bus system SMF retrofit is used together with a Seldén Power supply and SEL-Bus system, and a Seldén electric winch for synchronized outhaul. The mast motor is connected to motor control unit (MCU) for furling mast. Via the SEL-Bus network, the furling mast MCU can communicate with winch MCU and OUT/IN control buttons. Seldén electric winch and all power supply and SEL-Bus system parts are sold separately. Parts and packages are described in Seldén Power Supply and SEL-Bus system: Order guide 597-283-E. System illustration The illustration shows an example of a Synchronized Main Furling network installation. The complete Power Supply and SEL-Bus system of each customer will vary and can include additional units and functions. 1. Battery (not included) 2. Main switch/fuse 3. Power supply unit (PSU) Converts 12/24V to 42V 4. Push buttons for Synchronized Main Furling 5. Electric winch 6. -
Page 7: Technical Specification
2.3 Technical specification Furlin system Mast motor direction Total Gear Ratio 81:1 81:1 81:1 81:1 Peak Torque 89Nm 16Nm 170Nm Low speed (max) 49 RPM 37 RPM 37RPM 37RPM High speed (max) 74 RPM 74 RPM 74RPM 74RPM Max power (full torque) 144W 600W 175W... -
Page 8: Retrofit Installation
3 Retrofit installation 3.1 Retrofit preparations Tools needed: Screwdriver - Flat Torx key set Hex key set Pliers (e.g. jaw pliers/adjustable spanner and long nose pliers) Power drill Drill bit Ø10.2 mm, Countersink drillbit Ø19 mm Hole saw (20 mm) Pencil Measuring tape Heat gun and shrink tube (to protect cables) Cleaning spirit, cleaning cloth Locking adhesive, medium strong Adhesive tape 150x1000mm, 10-15mm thick board to support motor during disassembly. Marine Adhesive sealant Release backstay tension Insert emergency handle and turn clockwise as you push inwards to engage worm gear. Turn until handle is fully engaged. Turn clutch handle to position shown in picture to disengage luff profile from motor. Remove the access cover and grease plug on the port side. Through the lower access hole, unscrew the retainer screw and push the locking tube upwards above the sail feeder. - Page 9 Lock the tube in the upper position with a piece of tape. Grip luff profile through upper access hole to prevent it from rotating. Push emergency handle inwards and turn it anticlockwise to rotate tack assembly and release luff profile tension. Through the lower greasing hole on port side, remove split pin and clevis pin from gear shaft adapter. Save the split pin and clevis pin. Again, push emergency handle inwards and turn it anticlockwise to separate tack assembly from clutch. Remove handle.
- Page 10 Insert a support underneath the motor to keep it from falling down when removing the screws. Remove screws holding clutch and motor. The motor and the clutch mechanism are now loose. Remove screws holding the cover and carefully remove the cover while supporting clutch and motor preventing these from accidentally falling out. Lift out Clutch and motor.
- Page 11 Prepare cover with 2x new holes for fitting new motor unit, see instruction 597-846 Drill ø20mm holes in mast wall for motor support and hole for lubrication access, see instruction 597-846. Grind edges. Fit clutch and new motor unit on cover, see instruction 597-846. Don’t forget to apply marine adhesive sealant or anti corrosion jointing compound to the new holes in cover to prevent corrosion under screw heads. Clutch is only fitted temporarily. Check clutch function. Replace old electric cables with new.
- Page 12 Remove upper screws for clutch, A, and loosen the lower screws, B, 3-4 turns. This is done to facilitate mounting of cover onto mast with motor and clutch fitted. Fit cover with motor and clutch. Avoid damaging the cables. Fit all screws with loctite. Reconnect luff extrusion and tension luff profile.
-
Page 13: Connection To Seldén Power Supply And Sel-Bus System
3.2 Connection to Seldén Power Supply and SEL-Bus system Install the three control cables from the mast motor to the motor control unit (MCU) “Furling mast”. Carefully note the position of cable colour and connector: L3= Grey L2= Orange L1= Brown The cables need to be connected to the MCU in the correct position/sequence. Incorrect positioning of the cables can damage the mast motor and break mechanism. For correct positioning of the Motor Control Unit, installation of the complete Power supply and SEL-Bus system, see separate manual 597-275-E. 3.7 Configuration of control buttons for Synchronized Main Furling For synchronized main furling, configuration of the control buttons for both the winch and furling mast must be done in the following order. For complete information about how to configure Motor control unit, MCU, to the control buttons, read installation manual 597-275-E. Press the configuration A. Configure winch MCU to winch buttons button on Winch MCU. Push and hold winch button 1 or 2 until the winch generates the start-up signal. - Page 14 Press the configuration B. Configure winch MCU to the MAIN button on Winch MCU. OUT button (for synchronized outhaul) Push and hold MAIN OUT until the winch generates the start-up signal. C. Configure furling mast MCU to the Press the configuration button on Furling mast MCU. MAIN OUT/IN buttons Push and hold IN until the mast motor generates the start-up signal. If the signal tone is generated when the Power supply and SEL-Bus system is turned on (without any button being pressed) turn the power off immediately. Inspect the push button connections; cables from SEL-Bus converter to push button must be installed as “normally open” not “normally closed”.
-
Page 15: Preparations Before Sailing
Preparations before sailing 4.1 Tensioning the luf f extrusion It is important that the luff extrusion inside the mast is correctly tensioned. An untensioned or over-tensioned luff extrusion can lead to increased furling load or unnecessary wear of the system. Control and adjustment of luff tension can be made on both a stepped and unstepped mast. The luff extrusion should be prevented from rotating. Use a torque wrench in the furling gear winch handle socket to measure the tensioning torque. Alternatively, measure the torque with a spring balance or similar combined with an ordinary winch handle. Tension to the correct value as required. It is important that the mast is straight while tensioning. Always release backstay tension before adjusting luff extrusion. Tensioning the luff extrusion with the backstay tensioned can damage the luff extrusion joints when the backstay tension is released. 4.2 Rig tuning Furling in and out will work best on a mast tuned with limited pre bend. Read 595-540-E Hints and Advise for tuning instructions. -
Page 16: Outhaul Car Stop
4.3 Outhaul car stop The position of the outhaul car stop on the boom will affect tension in the sail foot and leech. E.g. if the outhaul is posi- tioned too far aft, the force from the outhaul clew will keep the foot tighter than the leech which can cause the sail to jam in the top of the mast. The ideal position can vary between boats due to rig, sail and batten designs. It is recommended to place the outhaul stop 500 mm from the aft mast wall as default, and then adjust it forward or aft if necessary. 4.4 Outhaul routing Examine outhaul car and outhaul turning points for excessive friction. Replace old and worn blocks if needed. Outhaul routing with as low friction as possible will improve the unfurling process. Synchronized outhaul winch The force limit in the synchronized outhaul winch is based on the line force at winch entry. High friction in the outhaul routing will result in the actual force in the outhaul clew being significantly lower than at the winch, which can negatively affect the synchronization. -
Page 17: Sailing With Synchronized Main Furling
Sailing with Synchronized Main Furling 5.1 Preparations for furling and unfurling There are many factors to consider for a successful furling operation. Get familiar with the furling system in light conditions and pay attention to the following details before furling out and in. How important these adjustments are for the furling result can vary between boats, sail designs and other factors. SAIL UPWIND Sail upwind. RELEASE BACKSTAY Release backstay tension (if very tight) to straighten the mast. Adjust the boom angle to keep the leech tight and battens parallel to mast. Use kicker/topping lift. ADJUST BOOM Ease the main sheet. ANGLE EASE MAIN SHEET Always observe the entire furling process! Stop immediately in case of any issues. Ill. Dan Ljungsvik/Seldén 2018 Keep away from the sail groove, winches and any other moving parts during furling. -
Page 18: Unfurling
5.2 Unfurling Apply and secure the outhaul to the synchronized electric winch. Press “Furl Out”. The outhaul winch will make a short warning signal before starting to run. Remote control of a sailing winch is hazardous. Always observe the unfurling process and ensure nothing can interfere with the winch, outhaul line or sail groove in the mast. Whilst holding down “OUT”, press the second button to increase the speed, if wanted. Full sail Hold button(s) pressed. The synchronized system The motor will make a short rotation will recognize a fully unfurled sail and stop automa- when unfurling is finished, to activate tically. the break mechanism. Reduced sail area Release button(s) when sail is in desired position. If needed, the outhaul can be trimmed using the winch buttons. Be careful when using the winch buttons, as this activates the full power of the winch. Ill. Dan Ljungsvik/Seldén 2018... -
Page 19: Furling
5.3 Furling Free the outhaul and keep it tensioned (about one turn on the winch). Press “IN” and simultaneously slacken the outhaul line while the sail is reefed. Whilst holding down “IN”, press the second button to increase the speed. Release the button(s) and stop reefing at desired sail area or when sail is fully furled in. The motor will NOT automatically stop during furl in. Run the last turns with low speed and keep attention to the position of the outhaul block to prevent it from being pushed into the sail groove and damage the mast. 5.4 Furling without synchronized winch If the synchronized winch is not to be used, the outhaul can be pulled manually without disconnecting the furling mast motor. 1. Press and hold “MAIN OUT”. The mast motor will start to rotate but pauses automatically if the outhaul is not pulled, to avoid the sail being unfurled inside the mast. 2. Keep “MAIN OUT” button pressed. Pull the outhaul manually. The furling motor will start to rotate when it detects that the outhaul is being pulled. Proceed until desired sail area is reached. When OUT button is released, the mast motor will activate the rotation break. -
Page 20: Trouble Shooting
Trouble shooting Problem Problem cause Action Mast motor makes a stuttering Incorrectly installed connection Change position of connec- sound and unfurling does not cables to MCU. tion cables in MCU according work to section 3.6 Mast motor makes a constant Cables from SEL-Bus converter Change position of push signal tone when Power to push button is installed as button cables to “Normally Supply and SEL-Bus system is “Normally closed” instead of open”, see separate instruc- turned on. “Normally open”. tion sheet for push button. Mast motor starts to run when Power Supply and SEL-Bus system is turned on, and stops when Furling MAIN OUT/IN button is pressed. Synchronized unfurling is not Incorrect tension in luff profile, See chapter 4. smooth. rig tuning, outhaul car position, outhaul routing. Top of sail is jamming Incorrect tension in luff profile, See chapter 4. -
Page 21: Service And Maintenance
Service and maintenance Always keep the manual furling system in good condition, following the service and maintenance procedures described in each respective manual furling mast instruction. 7.1 Annual maintenance Lubricate motor break Through the starboard side hole, remove the screw to the lubrication hole (A). Use some guiding device to prevent the screw from falling in between mast wall and motor unit. Apply WD-40 in the hole and simultaneously rotate the mast motor minimum one turn. Remount screw. 7.2 Extended maintenance Professional service should be made on the mast motor every 5th year. Contact an authorized Seldén dealer for service management. -
Page 22: Disposal
Disposal The crossed out wheelie bin symbol on the product or product package means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some countries, you may be able to return your pro- ducts to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Warranty Seldén Mast AB guarantees SMF retrofit kit for 2 years. The guarantee covers faults arising from defective design, materials or workmanship. The guarantee is only valid if the SMF retrofit kit is assembled, operated and maintained in accordance with this manual and is not subjected to loads in excess of those indicated in the brochure and instructions. Complete shipment and warranty conditions are to be found on Seldén’s website www.seldenmast.com. See Resources/Partners information/General information/General conditions of sale (595-546-E). If the system is repaired or modified by anyone other than Seldén Mast AB or one of our authorized dealers, the guarantee ceases to be valid. Seldén Mast AB reserves the right to alter the content and design without prior warning. - Page 24 www.seldenmast.com...
