Exsys EX-46014 Manual

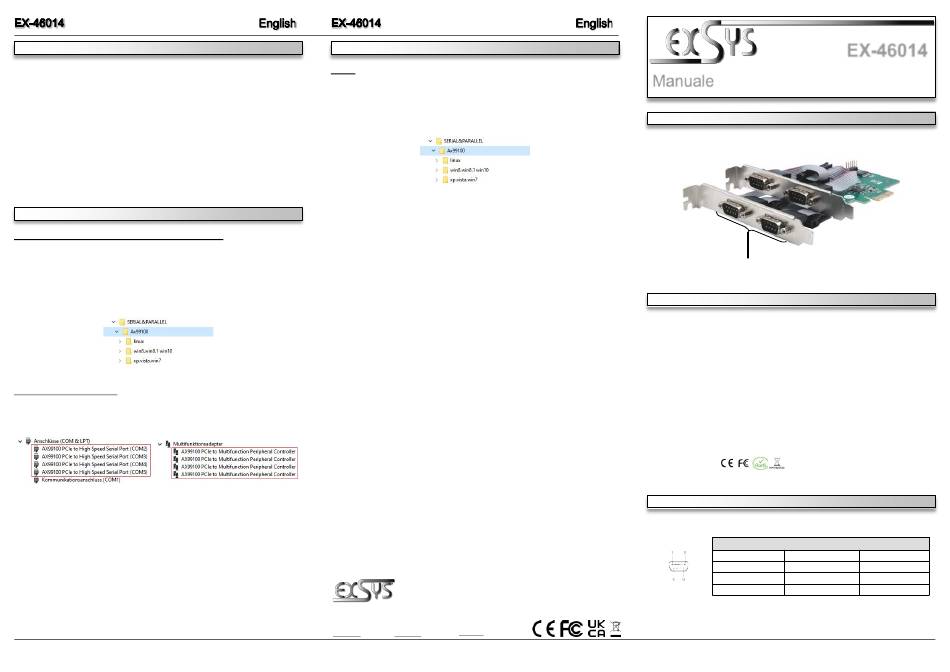

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-46014. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx
After the hardware installation is completed, the operating system automatically detects the EX-
46014 and shows you a new „Serial PCI-Port". Now insert the driver CD into your CD-ROM
drive (e.g. drive D:) and open the folder „SERIAL&PARALLEL/Ax99100". Now select the
folder of your operating system and start the application „AX99100_Setup" which is located in
the respective folder (see picture). Follow the installation instructions and complete the installa-
tion. Important! Restart your PC after the installation.
CHECK INSTALLED DRIVER
Open the >Device-Manager<. Now you should see at „Ports (COM & LPT)" and at
„Mutlifunction adapter" the following new Entries:
If you see these or similar entries, the card is installed correctly.
5
DRIVER INSTALLATION
Linux
After the hardware installation is completed, the operating system automatically recognizes the
EX-46014. Now insert the driver CD into your CD-ROM drive (e.g. drive D:) and open the folder
„SERIAL&PARALLEL/Ax99100". The drivers for your Linux system are located in the „linux"
folder (see picture). Important! Restart your PC after the installation.
Germany: Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl
Industriestrasse 8 Dübendorfstrasse 17 Via Belvedere, 45/B
61449 Steinbach 8602 W angen I-22100 Como
www.exsys.ch www.exsys.it
www.exsys.de
6
Manuale
Vers. 1.0 / 01.12.22
STRUTTURA
Connettore4x 9-Pin D-Sub Seriale
DESCRIZIONE & DATI TECNICI
La EX-46014 è una scheda seriale RS-232 PCI-Express. È dotato di quattro porte seriali FIFO
16C550 per il collegamento di dispositivi periferici seriali RS-232 ad alta velocità (ad esempio
modem, plotter, stampante, scanner, ecc.). EX-46014 supporta tutti gli slot PCI Express da x1 a
x16. Il bus seriale PCI-Express supporta in modo ottimale le prestazioni del veloce chipset Asix.
La scheda garantisce un trasferimento dati sicuro e prestazioni eccellenti fino a 115 KBaud/s
per ogni dispositivo seriale collegato! Non è possibile impostare manualmente gli indirizzi I/O e
gli interrupt, poiché le impostazioni della scheda vengono effettuate automaticamente dal
sistema (BIOS) e durante l'installazione del sistema operativo..
Compatibilità: PCI-Express x1 fino a x16
Sistema Operativo: Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux
Attacco:
4x 9-Pin D-Sub Seriale
Confezione:
EX-46014, Staffa basso profilo, Driver CD, manuale
Certificati:
ATTACCHI
9-Pin D-Sub Seriale:
9-Pin D-Sub Seriale
Pin Segnale Pin Segnale
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
1
EX-46014
Pin Segnale
DTR 7 RTS
8 CTS
DSR 9 RI
