MR28-HW/GR12-HW Installation Guide
The Cisco Meraki MR28-HW/GR12-HW is a dual-band enterprise class 802.11ax cloud-managed access point.
Package Contents
The MR28-HW/GR12-HW package contains the following:

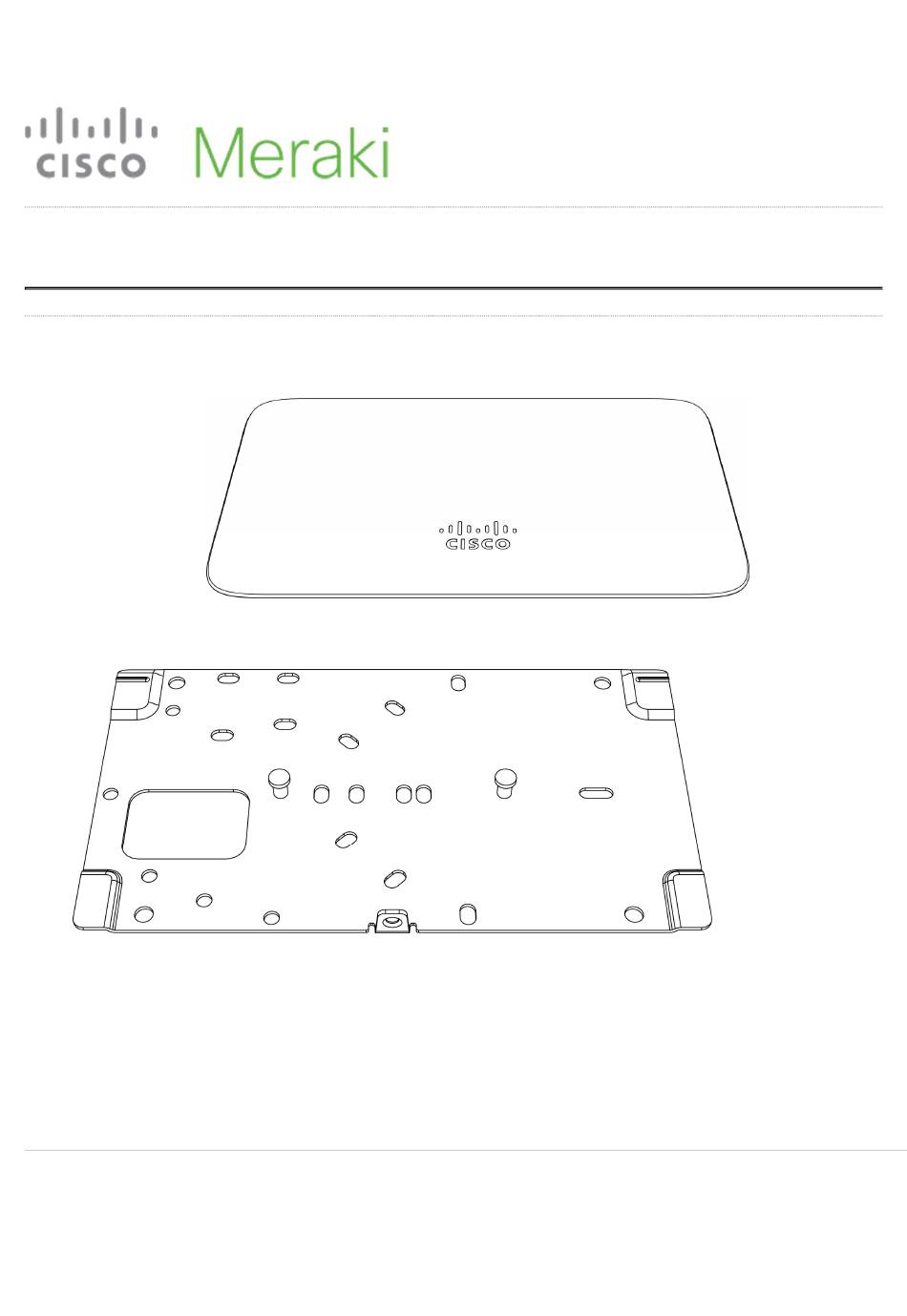

• MR28-HW/GR12-HW Cloud-Managed Access Point
•
Mount plate
• Mount Kit
• RJ45 Cable
• Meraki GO/GA-PWR-12W-US
• UMEC & MA-PWR-30WAC
Wall screws and security screws
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MR28-HW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cisco MERAKI MR28-HW

Summary of Contents for Cisco MERAKI MR28-HW

  • Page 1 MR28-HW/GR12-HW Installation Guide The Cisco Meraki MR28-HW/GR12-HW is a dual-band enterprise class 802.11ax cloud-managed access point. Package Contents The MR28-HW/GR12-HW package contains the following: • MR28-HW/GR12-HW Cloud-Managed Access Point • Mount plate • Mount Kit Wall screws and security screws •...
  • Page 2 Understanding the MR28-HW/GR12-HW Your Meraki MR28-HW/GR12-HW has the following features:...

  • Page 3: Security Features

    HW operates at full power with 802.3af PoE. Factory Reset Button If the button is pressed and held for at least five seconds and then released, the MR28-HW/GR12-HW will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit.

  • Page 4: Led Indicators And Run Dark Mode

    • Blinking Orange - AP can't find uplink The MR28-HW/GR12-HW may be operated in “Run Dark” mode for additional security and to reduce the visibility of the access point. In this mode, the LED will not be illuminated. This mode may be enabled through Meraki dashboard.

  • Page 5: Check And Configure Firewall Settings

    Assigning IP Addresses to MR28-HW/GR12-HWs All gateway MR28-HW/GR12-HWs (MR28-HW/GR12-HWs with Ethernet connections to the LAN) must be assigned routable IP addresses. These IP addresses can be dynamically assigned via DHCP or statically assigned. Dynamic Assignment When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address belonging to a Meraki AP.

  • Page 6: Collect Additional Hardware For Installation

    Warning : Due to the heat dissipation in the back of APs during normal operation, please do not stack powered on APs on top of each other during pre-installation to avoid heat damage. Choose Your Mounting Location A good mounting location is important to getting the best performance out of your MR28-HW/GR12-HW access point. Keep the following in mind:...
  • Page 7 The MR28-HW/GR12-HW attaches to the mount cradle with two tabs on the cradle that insert into the MR28-HW/GR12-HW and is secured to the cradle using one screw. To attach the MR28-HW/GR12-HW to the mount cradle properly, line up the top edge of the AP with the top tab of the mount cradle. Since the cradle is already mounted to the wall, guide the MR28-HW/GR12-HW towards the top tab and insert the top tab into the MR28-HW/GR12-HW’s slot.
  • Page 10 MR28-HW/GR12-HW with one hand, press the cradle’s bottom tab upwards, releasing the MR28-HW/GR12-HW from the bottom of the cradle. Then remove the MR28-HW/GR12- HW from the cradle’s top tab. Desk or Shelf Mount The MR28-HW/GR12-HW can be placed on a desk or shelf resting on the non-scratch rubber feet. The mount cradle is not necessary for a desk or shelf installation.

  • Page 11: Verify Device Functionality And Test Network Coverage

    Secure the MR28-HW/GR12-HW Depending on your mounting environment, you may want to secure the MR28-HW/GR12-HW to its mount location. If the MR28-HW/GR12-HW has been installed using the mount cradle, it should be secured via security screw (Torx security screws are included).

  • Page 12: Fcc Caution

    FCC Caution Any changes or modifications not expressly approved by Meraki could void the user’s authority to operate this equipment. This Transmitter must not be co-located or operation in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 13 For UK Hereby, [Cisco Systems, Inc.] declares that the radio equipment type [MR28-HW/GR12-HW] is in compliance with Directive 2014/53/EU and Radio Equipment Regulations 2017. The full text of the CE/UK declaration of conformity is available at the following internet address: https://meraki.cisco.com/compliance...
