MR56 Installation Guide

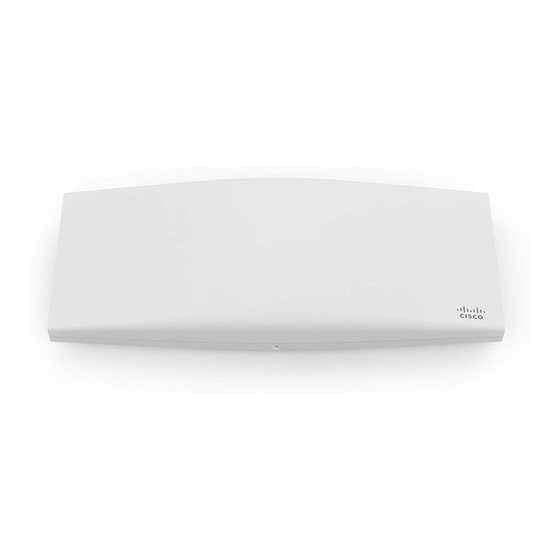

The Cisco Meraki MR56 are dual-band enterprise class 802.11ax cloud-managed access points. Designed for highest capacity and highest density, the
MR56 meets the needs of the most demanding environments. The access point also includes a third radio dedicated to optimizing the RF environment
and securing the airwaves.
About this Guide
This guide provides instruction on how to install and configure your MR56 access points. This guide also provides mounting instructions and limited
troubleshooting procedures. For more wireless installation guides, refer to the
Product Overview
Physical Specifications
Interfaces
•
1x 1000/2.5G/5G BASE-T Ethernet (RJ45)
•
1x DC power connector (5.5 mm x 2.5 mm, center positive)
Power
•
Power over Ethernet: 42.5 - 57 V (802.at compliant)
•
Alternative: 12 V DC input
•
Power consumption: 22W max (802.3at)
•
Power over Ethernet injector and DC adapter sold separately
Environment
•
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
•
Humidity: 5 to 95% non-condensing
Physical Security
•
Two security screw options (included) (3.5 mm long and 2.5 mm diameter and 5 mm
head)
•
Kensington lock hard point
MR56
wireless installation guides section
on our documentation website.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cisco MERAKI MR56
Summary of Contents for Cisco MERAKI MR56
- Page 1 The Cisco Meraki MR56 are dual-band enterprise class 802.11ax cloud-managed access points. Designed for highest capacity and highest density, the MR56 meets the needs of the most demanding environments. The access point also includes a third radio dedicated to optimizing the RF environment and securing the airwaves.
- Page 2 • Concealed mount plate with anti-tamper cable bay Product View and Physical Features Your MR56 has the following features:...
- Page 3 The mount cradle has the following features:...
- Page 4 Kensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent structure using a standard Kensington lock. Ethernet Ports The MR56 features a Gigabit Ethernet RJ45 port that accepts 802.3at power (labeled “Eth0, PoE”). This port should be used for uplink to your WAN connection.
- Page 5 The MR56 access point may be operated in “Run Dark” mode for additional security and to reduce the visibility of the access point. In this mode, the LED will not be illuminated. This mode may be enabled through Meraki Dashboard.
- Page 6 Mount cradle including built-in level tool Drop ceiling mount kit...
- Page 7 Wall screws, wall screw anchors, and security screws...
- Page 8 Safety and Warnings These operations are to be taken with respect to all local laws. Please take the following into consideration for safe operation: • Power off the unit before you begin. Read the installation instructions before connecting the system to the power source.
-
Page 9: Pre-Install Preparation
Pre-install Preparation You should complete the following steps before going on-site to perform an installation. Configure your Dashboard Network The following is a brief overview only of the steps required to add an access point to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the online documentation (documentation.meraki.com). - Page 10 • Using a client machine (e.g., a laptop), connect to the AP wirelessly (by associating to any SSID broadcast by the AP) or over a wired connection. • If using a wired connection, connect the client machine to the AP either through a PoE switch or a PoE Injector. If using a PoE switch, plug an Ethernet cable into the AP’s Ethernet jack, and the other end into a PoE switch.
-
Page 11: Installation Instructions
Installation Instructions Choose Your Mounting Location A good mounting location is important to getting the best performance out of your access point. Keep the following in mind: 1. The device should have unobstructed line of sight to most coverage areas. For example, if installing in an office filled with workspaces divided by mid-height cubicle walls, installing on the ceiling or high on a wall would be ideal. - Page 12 The mount cradle contains a variety of hole patterns that are customized for each installation scenario. The mounting template (included inbox with mount cradle) should be used to drill holes for wall mounts and also to identify the correct hole patterns in the mount cradle that should be used for each type of mount. The included mount cradle template shows the hole patterns that should be used for each type of mount.
- Page 13 1. Attach the T-rail clips to the T-rail by rotating them and snapping them into place as shown. The black foam pads should be compressed slightly after installation. 2. Using the dashed lines on the mount cradle template as a guide, set the proper spacing of the T-rail clips on the T- rail.
- Page 14 The MR56 AP attaches to the mount cradle with two tabs on the cradle that insert into the MR56 AP, and is secured to the cradle using one screw. To attach the MR56 AP to the mount cradle properly, line up the top edge of the AP with the top tab of the mount cradle. Since the cradle is already mounted to...
- Page 15 Then adjust the MR56 AP to guide the AP’s bottom slot into the cradle’s bottom tab until it clicks into place. Once in place, the MR56 AP should be secured to the cradle by using one of the included screws in the cradle’s bottom tab.
-
Page 16: Verify Device Functionality And Test Network Coverage
To release the AP from the mount cradle, first remove the security screw that secures the MR56 AP to the cradle’s bottom tab. While holding the MR56 AP with one hand, press the cradle’s bottom tab upwards, releasing the MR56 AP from the bottom of the cradle. Then remove the MR56 AP from the cradle’s top tab. -
Page 17: Basic Troubleshooting
automatically upgrading and the LED should turn green when the upgrade is completed (normally within a few minutes). See the "LED Indicators" section for more details. . b. Note: Your AP must have an active route to the Internet to check and upgrade its firmware. 2. -
Page 18: Warranty
If you are still experiencing hardware issues, please contact Cisco Meraki support by logging in to dashboard and using the Help option near the top of the page, then opening and email case or calling using the contact information on that page. - Page 19 Meraki MR56 devices have been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
