- Page 1 DataPlug Model DP2.2-488 Rev.04...
-
Page 2: Table Of Contents
3.3 Operator Safety......................8 3.4 Vehicle Safety......................8 3.5 Device Safety......................10 4 ENVIRONMENTAL INFORMATION..............12 5 OPERATION OF THE RADIO DEVICES............13 6 REGULATORY INFORMATION................14 7 DataPlug......................19 8 DESCRIPTION....................20 9 TECHNICAL FEATURES .................21 10 LOCATION OF THE DIAGNOSTIC SOCKET..........23 11 INSTALLATION AND CONFIGURATION............24 11.1 Installation......................24 11.2 Configuration......................26... -
Page 4: Revision Of The Manual
TECHNICAL MANUAL 1 Revision of the Manual This document is the technical manual for the product: DataPlug Document Review Number: 04 Date of Issue: 31/01/2023... -
Page 5: Introduction
Reading and understanding the following manual will help you to avoid damage or personal injury caused by improper use of the product. TEXA S.p.A reserves the right to make any changes deemed necessary to improve the manual for any technical or marketing requirement; the company may do so at any time without prior notice. -
Page 6: Legend Of The Symbols Used
2 LEGEND OF THE SYMBOLS USED Some of the symbols indicated below may not be used in the manual. Toxic material hazard Laser beam hazard Explosive material hazard Low temperature danger - freezing Electric shock hazard General Risk Electromagnetic field hazard Obligation to read the instructions Flammable material hazard Safety glasses required... - Page 7 This is not a safety symbol. It indicates a hazardous situation which, if not avoided, may result in material damage. This is not a safety symbol. It indicates important information.
-
Page 8: Safety Rules
The technology used for the design and manufacturing control of DataPlug makes it a reliable, simple and safe device to use. The personnel in charge is required to follow the general safety rules, use the DATAPLUG device for its intended use only and carry out the maintenance properly as described in this manual. -
Page 9: Operator Safety
3.3 Operator Safety Installing the device requires connecting it to the diagnostic socket and within the passenger compartment. Make sure you operate in absolute safety and using the appropriate protective equipment. Safety Measures: • In order to avoid injuring people and/or damaging the device or the electronic systems of the vehicle connected to the device, do not allow unqualified personnel to use the device. - Page 10 Safety Measures: • Delicately remove any plastic part, cover or bulkhead that might cover the diagnostic socket, being careful not to loose any screw or fastening hook. • Be careful not to damage or disconnect any plastic part or cable near the diagnostic cable.
-
Page 11: Device Safety
3.5 Device Safety If the device gets wet or damaged, or comes into contact with liquids, this may cause short circuits, fire, material damage or serious injury. Never use a wet or damaged device. The device was designed to be used in specific environmental conditions. - Page 12 The device was manufactured to be electrically safe and to work with specific supply voltage levels. Failure to comply with the specifications related to the power supply may impair the device's efficiency. Safety Measures: • If not specified otherwise, use the device on vehicles with a 12/24 Vdc power supply and chassis connected to the negative pole.
-
Page 13: Environmental Information
4 ENVIRONMENTAL INFORMATION Do not dispose of this product with other undifferentiated solid waste. For information regarding the disposal of this product please see the pamphlet supplied. -
Page 14: Operation Of The Radio Devices
5 OPERATION OF THE RADIO DEVICES Wireless connection with Bluetooth® technology The wireless connection with Bluetooth technology is a technology that supplies a standard and reliable method to exchange information between different devices, using radio waves. Products such as cellular phones, portable devices, computers, printers, cameras, pocket PCs etc. use this type of technology. -
Page 15: Regulatory Information
6 REGULATORY INFORMATION Simplified EU Declaration of Conformity The manufacturer, TEXA S.p.A., declares that the DataPlug radio equipment type is compliant with the following directives: • RED 2014/53/EU The complete text of the EU declaration of conformity is available at the following Internet address: http://www.texa.it/download. - Page 16 Use restrictions and warnings (FCC / ISED) Modification statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Les changements ou modifications non expressément approuvés par la partie responsable de la conformité...
- Page 17 ISED compliance This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated.
- Page 18 RF Radiation Exposure statement This product complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. The antenna should be installed and operated with minimum distance of 20 cm between the radiator and your body. This device complies with Health Canada's Safety Code. The installer of this device should ensure that RF radiation is not emitted in excess of the Health Canada's requirement.
- Page 19 West Kelowna - BC V1Z 3L4 - Canada Phone No: 1-250-575-1719 Email: info@can-cert.com Responsible party’s contact located in U.S.: Company Name: TEXA USA Inc. Contact Name: Fabio Mazzon, Technical Manager Street Address: 409 Joyce Kilmer Ave - Suite 201 City/Province/Zip: New Brunswick, NJ 8901 - United States...
-
Page 20: Dataplug

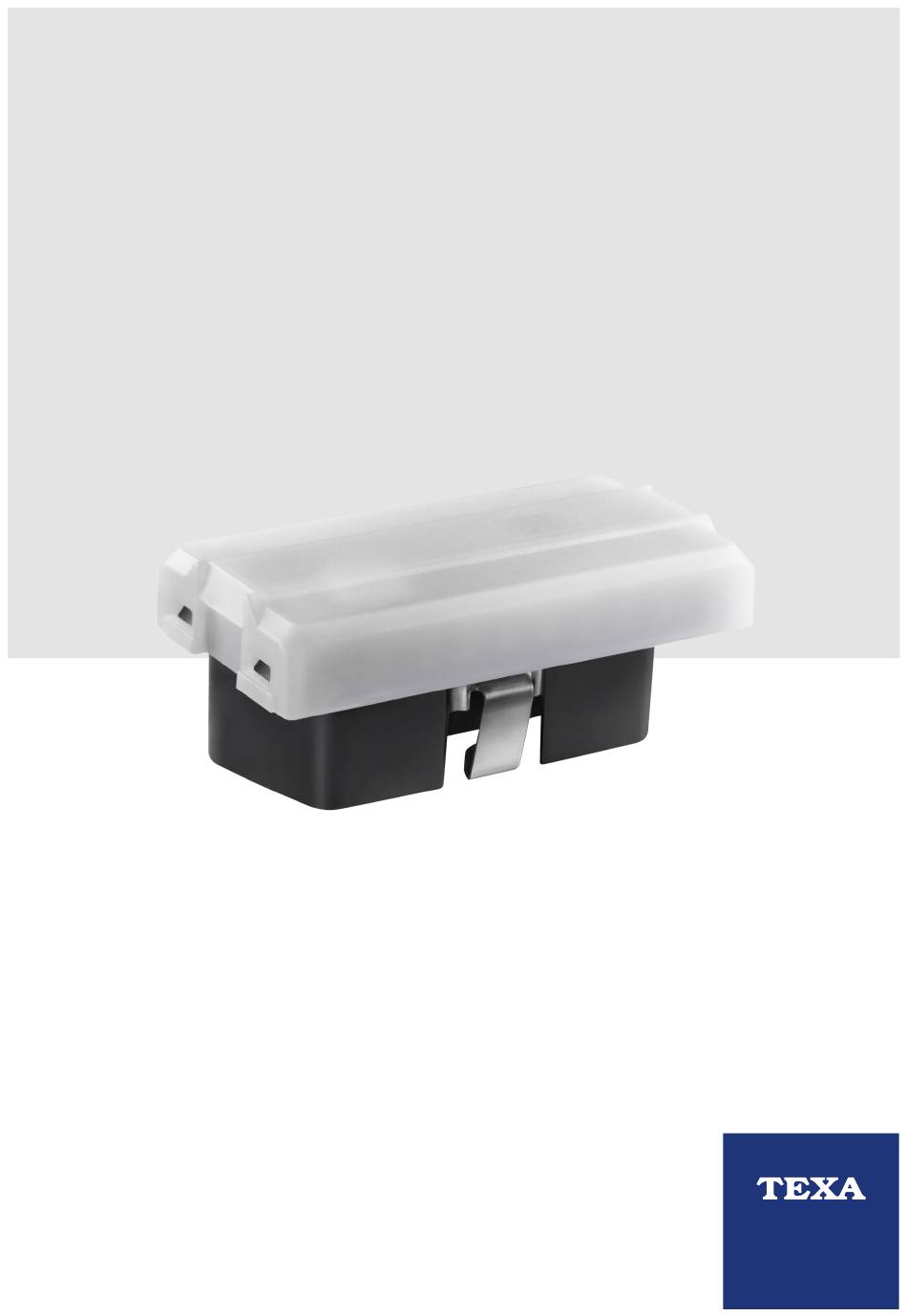

7 DataPlug DataPlug is a compact device that, during normal vehicle operation, can acquire information useful both to the driver and the mechanic. The data acquired is useful to detect problems connected to the vehicle's management and its maintenance status. -
Page 21: Description
8 DESCRIPTION This chapter describes the general features of the device. 1. Status LEDs: they give indications regarding the status of the device.* • Green: indicates the status of the device without Bluetooth communication. • Blue: indicates the status of the device with Bluetooth communication. •... -
Page 22: Technical Features
9 TECHNICAL FEATURES Product Vehicle diagnostic system with Bluetooth connectivity Model DP2.2-488 ARM Cortex M4 CPU CPU Clock up to 168MHz Processor Total Flash: 1024 Kbytes FLASH Total RAM: 196 Kbytes RAM Diagnostic connector ISO15031-03 OBD Plug Bluetooth Classic (2.1) and 4.0 Low Energy (Smart Communication Ready) Supply voltage... - Page 23 Dimensions in [mm] Weight 15 g...
-
Page 24: Location Of The Diagnostic Socket
10 LOCATION OF THE DIAGNOSTIC SOCKET The image below indicates where the diagnostic socket may be located. We always recommend you check the location of the OBD socket in the vehicle's user manual. In case of doubts or for further information, contact the Technical Assistance or your Service Partner / Retailer. -
Page 25: Installation And Configuration
11 INSTALLATION AND CONFIGURATION The following paragraphs illustrate how to install and configure the device. The device can be installed only on Volkswagen vehicles indicated in the specific coverage list. Do not install the device on vehicles not expressly indicated in the specific coverage list. - Page 26 The device might have to be disconnected from the OBD socket during vehicle maintenance operations in order to allow the connection of diagnostic devices. In this case, use the specific extractor tool. Proceed as follows: 1. Turn off the vehicle (ignition key off). 2.
-
Page 27: Configuration
11.2 Configuration The configuration of the vehicle is completely automatic, nevertheless you should verify the connection to the control unit and to the display unit by means of the flashing LEDs before repositioning plastic parts or panels. After the check, reposition all the plastic parts and panels previously removed. Do not drive the vehicle before reassembling the plastic parts and panels previously removed. -
Page 28: Use
12 USE It is no longer required to act directly on the device after the installation and configuration. Any operation takes place through the display unit. The device activates as soon as the vehicle's instrument panel is turned on and it connects automatically to the display unit if it is within the operating range of the device's Bluetooth antenna. -
Page 29: Power Supply
13 POWER SUPPLY The device draws its power supply directly from the battery of the vehicle it is connected to through the OBD socket. The vehicle's OBD socket is always powered, even when the engine and instrument panel are off. The absorption never affects the battery's charge. -
Page 30: Blink Codes
14 BLINK CODES All the indicated statuses are to be intended with the device connected to the diagnostic socket and the vehicle's instrument panel on. All the LEDs turn off as soon as the vehicle starts moving. Flash Meaning Green Blue Red Quick alternate Device available for the pairing. -
Page 31: Maintenance
15 MAINTENANCE This product does not require maintenance operations. Follow the indications in this manual carefully in order to guarantee an extended use of the device. In case of doubts or for further information, contact the Technical Assistance or your Service Partner / Retailer. -
Page 32: Troubleshooting
16 TROUBLESHOOTING Below there are some situations / problems that can occur while using the device, along with a possible cause and a possible solution. Situation / Problem Possible Cause Possible Solution The vehicle is not in the list of vehicles on which Use the device on a supported vehicle.
