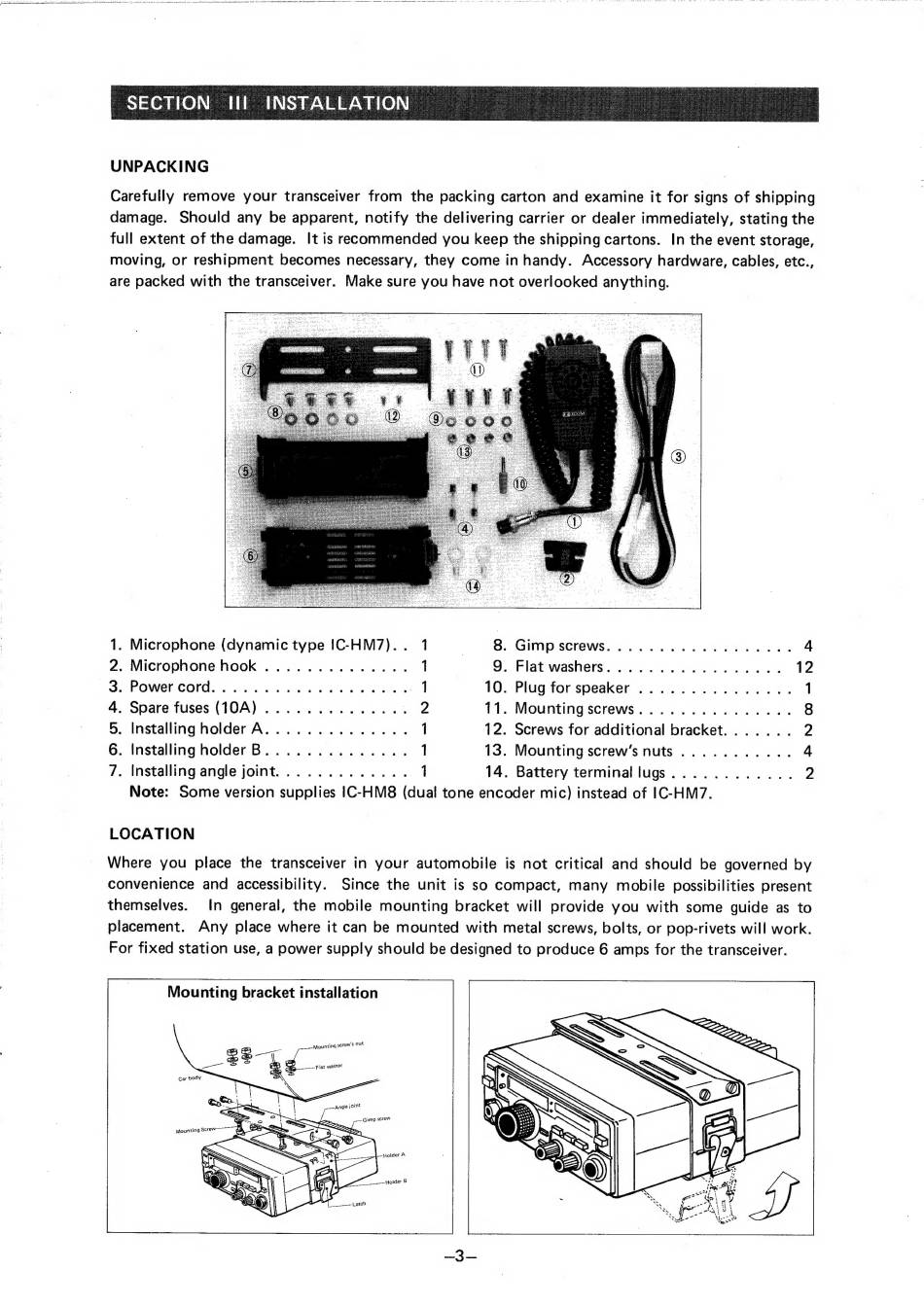

UNPACKING
Carefully remove your transceiver from the packing carton and examine it for signs of shipping
damage. Should any be apparent, notify the delivering carrier or dealer immediately, stating the
full extent of the damage. It is recommended you keep the shipping cartons. In the event storage,
moving, or reshipment becomes necessary, they come in handy. Accessory hardware, cables, etc.,
are packed with the transceiver. Make sure you have not overlooked anything.
1. Microphone (dynamic type IC-HM7). . 1 | 8. СОитрзсгтем5.................. 4
2. Microphone hook .............. 1 9. Flat washers. «cce x umet PS 12
За Power cold: сук ced le ed t 1 10. Plug for speaker ............... 1
4. Spare fuses (10A) .............. 2 11. Mounting зстем5............... 8
5. InstallingholderA.............. 1 12. Screws for additional bracket....... 2
6. InstallingholderB.............. 1 13. Mounting screw's nuts ........... 4
7. Installing angle joint... .......... 1 14. Battery terminallugs............ 2
Note: Some version supplies 1C-HM8 (dual tone encoder mic) instead of IC-HM7.
LOCATION
Where you place the transceiver in your automobile is not critical and should be governed by
convenience and accessibility. Since the unit is so compact, many mobile possibilities present
themselves. In general, the mobile mounting bracket will provide you with some guide as to
placement. Any place where it can be mounted with metal screws, bolts, or pop-rivets will work.
For fixed station use, a power supply should be designed to produce 6 amps for the transceiver.
Mounting bracket installation
