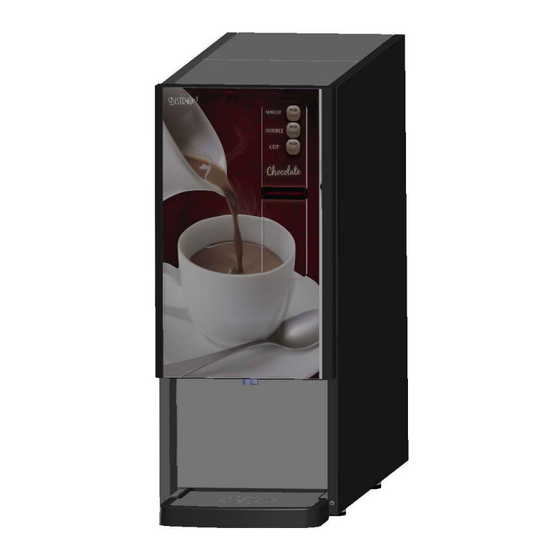

  • Page 1 Installation Programming Guide BISTRO 1 By NEWCO Enterprises...

  • Page 2: Installation Instructions

    Bistro 1 Section 1 – Installation Instructions Section 2 – Set-Up Programming Instructions Section 3 – Service Level Programming Instructions Section 1 Installation Instructions: Place Machine on a Level Countertop Surface Connect ¼ Inch Flare water Supply to the Water Inlet located on lower Left Rear of the Machine.
  • Page 3 Bistro 1 Section 2 Set-Up Programming Instructions: Open machine cabinet door and locate the 3-switch control panel w/lighted display screen. Three dashed lines will appear on the display screen, as shown in figure 1. Fig. 1 Step 1. Enter a Programming Mode Press and hold the center switch labeled “Enter”.
  • Page 4 Bistro 1 Step 2. Adjust Temperature The machine features an adjustable temperature range of 170-190F. Use the + or – switch to scroll to the desired temperature setting, as shown in figure 3. Press the “Enter” switch to save and proceed to the next programming option.
  • Page 5 Bistro 1 Step 4. Program Selector Switches This machine features a 6-selector switch control panel. These 6 switches can be programmed to deliver different strength drinks or different sized drinks-See Programming directions on page 6. Changing the Gram Throw (Auger Speed):...
  • Page 6 Bistro 1 To Program the selector switch: 1. When the screen shows “SEL”, on the selector switch control panel, press the switch labeled Single Shot. The display will change to identify the switch that you have chosen as in Fig 6.
  • Page 7 Bistro 1 4. Press “Settings” to save and proceed with the set-up program. A time value (min: sec) will appear in the display. If the switch that you are programming has been set in a portion control mode, the value will represent the current dispense time for the switch in seconds(Fig 8).

  • Page 8: Error Messages

    Bistro 1 Section 3 Service section Error Messages: Error Description Cause What to Check Number tHU/ tHL Thermistor warning – Resistance extremely high from This warns you that 1 immediately upon detection the upper or lower thermistor will thermistor has failed. Nothing...
  • Page 9 Bistro 1 Error Messages Cont’d: Bad (Open) Motor Driver - The Bad/open motor driver. Product Retry auger if the error still motor errors (Er7 and Er8) do Auger occurs then replace main not cause a system error and board. will not shut down the machine.
  • Page 10 Bistro 1 Dimensions & Electrical Specifications: IDQ HOT CHOCOLATE DISPENSER 18.07 7.36 21.34 **Electrical Specs** Bistro 1 Machine 120V 1600W 15 Amps NEWCO Enterprises Phone: 1.800.325.7867 Fax: 1.636.925.0029 12.09.10 - 10 -...

  • Page 11: Newco Product Warranty

    LIMITED, AT NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall NEWCO be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claim’s of BUYER’S customers, cost of capital, cost of downtime, cost of substitute equipment, facilities or services, or any other special, incidental, or consequential damages.
  • Page 12 Bistro 1 Wiring diagram NEWCO Enterprises Phone: 1.800.325.7867 Fax: 1.636.925.0029 12.09.10 - 12 -...
