  • Page 1 Driving efficiency and sustainability Remote Unit RUW200 User manual...
  • Page 2 User manual RUW200 Document: 10012577546 Revision: 03 Publication Date: 04/2025...

  • Page 3: Summary Of Revisions

    SUMMARY OF REVISIONS The information below describes the reviews made in this manual. Version Revision Description V1.0.X First edition. V1.1.X General Revision. V1.2.X Added support for new products. V1.3.X Release of PLC201 and RUW200.
  • Page 4 CONTENTS 1 SAFETY INSTRUCTIONS ............1.1 SAFETY WARNINGS IN THE MANUAL .
  • Page 5 CONTENTS 11 PROGRAMMING SOFTWARE - WPS 11-1 ......... . 12 TECHNICAL DATA 12-1 .

  • Page 6: Safety Instructions

    It was developed to be used by people with proper technical training or qualification to operate this kind of equipment. This manual presents all the functions and parameters of the product, but it is not intended to explain every possible application of the product. WEG will not take any liabilities for applications not described in this manual.
  • Page 7 If necessary, first touch the grounding point of the product, which must be connected to the protective earth (PE), or use a proper grounding strap. NOTE! Read the whole user manual before installing or operating the product. 1-2 | RUW200...

  • Page 8: General Information

    This manual covers the entire RUW200. However, the features described may not be present in all products within this line. Whenever a feature is specific to a particular product, this will be clearly indicated in the manual.

  • Page 9: Package Content

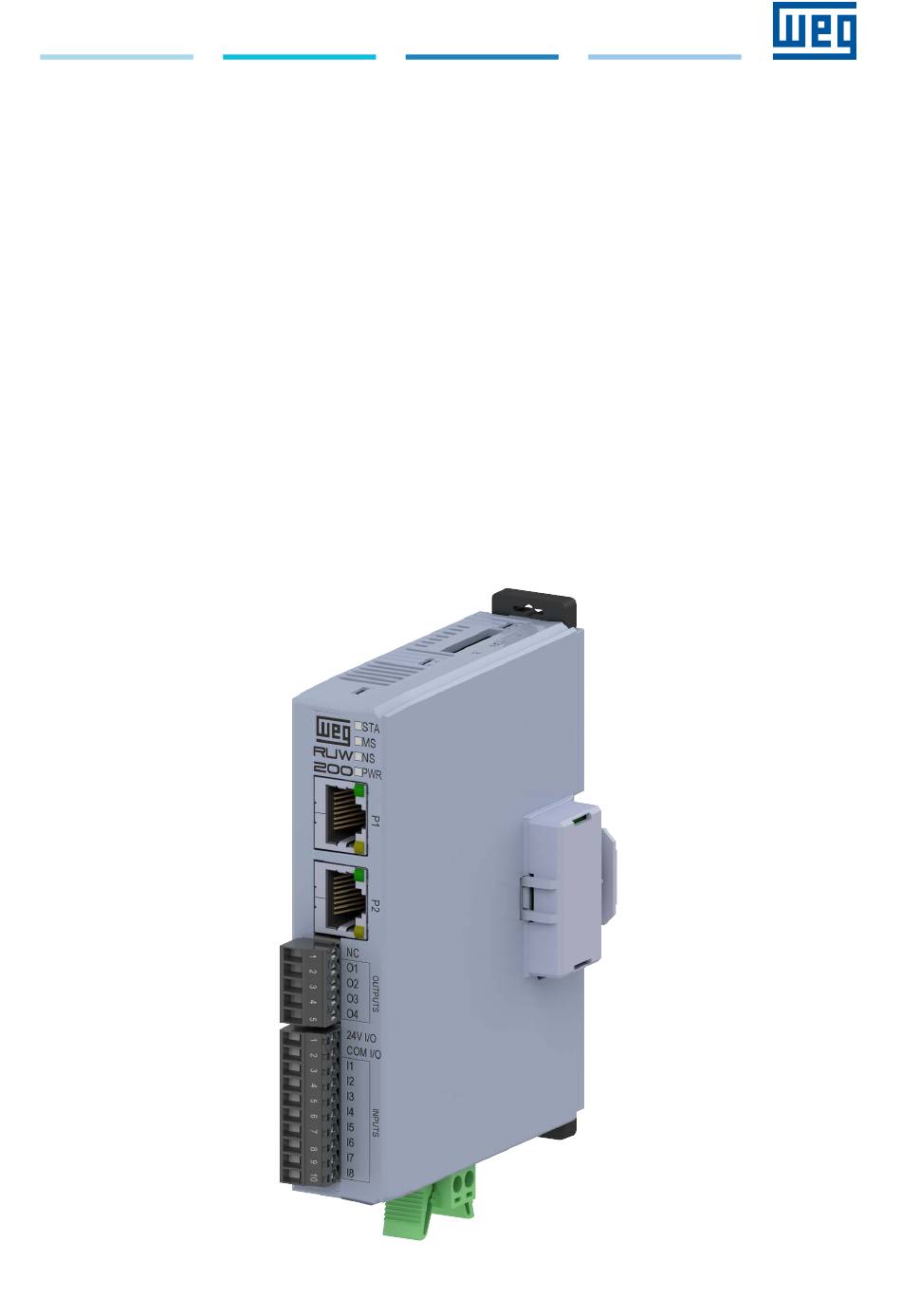

    DIN 35 rail or directly on the panel. The product is programmed through the software. Figure ?? on page ?? shows the product and the description of the communication interfaces, connections and LED indicators. 2-2 | RUW200...
  • Page 10 Important data, such as machine parameters, which are changed infrequently and cannot be lost (regardless of how long the product is powered off), can have their values saved in user parameters (P800...836). NOTE! Remember to save the parameters table in Flash (P204) after writing the important parameters in the user parameters. RUW200 | 2-3...
  • Page 11 If the bootloader cannot load the written firmware and there is no firmware update available, all product LEDs will flash orange. If this happens, simply download the firmware via WPS again. Note: In this case, the update will only work via USB. 2-4 | RUW200...

  • Page 12: Fault Handling

    WEG and its affiliates take no liability for damages or losses arising from cybersecurity breaches, including, but not limited to, unauthorized access, intrusion, information, or data leak and/or theft, denial-of-service attacks, or any other form of security breach.

  • Page 13: Mechanical Installation

    In addition to the DIN rail, the product can also be mounted directly to the panel using M3 screws, as shown in Figure 3.2 on page 3-1; in order to do so: Figure 3.2: Mounting directly to the panel a) Move the two latches away. b) Screw the product to the panel. 3.2 DIMENSIONS RUW200 | 3-1...
  • Page 14 MECHANICAL INSTALLATION 3.2.1 Dimensions of the product Figure 3.3: Product dimensions in mm [pol] 3-2 | RUW200...
  • Page 15 MECHANICAL INSTALLATION 3.2.2 Accessory dimensions Figure 3.4: Expansion dimensions in mm [pol] RUW200 | 3-3...

  • Page 16: Connecting The Accessories

    (2), which is close to the rail or panel. Figure 3.6: Closure fitting ATTENTION! Accessories must be installed or removed with the product de-energized to avoid burning components and to allow them to be identified. 3-4 | RUW200...

  • Page 17: Electrical Installation

    For analog expansion modules, it is recommended to use cables with the shield properly connected to the ground-mat. The analog cable shield must be grounded using the metal clamp that comes with the expansion. Grounding the shield minimizes possible electromagnetic interference. RUW200 | 4-1...
  • Page 18 ELECTRICAL INSTALLATION Figure 4.2: Product grounding 4-2 | RUW200...

  • Page 19: Ethernet Communication Interface

    ETHERNET COMMUNICATION INTERFACE 5 ETHERNET COMMUNICATION INTERFACE The RUW200 has two Ethernet ports in Switch mode that can operate at speeds of 10/100 Mbps. Figure 5.1: Ethernet port For the installation, it is recommended to use shielded Ethernet cables specific for industrial environments.
  • Page 20 ETHERNET COMMUNICATION INTERFACE EtherNet/IP: Adapter. MQTT: Client - Publisher and Subscriber. Program transfer and monitoring. Firmware update. Parameter monitoring/writing. Web page. 5-2 | RUW200...

  • Page 21: Usb Interface

    USB-C port on the product. 3D view Product bottom view Figure 6.1: USB-C port The USB interface allows: Program transfer and monitoring. Firmware update. Parameter monitoring/writing. ATTENTION! Use a shielded USB-C cable no longer than three meters. RUW200 | 6-1...
  • Page 22 Equipment active. Red, flashing (100ms ON / 100ms OFF) Recoverable failure. Red, solid Fatal error Reinitializing the equipment is required. 7.3 NS - NETWORK STATUS It indicates the network status, as per Table 7.3 on page 7-2 RUW200 | 7-1...
  • Page 23 Indicates EtherNet/IP (Exclusive Owner) timeout. connection has timed out. Red, flashing (500ms ON / 500ms OFF) Modbus TCP connection timeout. Indicates Modbus TCP connection has timed out. 7.4 PWR - POWER Red LED indicates that the product is energized. 7-2 | RUW200...

  • Page 24: Digital Outputs

    V+ to the loads. In this example, only outputs DO2 and DO4 are activated. Figure 8.1: Configuration as digital outputs 8.2 ELECTRICAL INSTALLATION: FAST OUTPUTS (PWM) The example of Figure 8.2 on page 8-2 shows the connection of the four outputs configured as PWM. RUW200 | 8-1...
  • Page 25 DIGITAL OUTPUTS Figure 8.2: Configuration as PWM outputs 8-2 | RUW200...

  • Page 26: Digital Inputs

    Under these conditions, all 8 inputs counted the same number of pulses, meaning no pulses were lost. Below are some connection examples for digital inputs. Figure 9.1 on page 9-2 shows how the connection should be made using all eight inputs as simple digital inputs. RUW200 | 9-1...
  • Page 27 By default, if the direction signal is at logic level 0 (0 V), the counter will be incremented at each pulse; if the direction signal is at logic level 1 (24 V), the counter will be decremented at each pulse. However, this behavior can be configured in parameter P5. 9-2 | RUW200...
  • Page 28 In this mode, the input that would be responsible for the direction signal is released for use as a common digital input. Input Status Fast counter Fast counter High Fast counter Fast counter High Figure 9.4: Function 4 - Setting to fast counter + digital input RUW200 | 9-3...

  • Page 29: Expansion Boards

    Accessories must be installed or removed with the PLC de-energized to avoid burning components and to allow them to be identified. 10.1 AVAILABLE MODELS Table 10.1 on page 10-2 briefly presents each of the expansions available for the product. For more details, see the manual of each accessory. RUW200 | 10-1...
  • Page 30 MOD7.00 - 6RE 6 relay outputs MOD8.00 - SCW 4 outputs for controlling WEG - SCW smart starters 10.2 ACCESSORY LIMIT The product allows coupling up to eight expansion modules. However, there is a limit of 300 mA on the +/-15 V source that powers part of the circuit of some expansions.
  • Page 31 11 PROGRAMMING SOFTWARE - WPS is an integrated tool that helps create automation applications, allowing monitoring, parameterization and programming in Ladder language (IEC 61131-3) of several WEG product families. The main features of WPS are: Suitable for a wide range of WEG products...

  • Page 32: Technical Data

    Max number of DIs via expansion boards: 200 Points 12.2.2 Outputs 4 x Push-Pull Recommended voltage V+: 24 V Maximum voltage V+: 28.8 V Fast outputs: All Maximum frequency: 300 kHz PWM width: 0.0% to 100.0% Max current: 100 mA/output RUW200 | 12-1...
  • Page 33 Parameter monitoring/writing 12.4.2 Ethernet 2 ports in switch mode 10/100 Mbps Modbus TCP: Server Max. number of connected clients: 4 EtherNet/IP: Adapter MQTT: Client - Publisher and Subscriber Program transfer and monitoring Firmware update Parameter monitoring/writing Web page 12-2 | RUW200...
  • Page 34 Maximum number: 8 (see section Section 10.2 ACCESSORY LIMIT on page 10-2) Number of DOs: 192 Number of DIs: 192 Analog Inputs: 56 Analog Outputs: 16 Thermocouple Inputs: 56 PT100/PT1000 Inputs: 32 Load Cells: 16 Relays: 36 SCW: 32 12.6 CERTIFICATIONS RUW200 | 12-3...
  • Page 35 WEG Drives & Controls - Automation LTDA. Jaraguá do Sul - SC - Brazil Phone 55 (47) 3276-4000 - Fax 55 (47) 3276-4020 São Paulo - SP - Brazil Phone 55 (11) 5053-2300 - Fax 55 (11) 5052-4212 automacao@weg.net www.weg.net...
