AP TC5-1N4F1A User Manual

Combined ventilation controller
Hide thumbs

Advertisement

Quick Links

Download this manual
Combined Ventilation Controller
TC5-1N4F1A
USER'S MANUAL
)81&7,216
6(77,1*6

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC5-1N4F1A and is the answer not in the manual?

Questions and answers

Related Manuals for AP TC5-1N4F1A

Summary of Contents for AP TC5-1N4F1A

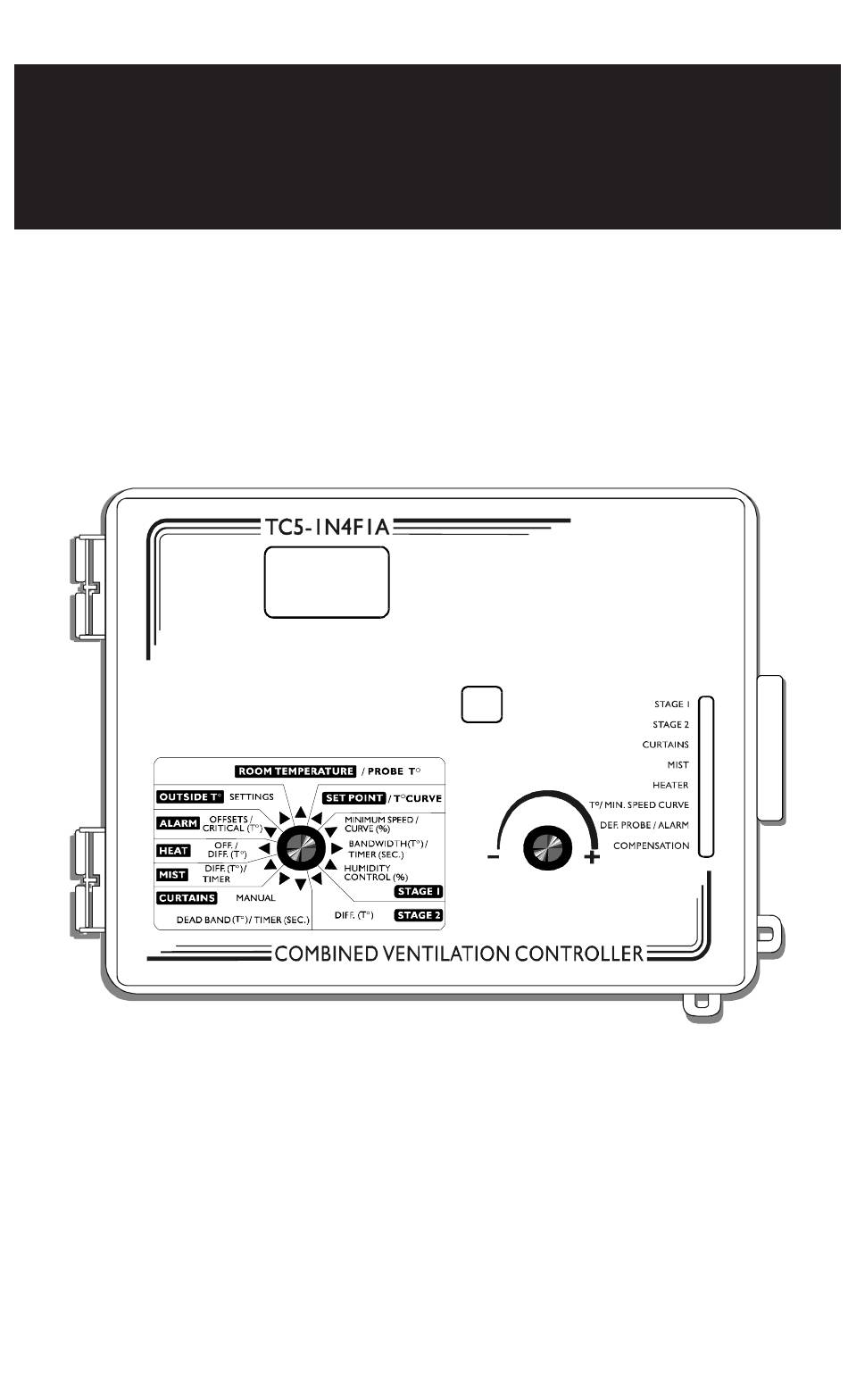

  • Page 1 Combined Ventilation Controller TC5-1N4F1A USER'S MANUAL )81&7,216 6(77,1*6...

  • Page 2: Table Of Contents

    Principle of Operation ........... 38 Curtain Operating Time Compensation ......40 Settings ................ 41 HEATER SETTINGS............44 ALARM SETTINGS ............46 TEST MODE ..............48 TROUBLESHOOTING GUIDE........49 TECHNICAL SPECIFICATIONS ........53 FACTORY SETTINGS ............ 54 GLOSSARY ..............57 TC5-1N4F1A.rev.07...

  • Page 3: Precautions

    DO NOT SPRAY WATER ON THE CONTROLLER FOR CUSTOMER USE Enter the serial number located on the side of the controller below for future reference. TC5-1N4F1A Model number: Serial number: TC5-1N4F1A.rev.07...

  • Page 4: Features

    FEATURES The TC5-1N4F1A is an electronic device used for environmental control in livestock buildings. It allows the user to maintain a specified target tem- perature by controlling the operation of ventilation and heating equipment. One stage of variable speed fans can be connected to the controller, two stages of constant-speed fans, as well as curtains, foggers and heaters can be connected to the controller.
  • Page 5 CONTROL OF AIR INLET MOVEMENT If the TC5-1N4F1A is used in combination with a PF-5B controller, the move- ment of the air inlets can be coordinated with the operation of the fans using a potentiometer located on the panel drive.

  • Page 6: Location Of The Controls

    LOCATION OF THE CONTROLS & TC5-1N4F1A.rev.07...

  • Page 7: Controller Status Leds

    TC5-1N4F1A CONTROLLER STATUS LEDS INTERNAL SWITCHES The internal switches are located on the inside of the front cover. When the controller is shipped from the factory, all the switches are set to OFF. TC5-1N4F1A.rev.07...

  • Page 8: Installation

    NC terminal. ALL WIRING MUST BE DONE BY AN AUTHORIZED ELECTRI- CIAN AND MUST COMPLY WITH APPLICABLE CODES, LAWS AND REGULATIONS. BE SURE POWER IS OFF BEFORE DO- ING ANY WIRING TO AVOID ELECTRICAL SHOCKS AND EQUIP- WARNING MENT DAMAGE. TC5-1N4F1A.rev.07...

  • Page 9: Motor Types

    TC5-1N4F1A OTOR TYPES The relationship between the voltage supplied to a motor and its operating speed is described by a motor curve. This curve varies with the make and capacity of the motor. The various motors available in the industry have been divided into ten categories and the controller has been programmed with a different motor curve for each of these categories.

  • Page 10: Temperature Probes

    TC5-1N4F1A EMPERATURE PROBES Connecting the Probes The controller is supplied with one temperature probe connected to input # 1. Three additional room probes can be connected to inputs # 2, 3 and 4 and an outside probe can be connected to input # 5 (see wiring diagram enclosed).
  • Page 11 TC5-1N4F1A CAUTION: Do not run probe cables next to other power cables. When crossing over other cables, cross at 90°. Installing the Outside Probe Run the outside probe cable on the north side of the building, 6 ft (2 m) below the eave, inside a pale colored conduit.
  • Page 12 TC5-1N4F1A For each additional probe connected to the controller: Press the push-button once again. If the probe is not defective, the letters "PR#" (where # is the number of the input to which the probe is connected) are displayed, alternating with the on/off state of the probe and the temperature measured by the probe.

  • Page 13: Changing The Parameter Settings

    "St 2". (ii) If, after about 6 seconds, no action is taken by the user, the absolute temperature value is displayed, alternating with "St 2". In this case, the absolute value is: Set Point + Bandwidth + Differential 2. TC5-1N4F1A.rev.07...

  • Page 14: Locking The Parameters Settings

    TC5-1N4F1A (iii) When the user turns the adjustment knob to make an adjustment to the stage 2 differential, the relative value reappears on the display. In the case of the mist and heating units, the starting temperature is displayed with the letters "STr" when adjusting the differential and the stopping temperature is displayed with the letters "STP"...

  • Page 15: Temperature Settings

    The controller can display probe temperatures individually. Probes can also be turned on or off to control the temperature in different parts of the building. Set selection knob to ROOM TEMPERATURE / PROBE TEMP. The average room temperature is displayed. TC5-1N4F1A.rev.07...
  • Page 16 TC5-1N4F1A Press the push-button. The temperature reading from probe 1 is dis- played, alternating with the letters "Pr 1" and the on/off state of probe For each additional probe, press the push-button. The temperature reading from probe x is displayed, alternating with the letters "Pr x"...
  • Page 17 TC5-1N4F1A Turn the adjustment knob clockwise a third notch. The room tempera- ture is displayed again. For each individual probe, press the push-button. The temperature reading from probe x is displayed, alternating with the letters "Pr x" and the on/off state of the probe.

  • Page 18: Temperature Set Point

    TC5-1N4F1A EMPERATURE SET POINT get room temperature. It can be ad- justed between -40.0°F and 99.9°F (-40.0°C and 37.7°C). Adjusting Temperature Set Point Set the selection knob to SET POINT / T° CURVE.The current set point flashes on the display.

  • Page 19: Temperature Curve

    TC5-1N4F1A EMPERATURE CURVE The user can define a temperature curve to adjust the set point automatically over a given time period. Temperature Days A curve is defined using six points. Each point specifies a day number and a set point for that day. Once the points of the curve are defined, the curve must be activated.
  • Page 20 TC5-1N4F1A Specifying the Curve Set the selection knob to SET POINT / T CURVE. The current temperature set point flashes on the display. Press the push-button. The word OFF is displayed indicating that the termperature curve is deactivated. If this is not the case, see below to deactivate the curve.
  • Page 21 TC5-1N4F1A Activating Temperature Curve If you have just finished specifying the points on the curve: Press the push-button once again. The word OFF flashes on the display. Turn the adjustment knob clockwise one notch. The word ON flashes on the display and the Temperature Curve Pilot Light flashes, indicat- ing that the temperature curve is now activated.
  • Page 22 TC5-1N4F1A Viewing Current Set Point and Day Number When the temperature curve is activated, the current temperature set point and day number can be viewed at any time. The current day number can also be adjusted in order to move forward or backward on the temperature curve.

  • Page 23: Ventilation Settings

    VENTILATION SETTINGS OOLING OPERATION The TC5-1N4F1A controls one stage of variable-speed fans (Stage 1), one stage of constant-speed fans (Stage 2) and one mist stage (Stage 4), as well as curtains for natural ventilation (Stage 3). TC5-1N4F1A.rev.07...
  • Page 24 TC5-1N4F1A If room temperature rises: • When room temperature < Set Point, stage 1 fans run at minimum speed according to the minimum ventilation cycle. • At Set Point: stage 1 fans stop operating according to the minimum ventilation cycle and increase in speed as the room temperature rises.

  • Page 25: Minimum Ventilation Cycle

    TC5-1N4F1A INIMUM VENTILATION CYCLE When the room temperature is below the set point, the Stage 1 fans operate according to the minimum ventilation cycle. Running the fans even though ventilation is not required for a cooling purpose is useful to reduce humidity levels and supply oxygen to the room.

  • Page 26: 1 - Minimum Speed/Curve

    TC5-1N4F1A Adjusting Minimum Speed The minimum speed can be adjusted between 10 and 100% of the full speed of the fans. Set the selection knob to STAGE 1 — MINIMUM SPEED/CURVE. The current minimum speed for Stage 1 flashes on the display.

  • Page 27: Humidity Compensation

    TC5-1N4F1A UMIDITY COMPENSATION The stage 1 minimum speed can be adjusted automatically as a function of relative humidity. As humidity increases, the stage 1 minimum speed in- creases proportionally to compensate for the change. At humidity levels at or below the humidity set point, stage 1 minimum speed is equal to the normal uncompensated speed.
  • Page 28 TC5-1N4F1A Viewing Relative Humidity The relative humidity is expressed as a percentage. Set the selection knob to STAGE 1 — HUMIDITY CON- TROL. The current relative humidity is displayed. Turn the adjustment knob clockwise by one notch. The minimum humidity flashes on the display, alternating with the letters "Lo".
  • Page 29 TC5-1N4F1A Press the push-button. The relative humidity set point is displayed, alternating with the letters "set rH". Use the adjustment knob to adjust the set point to the desired value. Adjusting Minimum Speed Compensation This is the percentage increase in minimum speed for a relative humidity equal to the humidity set point + 10%.
  • Page 30 TC5-1N4F1A INIMUM VENTILATION SPEED CURVE The user can define a minimum ventilation speed curve to adjust the Stage 1 minimum speed automatically over a given time period. Each curve is defined by six points. Each point specifies a day number and a fan speed for that day.
  • Page 31 TC5-1N4F1A Interaction Between Temperature and Minimum Speed Curves • The minimum speed curve can be activated only if the tempera- ture curve is already activated • All points of the minimum speed curve other than the first one are automatically given day numbers identical to those specified for the tem- perature curve.
  • Page 32 TC5-1N4F1A • If you activated the temperature curve yesterday, the current day number of the temperature curve is d6. Therefore, if you activate the mini- mum speed curve today, it will effectively be in operation in 4 days, when the current day number of the temperature curve reaches d10. In the meantime, the fans will run at the specified single minimum speed (see example 2).
  • Page 33 TC5-1N4F1A Specifying Minimum Speed Curve Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE. The current minimum speed flashes on the display. Press the push-button. The word OFF is displayed, indicating that the minimum speed curve is de- activated.
  • Page 34 TC5-1N4F1A iii) Certain restrictions apply to reduce the risk of errors: • decreasing minimum speeds are not allowed. • the minimum speed variation cannot exceed 10% per day. Activating Minimum Speed Curve If you have just finished specifying the points on the curve: Press the push-button once again.
  • Page 35 TC5-1N4F1A Viewing Current Minimum Speed and Day When the minimum speed curve is activated, the current minimum speed and day number can be viewed at any time. To modify the day number, refer to the section on temperature curves. Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE.

  • Page 36: Differential Settings

    TC5-1N4F1A IFFERENTIAL SETTINGS Adjusting Stage 1 Bandwidth The Stage 1 bandwidth is the temperature interval within which the Stage 1 variable speed fans increase or decrease in speed proportionally to the temperature (see the diagram above). The bandwidth can be adjusted between 0.5°F and 20.0°F (0.3°C and 11.1°C).

  • Page 37: Mist Cooling

    TC5-1N4F1A IST COOLING Stage 4 operates according to a separate timer and can be configured as a mist cooling stage. Time on is the running time of the mist units and time off is the off time of the mist units. If a mist stage is not needed, time off should be set to zero.
  • Page 38 TC5-1N4F1A Adjusting Mist Timer Settings Time on and time off can be adjusted between 0 and 60 minutes, in increments of 1 minute. To deactivate mist cooling, set time on to zero. Set the parameter selection knob to MIST — DIFF./TIMER. The cur- rent mist differential is displayed, alternating with the letters "dif".

  • Page 39: Natural Ventilation

    When the temperature falls to 79 F, the curtains begin to close and con- tinue to do so until fully closed if the temperature remains below this point. If the temperature rises to 79.3 F, the curtains stop closing. TC5-1N4F1A.rev.07...
  • Page 40 If internal switch # 6 is set to ON, a signal is sent to the PF-5 to close the air inlets when the curtains begin opening (this applies only to users with a PF-5 controller connected to the TC5-1N4F1A). TC5-1N4F1A.rev.07...

  • Page 41: Curtain Operating Time Compensation

    TC5-1N4F1A URTAIN OPERATING TIME COMPENSATION The controller can use the current outside temperature to adjust the opening and closing times of the curtains. As the outside temperature increases, time on is increased, causing the curtains to open faster. As the outside tempera- ture decreases, time on is increased, causing the curtains to close faster.

  • Page 42: Settings

    TC5-1N4F1A ETTINGS Manual Operation of the Curtains Set the selection knob to CUR- TAINS - MANUAL. The display flashes "OFF" and the curtains stop functioning after five sec- onds. Press the push-button. The display flashes "OPE" and the curtains start opening after five seconds.
  • Page 43 TC5-1N4F1A Adjusting the Curtain Timer The time on and time off parameters can take values from 0 to 900 seconds. Set the selection knob to CURTAINS — DEAD BAND / TIMER. The current curtain dead band flashes on the display, alternating with the word "de.b".
  • Page 44 TC5-1N4F1A Activating / Deactivating Curtain Compensation Set the selection knob to OUTSIDE T — SETTINGS. The current outside temperature is displayed. Press the push-button twice. The current on/off state of the outside compensation feature is displayed. Use the adjustment knob to turn the compensation on or off.

  • Page 45: Heater Settings

    HEATER DIFFERENTIAL OFFSET Set Point If the room temperature rises: - at Set Point - Heater Offset: Heating units turns off. If the room temperature falls: - at Set Point - Heater Offset - Heater Differential: Heating units turn TC5-1N4F1A.rev.07...
  • Page 46 TC5-1N4F1A Adjusting Heater Offset The heater offset can provide substantial energy savings if correctly ad- justed according to the outside temperature. It is the number of degrees below the set point at which the heating units turn off (see diagram above).

  • Page 47: Alarm Settings

    F to 40 F. The critical temperature ranges from -40.0°F to 120.0°F (-40.0°C to 48.9°C). Set the selection knob to ALARM — OFFSETS / CRITI- CAL. The current low alarm offset flashes on the display, alternating with the word "LO". TC5-1N4F1A.rev.07...
  • Page 48 TC5-1N4F1A Use the adjustment knob to set the low alarm offset to the desired value. Press the push-button. The current high alarm offset flashes on the display, alternating with the word "HI". Use the adjustment knob to set the high alarm offset to the desired value.

  • Page 49: Test Mode

    Turn the selector knob to the ROOM TEMPERATURE position. The current room temperature is displayed. Press and hold the push-button for 5 seconds. NOTE: If no user activity is recorded after 5 minutes in test mode, the controller resumes normal operation. TC5-1N4F1A.rev.07...

  • Page 50: Troubleshooting Guide

    There is electrical noise Do not run probe cables next to perature. near an extended probe other power cables. When cable. crossing other power cables, cross at 90 TC5-1N4F1A.rev.07...
  • Page 51 TC5-1N4F1A PROBLEM CAUSE SOLUTION The wiring is incorrect. Correct the wiring. In particular, Stage 1 fans make sure two different lines are are not connected to each motor: line L1 running. modulated by the controller should be combined with another line (N for 115V or L2 for 230V) to activate the motor.
  • Page 52 TC5-1N4F1A PROBLEM CAUSE SOLUTION The wiring is incor- Stage 1 fans Fix the wiring. rect. run continu- ously at full The ambient tempera- Adjust the set point to the speed. ture is above the set desired value. point. Select an appropriate motor...
  • Page 53 TC5-1N4F1A PROBLEM CAUSE SOLUTION The Stage's fuse is Replace the fuse. One of the open. other stages is not operating. Make sure the cable is firmly The display board plugged in with the tabs in place. interconnect cable is not plugged into the power supply board properly.

  • Page 54: Technical Specifications

    -40.0° to 120.0°F (-40.0° to 48.9°C). Accuracy: 1.8 F (1 C) between 41 F (5 and 35 Enclosure: ABS, moisture and dust-tight. The room temperature where the controller is located MUST ALWAYS REMAIN BETWEEN 32 AND 104 F (0 AND 40 TC5-1N4F1A.rev.07...

  • Page 55: Factory Settings

    FACTORY SETTINGS F ° ° 1 TC5-1N4F1A.rev.07...
  • Page 56 TC5-1N4F1A F ° ° 5 NOTES: i) These initial parameter settings will not be retained in the controller's memory. Each new setting will replace the preceding one. ii) If the power supply is cut off, the last parameter settings will be retained in memory until the power is restored.

  • Page 57: Glossary

    OFFSET: An offset is a temperature difference from the set point that normally defines a cut-off point for a stage operation. For example, a heater offset of 2°F means the heaters will turn off at 2°F below the set point. TC5-1N4F1A.rev.07...
  • Page 58 TC5-1N4F1A RAMPING ON STAGE 1: When the temperature rises to the point where Stage 1 constant-speed fans are needed for cooling, the running time of the fans is increased gradually from the minimum ventilation settings up to full operation. Likewise, when the temperature drops below the set point, the running time is decreased gradually until the minimum ventilation settings are reached.
  • Page 60 M 890-00164 rev. 07 REV.01...
