AP UM200 Specification & Installation Instructions

Technical
UM200
Data
Auxiliary switches
Fail safe
Torque
Running time
through 90º
Feedback
Power consumption
Power supply
Electrical connection
Inlet bushing
Control signal
Angle of rotation
Direction of rotation
Ambient temperature
Storage temperature
Relative Humidity
Weight
Dimensions
Caution
We strongly recommend that all neptronic® products be wired to a separate transformer and that transformer shall service only neptronic® products. This precaution will
prevent interference with, and/or possible damage to incompatible equipment.
When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.
UM2-WM2_110728

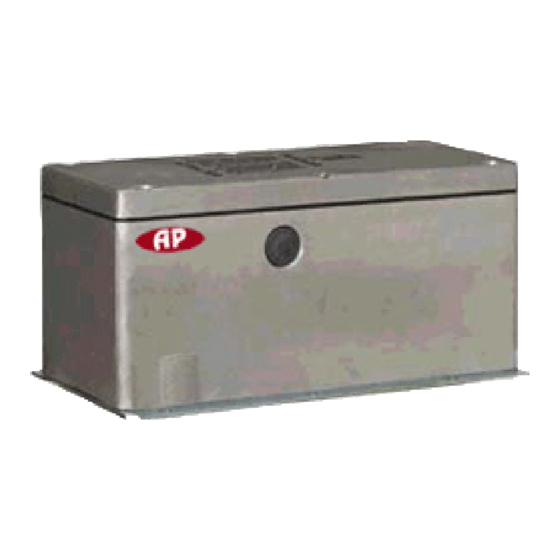

Feature:
•
Up to 4000 in.lb [450Nm].
•
Clutch for manual adjustments.
•
Maintenance free.
•
Control signal fully programmable.
•
Fail safe (battery backup)
(on model 210 & 230).
•
Auxiliary switches (on model 220 & 230).
•
IP56 enclosure.
UM220 UM210
No Yes (2)
No
2500 in.lb. [280 Nm] at rated voltage
4 min.
28 to 32 VDC or 22 to 26 VAC, 220 to 250 VAC 50/60Hz
Analog or Digital programmable (factory set with Analog control signal)
0 to 110 degrees, electronically adjustable (factory set with 110º stroke)
Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)
Warning: Do not press the clutch when actuator is powered
Specification & Installation instructions
UM230 WM200
No Yes (2)
Yes
4 to 20 mA or 2 to 10 VDC adjustable
40 VA
2
18 AWG [0.8 mm ] minimum
3 inlet bushing of 7/8 in [22.2 mm]
0ºF to +122ºF [-18º C to +50º C]
-22ºF to +122ºF [-30º C to +50º C]
5 to 95 % non condensing.
29 lbs. [13 kg]
Dimension
A
B
C
D
WM220 WM210
No Yes (2)
No
4000 in.lb. [450 Nm] at rated voltage
8 min.
Inches Metric (mm)
6.75
7.95
7.85
14.45
Actuator
UM200
UM220
UM210
UM230
WM200
WM220
WM210
WM230
WM230
No Yes (2)
Yes
169.4
201.9
199.4
367.0
1
