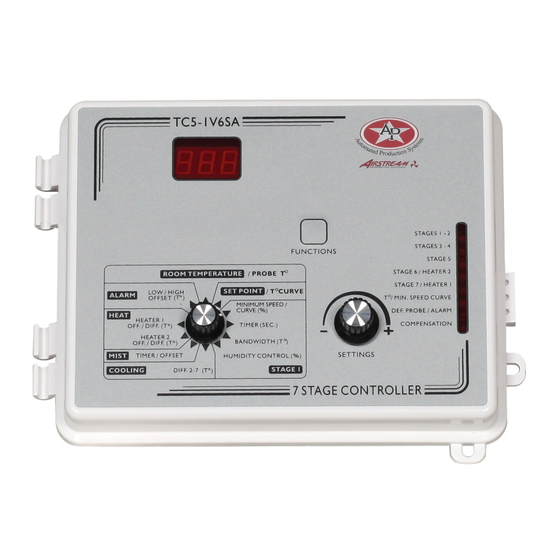

AP TC5-1V6SA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Environment Control
TC5-1V6SA
M 890-00168
rev. 06
SPPHÃU@HQ@S6UVS@
ÃQSP7@ÃÃU
GPXÃÃCDBC
T@UÃQPDIU
6G6SH
PAAT@U UÃÃ
HDIDHVHÃTQ@@9Ã
8VSW@ÃÈ
C@6U
C@6U@SÃ Ã
PAAÃÃ9DAAÃUÃÃ
UDH@SÃT@8
C@6U@SÃ!
76I9XD9UCÃUÃÃ
PAAÃÃ9DAAÃUÃÃ
ÃUDH@SÃÃPAAT@U
CVHD9DU`Ã8PIUSPGÃÈ
HDTU
9DAAÃ!&
UÃÃ
8PPGDIB
USER'S MANUAL
ÃUÃÃ8VSW@
TU6B@Ã
REV. 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC5-1V6SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AP TC5-1V6SA

Summary of Contents for AP TC5-1V6SA

  • Page 1 Environment Control TC5-1V6SA USER'S MANUAL SPPHÃU@HQ@S6UVS@ ÃQSP7@ÃÃU GPXÃÃCDBC T@UÃQPDIU ÃUÃÃ8VSW@ 6G6SH PAAT@U UÃÃ HDIDHVHÃTQ@@9Ã 8VSW@ÃÈ C@6U C@6U@SÃ Ã PAAÃÃ9DAAÃUÃÃ UDH@SÃT@8 C@6U@SÃ! 76I9XD9UCÃUÃÃ PAAÃÃ9DAAÃUÃÃ ÃUDH@SÃÃPAAT@U CVHD9DU`Ã8PIUSPGÃÈ HDTU 9DAAÃ!& UÃÃ 8PPGDIB TU6B@Ã M 890-00168 rev. 06 REV. 01...

  • Page 2: Table Of Contents

    Minimum Speed Curve ..........30 Differential Settings ............36 Mist Cooling ..............38 HEATER SETTINGS ............41 ALARM SETTINGS ............46 TEST MODE ..............47 TROUBLESHOOTING GUIDE ........48 TECHNICAL SPECIFICATIONS........52 FACTORY SETTINGS ............ 53 GLOSSARY ..............54 TC5-1V6SA.rev.06...

  • Page 3: Precautions

    DO NOT SPRAY WATER ON THE CONTROLLER FOR CUSTOMER USE Enter the serial number located on the side of the controller below for future reference. TC5-1V6SA Model number: Serial number: TC5-1V6SA.rev.06...

  • Page 4: Features

    FEATURES The TC5-1V6SA is an electronic device used for environmental control in livestock buildings. It allows the user to maintain a specified target tem- perature by controlling the operation of ventilation and heating equipment. One stage of variable speed fans can be connected to the controller, as well as four stages of constant-speed fans and two stages of either constant- speed fans or heating units.
  • Page 5 CONTROL OF AIR INLET MOVEMENT If the TC5-1V6SA is used in combination with a PF-5B controller, the move- ment of the air inlets can be coordinated with the operation of the fans using a potentiometer located on the panel drive.

  • Page 6: Location Of The Controls

    LOCATION OF THE CONTROLS TC5-1V6SA.rev.06...

  • Page 7: Controller Status Leds

    TC5-1V6SA CONTROLLER STATUS LEDS MEANING F L A S H E S W H E N S T A G E 1 F A N S A R E O N A N D S T A Y S O N W H E N S T A G E S 1 - 2 S T A G E 2 F A N S A R E O N .

  • Page 8: Installation

    NC terminal. ALL WIRING MUST BE DONE BY AN AUTHORIZED ELECTRICIAN AND MUST COMPLY WITH APPLICABLE CODES, LAWS AND REGULATIONS. BE SURE POWER IS OFF BEFORE DOING ANY WIRING TO AVOID ELECTRICAL SHOCKS AND EQUIPMENT DAM- WARNING AGE. TC5-1V6SA.rev.06...

  • Page 9: Motor Types

    TC5-1V6SA OTOR TYPES The relationship between the voltage supplied to a motor and its operating speed is described by a motor curve. This curve varies with the make and capacity of the motor. The various motors available in the industry have been divided into ten categories and the controller has been programmed with a different motor curve for each of these categories.

  • Page 10: Heating/Cooling Option

    TC5-1V6SA EATING / COOLING OPTION Stages 6 and 7 can operate as heating or cooling stages. ð Set switches # 6 and # 7 to OFF to use both stages for cooling. ð Set switch # 6 to ON and switch # 7 to OFF to use Stage 7 for heating and Stage 6 for cooling.
  • Page 11 TC5-1V6SA Switches are used to activate or deactivate the additional probes connected to the controller. Activate each additional probe by setting the appropriate switch to ON: • Switch # 3 activates the probe connected to input # 2. • Switch # 4 activates the probe connected to input # 3.
  • Page 12 TC5-1V6SA To identify the defective probe: Set the selection knob to ROOM TEMPERATURE . The room tem- perature is displayed. Press the push-button. If the probe connected to input # 1 and supplied with the controller is not defective, the letters"PR1" are dis-...

  • Page 13: Changing The Parameter Settings

    St 2 (ii) If, after about 6 seconds, no action is taken by the user, the absolute temperature value is displayed, alternating with "St 2". In this case, the absolute value is: Set Point + Bandwidth + Differential 2. TC5-1V6SA.rev.06...

  • Page 14: Locking The Parameters Settings

    TC5-1V6SA 78.0 St 2 (iii) When the user turns the adjustment knob to make an adjustment to the stage 2 differential, the relative value reappears on the display. In the case of the mist and heating units, the starting temperature is displayed with the letters "STr"...

  • Page 15: Temperature Settings

    Set the selection knob to ROOM TEMPERATURE / PROBE T . The room temperature is displayed. Viewing Probe Temperatures The controller can display probe temperatures individually. Probes can also be turned on or off to control the temperature in different parts of the building. TC5-1V6SA.rev.06...
  • Page 16 TC5-1V6SA Set selection knob to ROOM TEMPERATURE / PROBE TEMP. The average room temperature is displayed. Press the push-button. The temperature reading from probe 1 is dis- played, alternating with the letters "Pr 1" and the on/off state of probe For each additional probe, press the push-button.
  • Page 17 TC5-1V6SA Turn the adjustment knob clockwise by one notch. The minimum temperature is displayed, alternating with the letters "Lo". Turn the adjustment knob clockwise one notch further. The maximum temperature is displayed, alternating with the letters "Hi". Turn the adjustment knob clockwise a third notch. The probe tem- perature is displayed again.

  • Page 18: Temperature Set Point

    TC5-1V6SA EMPERATURE SET POINT The temperature set point is the tar- get room temperature. It can be ad- justed between -40.0°F and 99.9°F (-40.0°C and 37.7°C). STAGE 1 (T ) Adjusting Temperature Set Point Set the selection knob to SET POINT / CURVE.The current set point flashes on the display.

  • Page 19: Temperature Curve

    TC5-1V6SA EMPERATURE CURVE The user can define a temperature curve to adjust the set point automatically over a given time period. Temperature Days A curve is defined using six points. Each point specifies a day number and a set point for that day. Once the points of the curve are defined, the curve must be activated.
  • Page 20 TC5-1V6SA Specifying the Curve Set the selection knob to SET POINT / T CURVE. The current temperature set point flashes on the display. STAGE 1 (T ) Press the push-button. The word OFF is displayed indicating that the termperature curve is deactivated. If this is not the case, see below to deactivate the curve.
  • Page 21 TC5-1V6SA Activating Temperature Curve If you have just finished specifying the points on the curve: Press the push-button once again. The word OFF flashes on the display. Turn the adjustment knob clockwise one notch. The word ON flashes on the display and the Temperature Curve Pilot Light flashes, indicat- ing that the temperature curve is now activated.
  • Page 22 TC5-1V6SA Viewing Current Set Point and Day Number When the temperature curve is activated, the current temperature set point and day number can be viewed at any time. The current day number can also be adjusted in order to move forward or back- ward on the temperature curve.

  • Page 23: Ventilation Settings

    VENTILATION SETTINGS OOLING OPERATION The TC5-1V6SA controls one stage of variable-speed fans (Stage1), four stages of constant-speed fans (Stages 2 - 5) and two optional stages of constant-speed fans (Stages 6 & 7). STAGE 7 STAGE 6 STAGE 5 STAGE 4...
  • Page 24 TC5-1V6SA If room temperature rises: • When room temperature < Set Point, stage 1 fans run at minimum speed according to the minimum ventilation cycle. • At Set Point: stage 1 fans stop operating according to the minimum ventilation cycle and increase in speed as the room temperature rises.
  • Page 25 TC5-1V6SA • At Set Point + bandwidth: stage 2 fans return to a stop; stage 1 fans start decreasing in speed as the temperature decreases. • At Set Point: stage 1 fans reach minimum speed. • Below the Set Point: stage 1 fans stop operating continuously and operate according to the minimum ventilation cycle at minimum speed.

  • Page 26: Minimum Ventilation Cycle

    TC5-1V6SA INIMUM VENTILATION CYCLE When the room temperature is below the set point, the Stage 1 fans operate according to the minimum ventilation cycle. Running the fans even though ventilation is not required for a cooling purpose is useful to reduce humidity levels and supply oxygen to the room.
  • Page 27 TC5-1V6SA Adjusting Minimum Speed The minimum speed can be adjusted between 10 and 100% of the full speed of the fans. Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE. The current minimum speed for Stage 1 flashes on the display.

  • Page 28: Humidity Compensation

    TC5-1V6SA UMIDITY COMPENSATION The stage 1 minimum speed can be adjusted automatically as a function of relative humidity. As humidity increases, the stage 1 minimum speed in- creases proportionally to compensate for the change. At humidity levels at or below the humidity set point, stage 1 minimum speed is equal to the normal uncompensated speed.
  • Page 29 TC5-1V6SA Viewing Relative Humidity The relative humidity is expressed as a percentage. Set the selection knob to STAGE 1 — HUMIDITY CON- TROL. The current relative humidity is displayed. Turn the adjustment knob clockwise by one notch. The STAGE 1...

  • Page 30: Minimum Speed Curve

    TC5-1V6SA Press the push-button. The relative humidity set point is displayed, alternating with the letters "set rH". Use the adjustment knob to adjust the set point to the desired value. Adjusting Minimum Speed Compensation This is the percentage increase in minimum speed for a relative humidity equal to the humidity set point + 10%.
  • Page 31 TC5-1V6SA INIMUM VENTILATION SPEED CURVE The user can define a minimum ventilation speed curve to adjust the Stage 1 minimum speed automatically over a given time period. Each curve is defined by six points. Each point specifies a day number and a fan speed for that day.
  • Page 32 TC5-1V6SA Table 1. STAGE 7 THRESHOLD VALUE OPERATION ''Set Point - 5.0°F (2.8°C)'' Cooling ''Set Point - 5.0°F (2.8°C) - Heater Offset - Stage 7 Differential'' Heating ''Set Point'', if the parameter settings are such that the pre- ceding value is greater than the set point.
  • Page 33 TC5-1V6SA • When the minimum speed curve is activated, it will effectively be oper- ating (i.e. the controller will begin to adjust the minimum speed according to the specified points of the curve) only when the current day number of the temperature curve reaches the first day number of the minimum speed curve.
  • Page 34 TC5-1V6SA Specifying Minimum Speed Curve Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE. The current mini- mum speed flashes on the dis- play. STAGE 1 (T ) Press the push-button. The word OFF is displayed, indicating that the minimum speed curve is deactivated.
  • Page 35 TC5-1V6SA iii) Certain restrictions apply to reduce the risk of errors: • decreasing minimum speeds are not allowed. • the minimum speed variation cannot exceed 10% per day. Activating Minimum Speed Curve If you have just finished specifying the points on the curve: Press the push-button once again.

  • Page 36: Differential Settings

    TC5-1V6SA Press the push-button. The current day is displayed, alternating with the letters "cur. dAY". Deactivating Minimum Speed Curve Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE. The current minimum speed is displayed. Press the push-button to display the points of the curve currently defined until the word ON appears (fourteen clicks).
  • Page 37 TC5-1V6SA Adjusting Stage 2 - 7 Differentials The Stage 2 - 7 cooling differentials are the temperature differences between the moment the Stage 2 - 7 constant-speed fans respectively start to run and the moment they turn off (see the diagram above). The differentials can be adjusted between 0.5°F and 20.0°F (0.3°C and 11.1°C).

  • Page 38: Mist Cooling

    TC5-1V6SA IST COOLING The last cooling stage can be configured as a mist stage. The number of heating stages determines which stage this is. To activate mist cooling, set internal switch # 9 to ON. NUMBER OF HEATING STAGES MIST STAGE The following diagram sums up the operation of the mist units.
  • Page 39 TC5-1V6SA Adjusting Mist Differential The mist differential is the variation in room temperature between the moment the mist units turn on and the moment they turn off.The differential can be adjusted between 0.5°F and 20.0°F (0.3°C and 11.1°C). Set the parameter selection knob to MIST —...
  • Page 40 TC5-1V6SA Adjusting Mist Timer Settings Time on and time off can be adjusted between 0 and 60 minutes, in increments of 1 minute. To deactivate mist cooling, set time on to zero. Set the parameter selection knob to MIST — TIMER/OFFSET.

  • Page 41: Heater Settings

    If the room temperature falls: - at Set Point - Heater 1 Offset - Heater 1 Diff.: Heater 1 turns on. - at Set Point - Heater 1 Offset - Heater 1 Diff. - Heater 2 Diff.: Heater 2 turns on. TC5-1V6SA.rev.06...
  • Page 42 TC5-1V6SA ZONED HEATERS To configure your system for zoned heaters, set dipswitch # 8 to ON. Since the two heater outputs function independently, different probes are assigned to each output: Probes 1 and 2 are assigned to Heater 1 and Probes 3 and 4 are assigned to Heater 2.
  • Page 43 TC5-1V6SA The figure below explains the operation of zoned heaters. Heating Heater turns on Heater turns off Temperature HEATER HEATER OFFSET DIFFERENTIAL Set Point If the room temperature rises: - at Set Point - Heater Offset 1 (Zone 1) : Heater 1 turns off.
  • Page 44 TC5-1V6SA Adjusting Heater Offsets s The heater offset can provide substantial energy savings if correctly ad- justed according to the outside temperature. It is the number of degrees below the set point at which the heating units turn off (see diagram above).
  • Page 45 TC5-1V6SA Adjusting Max. Temperature Difference Between Zones When using zoned heating, a built-in protection will operate the fans accord- ing to the probes of the zone with the highest temperature whenever the temperature difference between zones is greater than this parameter. The default value is 7.5°F (4.2°C) and values range from 5°F to 40.0°F (2.8°C to...

  • Page 46: Alarm Settings

    Press the push-button. The current high alarm offset flashes on the display, alternating with the word "HI". Use the adjustment knob to set the high alarm offset to the desired value. TC5-1V6SA.rev.06...

  • Page 47: Test Mode

    Turn the selector knob to the ROOM TEMPERATURE position. The current room temperature is displayed. Press and hold the push-button for 3 seconds. NOTE: If no user activity is recorded after 4 minutes in test mode, the controller resumes normal operation. TC5-1V6SA.rev.06...

  • Page 48: Troubleshooting Guide

    There is electrical Do not run probe cables next to temperature. noise near an ex- other power cables. When tended probe cable. crossing other power cables, cross at 90 TC5-1V6SA.rev.06...
  • Page 49 TC5-1V6SA PROBLEM CAUSE SOLUTION The wiring is incor- Correct the wiring. In particular, Stage 1 fans rect. make sure two different lines are are not connected to each motor: line L1 running. modulated by the controller should be combined with another line (N for 115V or L2 for 230V) to activate the motor.
  • Page 50 TC5-1V6SA PROBLEM CAUSE SOLUTION The wiring is incor- Stage 1 fans Fix the wiring. rect. run continu- ously at full The ambient tempera- Adjust the set point to the speed. ture is above the set desired value. point. The selected motor...
  • Page 51 TC5-1V6SA PROBLEM CAUSE SOLUTION The Stage's fuse is Replace the fuse. Stage 2,3,4,5, open. 6, or 7 is not operating. Make sure the cable is firmly The display board plugged in with the tabs in place. interconnect cable is not plugged into the power supply board properly.

  • Page 52: Technical Specifications

    TECHNICAL SPECIFICATIONS TC5-1V6SA Supply: - 115/230 VAC (-18%, +8%), 60 Hz, L1 same phases as Stage 1, overload and overvoltage protection fuse F11-1A fast blow. T55-1V6SA Supply: - 115/230 VAC (-18%, +8%), 50 Hz, L1 same phases as Stage 1, overload and overvoltage protection fuse F11-1A fast blow.

  • Page 53: Factory Settings

    These initial parameter settings will not be retained in the controller's memory. Each new setting will replace the preceding one. ii) If the power supply is cut off, the last parameter settings will be retained in memory until the power is restored. TC5-1V6SA.rev.06...

  • Page 54: Glossary

    OFFSET: An offset is a temperature difference from the set point that normally defines a cut-off point for a stage operation. For example, a heater offset of 2°F means the heaters will turn off at 2°F below the set point. TC5-1V6SA.rev.06...
  • Page 55 TC5-1V6SA RAMPING ON STAGE 1: When the temperature rises to the point where Stage 1 constant-speed fans are needed for cooling, the running time of the fans is increased gradually from the minimum ventilation settings up to full operation. Likewise, when the temperature drops below the set point, the running time is decreased gradually until the minimum ventilation settings are reached.
