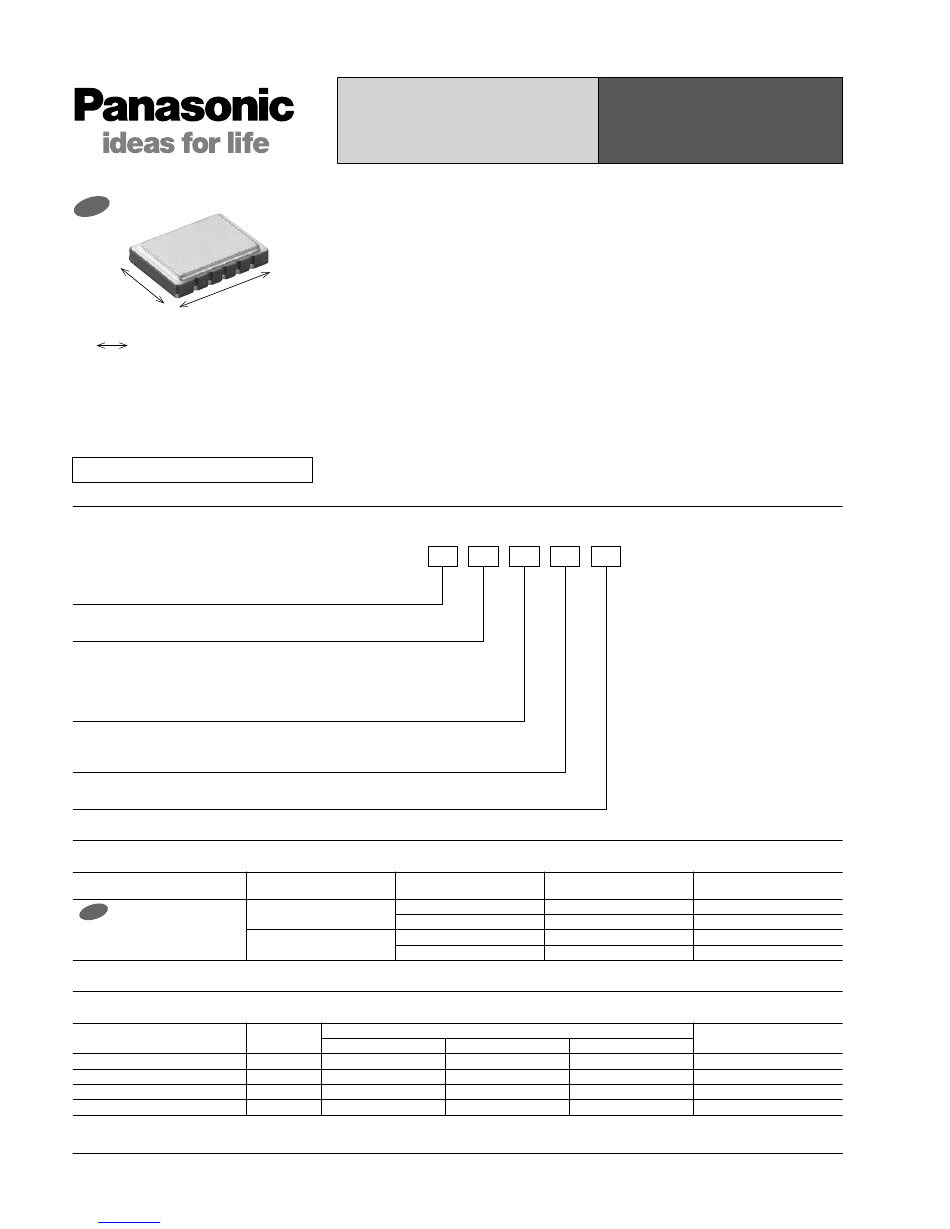

High-precision mems 2-axis acceleration sensor

Advertisement

GS2 Sensor (AGS2)
N e w
Y-axis
: Direction of acceleration detection
Compliance with RoHS Directive
ORDERING INFORMATION
Number of detectable axis (Method)
2: 2-axis Acceleration Sensor (Electrostatic capacitance type)
Package type/Size
1: Ceramic package/6.2 x 8.5 mm
Detection sensitivity
1: 1 V/g
3: 1.333 V/g
6: 0.6 V/g
8: 0.8 V/g
Operation power supply voltage/Output type
3: 3 V DC/Analog output
5: 5 V DC/Analog output
Type
1: Built-in ASIC
TYPES
Product name
N e w
2-axis Acceleration sensor GS2
Standard packing: Carton: 1,000 pcs.
MAXIMUM RATING
Item
Max. applied voltage
Storage temperature range
Operation temperature range
Anti-shock characteristic
Downloaded from
Elcodis.com
electronic components distributor
High-precision MEMS
2-axis acceleration sensor
FEATURES
1. High precision and high reliability:
Offset temperature characteristics
±38mg (Typical value)
2. High sensitivity: 1 to 1.333V/g
(VDD=5V)
X-axis
3. Product lineup covers range of
operating voltage and acceleration
detection.
AGS 2
Operation power supply
voltage
3V DC
5V DC
Unit
min.
V
–0.3
°C
°F
–40
–40
°C
°F
–40
–40
g
5,000
All Rights Reserved © COPYRIGHT Panasonic Electric Works Co., Ltd.
1
Acceleration detection range
Detection sensitivity
±2g
±1.5g
±2g
±1.5g
Standard value
typ.
GS2 SENSOR
TYPICAL APPLICATIONS
1. Car electronics
• Car navigation system (inclination
detection)
• Event data recorder
• Car security systems (Theft
prevention using slope and vibration
detection)
2. Equipments for shipping and
special vehicles
• Devices for shipping, construction
equipment, agricultural machinery, and
vehicles for persons with special needs
3. Other applications
• Theft prevention for all types of
equipment and devices
• Measuring instruments (levels,
gauges)
1
Part number
0.6V/g
AGS21631
0.8V/g
AGS21831
1V/g
AGS21151
1.333V/g
AGS21351
Remarks
max.
7
Ta=25°C
85
185
85
185
77°F
