Panasonic CX-400 Series User Manual

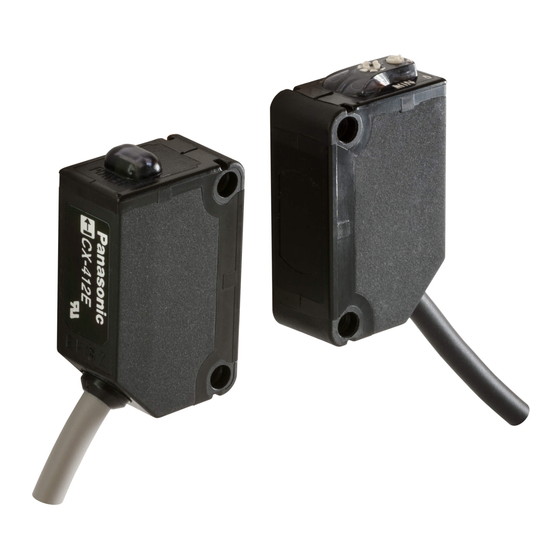

Amplifier built-in small photoelectric sensor
Hide thumbs Also See for CX-400 Series:
Table of Contents

Advertisement

Quick Links

WUME-CX400-4
2024.4
industry.panasonic.com/
Amplifier Built-in Small Photoelectric
Sensor
CX-400 Series
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX-400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic CX-400 Series

Summary of Contents for Panasonic CX-400 Series

  • Page 1 Amplifier Built-in Small Photoelectric Sensor CX-400 Series USER’S MANUAL WUME-CX400-4 2024.4 industry.panasonic.com/...

  • Page 2: Table Of Contents

    Contens 1. Cautions ··························································································3 2. Part Description ················································································4 3. Mounting ·························································································6 3-1 Mounting to sensor mounting bracket (Optional) ··········································· 6 3-2 Installation interval (Thru-beam type CX-41□) ·············································· 7 3-3 Mounting when detecting materials having a gloss (Retroreflective type CX-493□ / CX-48□) ····················································· 9 3-4 Mounting of retroreflective type for transparent objects CX-48□...

  • Page 3: Cautions

    Cautions WARNING ● Never use this product as a sensing device for personnel protection. ● In case of using devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

  • Page 4: Part Description

    Part Description Standard type Thru-beam type emitter CX-41□ Power indicator (green) lights up when the power is ON Thru-beam type emitter receiver CX-41□, Retroreflective type CX-49□ / CX-48□ Diffuse reflective type CX-42□ Stability indicator (Green) Operation indicator (Orange) Lights up under the Lights up when the sensing stable light condition or output is ON...
  • Page 5 Basic type Thru-beam type emitter CX-41□-C05 Power indicator (green) lights up when the power is ON Thru-beam type emitter receiver CX-41□-C05, Convergent reflective type CX-46□-C05 Retroreflective type CX-491□-C05-Y Stability indicator (Green) Operation indicator (Orange) Lights up under the Lights up when the sensing stable light condition or output is ON the stable dark condition...

  • Page 6: Mounting

    Mounting 3-1 Mounting to sensor mounting bracket (Optional) ● The tightening torque should be 0.5N·m or less. Mounting bracket MS-CX2-1 (Optional) M3 (length 12mm) screw with washer Accessory of sensor mounting bracket MS-CX2-2 MS-CX2-4 MS-CX2-5 MS-CX-3...

  • Page 7: Installation Interval (Thru-Beam Type Cx-41□)

    3-2 Installation interval (Thru-beam type CX-41□) ● In case mounting two sets of the CX-41□ close together, please mount it as drawing be- low indicates (typical example) ● Find out the operating point ℓ1 on the parallel deviation diagram for the setting distance L1.
  • Page 8 Model No. CX-411□ Approx. 590mm or more CX-412□ Approx. 1,580mm or more CX-413□ Approx. 4.35m or more ● Since interference function is incorporated in retroreflective type CX-49□ / CX-48□, dif- fuse reflective type CX-42□, convergent reflective type CX-46□-C05 and adjustable range reflective type CX-44□, the 2 sensor heads can be mounted adjacently.

  • Page 9: 3-3 Mounting When Detecting Materials Having A Gloss

    3-3 Mounting when detecting materials having a gloss (Retroreflective type CX-493□ / CX-48□) ● Please take care of the following points when detecting materials having a gloss with ret- roreflective type CX-493□ or retroreflective type for transparent object sensing CX-48□. 1.

  • Page 10: Mounting Of Retroreflective Type For Transparent Objects

    3-4 Mounting of retroreflective type for transparent objects CX-48□ ● Optimum sensing is possible when the position of the transparent sensing object is set at the center of the sensor and the reflector. If the sensing position is set near the CX-48□ or the reflector, the sensing may be unstable.

  • Page 11: Mounting Of Adjustable Range Reflective Type Cx-44

    3-5 Mounting of adjustable range reflective type CX-44□ ● Care must be taken regarding the sensor mounting direction of CX-44□ with respect to the object's direction of movement. Good Good Not good Sensing Sensing Sensing object object object Do not make the sensor detect an object in this direction because it may cause unstable operation.

  • Page 12: I/O Circuit Diagram

    I/O Circuit Diagram NPN output type and PNP output type common: Thru-beam type CX-41□ emitter Color code / Connector pin No. of the connector type ● Connector pin position (Brown / 1) +V of the connector type <M12 pigtailed type> 2 / Not 1 / +V connected...
  • Page 13 NPN output type / Adjustable range reflective type CX-44□ Color code / Connector pin No. of the connector type (Brown / 1) +V Load (Black / 4) Output 12 to 24V DC ±10% 100mA max. ● Connector pin position (Blue / 3) 0V of the connector type <M8 connector type>...

  • Page 14: Adjustment

    Adjustment 5-1 Beam alignment (Thru-beam type CX-41□, Retroreflective type CX-49□ / CX-48□) Thru-beam type CX-41□ 1. Set the operation mode switch to the Light-ON mode position (L side). (Excluding basic type Sensing object CX-41□-C05) 2. Place the emitter and the receiver face to face along a straight line, move the emitter in the up, down, left and right directions, in order to deter- mine the range of the light received condition with...

  • Page 15: Sensitivity Adjustment (Diffuse Reflective Type

    5-2 Sensitivity adjustment (Diffuse reflective type CX-42□) Step 1. Turn the sensitivity adjuster fully counterclockwise to the Sensitivity minimum sensitivity position, MIN. adjuster 2. In the light received condition, turn the sensitivity adjuster Operation indicator slowly clockwise and confirm the point A where the sensor (Orange) enters the “Light”...
  • Page 16 <Reference> Light received condition Dark condition Emitter Receiver Emitter Receiver Thru-beam type Sensing object Sensor Reflector Sensor Reflector Retroreflective type Sensing object Sensor Diffuse reflective Sensor type Convergent Sensing reflective type object Relation between output and indicators <Standard type> In case of Light-ON In case of Dark-ON Stability indicator Operation indicator...

  • Page 17: Bgs / Fgs Function (Adjustable Range Reflective Type

    5-3 BGS / FGS function (Adjustable range reflective type CX-44□) ● CX-44□ incorporates BGS / FGS function. Select either BGS or FGS function depending on the positions of the background and sensing object. BGS / FGS function can be selected by wiring of the sensing mode se- lection input (pink / 2), as shown in the figure below.
  • Page 18 <FGS (Foreground suppression) function> ● This is useful if the object and background are close together, or if the object being sensed is glossy. Sensing object Back ground ● The sensor Judges that an object is present when no light is received at position B of the light receiving element (2-segment element).

  • Page 19: Distance Adjustment (Adjustable Range Reflective Type

    5-4 Distance adjustment (Adjustable range reflective type CX-44□) ● Be sure to conduct the distance adjustment before using CX-44□. ● Since the distance adjuster of this sensor is a 5-turn adjuster, when the point A and B is adjusted as explained in the table below, there may be more than 1 turn between the point A and B.
  • Page 20 ● In case FGS function is used. Step 1. Turn the distance adjuster fully clockwise to the maxi- mum sensing range position. (approx. 50mm for CX-441□ Distance and CX-443□, approx. 100mm for CX-444□, and approx. adjuster 300mm for CX-442□). 2. Place an object at the required distance from the sensor, turn the distance adjuster gradually counterclockwise, and find out point A where the sensor changes to the stable dark condition.

  • Page 21: Automatic Interference Prevention Function

    Automatic Interference Prevention Function ● Retroreflective type CX-49□ / CX-48□, diffuse reflective type CX-42□, convergent re- flective type CX-46□-C05 and adjustable range reflective type CX-44□ incorporate the automatic interference prevention function (the sensor automatically adjust the sensing timing). Up to two sets of sensor can be mounted closely. (thru-beam CX-41□ does not incorporate this function) Close mounting of 2 sensors Note: If CX-49□...

  • Page 22: Retroreflective Type Cx-491□ With Polarizing Filters

    Retroreflective Type CX-491□ with Polarizing Filters ● As light is polarized by a transparent film or membrane, CX-491□ may not detect an ob- ject covered or wrapped by transparent film. In that case, take the following measures. <Example of sensing objects> •...

  • Page 23: Slit Mask (Thru-Beam Type

    Option 9-1 Slit mask (Thru-beam type CX-41□) ● With the slit mask OS-CX-□, the sensor can detect a small object. ● However, the sensing range is reduced when the slit mask is mounted. Model No. Sensing distance Min. sensing object Type Slit size Slit mask...

  • Page 24: Interference Prevention Filter (Thru-Beam Type Cx-411□)

    9-2 Interference prevention filter (Thru-beam type CX-411□) ● By mounting the interference prevention filters PF-CX4-□, two sets of the CX-411□ can be mounted close together. However, the sensing range is reduced when the interference prevention filter is mounted. ● The filters can be mounted by the same method as for the slit masks. ●...

  • Page 25: Reflector / Refractive Tape (Retroreflective Type Cx-49□ And

    9-3 Reflector / refractive tape (Retroreflective type CX-49□ and CX-48□) ● Refractor RF-230 are accessory of retroreflective type CX-49□ and CX-48□. (we also of- fer them without refractor RF-230) ● By using reflector (optional) or reflectivity tape (optional), small object can be detected. However, the sensing distance would be shorter by using reflector (optional) or reflectiv- ity tape (optional).

  • Page 26: Specifications

    Specifications <Standard type> Thru-beam type Retroreflective Type Ultra long With polarizing filters Long sensing range Long sensing range sensing range (Note 2) NPN output CX-411 CX-412 CX-413 CX-491 CX-493 Model No. (Note 1) PNP output CX-411-P CX-412-P CX-413-P CX-491-P CX-493-P Sensing distance 3m (Note 3) 5m (Note 3)
  • Page 27 Diffuse reflective Type Narrow view NPN output CX-424 CX-421 CX-422 CX-423 Model No. (Note 1) PNP output CX-424-P CX-421-P CX-422-P CX-423-P Sensing distance 100mm (Note 6) 300mm (Note 6) 800mm (Note 6) 70 to 300mm (Note 6) Opaque, translucent or Sensing object Opaque, translucent or transparent object (Note 4) transparent object...
  • Page 28 Retroreflective type for transparent object sensing Type Short sensing range Long sensing range NPN output CX-481 CX-483 CX-482 Model No. (Note 1) CX-481-P CX-483-P CX-482-P PNP output Sensing range 50 to 500mm (Note 3) 50 to 1,000mm (Note 3) 0.1 to 2m (Note 3) Installation range of 100 to 500mm (Note 3) 100 to 1,000mm (Note 3)
  • Page 29 Adjustable Range Reflective type Type Small spot NPN output CX-441 CX-443 CX-444 CX-442 Model No. (Note 1) PNP output CX-441-P CX-443-P CX-444-P CX-442-P Adjustable range 20 to 50mm (Note 4) 20 to 100mm (Note 4) 40 to 300mm (Note 4) (Note 8) Sensing range With white non-...
  • Page 30 <Basic type> Retroreflective with polarizing filters Thru-beam type (Note 2) Type Light-ON Dark-ON Light-ON Dark-ON Light-ON Dark-ON NPN output CX-411A-C05 CX-411B-C05 CX-412B-C05 CX-412B-C05 CX-491A-C05-Y CX-491B-C05-Y Model No. PNP output CX-411A-P-C05 CX-411B-P-C05 CX-412B-P-C05 CX-412B-P-C05 CX-491A-P-C05-Y CX-491B-P-C05-Y Sensing distance 3m (Note 3) ø50mm more opaque, translucent Sensing object ø12mm or more opaque object...
  • Page 31 Convergent reflective type Type Light-ON Dark-ON Light-ON Dark-ON NPN output CX-461A-C05 CX-461B-C05 CX-462A-C05 CX-462B-C05 Model PNP output CX-461A-P-C05 CX-461B-P-C05 CX-462A-P-C05 CX-462B-P-C05 Sensing distance 10 to 40mm (Conv. point: 23mm) 10 to 70mm (Conv. point: 40mm) Spot diameter 5 × 30mm (Sensing distance: 30mm) 5 ×...
  • Page 32 CX-461□-C5 Correlation between lightness and sens- Correlation between material and sens- ing range ing range Sensing region Dark Lightness Light N1 N2 N8 N9 The sensing region (typical) is represented by oblique lines in the above figure. However, the sensitivity should be set with enough margin because of slight variation in products.
  • Page 33 Notes: 1) The model No. with suffix “-J” is M12 pigtailed type and the model No. with suffix “-Z” is M8 plug-in connector type. However, CX-44□ is not prepared M12 pigtailed type. (Example) M12 pigtailed type: CX-411-J, M8 connector type: CX-411-Z Use the connection cables as shown below.

  • Page 34: Dimensions

    Dimensions Cable type (Standard / Thru-beam type emitter CX-41□) (Unit: mm) 11.2 15.5 ø3.7 cable 2m long 25.4 (Cable diameter ø1.2) 2-M3 × 0.5 thru-hole threads Cable type (Standard / Thru-beam type receiver CX-41□) 11.8 (Unit: mm) 7.85 3.95 11.2 (2.3) 15.5 ø3.7 cable 2m long...
  • Page 35 Cable type (Standard / Retroreflective type CX-49□ / CX-48□, Diffuse reflective type CX-42□) 11.8 (Unit: mm) 7.85 3.95 11.2 (2.3) 15.5 ø3.7 cable 2m long 25.4 (Cable diameter ø1.2) 2-M3 × 0.5 thru-hole threads Cable type (Adjustable range reflective type CX-44□) 12.5 (Unit: mm) 11.2...
  • Page 36 Cable type (Basic / Thru-beam type emitter CX-41□-C05) (Unit: mm) 11.2 15.5 ø3.7 cable 0.5m long 25.4 (Cable diameter ø1.2) 2-M3 × 0.5 thru-hole threads Cable type (Basic / Thru-beam type receiver CX-41□-C05) (Unit: mm) 11.2 15.5 ø3.7 cable 0.5m long 25.4 (Cable diameter ø1.2) 2-M3 ×...
  • Page 37 Cable type (Basic / Convergent reflective type CX-461□-C05, Retroreflective type CX-491□-C05-Y) (Unit: mm) 11.2 2.4 2.8 15.5 ø3.7 cable 0.5m long 25.4 (Cable diameter ø1.2) 2-M3 × 0.5 thru-hole threads Cable type (Basic / Convergent reflective type CX-462□-C05) (Unit: mm) 11.2 2.4 2.8 15.5...
  • Page 38 M12 pigtailed type (Thru-beam type emitter CX-41□-J) (Unit: mm) 11.2 M12 connector 15.5 ø3.7 cable 2m long 25.4 (44) 2-M3 × 0.5 thru-hole threads (300) M12 pigtailed type (Thru-beam type receiver CX-41□-J) 11.8 (Unit: mm) 7.85 3.95 11.2 (2.3) M12 connector 15.5 ø3.7 cable 2m long 25.4...
  • Page 39 M12 pigtailed type (Retroreflective type CX-49□-J / CX-48□-J, Diffuse reflective type CX-42□-J) 11.8 (Unit: mm) 7.85 3.95 11.2 (2.3) M12 connector 15.5 ø3.7 cable 2m long 25.4 (44) 2-M3 × 0.5 thru-hole threads (300) M8 connector type (Thru-beam type emitter CX-41□-Z) (Unit: mm) 11.2 15.5...
  • Page 40 M8 connector type (Thru-beam type receiver CX-41□-Z) 11.8 (Unit: mm) 7.85 3.95 11.2 (2.3) 15.5 25.4 35.5 42.5 M8 connector 2-M3 × 0.5 thru-hole threads ø9.4 M8 connector type (Retroreflective type CX-49□-Z / CX-48□-Z, Diffuse reflective type CX-42□-Z) 11.8 (Unit: mm) 7.85 3.95 11.2...
  • Page 41 M8 connector (Adjustable range reflective type CX-44□-Z) 12.5 (Unit: mm) 11.2 31 25.4 35.5 42.5 M8 connector 2-M3 × 0.5 thru-hole threads ø9.4...
  • Page 42 Refractor RF-230 50.3 (Unit: mm) 49.3 59.3 (30) 2-ø4.6 mounting hole Refractor RF-220 35.3 (Unit: mm) 34.3 42.3 (30) 2-ø3.6 mounting hole Refractor RF-210 33.3 (Unit: mm) 12.8 2-M3 nut mounting holes (for mounting at the back) 2-ø3.4 thru-holes (for mounting at the side) 2-ø3.4 thru-holes 6 deep (for mounting at the back) 2-M3 nut mounting holes...
  • Page 43 Reflective tape RF-11 (Unit: mm) (28) Adhesive 8 (6) tape Reflective tape RF-12 (Unit: mm) (28) 25 (23) Adhesive tape Reflective tape RF-13 (Unit: mm) Adhesive tape...
  • Page 44 Panasonic Industry Co., Ltd. 1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan https://industry.panasonic.com/ Please visit our website for inquiries and about our sales network. Panasonic Industry Co., Ltd. 2024 April, 2024 WUME-CX400-4...
