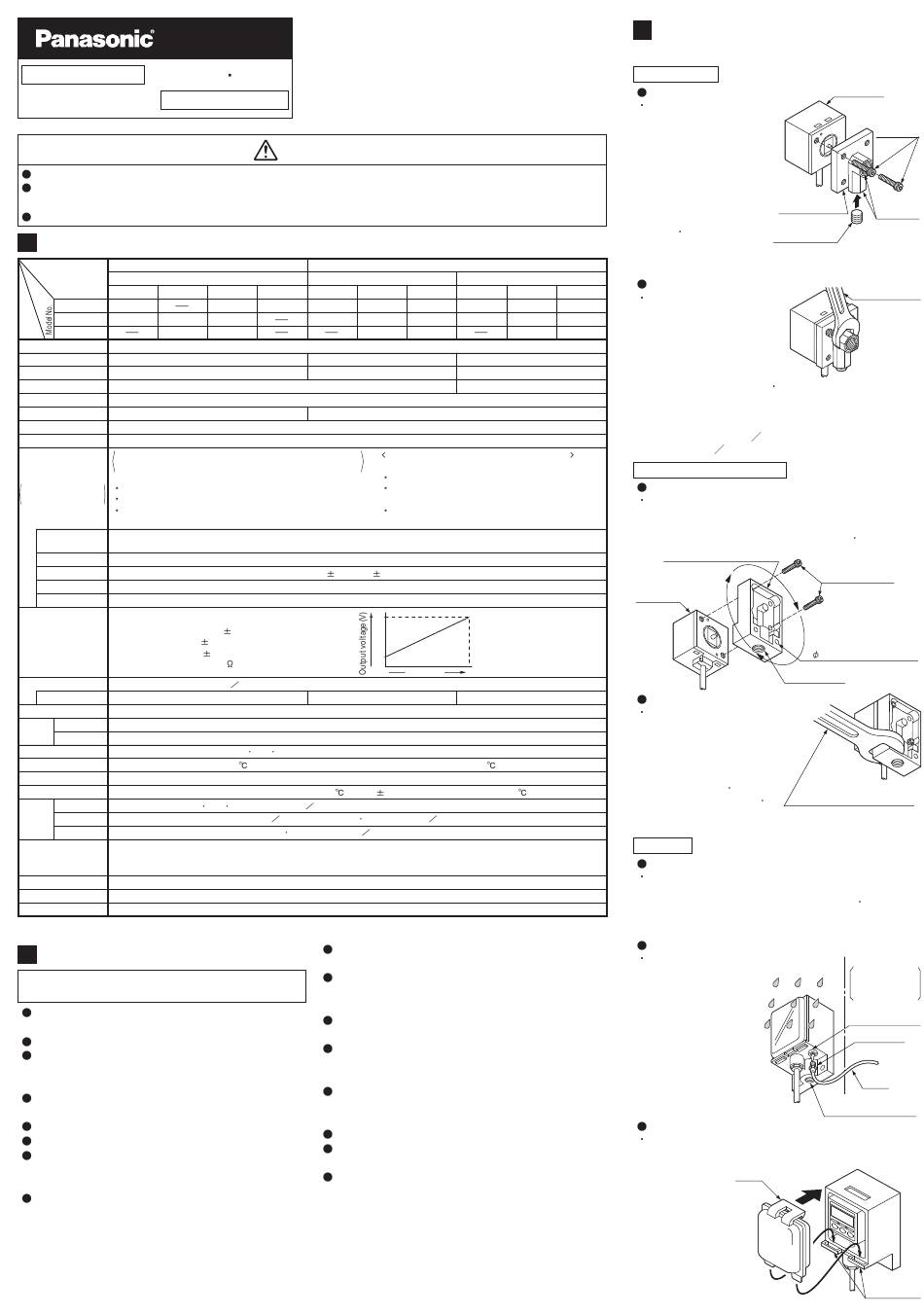

Panasonic DP2 Series Instruction Manual

INSTRUCTION
MANUAL
Pressure Sensor LED Display Digital
DP2 Series
For use outside Japan
MJE-DP2 No.0039-22V
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use products which meet laws and standards, such as
OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
In case this sensor is used within Japan, SI unit must be used since use of pressure units in Japan is restricted to SI units.
1
SPECIFICATIONS
Vacuum pressure
Type -101kPa type
Standard Flat
Asian DP2-20
North American (Note) DP2-20F(-P) DP2-40N
Item European DP2-40E
Type of pressure
Rated pressure range 0 to -101.3kPa
Set pressure range 5.1 to -101.3kPa
Pressure withstandability
Applicable fluid
2
Selectable units kgf/cm , bar, psi, mmHg, inHg
Supply voltage
Current consumption
Asian
North American (Standard NPN output, Flat, IP67 types)
Comparative outputs
NPN open-collector transistor
Comparative Output 1 Maximum sink current: 100mA
Comparative Output 2 Applied voltage: 30V DC or less (between comparative output and 0V)
Residual voltage: 1V or less (at 100mA sink current)
Equipped with 4 types of modes: hysteresis mode, window comparator mode, dual output mode, automatic sensitivity
Output modes
setting mode (selectable by key operation)
Hysteresis
Repeatability
Response time
Short-circuit protection
Output voltage: 1 to 5V (over rated pressure range)
Zero-point: within 1V
Analog voltage
Span: within 4V
output
Linearity: within
Output impedance: 1k
Display
Displayable pressure range 5.1 to -101.3kPa
Analog bar display
Comparative Output 1
Operation
indicators
Comparative Output 2
Protection
Ambient temperature
Ambient humidity
Temperature characteristics Over ambient temperature range -10 to +50 : within
Asian Standard Flat IP67 types: Rc (PT)
Pressure
North American Standard type: NPTF
port
European
Front case: ABS, Rear case: PPS (glass fiber reinforced), Display surface: Acrylic
Material Pressure port attachment: Die-cast zinc alloy [Light weight type: POM (glass fiber reinforced), pressure port is brass (nickel plated)]
Front cover (IP67 type only): Polycarbonate
Cable
Weight Standard type: 95g approx., Flat type: 120g approx., IP67 type: 370g approx., Light weight type: 70g approx.
Accessories Hexagon-socket-head plug for pressure port: 1 No. (Standard type only), Pressure unit label: 1 No.
Note: Model Nos. of North American standard type having the suffix '-P' are PNP output type.
2
CAUTIONS
DP2 series is designed for use with non-corrosive gas.
It cannot be used for liquid or corrosive gas.
This product has been developed / produced for indus-
trial use only.
Use within the rated pressure range.
Do not apply pressure exceeding the pressure with-
standability value. The diaphragm will get damaged
and correct operation shall not be maintained.
Make sure to carry out the wiring in the power supply
off condition.
Take care that wrong wiring will damage the sensor.
Verify that the supply voltage variation is within the rating.
If power is supplied from a commercial switching regu-
lator, ensure that the frame ground (F.G.) terminal of
the power supply is connected to an actual ground.
In case noise generating equipment (switching regula-
tor, inverter motor, etc.) is used in the vicinity of this
sensor, connect the frame ground (F.G.) terminal of
the equipment to an actual ground
Thank you very much for purchasing Panasinic products.
Read this Instruction Manual carefully and thoroughly for
the correct and optimum use of this product. Kindly keep
this manual in a convenient place for quick reference.
WARNING
100kPa type
IP67 Light weight Standard
DP2-60 DP2-80 DP2-21 DP2-41
DP2-60N DP2-21F(-P) DP2-41N
DP2-60E DP2-41E
Gauge pressure
0 to 100.0kPa
-5.0 to 100.0kPa
490kPa
Non-corrosive gas
+10
12 to 24V DC % Ripple P-P 10% or less
-15
50mA or less
0.4V or less (at 16mA sink current)
1 digit (However, variable in hysteresis mode and 2 digits when using psi unit)
Within 0.2% F.S.
2.5ms or less
Incorporated
5% F.S.
5% F.S.
1% F.S.
approx.
1 2
3 digit red LED display (Sampling rate: 4 times/sec. approx.)
-5.0 to 100.0kPa
LED bar display in steps of 10% F.S. approx.
Orange LED (lights up when Comparative Output 1 is ON)
Green LED (lights up when Comparative Output 2 is ON)
Standard Flat Light weight types: IP40 (IEC), IP67 type: IP67 (IEC)
-10 to +50 (No dew condensation or icing allowed), Storage: -10 to +60
35 to 85% RH, Storage: 35 to 85% RH
1 8
female thread, Light weight type: M5 female thread
1 8 female thread, Flat IP67 types: NPT
Flat IP67 types: G (PF) 1 8
2
0.15mm 5-core oil resistant cabtyre cable, 2m long (IP67 type: 5m long)
Do not use during the initial transient time (0.5 sec.)
after the power supply is switched on.
Do not run the wires together with high-voltage lines or
power lines or put them in the same raceway. This can
cause malfunction due to induction.
Avoid use of standard type, flat type and light weight type
of sensor in places where steam and dust is excessive.
Take care that the sensor does not come in contact
with water, oil, grease, or organic solvents, such as,
thinner, etc.
Do not insert wires, etc, into the pressure port. The di-
aphragm will get damaged and correct operation shall
not be maintained.
Do not operate the keys with pointed or sharp objects.
Make sure that stress by forcible bend or pulling is not
applied directly to the sensor cable joint.
Extension up to total 100m is possible with 0.3mm
more, cable. However, in case of using this product as
a CE conformity product, the power wire connected to
this product must be within 10m.
Positive pressure
1MPa type
Flat IP67 Standard Flat
DP2-61 DP2-22 DP2-42
DP2-61N DP2-22F(-P) DP2-42N
DP2-61E DP2-42E
0 to 1.000MPa
-0.050 to 1.000MPa
1.47MPa
2
kgf/cm , bar, psi
North American (Standard PNP output type), European
PNP open-collector transistor
Maximum source current: 100mA
Applied voltage: 30V DC or less
(between comparative output and +V)
Residual voltage: 2V or less (at 100mA source current)
1 digit
5
High pressure
(Positive pressure type)
1
High vacuum
(Vacuum pressure type)
Pressure
-0.050 to 1.000MPa
1% F.S. of detected pressure at 20
1 8 female thread
female thread
3
SETTING OF PRESSURE LEAD
DIRECTION AND PIPING
Standard type
Setting of pressure lead direction
The pressure lead di-
rection can be changed
by dismantling
pressure port attach-
ment and changing the
mounting direction. The
tightening torque of the
hexagon-socket-head
bolt (length 9mm or
less) should
0.29N m or less.
Note: Please make sure to close any unused pressure port with
the hexagon-socket-head plug supplied as accessory.
Piping
IP67
When connecting a hexa-
DP2-62
gon-socket-head plug or
DP2-62N
coupling to the pressure
DP2-62E
port, hold the hexagonal
part of the pressure port
with a 12mm spanner
and make sure that the
tightening torque is 9.8N m or less. Also, in order to
prevent any leakage, wind a sealing tape on the cou-
pling when connecting.
However, sealing tape is not required for North Ameri-
can type using NPTF
1 8
quired if NPT coupling is used.)
Flat type, Light weight type
Setting of pressure lead direction
The pressure lead direction can be changed by dismantling
the pressure port attachment and changing the mounting
direction. The tightening torque of the hexagon-socket-
head bolt (length 9mm or less) should be 0.29N m or less.
Pressure port attachment
Main body
Piping
When connecting a coupling
to the pressure port, hold the
pressure port attachment
with a 16mm (Light weight
type: 10mm) spanner and
make sure that the tighten-
ing torque is 9.8N m or less
(Light weight type: 1.47N m
or less). Also, in order to prevent any leakage, wind a
sealing tape on the coupling when connecting.
IP67 type
Piping for pressure measurement inlet port
When connecting a coupling to the pressure measurement
inlet port, hold the pressure port attachment with a spanner
and make sure that the tightening torque is 9.8N m or less.
Also, in order to prevent any leakage, wind a sealing
tape on the coupling when connecting.
Piping for atmospheric pressure inlet port
If there is a possibility of
water entering into the
sensor enclosure through
the atmospheric pressure
inlet port, connect a tube
to the atmospheric pres-
sure inlet port through a
M5 coupling and extend
the other end of the tube
to a safe place. In this
case, ensure that this
end of the tube does not
get clogged.
Fitting of front cover
Insert the bosses on the front cover into the guide
holes at the bottom of the pressure port attachment,
and push in the
2
, or direction of the
arrow to fit the
hook.
When removing
the front cover,
release the hook
first.
Main body
Hexagon-
socket-
the
head bolts
Pressure port
Pressure
attachment
ports
be
Hexagon-socket-
head plug
12mm spanner
1 8
coupling. (Sealing tape is re-
Hexagon-socket-
head bolts
2- 4.3mm mounting holes
Pressure port
16mm
(light weight type:10mm)
spanner
Safe place,
where there is no
exposure to water
Atmospheric
pressure inlet port
M5 coupling
Tube
Pressure measurement
inlet port
Hook
Guide holes
