HOMCOM W914-36F Instruction Manual page 6

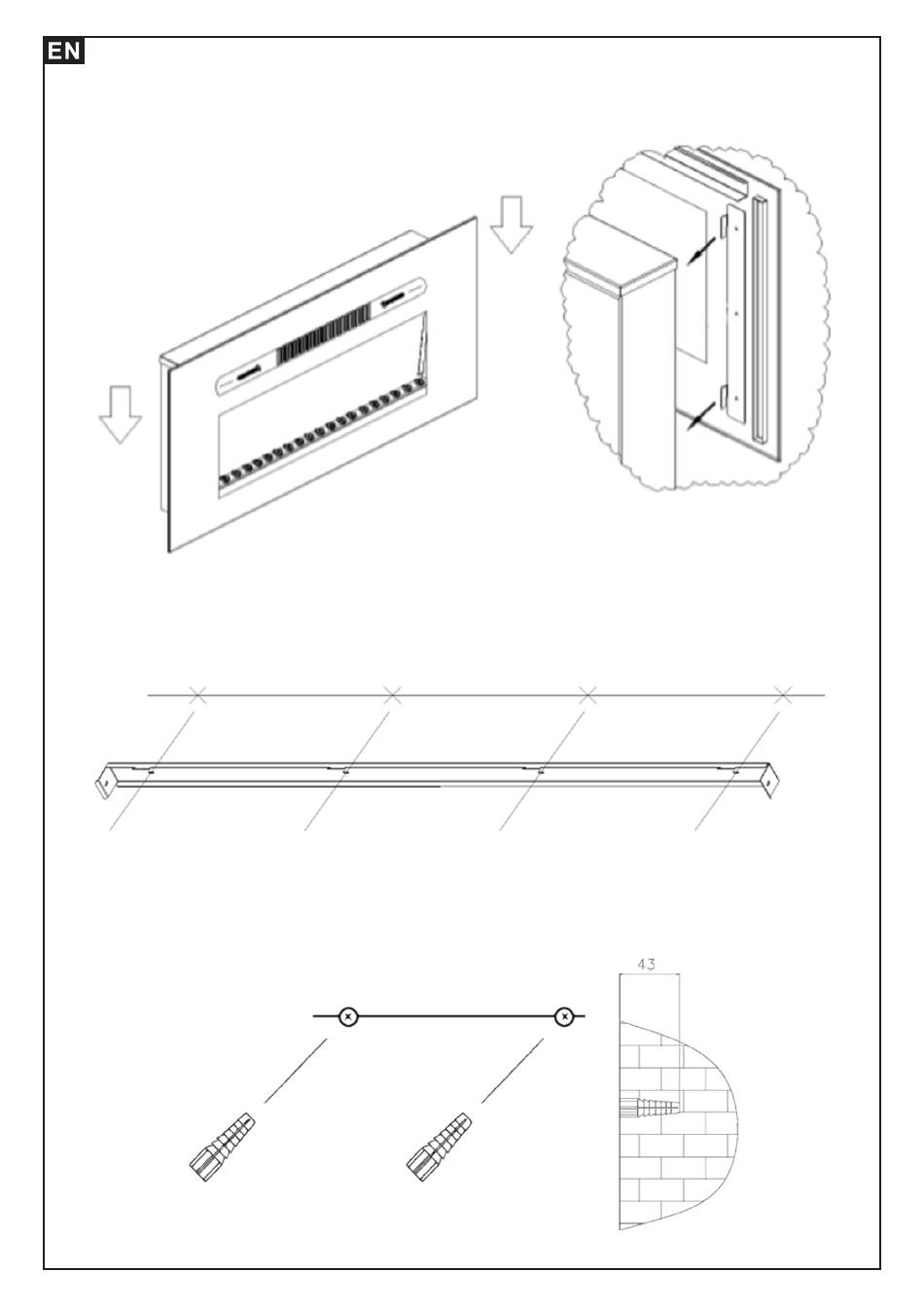

Step 3：Replace the front cover and secure it with two mounting screws (see figure
below).
Fig. C
Installation 2: Wall hanging
Step 1: Choose the wall location for hanging your electric heater. Use a level to
draw a horizontal line and mark four drill holes for the anchor screws.
Note: The drill holes are for mounting the heater – the heater needs to be level
during installation, ensuring proper mounting and alignment.
Fig.A
Step 2: Drill four 8mm (5/16 inch) diameter holes, each 43mm (1.7 inches) deep at
the marked locations. If any hole does not hit a stud, use the included wall anchor.
Insert and firmly tap the wall anchors into place until flush with the wall surface (see
figure below).
Fig.B
5
