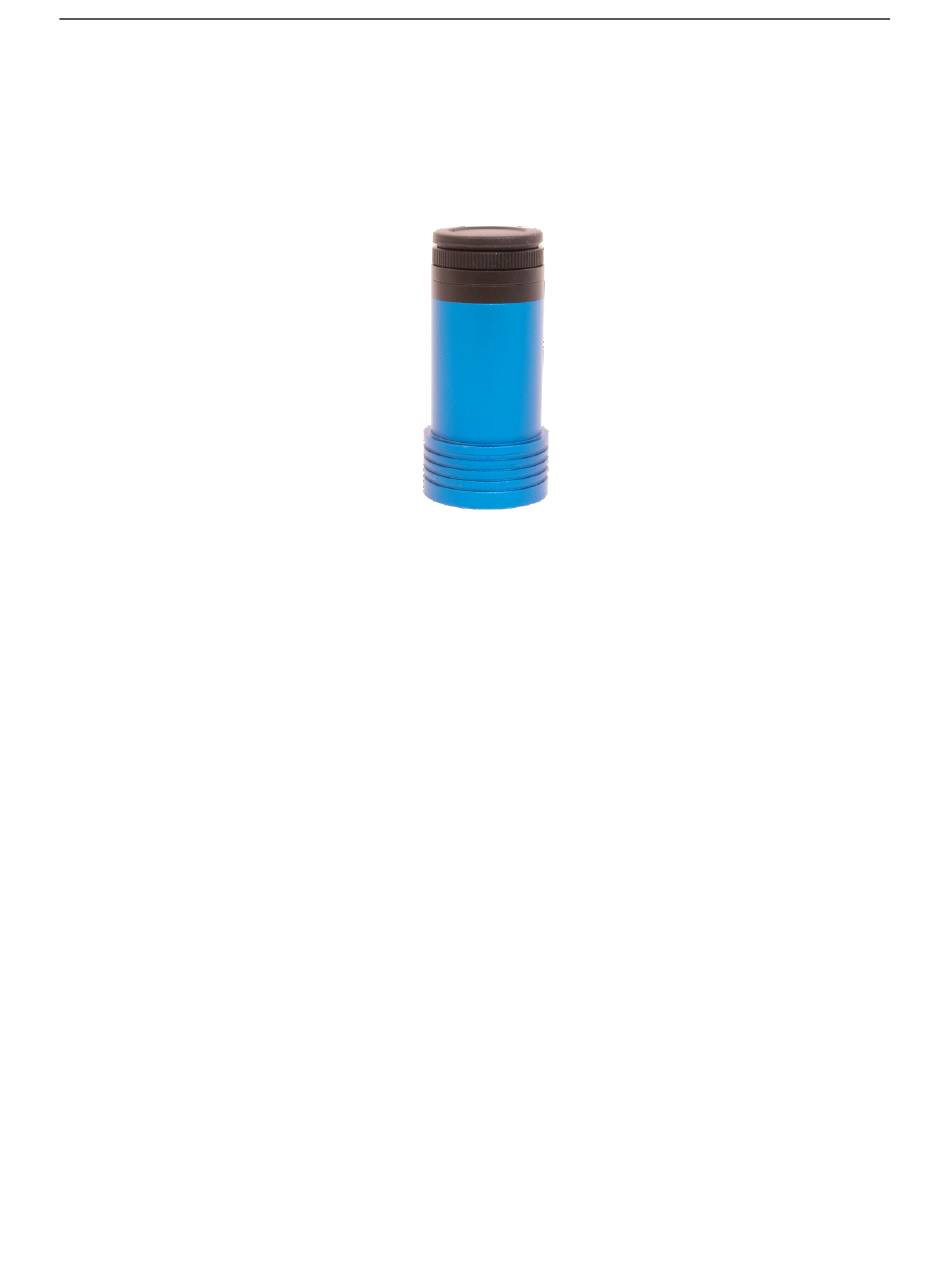

- Page 1 GPM462C Manual GPM462C User Manual Version 1.0 Nov 2023 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek.com.
-
Page 2: Table Of Contents
GPM462C Manual Contents GPM462C User Manual .............................. 1 Description and Features ............................. 1 GPM462C Specifications and Performance ....................... 2 Camera Specifications ............................. 2 Sony IMX462 Sensitivity ..........................2 12bit ADC and ROI ............................3 Frame Buffer ..............................3 Binning ................................3 Conversion Gain Switch .......................... -
Page 3: Gpm462C User Manual
1 Description and Features The GPM462C camera possesses an exceptionally strong capability to capture infrared light (with a high QE value at 500nm). It also has a large full well capacity, high dynamic range, high sensitivity, and low readout noise among other advantages. -
Page 4: Gpm462C Specifications And Performance
2.2 Sony IMX462 Sensitivity The sensor G Sensitivity of GPM462C is 2376mv with 1/30s. Its spectral sensitivity is shown in Figure 1. The sensitivity is measured with a testing standard lens with CM500S (t = 1.0mm) as an IR-cut filter and image at F5.6. -
Page 5: 12Bit Adc And Roi
2.3 12bit ADC and ROI The GPM462C has built in 12bit ADC. It also has 12bit output mode for hardware binning and smaller resolution. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is. -
Page 6: Camera Performance Analysis
GPM462C Manual cable, the device is primed for operation. 2.8 Camera Performance Analysis Camera performance can be evaluated with e-/ADU, Read Noise, Full Well Dynamic Range. e-/ADU: The sensors found in cameras used for vision applications have pixels that convert incoming photons into Analog- electrons. - Page 7 GPM462C Manual Camera setting used for performance analysis is shown below: Full resolution RAW 12-bit mode Figure 2 shows the curves of the camera analysis data in Table 3 Figure 2 e/ADU, Read Noise, Full Well and Dynamic Range for GPM462C The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data...
- Page 8 GPM462C Manual Camera setting used for performance analysis is shown below: Full resolution RAW 12-bit mode Figure 3 shows the curves of the camera analysis data in Table 4 Figure 3 e/ADU, Read Noise, Full Well and Dynamic Range for GPM462C The camera analysis data is shown in Table 4: Table 4 Camera Analysis Data...
-
Page 9: Product Package And Connections
GPM462C Manual 3 Product Package and Connections 3.1 Packing List Figure 4 Packing Information of GPM462C Table 5 GPM462C Packing List Standard Camera Packing List Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box) One GPM series camera with a Type-C-Mount(inner) High-speed USB3.0 A male to C male connectors cable /2.0m... -
Page 10: Camera Dimension And Its Mount
GPM462C Manual 3.2 Camera Dimension and Its Mount Figure 5 Dimension and Mount of GPM462C and 1.25’’ extender series body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with IR-CUT a high-quality to protect the camera sensor and block the IR elimination the reflection light. No moving parts included. - Page 11 GPM462C Manual Table 7 Camera Outline and Interface List Item Specification A built-in ST4 auto guider port for the easy connection of the auto guider. USB2.0 interface, Type C...
-
Page 12: Gpm462C And Its Software
GPM462C Manual 4 GPM462C and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https//touptek-astro.cn, to download the latest ToupSky. The GPM can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software. -
Page 13: Professional Camera Control Panel
GPM462C Manual Figure 8 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually); Up to 5 times gain;... -
Page 14: Powerful Compatibility
DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: x86: XP SP3 or above; CPU supports SSE2 instruction set or above x64: Win7 or above Supported Camera: All ToupTek astronomy cameras 4.3 GPM462C and the 3 Party Software 4.3.1 Support Software Software Version ASCOM... -
Page 15: Phd Guiding
GPM462C Manual http://www.ascom-standards.org/index.htm You can download the ASCOM package from : http://ascom-standards.org/Downloads/Index.htm 4.3.3 PHD Guiding A popular free guide software: http://openphdguiding.org/ ToupTek’s telescope camera support Native/ASCOM/WDM driver to run the video. 4.3.4 Nebulosity A popular cooled camera control/image process software directly supported via ASCOM. -
Page 16: Service
GPM462C Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://ToupTek.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: karas@ToupTek.com.
