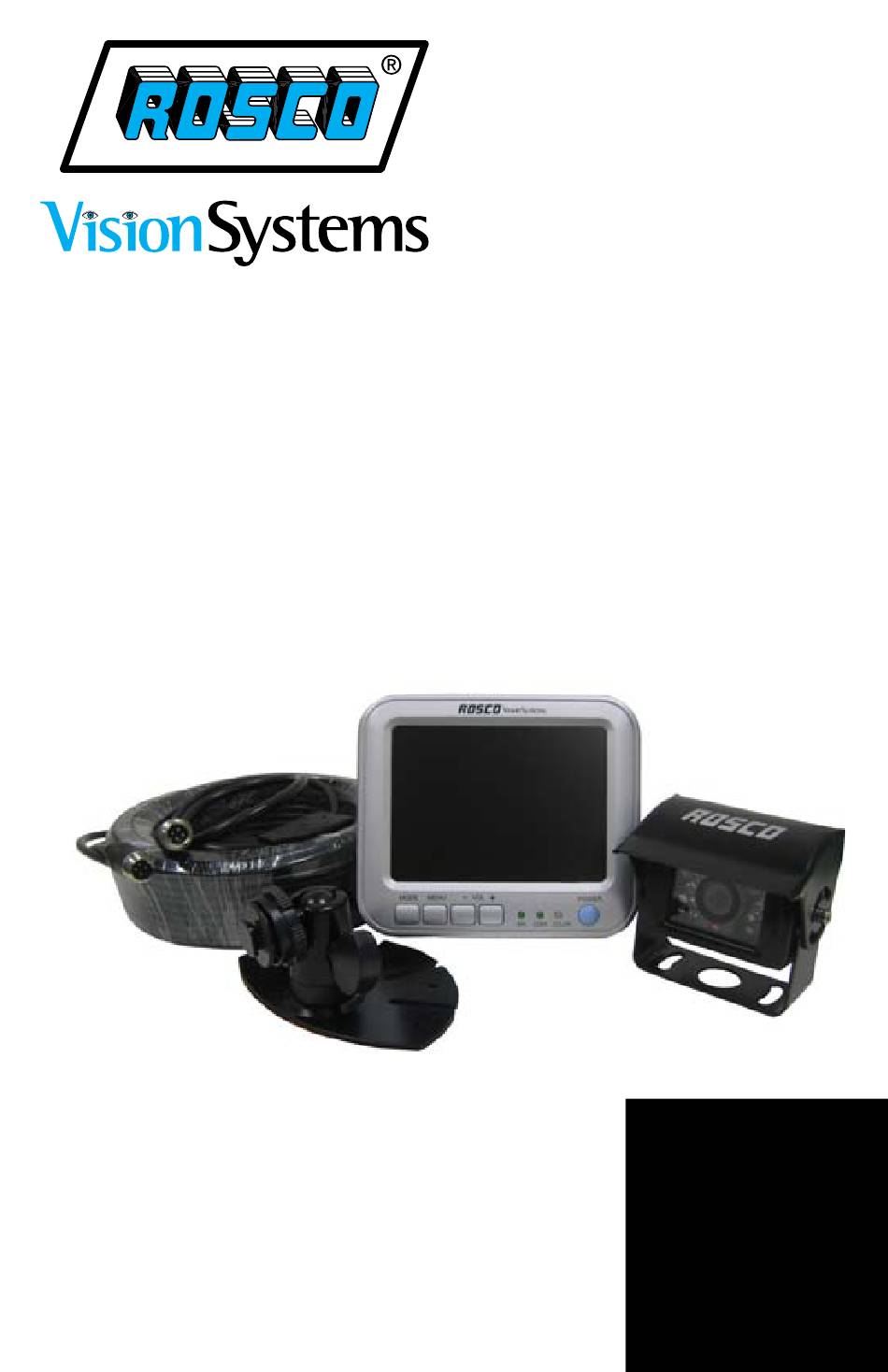

- Page 1 Safe-T-Scope™ 5” Rearview Backup Camera System INSTALLATION/USER’S MANUAL STSK5665 90-21 144th Place Jamaica, NY 11435 1.800.227.2095 www.roscovision.com...
- Page 2 WARNING To prevent electrical shock, DO NOT OPEN THE MONITOR CASE. There are dangerous voltages inside the monitor. There are no user serviceable parts inside. Avoid exposing monitor to water, rain, moisture etc. It is NOT waterproof. Any moisture inside the monitor could cause extensive damage. Do not disassemble the camera.
- Page 3 1. Disconnect the cable connection to monitor before cleaning the unit. 2. Use a mild household detergent and clean the unit with a slightly damp cloth. GENERAL This system is intended for use in automotive applications. Power source should be an automobile storage battery (12V/24V). Make sure all cables are connected properly.
- Page 4 Front view 1. Mini Switches - Turns mirror function on and off for Camera 1 2. Reduces the brightness to prevent glare. Switching the monitor to day mode or night mode. 3. Menu - Switches to setup mode. (See p.8 for options) 4.
- Page 5 COLOR BACKUP CAMERA SYSTEM STSK5665 INTRODUCTION Please read this manual thoroughly. This manual contains instructions to make the installation of the camera and monitor easier. The color backup camera system is a supplement to standard rear-view mirror systems, and will provide additional rear-view vision when installed and maintained properly.
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Note: The following instructions are for typical rear-view application. STSC108 CAMERA Attach camera bracket close to rear marker lights, centered on vehicle (see Fig. 1). Attachment point must be sturdy enough to support camera and bracket. We do not recommend mounting the camera near the lower area of the vehicle (ex: bumper). - Page 7 WIRING CAMERA AND MONITOR Connect the red wire to an ignition switched accessory (ex: radio) power source, and connect the black wire to chassis ground. See wiring diagram for connections (See Fig. 5.) Before drilling, be sure no cable or wire is on the other side. Be sure to drill a 20mm (0.8in) diameter hole only.
-
Page 8: Functions And Operation
FUNCTIONS AND OPERATION MONITOR MINI SWITCHES Both mini switches activate the mirror function for the Camera. POWER If the monitor is switched off, press the “Power” switch, to switch the monitor on. the picture appears. Test if the mirror function is correctly set. The setting should be such that an obstacle behind the vehicle on the right also appears on the right in the monitor. -
Page 9: How To Set Your Monitor To Your Requirements
HOW TO SET YOUR MONITOR TO YOUR REQUIREMENTS NOTE: On-screen menu commands may only be selected when monitor is in Steady-on (green light) mode. When monitor is in standby mode, and activated by trigger sig- nal, on-screen menu commands are disabled. To set monitor to suit your requirements, proceed as follows: ●... -
Page 10: Specifications
SPECIFICATIONS STSC108 CAMERA PICK-UP DEVICE CMOS 1/3 OV7949 TV SYSTEM NTSC PICTURE ELEMENTS 510(H) x 496(V) PAL 626(H) x 586(V) NTSC SENSING AREA 0.232x0.165in (5.9mm x 4.2mm) IMAGE SIZE 1/3 inch SYNCHRONIZATION INTERNAL HORIZONTAL RESOLUTION 380 TV LINES REQUIRED ILLUMINATION 0 LUX MINIMUM/F1.2 SIGNAL TO NOISE RATIO MINIMUM 48dB(AT AGC OFF) - Page 11 Fig. 1 Camera mount in suggested location Mount camera assembly high. (Centered) Camera mounting hole pattern - 10 -...
- Page 12 Fig. 2 Position of camera Vehicles behind truck Street Rear Bumper Typical monitor image of view from properly installed camera - 11 -...
- Page 13 Fig. 3 Optional wind deflector - 12 -...
- Page 14 Fig. 4 Mounting on ceiling Mounting on the dash, console etc. - 13 -...
- Page 15 Fig. 5 POWER INPUT LEAD (RED) To Ignition Switched Accessory GROUND WIRE (BLACK) To metal point of the vehicle REVERSE Trigger 1 (GREEN) Note: For typical installation, this trigger wire should be connected to the vehicle’s “back up lights” circuit, and the rear-view camera should be attached to the connector as shown - 14 -...
- Page 16 90-21 144th Place Jamaica, NY 11435 www.roscovision.com Ph. 1.800.227.2095 Fx. 1.718.297.0323 A Century of Printed in China Automotive Safety Lit. P/N: 04242012...
