- Page 1 SAFE -T-SCOPE ® R E A R V I E W B A C K U P C A M E R A S Y S T E M S STSK7465 INSTALLATION / USER'S MANUAL...
-
Page 2: Table Of Contents
How To Set Your Monitor To Your Requirements ..... . 10 STSK7465 SAFE-T-SCOPE 7" COLOR BACKUP CAMERA SYSTEM ® Rosco Vision Systems introduces a revolutionary new backup camera system for commercial vehicles. The STSK7465 Safe-T-Scope backup camera system utilizes a 7'' inch monitor to display a 16:9 LCD ®... -
Page 3: Components List And Description

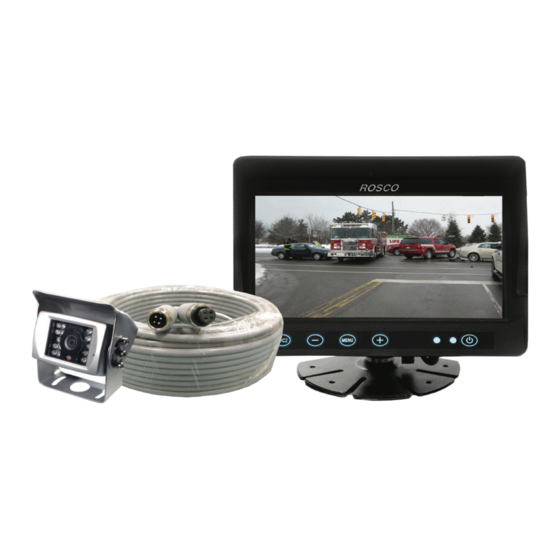

STSK7465 COMPONENT LIST AND DESCRIPTION PART NO. DESCRIPTION STSM254 7" MONITOR KIT INCLUDES: STSK7465/PHAR MONITOR DUCK FOOT SUN SHIELD POWER HARNESS MOUNT 120° REARVIEW CAMERA STSC141 4 PIN 65FT. EXTENSION CABLE STSH341 ADDITIONAL CABLE LENGTHS AVAILABLE STSU1002 U-BRACKET (OPTIONAL) -
Page 4: Camera Installation
Safe-T-Scope ® Backup Camera System CAMERA INSTALLATION fig 1 • Select a high and centered location at the rear of the vehicle to mount the STSC141 camera IMPORTANT Camera mount in suggested location • When mounting your new backup camera, it is highly recommended that the image transmitted by the camera show the rear bumper and area behind... -
Page 5: Monitor Installation
STSK7465 MONITOR INSTALLATION • Connect the red wire to an ignition switched accessory (ex. radio) power source, and connect the black wire to chassis ground. See wiring diagram for connections. • Attach monitor inside vehicle in a location convenient to the driver ( ex. center of dash, overhead, or flush-mounted in dash). -
Page 6: Wiring Diagram
Safe-T-Scope ® Backup Camera System STSK7465 Wiring Diagram STSM254 13 Pin Connector Green wire is the reverse trigger wire, connect to vehicle backup light circuit. Monitor will turn on when the vehicle shifts into reverse Connect the red wire 12Vdc to an ignition switched accessory (ex. - Page 7 STSK7465 STSK7465/PHAR Power Distribution Harness REVERSE TRIGGER Filter/Fuse POWER 12 VDC GROUND STSH341(65FT) Camera Cable...
-
Page 8: Functions
• 'MENU' BUTTON (See p. 9) Press the MENU bottom to open on screen options. Press Menu to cycle through choices and +/- to change your settings • C1/C2 (NOT APPLICABLE FOR STSK7465) Switched from Camera 1 to Camera 2 and vice-versa... -
Page 9: System Technical Descriptions
STSK7465 SYSTEM TECHNICAL SPECIFICATIONS: STSM254: (Includes STSK7465/PHAR, BAS4515, STSDF1000) Screen size (diagonal): 7" Maximum No. of cameras: 1 Inputs/Channels Screen ratio: 16:9 Contrast ratio: 500:1 Video system: NTSC Voltage input: 12 ~32 Vdc Operating temperature °F (C°): 5° to 149° (-15° to +65°) Storage temperature: -4°... -
Page 10: How To Set Your Monitor To Your Requirements
Safe-T-Scope ® Backup Camera System HOW TO SET UP YOUR SYSTEM REQUIREMENTS NOTE • No changes can be made to the monitor while the vehicle is in reverse. Never change settings while the vehicle is in operation. • Press the MENU button once to set desired brightness. Press +/- to increase/reduce the brightness. Wait 3 seconds to exit setup mode. - Page 11 STSK7465 NOTES...
- Page 12 A CENTURY OF AUTOMOTIVE VISION SAFETY 90-21 144th Place, Jamaica, New York 11435 TEL (800) 227-2095 • FAX (718) 297-0323 info@roscomirrors.com www.roscomirrors.com www.roscovision.com Lit. P/N: M031815...
