A.I. GUARD PER ERPICI ROTANTI

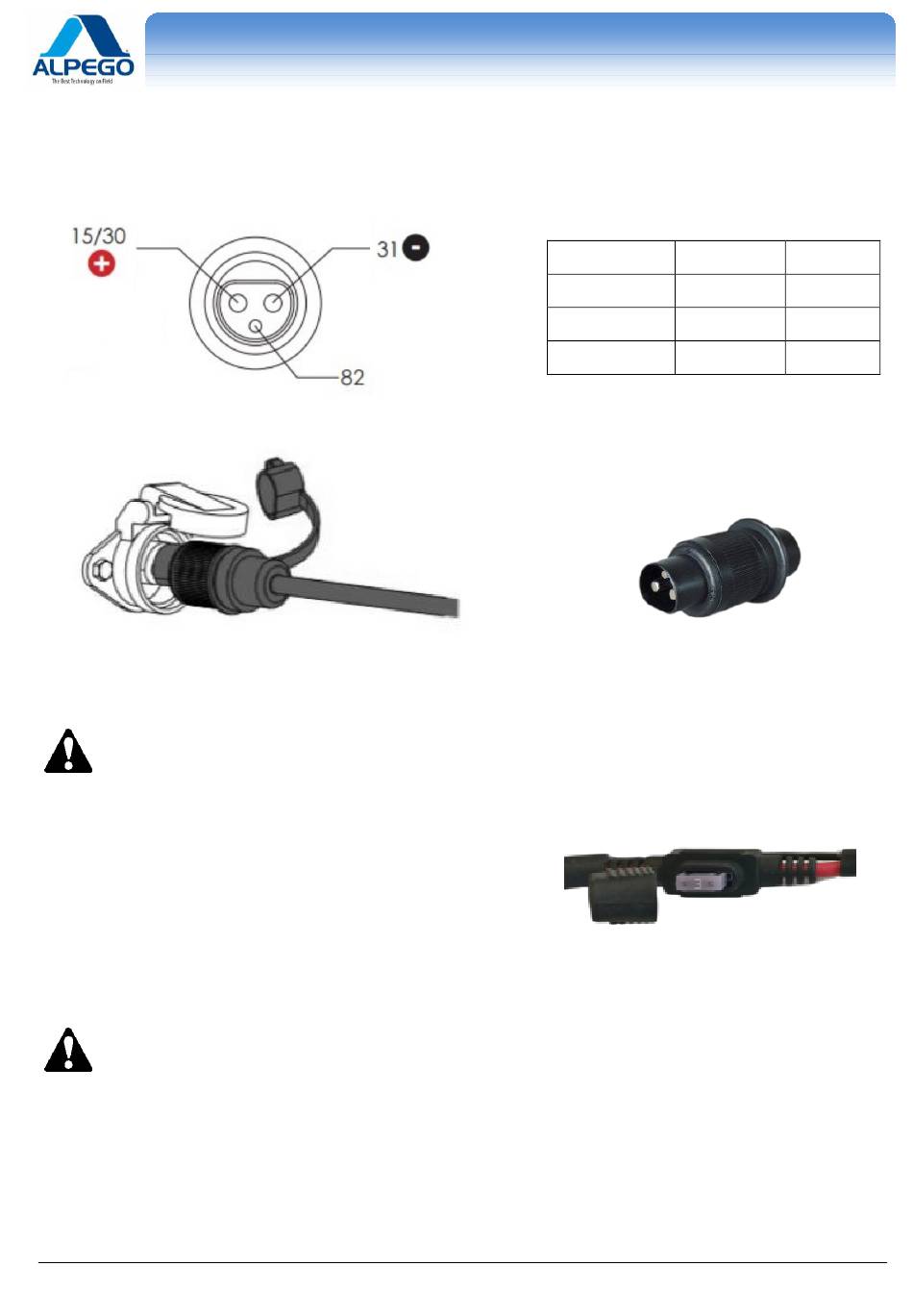

2.2. POWER SUPPLY
The power is supplied via the tractor's 3-pole 12V socket
DO NOT modify the internal connection of the socket, a reverse voltage can
cause damage to the system and the Command monitor
The fuse in the power cable serves to protect the system and
the devices connected from overloads
In case of failure, replace the fuse with the same type of
fuse.
DO NOT install fuses with a capacity higher than 3A, this could cause serious damage to
the system.
Copyright ©2009 della Alpego s.p.a. ® -Tutti i diritti sono riservati. È espressamente vietata la ristampa o l'uso non autorizzato per iscritto da parte di Alpego s.p.a.
Terminal Wire color
15/30 Brown
31 Blue
82 -
ELECTRICAL SYSTEM
Cod. Q00A00172
Function
+12 V
Negative
-
- 3
