A.I. GUARD PER ERPICI ROTANTI

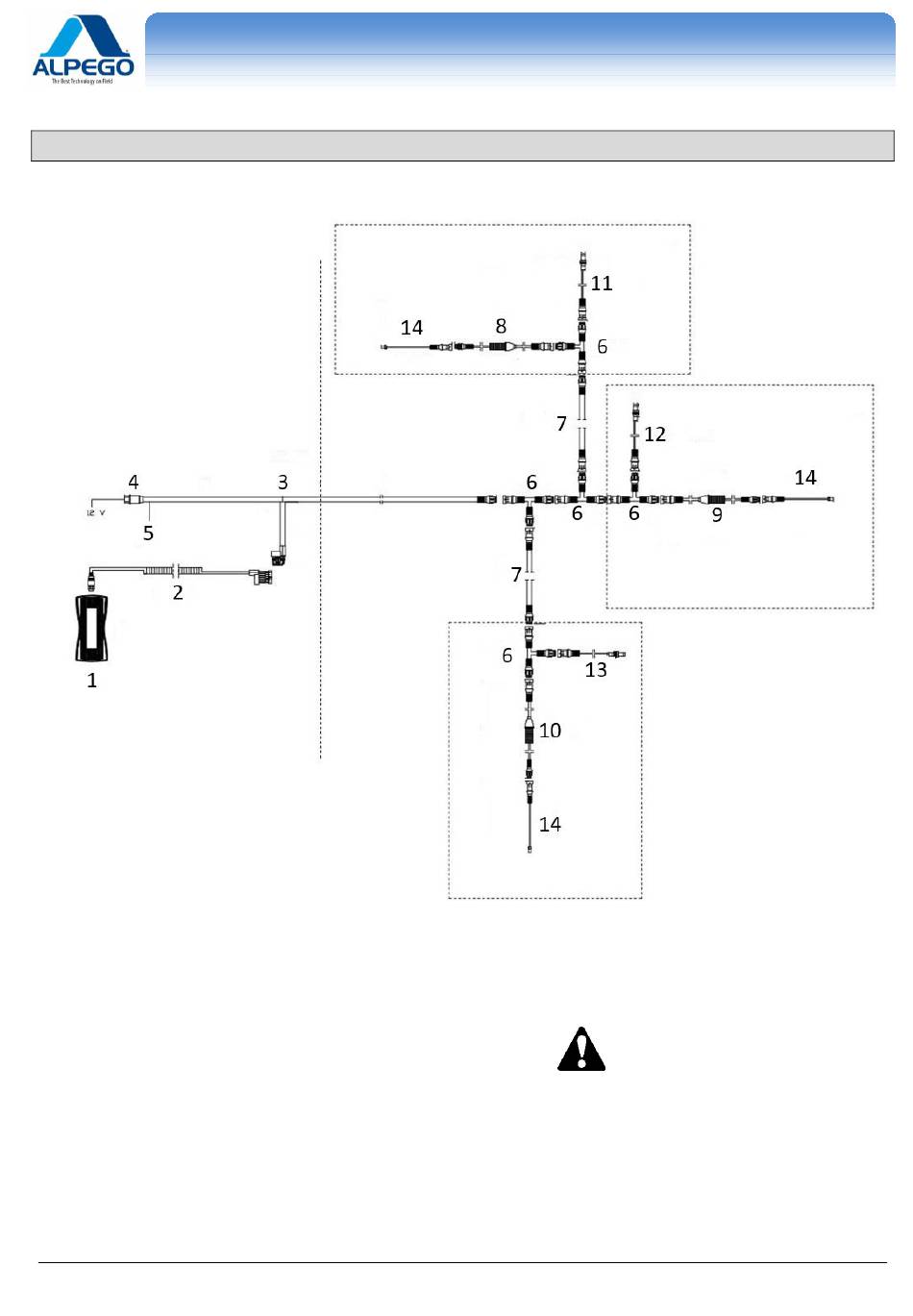

2.1. DESCRIPTION
1. Alpego Command Monitor
2. Spiral cable Command
3. Power cable
4. 3-pole power socket 12V DC
5. 3A fuse
6. Can bus splitter
7. Can Bus extension cable of 2 meters
8. Digitizer for right temperature sensor TD
9. Digitizer for central temperature sensor TC
10. Digitizer for left temperature sensor TS
11. Right cardan RPM sensor CD
12. Central cardan RPM sensor CC
13. Left cardan RPM sensor CS
14. temperature probe
Copyright ©2009 della Alpego s.p.a. ® -Tutti i diritti sono riservati. È espressamente vietata la ristampa o l'uso non autorizzato per iscritto da parte di Alpego s.p.a.
2. ELECTRICAL SYSTEM
Cod. Q00A00172
RIGHT
GROUP
CENTRAL
GROUP
LEFT
GROUP
sensors and digitizers, even if they
look the same, can NOT be
interchanged, it would cause
malfunctions
ELECTRICAL SYSTEM
