EINHELL AXXIO 18/125 Q Manual

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 14)

1.
   Read the operating instructions to reduce the risk of injury.
2.
   Wear ear-muffs. The impact of noise can cause damage to hearing.
3.
   Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
4.
   Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
5. This safety guard is designed for sanding/grinding.
6. T his safety guard is designed for cutting and grinding/sanding.
7. Always operate with two hands.

Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

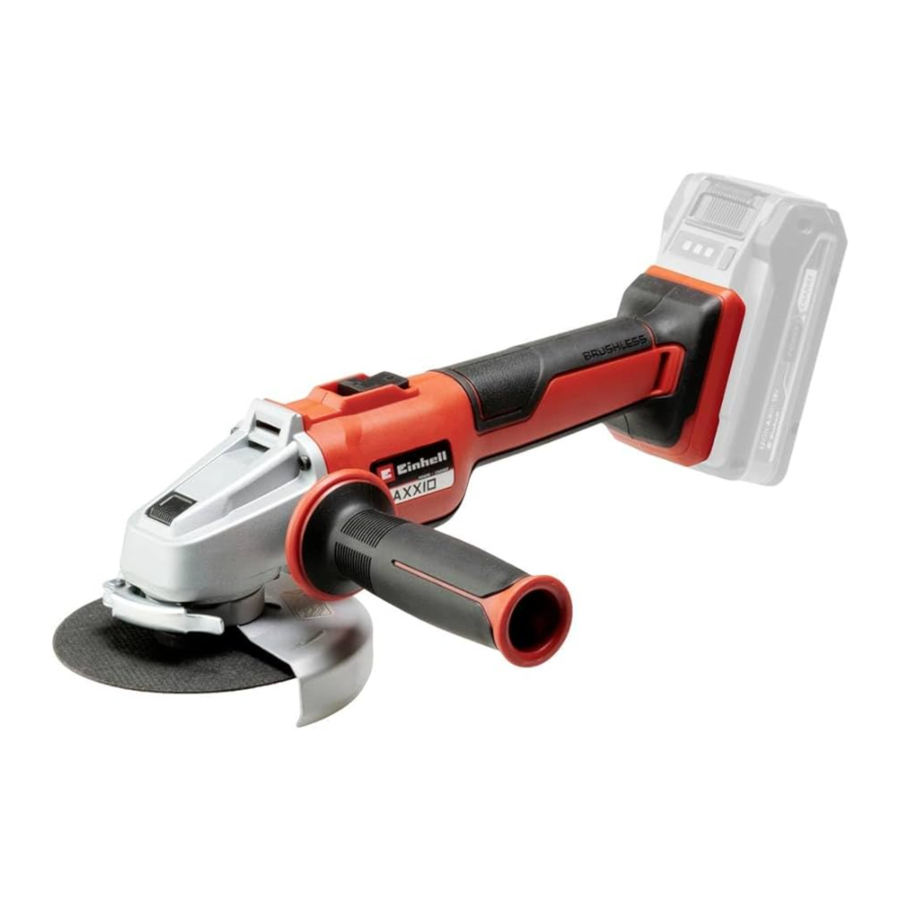

Layout and items supplied

Layout
(Fig. 1)

1. Spindle lock
2. ON/OFF switch
3. Additional handle
4. Guard
5. Quick-clamp nut
6. Removable dust guard
7. Cutting wheel guard

Items supplied
Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Angle grinder
• Additional handle
• Quick-clamp nut
• Original operating instructions
• Safety instructions

Proper use

The angle grinder is designed for grinding metal and stone when using the appropriate grinding wheel and guard.

To cut metal and stone the grinder/sander may only be used when the guard (available as an accessory) is mounted.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Technical data

Motor power supply: 18 V DC

Rated speed: 8500 min^-1

Max. wheel diameter: 125 mm

Grinding wheels: 125 x 22 mm

Cutting wheel: 125 x 22 mm

Mounting spindle thread: M14

Weight: 1.6 kg

Sound and vibration
Sound and vibration values were measured in accordance with EN 62841.

L_pA sound pressure level 86 dB(A)

K_pA uncertainty 3 dB

L_WA sound power level 94 dB(A)

K_WA uncertainty 3 dB

Wear ear-muff s.
The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 62841.

Handle
Vibration emission value a_hAG = 9.5 m/s²
K uncertainty = 1.5 m/s²

Additional handle
Vibration emission value a_hAG = 7.5 m/s²
K uncertainty = 1.5 m/s²

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

The vibration and noise emission levels may vary from the level specifi ed during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.

Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Before starting the equipment

Always remove the battery pack before making adjustments to the equipment.

Fitting the additional handle

(Fig. 2)

• The angle grinder must not be used without the additional handle (3).
• The additional handle can be secured in any of two positions (A, B).

Replacing and adjusting the guard

(Fig. 3)

Replacing:

• Remove the quick-clamp nut (5) and the clamping flange underneath.
• Open the clamp lever (f) on the guard (4).
• Turn the guard (4) through 180° in clockwise direction so that the guard points upwards.
• Remove the guard (4).

To mount, proceed in the reverse order.

Adjusting:

• Adjust the guard (4) to protect your hands so that the material being ground is directed away from your body.
• The position of the guard (4) can be adjusted to any specific working conditions. Undo the clamp handle (f) and turn the cover (4) into the required position.
• Ensure that the guard (4) correctly covers the gear wheel casing.
• Secure the clamp handle (f) again.
• Ensure that the guard (4) is secure.

Make sure that the guard is perfectly secure.

Never use the angle grinder without the guard.

Fitting/removing the cutting wheel guard

(Fig. 4-6/Item 7)

• The angle grinder is equipped with a removable cutting wheel guard (7).
• The guard (4) does not need to be replaced in order for you to fit the cutting wheel guard.
• Beginning from the end with the lug (Fig. 4/ Item f), push the removable cutting wheel guard (7) onto the guard.
• Make sure when doing so that the guard (4) lies between the guide ribs (g) of the removable cutting wheel guard (Fig. 4).
• Then push the removable cutting wheel guard counter-clockwise onto the guard until you hear this guard latch in place (Fig. 5a-5c).
• To take off the removable cutting wheel guard (7) again, press the lug (f) slightly away from the guard (4) as shown in Fig. 6 until you can rotate the removable cutting wheel guard (7). Now turn the cutting wheel guard clockwise and off the guard (4).

Operation

Charging the Li battery pack

(Fig. 1a-1b)

1. Remove the battery pack (a) from the handle, pressing the pushlock button (b) downwards to do so.
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (c) into the mains socket outlet. The green LED will then begin to flash.
3. Push the battery pack onto the battery charger.

In section Charger indicator you will find a table with an explanation of the LED indicator on the charger.

If the battery pack fails to charge, check for the following:

• voltage at the power socket
• whether there is good contact at the charging contacts of the charging unit If the battery pack still fails to charge, send
• the charger and charging adapter
• and the battery pack to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fires.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

Switching on

(Fig. 7)

To start the equipment, push the On/Off switch (2) forwards and press it down. To switch off the angle grinder, depress the On/Off switch (2) at the back. The On/Off switch (2) will jump back into its starting position.

The equipment switches to "Standby Mode" after 10 minutes of non-use.

To reactivate: Switch on the equipment twice or press the battery capacity indicator.

"Standby Mode" protects the battery.

Following a stoppage (due to overloading), the cordless equipment starts up again automatically.

Wait until the machine has reached its top speed. You can then position the angle grinder on the workpiece and machine it.

Battery capacity indicator

(Fig. 1c/Item d)

Press the battery capacity indicator switch (e). The battery capacity indicator (d) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:
The battery is fully charged.

2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.

1 LED blinks:
The battery is empty, recharge the battery.

All LEDs blink:
The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

Changing the grinding wheels

(Fig. 8)

• The wheel is easy to change using the spindle lock and quick-clamp nut.
• Press the spindle lock and allow the grinding wheel to engage.
• Undo the quick-clamp nut by turning it counterclockwise by hand (see Fig. 5).
• Change the grinding wheel or cutting wheel and tighten the quick-clamp nut by turning it clockwise by hand.

For safety reasons the quick-clamp nut (5) may only be used for this angle grinder.

Notice!
Only ever press the spindle lock when the motor and grinding spindle are at a standstill! You must keep the spindle lock pressed while you change the wheel!

Test run for new grinding Wheels

Allow the right-angle grinder to run in idle for at least 1 minute with the grinding or cutting wheel fitted in place. Vibrating wheels are to be replaced immediately.

Grinding Wheels

• Never use a grinding or cutting wheel bigger than the specified diameter.
• Before using a grinding or cutting wheel, check its rated speed.
• The maximum speed of the grinding or cutting wheel used must be higher than the idle speed of the angle grinder.
• Use only grinding and cutting wheels that are approved for a minimum speed of 8,500 rpm and a peripheral speed of 52 m/sec.
• Check the direction of rotation when you use diamond cutting wheels. The directional arrow on the diamond cutting wheel must point in the direction in which the tool rotates.

Operating Modes

Rough grinding

(Fig. 9)

Use the safety device for sanding/ grinding
For the best rough grinding results, hold the grinding wheel at an angle of between 30° and 40° to the workpiece surface and guide back and forth over the workpiece in steady movements.

Cutting

(Fig. 10)

Use the safety device for abrasive cutting (Available as an accessory, see Ordering replacement parts). When you use the right-angle grinder for cutting purposes, avoid tilting it in the cutting plane. The cutting wheel must have a clean cutting edge. A diamond cutting wheel is best used to cut hard stone.

Motor

It is vital for the motor to be well ventilated during operation. Be sure, therefore, to keep the ventilation holes clean at all times.

Take special care that the grinding/sanding wheels are properly stored and transported. Ensure that the grinding/sanding wheels are never exposed to shock, jolts or sharp edges (for example during transport or storage in a toolbox). This could cause damage (such as cracks) to the grinding/sanding wheels and place the user in serious danger.

It is prohibited to use the machine on asbestos materials!

Never use a cutting wheel for rough grinding.

Note:
To increase the power and running time of the cordless equipment, we recommend using our 4.0 Ah Power-X-Change. (Art. No.: 45.113.96)

To increase the cutting performance and running time of the cordless equipment, we recommend that you use a cutting wheel with a thickness of 1 mm.

Removable dust guard

(Fig. 11-13/Item 6)


The cordless angle grinder is equipped with a removable dust guard in order to protect the motor from too high a dust load. For cleaning purposes, take off the removable dust guard (6) as shown in Fig. 11, clean it with compressed air, and refi t it on the tool as shown in Fig. 13.

Cleaning, maintenance and ordering of spare parts

Always pull out the battery pack before starting any cleaning work.

Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Maintenance
There are no parts inside the equipment which require additional maintenance.

Ordering replacement parts:
Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

Charger indicator

Service information

We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction.
