EINHELL TC-MG 135 E, 44.191.69 Manual

Safety regulations

Read the operating instructions to reduce the risk of inquiry


Wear ear-muffs. The impact of noise can cause damage to hearing.


Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!


Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

The corresponding safety information can be found in the enclosed booklet.

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.

Layout and items supplied

Layout

1. On/Off switch
2. Speed controller
3. Clamp nut
4. Locking knob for collet chuck
5. Cover
6. Handle

Items supplied

(Fig. 1-2)
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

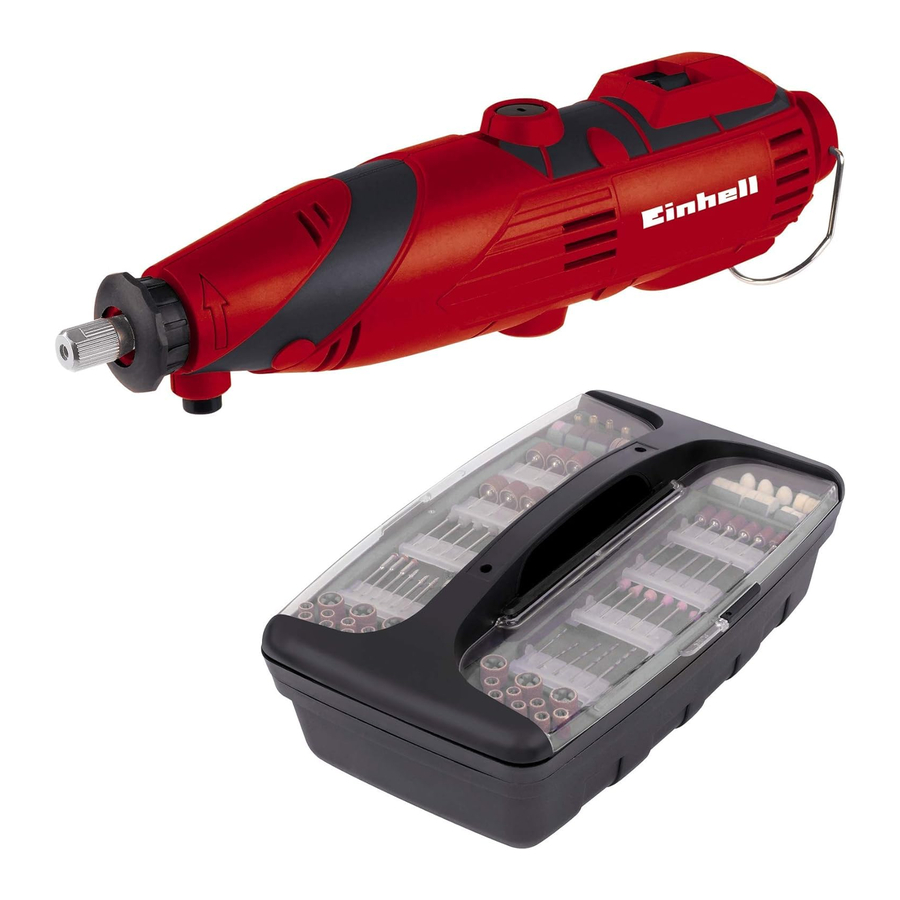

• Grinding and engraving tool
• Case (1)
• Grinding wheels (2)
• Grinding belts (3)
• Clamping spindles (4)
• Cutters (5)
• Felt polishers (10) / arbors (6)
• Drill bits (7)
• Locking pin (8)
• Grinding pins (9)
• Sleeves (11)
• Cutting-off wheels (12)
• Flexible shaft (13)
• Table clamp (14)
• Telescopic stand rod (15)
• Grinding heads (16)
• Pot brushes (17)
• Abrasive paper (18)
• Original operating instructions
• Safety information

Proper use

The Grinding and Engraving Set is designed to perform drilling, grinding, deburring, polishing, engraving, cutting, milling and cleaning jobs on wood, metal and plastic in model-making, workshop and household applications. Use the tool and accessories only for those applications described.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Technical data

Operating voltage of the drive unit: ..230 V~ 50 Hz
Power input: 135 W
Idle speed n₀: 10000-35000 min^-1
Clamping range: 0,5-3,2 mm
Attachments Ø max.: 55 mm
Attachment length max.: 22 mm
Spindle length max.: 40 mm
Protection class: II /
Weight: 0.61 kg

Sound and vibration
Sound and vibration values were measured in accordance with EN 60745.
L_pA sound pressure level 68,5 dB(A)
K_pA uncertainty 3 dB
L_WA sound power level 79,5 dB(A)
K_WA uncertainty 3 dB

Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 60745.
Vibration emission value a_h ≤ 2.5 m/s² K uncertainty = 1.5 m/s²
The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.
The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Always pull the power plug before making adjustments to the equipment.

Taking out the accessories

To be able to take out the accessories you must pull the accessory mount (a) upwards.

Inserting the various tools

Before inserting a tool (and before each tool change) switch of the drive unit and pull the power plug.

1. Press the locking knob (4) and turn the collet chuck until the bolt locks into place.
2. Remove the clamp nut (3), insert the matching clamping sleeve (11) and refit the clamp nut.
3. Insert the required tool into the sleeve and tighten the collet chuck nut (3).
   The projection is not allowed to exceed 20 mm!

Installing the flexible shaft

(Figs. 3/5a)

• Unscrew the cover (5) from the front of the equipment.
• Undo the collet chuck nut (3).
• Insert the internal schaft (a) of the flexible shaft into the collet chuck (3).
• Tighten the collet chuck nut (3).
• Now tighten the ring (b) on the multi-tool.

Inserting the various tools in the flexible shaft (Fig. 5b)

1. Press the locking pin (8) into the hole in the flexible shaft (13) and turn the shaft until the pin latches in place.
2. Remove the clamp nut (3), insert the matching clamping sleeve (11) and refit the clamp nut.
3. Insert the required tool into the clamping sleeve as far as the stop and screw the collet chuck nut tight.

Using the stand

• Fit the stand to a workbench
• The stand is adjustable in height and can be adjusted as shown in Fig. 6.
• The multi-tool can now be attached to the stand.

Using the tool for the first time

• Make sure that the drive unit is switched off.
• Check that the mains voltage specified on the rating plate of the power supply unit is the same as your mains supply. Only then should you insert the plug of the power supply unit into a socket-outlet.

ON/OFF switch

(Fig. 3)
Turn on the equipment by setting the On/Off switch (1) to "I".
Turn off the equipment by setting the On/Off switch (1) to "0".

Speed selector

(Fig. 3)
The required speed can be set with the speed control (2).
The correct speed depends on the tool used and the type of material being processed.

Directions for use

• With small milling cutters / grinding pins: Use a high speed.
• With large milling cutters / grinding pins: Use a low speed.

Tips

• Exert only moderate pressure on the workpiece and allow it to be processed at uniform speed.
• You will not finish your work sooner by exerting heavy pressure. On the contrary, heavy pressure will cause the drive unit to slow down or stop and will overload the motor.
• For your own safety, use a vise or screw clamp to secure small workpieces.
• Precision work/engraving: Hold the drive unit like a pen (single-handed).
• Rough work: Hold the drive unit like the handle of a hammer (two-handed).

Accessories

(Fig. 7 / Fig. 1; Item 3/18)

1. Abrasive paper
2. Grinding belt (small)
3. Grinding belt (large)

(Fig. 8 / Fig. 1; Item 12)

1. Cutting wheel (fine)
2. Cutting wheel (coarse)

(Fig. 9 / Fig. 1; Item 5)

1. Cutter (cylindrical, large)
2. Cutter (cylindrical, small)
3. Cutter (pointed)
4. Cutter (ball-shaped)

(Fig. 10 / Fig. 1; Item 2/10)

1. Grinding wheel
2. Felt polishing wheel

(Fig. 11 / Fig. 1; Item 9)
1-6 Grinding pins

(Fig. 12 / Fig. 1; Item 4/12/ 16/17)

1. Diamond cutting wheel
2. Clamping spindle for diamond cutting wheel
3. Grinding head for grinding belts (small)
4. Grinding head for grinding belts (large)
5. Pot brushes

(Fig. 13a/b / Fig. 1; Item 5/11)

1. Clamping sleeve 0.6-3.2 mm
2. Cutter

(Fig. 14 / Fig. 1; Item 2/4/ 6/10)

1. Arbor for felt wheels
2. Arbor for grinding wheels
3. Felt polishing wheel
4. Felt polishing wheel
5. Grinding wheel

(Fig. 15 / Fig. 1; Item 7)

1-6 Drill bits (1-3 mm)

Description of the accessories

Cutting disks:
For cutting metal and plastic.
Insert the cutting wheel onto the clamping spindle.

Grinding pins:
In various grinding head shapes.
For grinding and deburring metal and plastic.

HSS bits:
For drilling work on non-ferrous metals, wood, plastic and printed circuit-boards.

Grinding wheels:
For cleaning and sharpening blades and tools. Insert the grinding wheel onto the clamping spindle.

Polishing wheels / polishing pins:
For polishing brass, tin, copper, etc. Also for use with polishing pastes.

Pot brushes:
For cleaning stone, metal, aluminium, etc.

Grinding belts:
For grinding word and plastic.

Diamond cutting wheel:
For cutting, separating, grinding and deburring materials, such as concrete, stone, china, ceramic, etc.

Sleeves:
Various sizes for mounting diff erent accessory tools.

Cutters:
For cutting plastic, wood and soft metal

Collet chuck key
For mounting accessory tools

Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

Carbon brushes
In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

The carbon brushes should not be rep laced by anyone but a qualified electrician.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Ordering replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

* Not necessarily included in the scope of delivery!

In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction.
