Quest Engineering 225 Installation Manual

QUEST 225
INTAKE DUCT INSTALLATION GUIDE
AIR CAN BE DISTRIBUTED FROM THE UNIT IN TWO WAYS:
1
USE RECTANGUL AR DUCT.
a. REMOVE THE FILTER FROM THE UNIT aND SET
aSIDE. THIS WILL BE RE-USED aFTER THE DUCTING IS
INSTaLLED.
B. aTTaCH INTaKE DUCT PLENUM (ITEM 3) TO QUEST 225
aIR INTaKE USING SIX #10-24 SHEET METaL SCREWS
(FOUR FROM DUCT KIT, TWO EXISTING FROM THE RIGHT
SIDE OF UNIT).
C. LOOSEN THE TWO SCREWS ON THE RIGHT SIDE OF THE
UNIT (DO NOT REMOVE) TO FIT THROUGH THE KEYHOLE
SLOT THEN TIGHTEN DOWN. REMEMBER TO RETaIN
THESE SCREWS FOR FUTURE RE-USE.
D. OPEN aND REMOVE FILTER DOOR (ITEM 3).
SLIDE FILTER INTO INTaKE DUCT PLENUM (ITEM 3).
E.
F. INSTaLL FILTER DOOR (ITEM 3) OVER FILTER OPENING
IN INTaKE DUCT PLENUM (ITEM 3).
G. aTTaCH RECTaNGULaR DUCTING (NOT INCLUDED)
DIRECTLY TO INTaKE DUCT PLENUM (ITEM 3).
WHEN DUCTING THE UNIT, A DEDICATED DUCT SYSTEM IS RECOMMENDED
FOR EACH UNIT. RECOMMENDED 25' MAX RUN OF DUCTING.
1.877.420.1330
QUESTCLIMATE.COM
2
1
3
USE 1-14" ROUND DUCT.
a. REMOVE THE FILTER FROM THE UNIT aND SET aSIDE.
THIS WILL BE RE-USED aFTER THE DUCTING IS INSTaLLED.
aTTaCH INTaKE DUCT PLENUM (ITEM 3) TO QUEST 225 aIR
B.
INTaKE USING SIX #10-24 SHEET METaL SCREWS (FOUR
FROM DUCT KIT, TWO EXISTING FROM THE RIGHT SIDE OF
UNIT).
C. LOOSEN THE TWO SCREWS ON THE RIGHT SIDE OF
THE UNIT (DO NOT REMOVE) TO FIT THROUGH THE
KEYHOLE SLOT OF PLENUM, THEN TIGHTEN BaCK DOWN.
REMEMBER TO RETaIN THESE FOR FUTURE RE-USE.
+ REFERENCE SaFE ZONE IMaGE IN MaNUaL
(SECTION 4.5) IF UNSURE OF FaSTENER LOCaTIONS.
D. OPEN aND REMOVE FILTER DOOR (ITEM 3)
E. SLIDE FILTER INTO INTaKE DUCT PLENUM (ITEM 3).
F. INSTaLL FILTER DOOR (ITEM 3) OVER FILTER OPENING IN
INTaKE DUCT PLENUM (ITEM 3).
G. aTTaCH 14" DIaMETER ROUND DUCT COLLaR (NOT PRO-
VIDED) TO DUCT aDaPTER FaCE (ITEM 4).

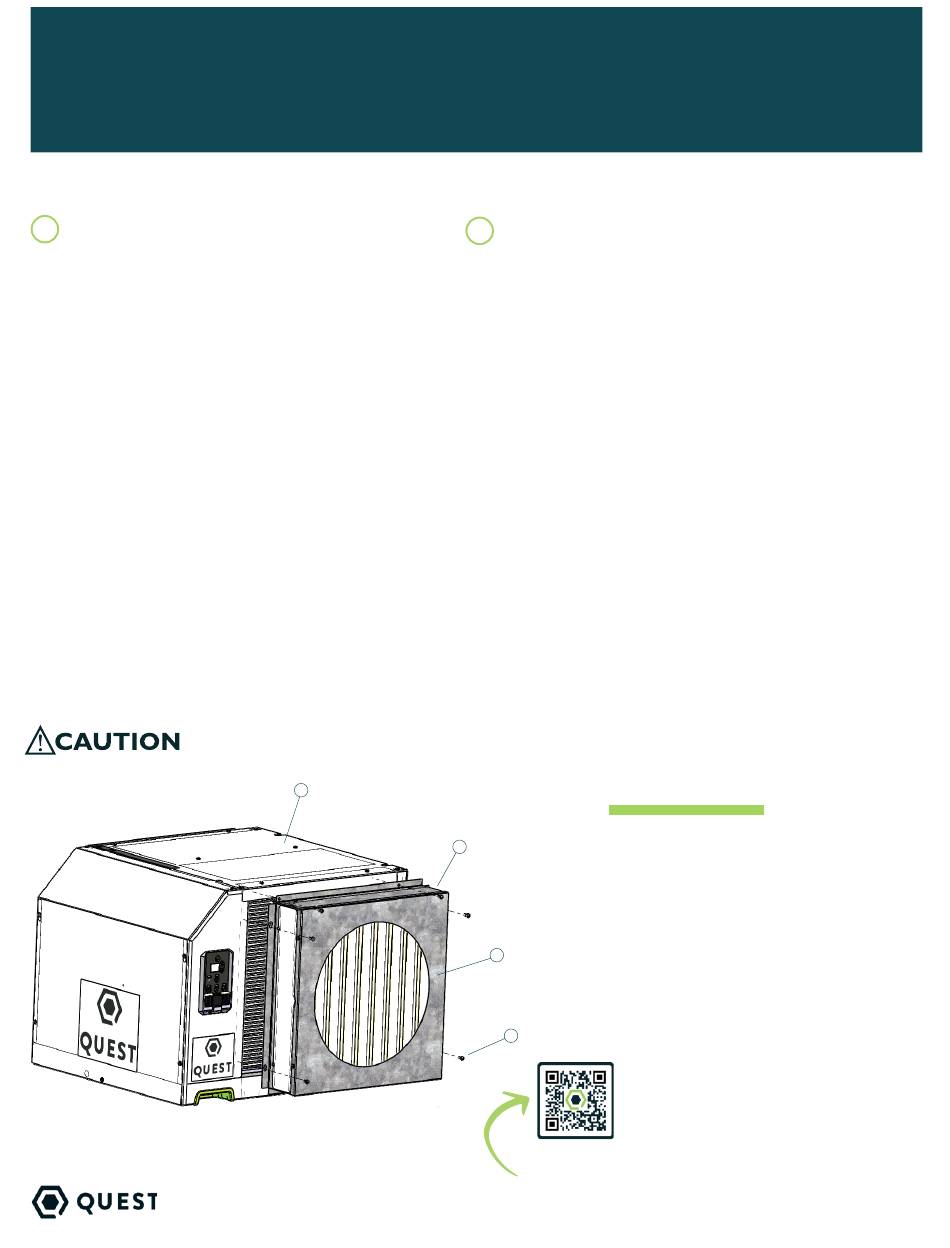

ITEM 1:

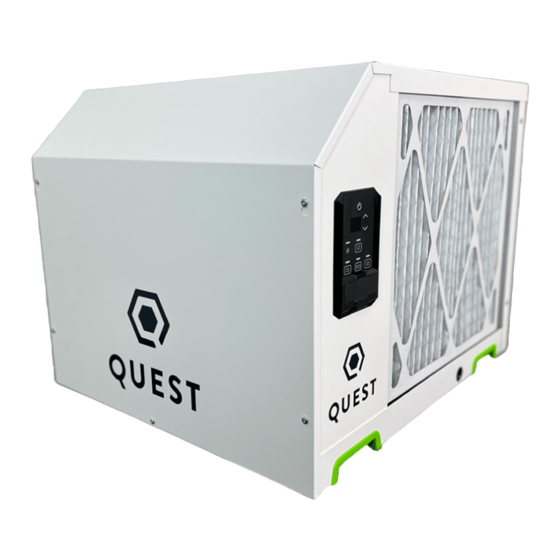

Quest 225 Dehumidifier (not provided)
ITEM 2:
#10-24 Panhead Torx Screws (6)
ITEM 3:
Intake Duct Adapter (1)
ITEM 4:
Duct Adapter Face (1)
4
ITEM 5:
14" Dia. Duct Collar (not provided)*
ITEM 6:
1/8" Drill Bit
2
* Available at any hardware or HVAC store
FOR MORE DETAILS, SCAN
ABOVE FOR THE 225 MANUAL.
1
(not provided)*
05/23 REV B
4
TS-1247
