DRY 150
Quest PowerDry 1300
Installation, Operation and Maintenance Instructions
Installation, Operation and Maintenance Instructions
– Read and Save These Instructions –
– Read and Save These Instructions –
This manual is provided to acquaint you with
the dehumidifier so that installation, operation
and maintenance can proceed successfully.
Ultimate satisfaction depends on the quality
of installation and a thorough understanding
of this equipment. The dehumidifier is built
around tested engineering principles and has
passed a thorough inspection for quality of
workmanship and function.

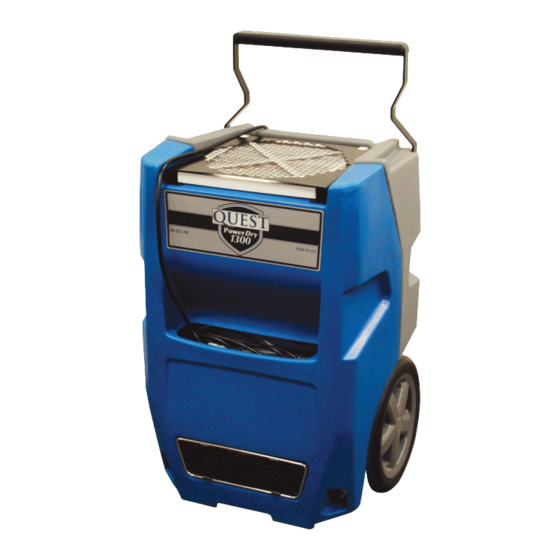

Quest PowerDry 1300:
• Roto-mold design
• 8 Gallons per day at 80ºF/60%RH (AHAM)
• 5.0 amps of power
• 12-inch recessed wheels
• Rotating handle
• Solid state control panel
• Lightweight
• Lighted cord
• Condensate Pump
quest
quest
quest
quest
Specifications subject to change without notice.
Patent 8,938,981
Water Removal Rate (Gallons/Day)
8 Gallons
16 Gallons
4201 Lien Rd
Madison, WI 53704
www.QuestOnTheJob.com sales@QuestOnTheJob.com
1
80˚F, 60%
90°F, 90%
Phone 608-237-8400
Toll-Free 1-866-933-7476
TS-717
02/15
