HermanMiller
Mora
System End Panel Installation and
Disassembly for Recycling Instructions.

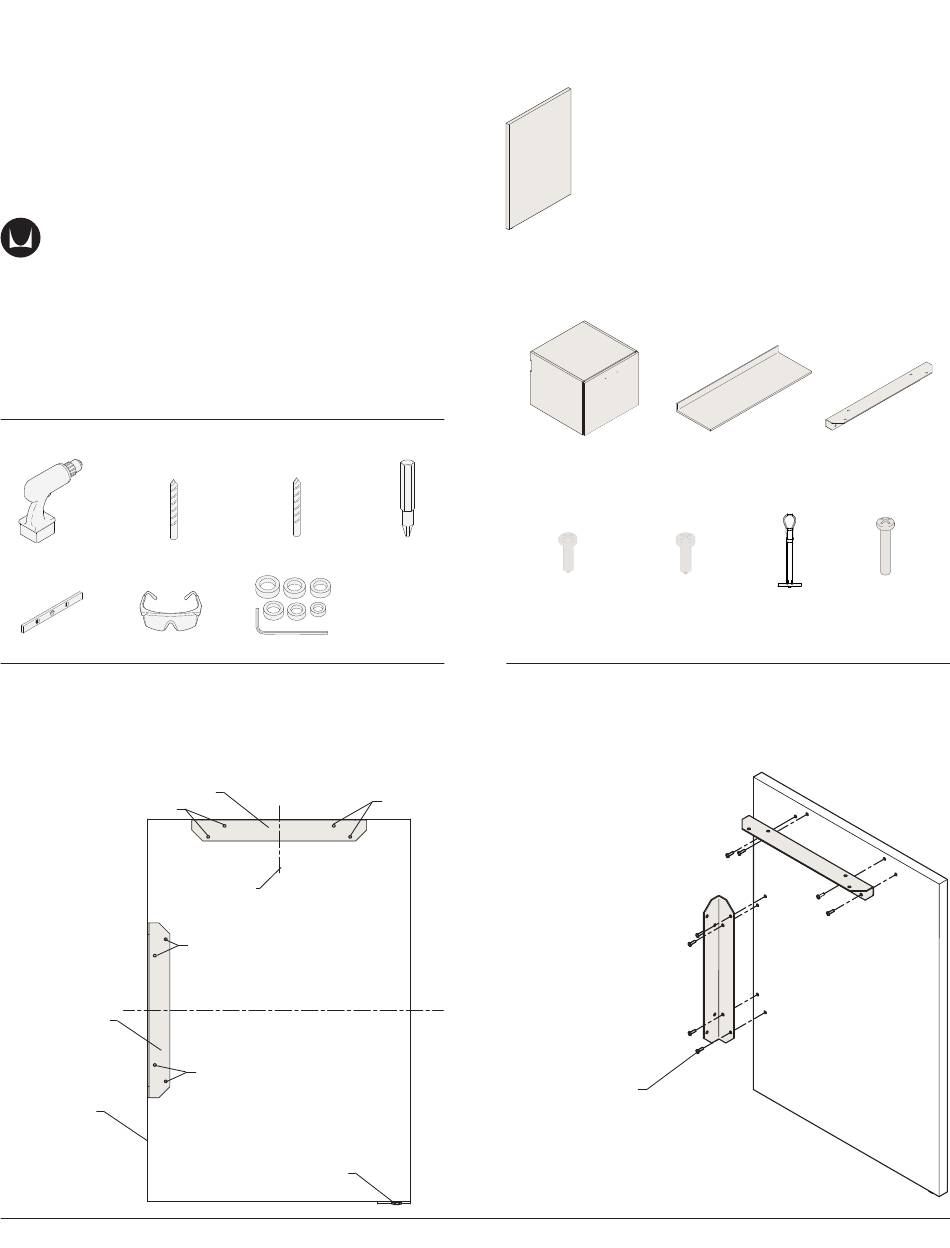

How to assemble your End Bracket.

Tools Required

1/8" Drill Bit
Power Driver
Level
Safety Glass

Step 1

1.1 Position top Wall Cabinet Bracket on back of End Panel, flush with top
edge, vertically centered on panel.
1.2 Position other Wall Cabinet Bracket flush with back edge of panel,
centered on horizontal center.
1.3 Mark holes.
Wall Cabinet Bracket
Mark Holes
Center line of Panel
Wall Cabinet Bracket
Back Edge
HermanMiller for Healthcare
1/2" Drill Bit
Drill Stop Set
Mark Holes
Mark Holes
Glide

Parts Included

End Panel

Additional Products Needed - Sold Seperately

CH200 Series Wall Mounted Cabinet or
CH220 Series To The Floor Cabinet
Phillips Bit
#10-12 x 3/4 Pan Head
Tapping Screws(4)
1.5 Remove brackets. Drill 1/8" pilot holes 5/8" deep. Be careful not to
drill through panel.
1.6 Re-position brackets onto panel. Secure to panel with 4 #10 - 3/4" pan
head tapping screws provided with each bracket.
Mark Holes
Pan Head Tapping Screw
1
Work Surface
#10-12 x 5/8 Pan Head
Toggle Bolt (4)
Tapping Screws(4)
CH646. Surface Wall Attachment Support (2)
1BHWC3 rev B
Wall Cabinet Bracket
#8-32 x 1 Pan Head
Machine Screw(4)
Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mora and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HermanMiller Mora

  • Page 1 1.3 Mark holes. Wall Cabinet Bracket Mark Holes Mark Holes Center line of Panel Mark Holes Wall Cabinet Bracket Mark Holes Pan Head Tapping Screw Back Edge Glide 1BHWC3 rev B HermanMiller for Healthcare Assembly Instructions...
  • Page 2 3.4 Drill 1/2” holes through drywall. Make sure there are no utilities present. 3.5 Insert wall anchors into holes. Orient toggles vertically. Secure to wall. Mark Holes Mark Holes Correct Incorrect Toggle Bolt 1BHWC3 rev B HermanMiller for Healthcare Assembly Instructions...
  • Page 3 4.3 Secure end panel to surface with 4 #10 - 5/8” pan head tapping screws identified using a small magnet for recycling. Non-ferrous metals should be provided with each bracket. separated and recycled separately. To disassemble product, reverse the above installation steps. Tapping Screw Machine Screw 1BHWC3 rev B HermanMiller for Healthcare Assembly Instructions...
