HermanMiller Mora Assembly & Installation

HermanMiller

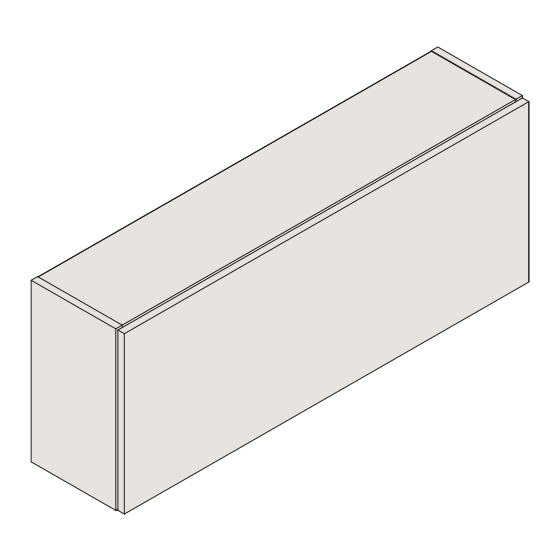

Mora System Soffit Assembly Installation
™
and Disassembly for Recycling Instructions
How to assemble your Soffit Assembly
Tools Required
Drill Bit Phillips Bit
Power Driver
Tape Measure
Stud Finder Level

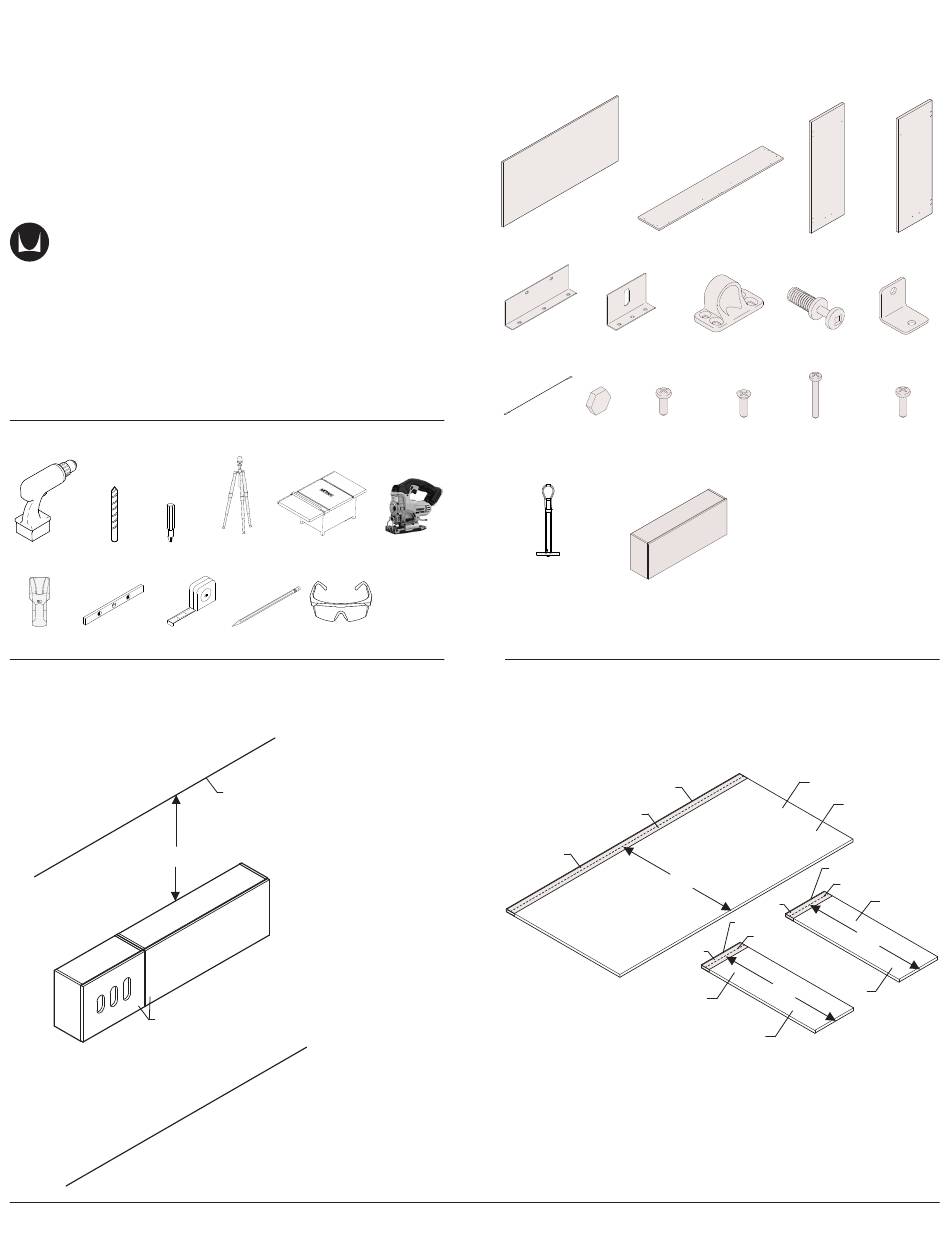

Step 1
1.1 Measure from top of storage unit to ceiling.
Measure
Storage Units
HermanMiller for Healthcare
Laser Level &
Table Saw
Tripod
Safety Glass
Pencil
Ceiling
Parts Included
Front Panel
Side Panel Support
Bracket (2)
Teather Bumper (5) #10-12 x 5/8 Pan
Additional Product Needed - Sold Seperately
Jig Saw
CH105. Toggle Bolts
Note: Please refer to Mora System planning guide for different wall
constructions.
1.2 Mark that dimension on face of Front Panel and Side Panels .
1.3 Place tape over area to be cut to prevent chipout.
1.4 Mark cut line on tape. Cut panels with table saw or jig saw.
Tape
1
Soffit Base
Zero Side Mount (5)
Front Panel Support
Bracket (2)
#8-15 x 5/8 Flat
Head Screw (19)
Head Screw (20)
CH300. Overhead Storage
Top Edge
Cut Line
Measure
Tape
Top Edge
Cut Line
Tape
Measure
Side Panel
Face
1BKN3K rev B
RH Side Panel
LH Side Panel
Zero Side Mount Interlock Bracket
Cleat (2)
Screw (5)
#8-15 x 1 1/4 Pan #10-12 x 3/4 Pan
Head Screw (6) Head Screw (2)
Front Panel
Face
Top Edge
Cut Line
Side Panel
Measure
Face
Assembly Instructions
