Calspas SWIM Owner's Manual page 9

240 Volt Electrical Installation 240 Volt Electrical Installation
Note: These instructions describe the only acceptable electrical wiring procedure. Spas wired in any other
way will void your warranty and may result in serious injury. The electrical circuit must be installed by an
electrical contractor and approved by a local building or electrical inspector. Failure to comply with state
and local codes may result in a fire or personal injury, and will be the sole responsibility of the spa owner.
All 240V spas must be permanently connected (Hard Wired) to the power supply. When installed in the
united states, the electrical wiring of the spa must meet the requirements of the NEC 70 and any applicable
local, state, and federal codes. The power supplied to the spa must be on a dedicated GFCI protected cir-
cuit as required by the NEC 70 with no other appliances to lights sharing the power. Use copper wire with
THHN insulation. DO NOT USE ALUMINUM WIRE. Copper wire must be used for your GFCI circuit, wires that
run over 100 feet must increase the wire gauge to the next lower number. For example: a normal 50 amp
GFCI with four #6 AWG Wire must increase wire gauge size to the next lower number, in this example #6
AWG to #4 AWG if the circuit is longer than 100 feet, would require four #4 AWG copper wires.
Opening the Front Panel For Electrical Access Opening the Front Panel For Electrical Access
Cal Spas are designed with innovative snap in panels and corners. In order to access the control box
for electrical hook up, plumbing, or pumps inside of your spa, you will need to remove the corner
panels and the front panel. The following tutorial is designed to illustrate the process of removing/re-
installing any corner panel, and any side panel.
Caution: Pinch Points.
When snapping panels back into place your
spa, be cautious of your hand position. Avoid
placing your fingers or hands over the edges
of corners or panels, it may result in injury
once panels lock into place.
Before starting, make sure you wear gloves
when removing any panel from your spa.
Note: All images are for illustration purposes only. These instructions describe the procedure to remove
your swim spas cabinet panels. The procedure is similar across our family of spas, the tutorial below
illustrates this procedure on a traditional spa.

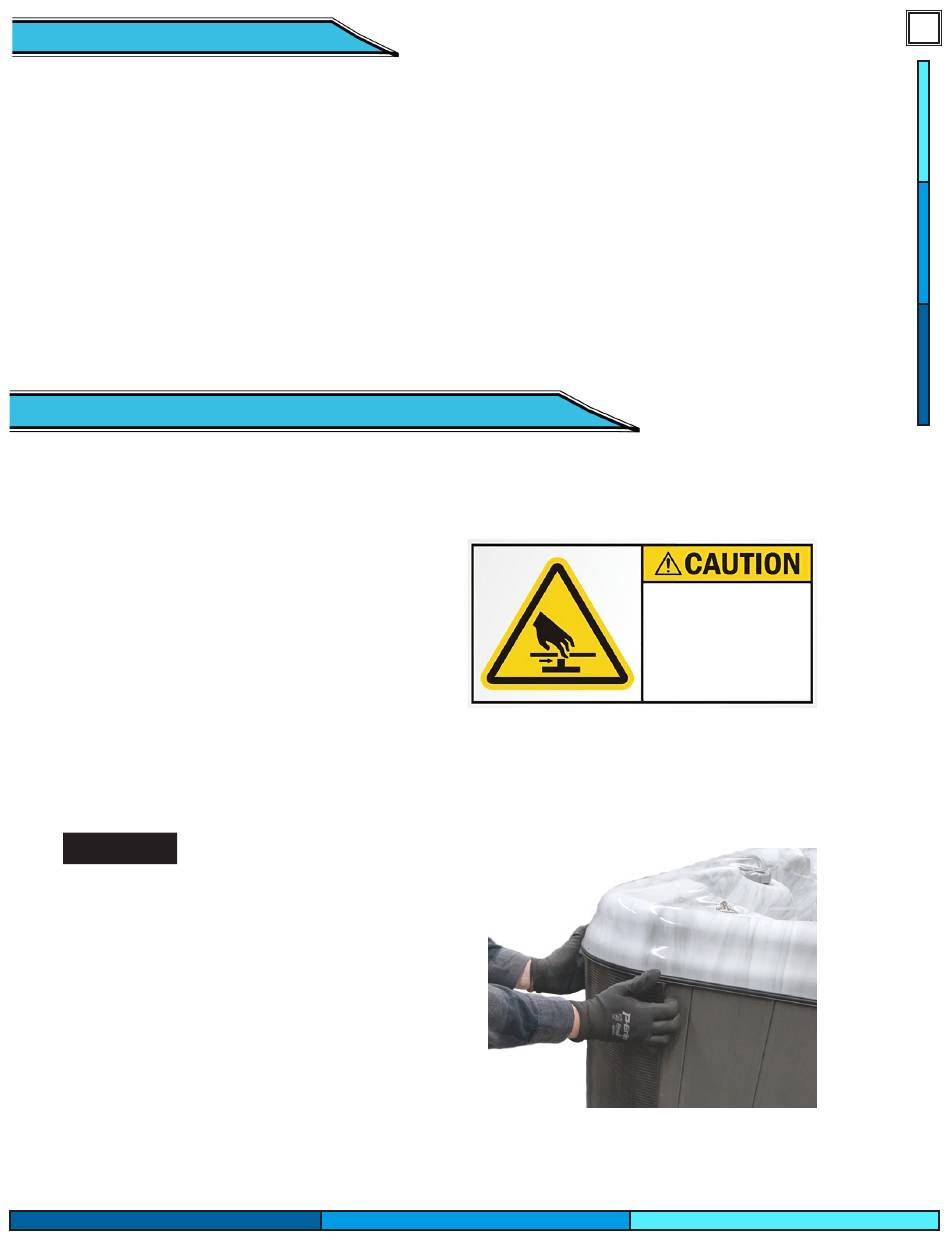

Step 1
In order to remove the front panel, the front
corners of the spa must be removed prior to
removing the front panel.
Start by clasping the corner panels outer lip.
Depending on your height and strength, you
may position your hands lower.
PINCH POINTS.
Keep fingers, hair and
loose garments clear
from edges of spa
panels.
