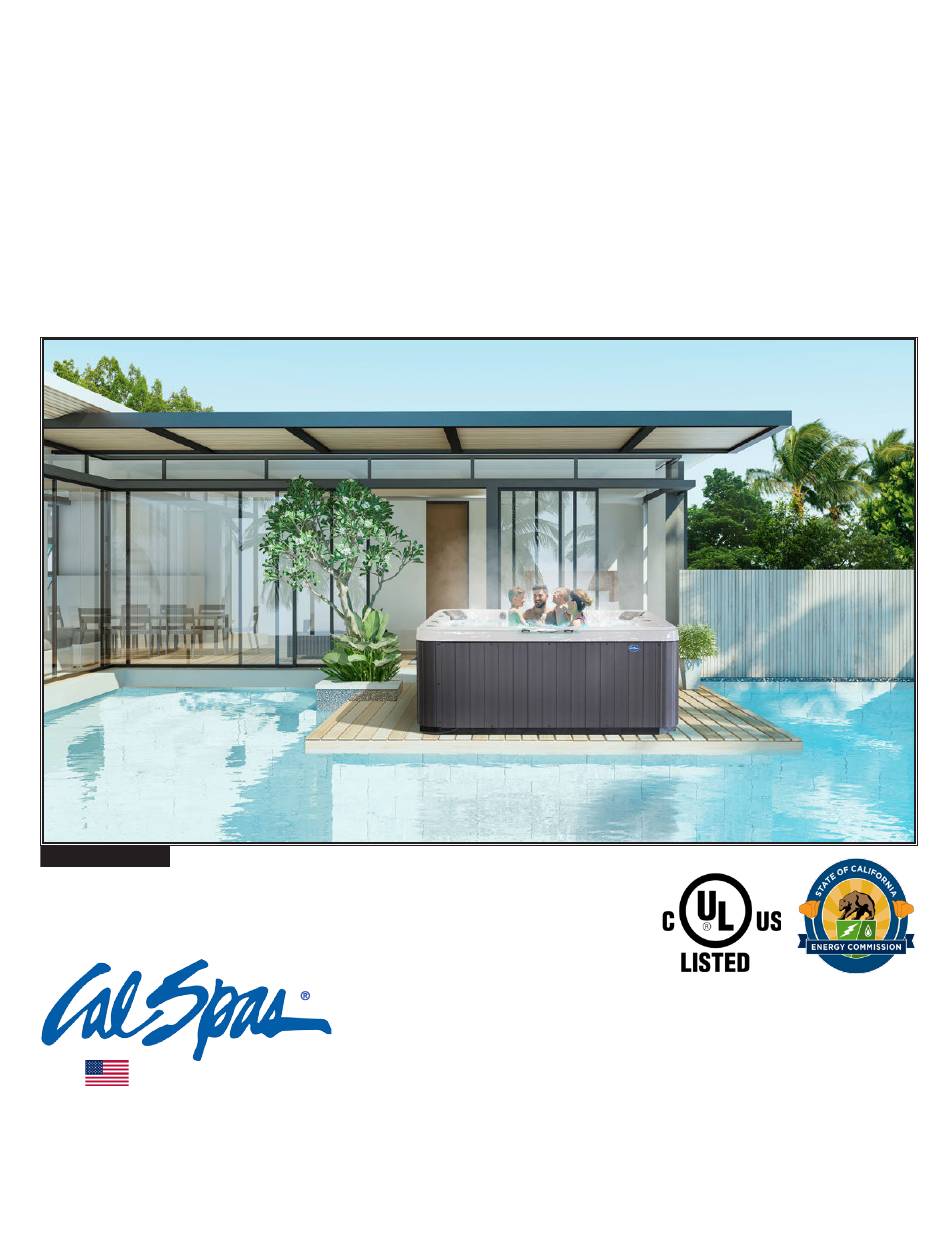

- Page 1 PATIO & PATIO PLUS Patio Plus PPZ-752 LTR20241002 Made in USA Cal Spas Home Resorts ™ Owner’s Manual...
- Page 3 Copyright 2023 Lloyd’s Copyright Lloyd’s Material Supply Inc. 2024 Lloyd’s Copyright Lloyd’s Material Supply Inc. All rights reserved. Duplication without consent is strictly prohibited. LTR2023.1000, REV. F-3 LTR.2024.1002 6/15/2023 8/5/2024 Rev A...
-
Page 4: Table Of Contents
Table of Contents Important Safety Instructions..............Preparing for Your New Spa..................Planning the Best Location................... Clearance for Service Access..................Preparing a Good Foundation..................Front Electrical Access (Standard Panels)..............Front Electrical Access (V-Elite Panels)..............Shipping Material Removal................... 240 Volt Electrical Installation..................GFCI Wiring Requirements &... -
Page 5: Important Safety Instructions
I.IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY! When using installing and using this spa, basic safety precautions should always be followed, including: & DANGER: RISK OF SEVERE INJURY OR DROWNING! • DO NOT allow children to be in or around a spa unless a responsible adult supervises them. •... - Page 6 Do not permit any electric appliance, such as a light, telephone, radio, or television within 5 feet (1.5 m) of a spa.
-
Page 7: Preparing For Your New Spa
Filling and Powering Up your Portable Spa Filling and Powering Up your Portable Spa Pre-Delivery Checklist � Pre-Delivery Checklist � Most cities and counties require permits for Before Delivery Most cities and counties require permits for Before Delivery □ exterior construction and electrical circuits. □... -
Page 8: Clearance For Service Access
Clearance for Service Access Clearance for Service Access 3 feet / 1 meter 3 feet / 1 meter 3 feet / 3 feet / 3 feet / 3 feet / 1 meter 1 meter 1 meter 1 meter 3 feet / 1 meter 3 feet / 1 meter Preparing a Good Foundation Preparing a Good Foundation... -
Page 9: Front Electrical Access (Standard Panels)
Opening the Front Door Panel (Traditional) Opening the Front Door Panel (Traditional) panel. -
Page 10: Front Electrical Access (V-Elite Panels)
Opening the Front Door Panel (V-Elite Panel) Opening the Front Door Panel (V-Elite Panel) Some Cal Spa models have an add on option of unique V Elite panels. Each side panel is made of removable segments, and require different steps to open. When removing the front panel, or any of your side panels, its necessary to remove the corners of the spa as well. -
Page 11: Shipping Material Removal
Removing Shipping Materials Your Cal Spa is wrapped with a white shrink wrap designed to protect the acrylic shell from scratches and damage. Thoroughly inspect the plastic wrapping for any tears and or damage that may have occurred during shipping. It is expected to see some scuffs or small tears at the base and corners of the spa, as the spa is pushed and shifted around in transport. -
Page 12: 240 Volt Electrical Installation
a Model Control System GFCI Breaker Wires required Wiring Diagram 519L / PZ-535L / BP-501G1 110 Volts / 15 Amps Cord with 15 Amp GFCI See page 9 for reference See page 11 for Spa Model Control System GFCI Breaker Wires required Wiring Diagram 636L... - Page 13 GFCI Wiring Diagram (Balboa) GFCI Breaker Box GFCI (Bottom View) Front ViewofGFCI � � � � ...J � � � � � � System Box House Breaker Box (HOT) GROUND TERMINAL BLOCK (ATTACHED TO OUTSIDE OF SYSTEM BOX) � GREEN (GROUND) �...
-
Page 14: 120 Volt Installation Information
Always follow applicable local, state and federal codes and guidelines. Use only a dedicated electrical line with a 15 amp breaker. Cord-and-plug connections may not use a cord longer than 15 feet (4.6 m) and must be plugged into a dedicated 15 amp GFCI connection (NEC 680.42(A)(2)). Do not use extension cords! Always use a weatherproof-covered receptacle. -
Page 15: Filling & Powering Up The Spa
Filling and Powering Up your Portable Spa Filling and Powering Up your Portable Spa Step 1. Inspect the Spa Equipment. Inspect all plumbing connections in the equipment area of your spa. • Make sure unions connected to the equipment pack are tight (do not over-tighten) •... - Page 16 Step 3. Fill the Spa Place the water hose inside the filter canister. Fill your spa with regular tap water about six inches from the top. If the water level is too low or too high, your spa will not operate correctly. NOTE: Never fill with soft water.
- Page 17 Step 6. Install filter into the filter canister Note: Make sure you have removed and soaked the spa filter cartridge in a bucket of water for at least 30 minutes. This will remove air pockets inside of the filter. When re installing the filter cartridge, do not over tighten the filter, the threaded bit inside of the filter housing is made of a corrosion resistant ABS plastic.
-
Page 18: Priming The Pumps/ Air Lock Bleeding
Priming the Pump Priming the Pump New owners often have difficulty the first time they start their spa and the pumps fail to prime. This can be frustrating but these instructions should help you resolve any issues with air pockets inside of the primary pump or other priming issues. -
Page 19: Spatouch Control Panel
SpaTouch Control Panel SpaTouch Control Panel SpaTouch Icons and Navigation SpaTouch Icons and Navigation Changing Languages Changing Languages... - Page 20 Changing Languages Changing Languages...
-
Page 34: Water Features Jets, Led Lighting & Diverters
Jets Jets Almost all of the jets in your spa are adjustable. Rotating the jet face clock- wise will increase water pressure, and counter clockwise to reduce pressure on that specific jet. Neck jets are the opposite, with clockwise movement to decrease force, counter clockwise to increase. -
Page 35: Air Venturis, Waterfalls, And Cooler Seat
Optional Feature Cool Off Seat Cool Off Seat The cool off seat is designed in some Cal Spa models. The seat is designed to help cool down spa users that are using their spa in higher therapeutic water temperatures. This helps in avoiding the negative effects of hyperthermia (Overheating of the body). -
Page 36: The Four Steps Of Water Clarity
see page 13 learn how to balance your spa water. learn how to use sanitizer and shock. learn how to balance your spa water. learn how to use sanitizer and shock. -
Page 39: Balancing Water Chemistry Levels
TA too high Add an alkalinity pH will be too high decreaser to stabilize pH Ideal TA balance balance TA too low Add an alkalinity increaser wildly CH too high Dilute the spa Causes scale to with soft water deposit on spa and equipment Ideal CH balance balance... -
Page 40: Sanitation & Shock
pH too high Add a pH Too alkaline, causes decreaser scaling Ideal pH balance balance pH too low Add a pH increaser Too acidic, causes corrosion... - Page 42 cleaner to the bucket of water.
-
Page 43: Balancing Water Chemistry & Generic Names
Each time you refill the spa... -
Page 49: Draining The Spa/Winterization And Vacation Care
/ Optional Feature / Optional Feature / Optional Feature (Optional Feature) -
Page 53: Cleaning The Spa
Note: *A combination of letters and numbers will follow after Aquatic-AV the “AquaticAV” name* Aquatic-AV Aquatic-AV... Aquatic-AV... Aquatic-AV... -
Page 57: Wifi Set Up (Option)
BALBOA WATER GROUP Setting up The CalConnect Wifi Module Setting up The CalConnect Wifi Module BWA APP FOR IOS & ANDROID DEVICES Access Your spa through a direct connection, local wifi, or bwa™ for Android™ bwa™ for iOS® through the cloud to monitor you spa when you are away. This guide will show you how to. - Page 58 BALBOA WATER GROUP BWA APP FOR IOS & ANDROID DEVICES INITIAL SETUP 1. O 2. Pr 1. O 2. Pr 3. Yo 3. Yo 4. Th 4. Th 5. Te 5. Te 5- Launch the BWA app and select initial set up. 6- Once selected follow the steps presented to you within the app, it will attempt to communicate with the module to establish its first initial connection.
- Page 59 BALBOA WATER GROUP BWA APP FOR IOS & ANDROID DEVICES LOCAL CONNECT 9- Once there is confirmation that the app communicates to the spa select the setting icon in the top right corner. 10- Select under settings the “Wifi”option. 11- Enter your home wifi’s network information to begin pairing the spa to the home network.
- Page 60 BALBOA WATER GROUP BWA APP FOR IOS & ANDROID DEVICES LOCAL CONNECT (continue) 13- If you have successfully entered your home wifi network information, you will get a prompt to leave the device running for a few minutes. The spas wifi module is now attempting to pair with your home wifi.
- Page 61 BALBOA WATER GROUP BWA APP FOR IOS & ANDROID DEVICES CLOUD CONNECT 1. While in LOCAL CONNECT, press the MENU button and then “CLOUD CONNECT” 1- Select the Menu option on the top center of the app. 2. Press “Account Setup” and then “CREATE ACCOUNT” 2- Select Cloud Connect, the app will prompt you to a log in screen.
- Page 63 PLUCS2295201S PLUCS2295181S Used by: Patio, Patio+, Inground Spas Used by: Patio, Patio+, Inground Spas 2” Neck Jet Directional PLUCS2295141S PLU29923-014-000 Patio, Patio+, Inground Spas Patio, Patio+, Inground Spas PST 5” Power Storm Wagon Wheel PLUCS2295191S Used by: Patio, Patio+, Inground Spas...
- Page 64 Replacement P Black “Y” Pillow Carbon Fiber Design S-01-4324 ACC01401102 PILLOWS Black Cascade Pillow Carbon Fiber Design S-01-4325 ACC01401103 2"CKV ARTRIDGE Black “Y” Pillow Carbon Fiber Design S-01-4324 DYNA-FLO PLUS FILTER, 75SF 2"CKV ACC01401102 4SCLP; HIGH VOLUME; LESS CARTRIDGE Part # FIL510-9559-CDCL TELEWEIR FILTER, 50SF 2"CKV 6SCLP LESS CARTRIDGE 2-TONE CDG/HLG...
- Page 65 LIT16100337 LIT16100337 LIT630-7048 LIT630-7048...
- Page 66 Additional Parts 50 Sq Ft Filter Housing 50 Sq Ft Filter Housing Grey Part#:FIL11700007LC Part#: FIL517-4609-CDHL (Spas built after 6/2024) (Spas built after 6/2024)
- Page 67 This Page is Intentionally Blank...
-
Page 68: Warranty Information
United States of America and Canada. This warranty begins on the date of delivery of the spa, but in no event later than one year from the date of manufacture. Patio Plus: 752L & 752B Warrantied against blistering, cracking, or delaminating of the interior spa shell. - Page 69 In the event that the spa is removed to a repair facility for repair and reinstalled, the cost of removal and In the event that the spa is removed to a repair facility for repair and reinstalled, the cost of removal and reinstalla- re-installation will be your responsibility as the spa owner.
- Page 72 Lloyd’s Material Supply Company, Inc. LTR.2023.1000, REV. G-3 10/11/2023 LTR.2024.1002 8/5/2024 Rev A...
